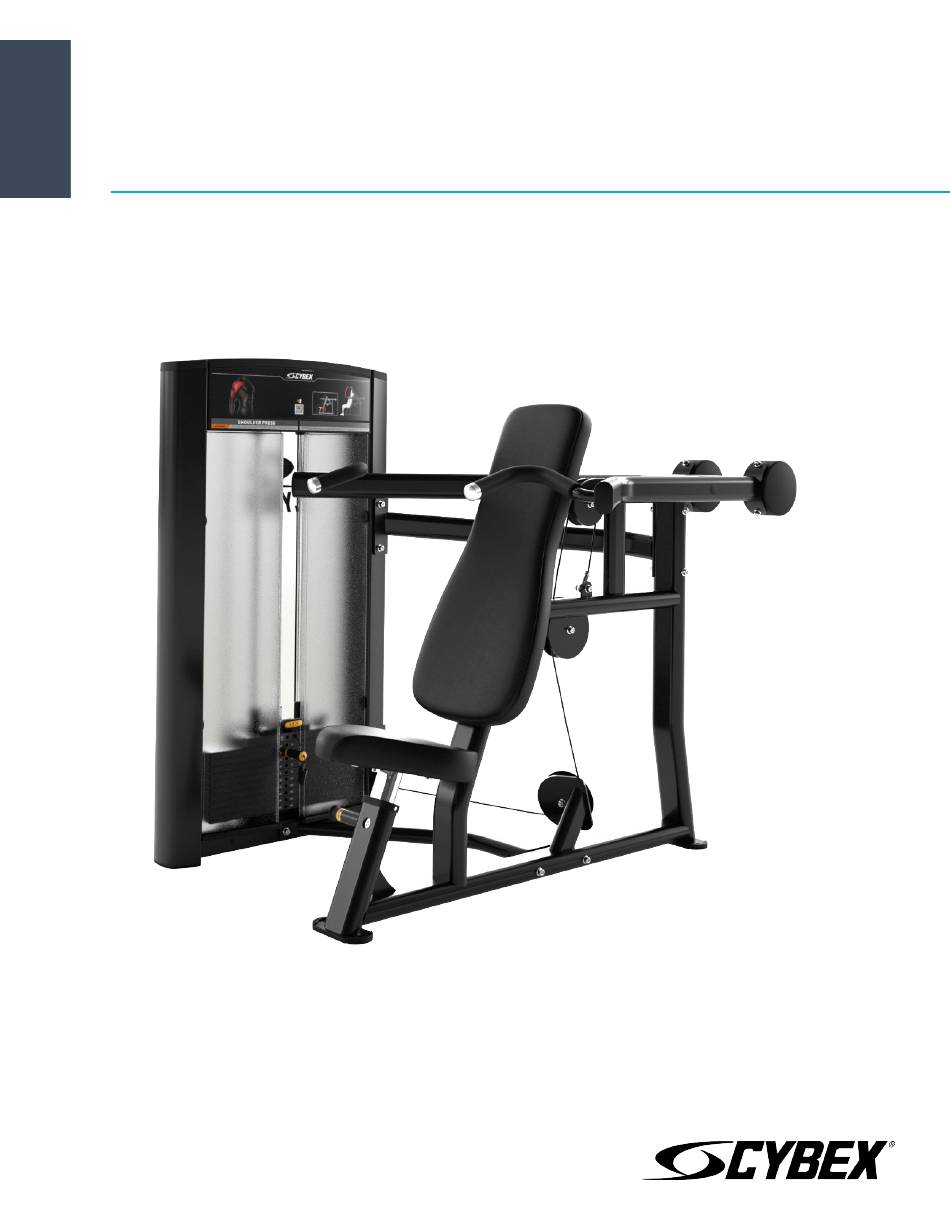

- Page 1 Ion Series Shoulder Press Assembly Instructions CI-SP Part Number 1017126-0001 AA...
- Page 3 Corporate Headquarters Columbia Centre III, 9525 Bryn Mawr Avenue, Rosemont, Illinois 60018 • U.S.A. 847.288.3300 • FAX: 847.288.3703 Service phone number: 800.351.3737 (toll-free within U.S.A., Canada) Global Website: www.lifefitness.com International Offices AMERICAS United Kingdom All Other EMEA Countries and Distributor Business EMEA* North America Life Fitness UK LTD...
- Page 4 User and Service Documents Link https://lifefitness9512.zendesk.com/hc/en-us https://www.lftechsupport.com/web/document-library/documents Additional information is available online using the links above. أ علاه إل ر إبط باستخدإم إ لإ ن تر نت على إضافية معلومات تتوفر 点击上面的链接可在线获取更多信息。 Flere oplysninger er tilgængelige online gennem linket ovenfor. Bijkomende informatie is online beschikbaar via bovenstaande link.
-
Page 5: Table Of Contents
© Copyright 2021, Life Fitness, LLC. All Rights Reserved. Life Fitness, Hammer Strength, Cybex, ICG and SCIFIT are registered trademarks of Life Fitness, LLC and its affiliated companies and subsidiaries. Brunswick and related trademarks used under license from Brunswick Corporation. Disclaimer: Images and specifications are current as of the date of publication and are subject to change. -
Page 6: Safety Information
Safety Safety Information It is the sole responsibility of the purchaser of Life Fitness Family of Brands products to read the owner’s manual and warning labels and instruct all individuals, whether they are the end user or supervising personnel, on proper usage of the equipment. UNDERSTANDING EACH AND EVERY WARNING TO THE FULLEST IS IMPORTANT. -
Page 7: Product Labels
• Before use, examine all accessories approved for use with the Life Fitness Family of Brands equipment for damage or wear. Selectorized • Use only weight selector pins supplied by seller on weight stacks. Substitutes are forbidden. • Fully insert weight selector pins. Partial insertion can cause weights to fall unexpectedly. •... -
Page 8: Label Locations
Label Locations Item Description Qty. Multilingual Label with General Warning Serial Number Pinch Hazard Page 6 of 34... -
Page 9: Assembly
Assembly Component and Hardware List Tower Components Item Description Qty. Tower Frame Guide Rod Increment Weight Guide Rod Rear Shroud Label, Weight Stack Tube Cap Top Cap Tower Hardware Kit Item Description Qty. Tower Hardware Kit Hole Plug, 8.7 mm Hole Plug, ½"... - Page 10 Tower Hardware Kit Front Shroud Kit Components Item Description Qty. Front Shroud, Left Front Shroud, Right Bottom Cap Front Shroud Kit Hardware Kit Item Description Qty. Front Shroud Hardware Kit Screw, M4.2 x 0.7, Phillips Screw, M10 x 1.5, 20mm Washer, Flat 3/8"...
- Page 11 Components Item Description Qty. Main Frame Bottom Cross Brace Top Cross Brace Work Arm Assembly Seat Post Assembly Seat Pad Back Pad Counter Weight Cable Lower Pulley Assembly Pivot Shaft Long Spacer Ball Bearing Front Cap Head Plate Assembly Increment Weight Assembly Multilingual Label Sheet Weight Stack (Weight Plates)
-
Page 12: Tools Required
Item Description Qty. Short Spacer Increment Weight Cap, LBS (7.5) Increment Weight Cap, KG (3.75) Hardware Kit Tools Required • 7/16" Wrench • 10 mm Wrench • 17 mm Wrench • 24 mm Wrench • 7 mm Allen wrench • 8 mm Allen wrench •... -
Page 13: Assembly Procedure
Assembly Procedure Assemble Frame Components 1. Install screws, washers, and locknuts securing the bottom cross brace to the main frame using an 8mm Allen wrench and a 17mm wrench. Item Description Qty. Bottom Cross Brace Main Frame Screw, M10 x 1.5, 120mm Washer, Flat 3/8"... - Page 14 4. Install screws, washers, and locknuts securing the tower to the bottom cross brace using an 8mm Allen wrench and a 17mm wrench. Item Description Qty. Tower Frame Bottom Cross Brace Nut, M10 x 1.5, Hex Nylock Washer, Flat 3/8" Screw, M10 x 1.5, 110mm Hole Plug, ½"...
- Page 15 5. Install screws and washers securing the counter weights to the work arm assembly using an 8mm Allen wrench. Item Description Qty. Counter Weight Work Arm Assembly Washer, Flat 3/8" Screw, M10 x 1.5, 25mm Tighten hardware to 14-16 ft-lb (19-21.7 Nm). Install Seat 1.
- Page 16 Assemble Tower 1. Install the increment weight bumper to the bottom plate of the tower frame. Item Description Qty. Increment Weight Bumper Tower Frame 2. Slide increment weight guide rods through the top of the tower frame and down through the clips in the increment weight. Place increment weight guide rods into holes at the bottom plate of the tower frame.
- Page 17 3. Thread increment weight guide rods into the bottom plate of the tower frame. Tighten using a crescent wrench. Item Description Qty. Increment Weight Guide Rod 4. Install nuts and washers securing the increment weight guide rods to the top plate of the tower frame using a 7/16" wrench. Item Description Qty.
- Page 18 6. Install screws, washers, spacers, and nuts securing the pulleys to the top of the tower frame using an 8mm Allen wrench and a 17mm wrench. NOTE: Make sure the spacers are centered and inside the tube wall. Item Description Qty.
- Page 19 8. Starting at the top, press the shroud retainers into the rear shroud securing it to the tower frame. Item Description Qty. Shroud Retainer Rear Shroud 9. Install screws and washers securing the bottom cap to the bottom of the tower frame using an 8mm Allen wrench. Item Description Qty.
- Page 20 10. Install screws and shroud retainer grommets into the side tubes of the tower frame using a Phillips screwdriver. Item Description Qty. Grommet, Shroud Retainer Screw, M4.2 x 0.7, Phillips Tighten hardware to 10-13 in-lb (1.1-1.5 Nm). 11. Slide weight stack cushions onto the guide rods. 12.
- Page 21 13. Lean guide rods outwards and slide weight stack down guide rods onto weight stack cushions. Slide head plate assembly down guide rods and onto weight stack. Item Description Qty. Guide Rod Housing Spring Guide Rod Head Plate Assembly Weight Stack (Weight Plates) (10) 14.
- Page 22 16. Thread cable end through the jam nut and into the head plate bayonet. See Cable Handling Guide for details. Item Description Qty. Cable Nut, M16 Hex Jam Head Plate Bayonet NOTE: Check proper thread engagement. To do so, attempt to pass a 7mm Allen wrench through the portal in the head plate bayonet.
- Page 23 20. Slide the carriage bolt to the end of the slot in the lower pulley assembly using a 17mm wrench. Item Description Qty. Carriage Bolt, M10 x 1.5, 50mm Tighten hardware to 20-25 ft-lb (27.1-33.9 Nm). 21. Install screws and washers securing the lower pulley assembly to the tower frame using an 8mm Allen wrench. Item Description Qty.
- Page 24 23. Thread cable end through the jam nut and into the rod end bearing a minimum of 12mm. Item Description Qty. Rod End Bearing Jam Nut, M10 Cable 24. Install screw, washers, and locknut securing the bushing and rod bearing end to the main frame using an 8mm Allen wrench. Item Description Qty.
- Page 25 2. Install screws securing the front cap to the tower frame using a 10 mm socket wrench and ratchet. NOTE: Screw heads can be accessed from the top or bottom. Item Description Qty. Front Cap Screw, M6, HCS, 50 mm Tighten hardware to 10-13 in-lb (1.1-1.5 Nm).
- Page 26 Install Back Pad 1. Install screws and washers securing the back pad to the main frame using an 8mm Allen wrench. Item Description Qty. Back Pad Screw, M10 x 1.5, 30mm Washer, Flat 3/8" Hole Plug, 1" Tighten hardware to 40-50 in-lb (4.5-5.6 Nm). 2.
-
Page 27: Product Information
Product Information Specifications Machine Weight: 484 lbs. 220 kg. Size (L x W x H): in. = 61 x 55 x 53 cm = 155 x 140 x 135 Live Area (L x W x H): in. = 97 x 67 x 77 cm = 246 x 170 x 196 Max User Weight: 300 lbs. -
Page 28: Cable Handling Guide
WARNING: Use of non certified “techs” note: Service warranties may be void if a non-Cybex-certified technician performs service work. Replacement of any strength cables should be performed by a Cybex certified technician. -
Page 29: Tensioning Cable
Tensioning Cable Cable should have enough tension so it stays seated into the pulley but not so tight that it pulls the head plate off the weight plate below it. 1. If the head plate has lifted, loosen the jam nuts at the terminations and loosen the threaded plugs a half turn until the head plate comes to rest on the weight plate below. -
Page 30: Strength Cable Wear Guide
Strength Cable Wear Guide Replace cable at first sign of any of the following: FRACTURES: Casing can crack or fracture under strains during use. Any crack in the casing merits cable replacement even if no wire rope is exposed. Be especially observant for fractures near the components on the cable assembly - IE. -
Page 31: Bolt To Floor Guide
Competitor Product The bolt down guidelines and procedures for Cybex products were determined by the company’s Engineering and Installation Development groups. These guidelines include which anchors to use and positioning of the anchors are required for Cybex product. • Cybex does not have that level of specification or engineering input for competitive product. -
Page 32: Anchor Types
3000psi (20 N/mm2) anchor length Pullout Force Cybex specifies Hilti static and dynamic anchors. According to the anchor manufacturer, the recommended design pullout force (in ™ tension) for the specified anchors, when properly installed in cracked concrete, is provided in the side table. This table should be used for reference only;... -
Page 33: Static Anchor Procedure
Static Anchor Procedure CAUTION: If it is possible that the length of your bolt will not provide the minimum requirement of 2.5” (63.5mm) of engagement, a longer anchor should be used. 1. Place unit into position to be mounted and cycle unit to set stance. 2. -
Page 34: Foot Dimensions
Foot Dimensions Use below image to determine foot specifications. Page 32 of 34... - Page 36 Columbia Center III - 9525 Bryn Mawr Ave, Rosemont, IL 60018 • 800-351-3737 • 847-288-3700 • FAX 800-216-8893 www.cybexintl.com...
