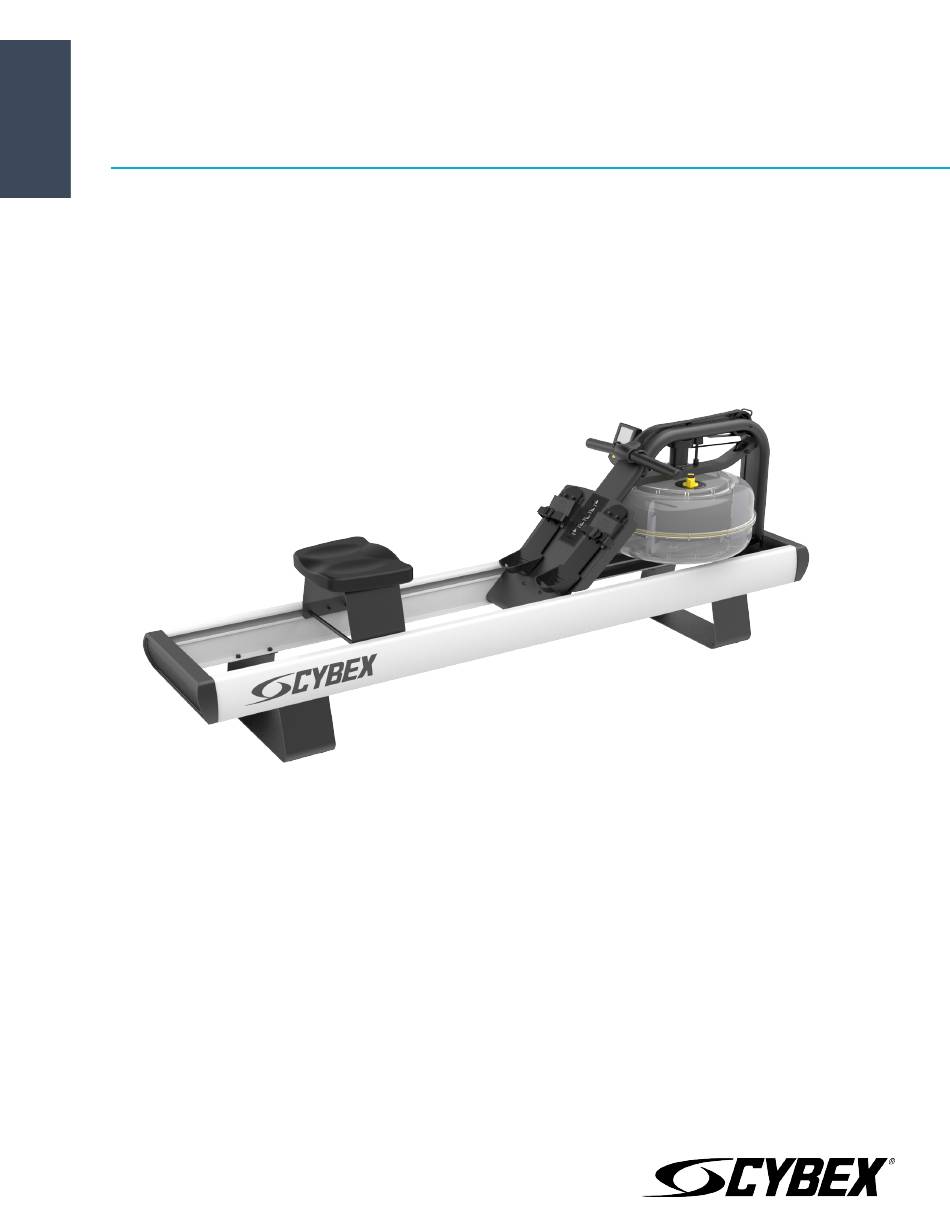

- Page 1 Cybex Hydro Rower Pro Owner's Manual Part Number 1006990-0001 AB...
-
Page 3: Table Of Contents
Cybex logo are registered trademarks of Cybex International, Inc. DISCLAIMER: Cybex International, Inc. makes no representations or warranties regarding the contents of this manual. We reserve the right to revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or changes. -
Page 4: Safety Instructions
• It is recommended that all users of Cybex exercise equipment be informed of the following information prior to use. • As with any piece of fitness equipment, consult a physician before beginning your Cybex Hydro Rower Pro exercise program. - Page 5 • For more detailed rowing techniques, please refer to our International website www.cybexintl.com. • DO NOT use or permit use of any equipment that is damaged and/or has worn or broken parts. For all Cybex equipment use only replacement parts supplied by Cybex.
-
Page 6: Warnings And Cautions
Caution labels indicate a potentially hazardous situation that could result in serious injury or damage to machine if the precautions are not observed. Contact Cybex Customer Service to replace any worn or damaged labels. Label Placement 1006735-0001 Label, Warning, Row. -
Page 7: Assembly
Assembly Specifications - Hydro Rower Pro Cybex Hydro Rower Pro is not suitable for therapeutic purposes. Product Class Braking System Speed Independent Product Gross Weight 121.25 lb (55 kg), without water Max User Weight 330 lb (150 kg) Minimum Safe Operating Surface Area 131.09”... -
Page 8: Contents
Contents Item Quantity Description Main Assembly Rail Assembly (Left/Right) Seat Seat Frame Front Leg Assembly Rear Leg Assembly Frame Bumper Front End Cap Rear End Cap (with rubber pads) M8 Nut M6 Washer M8 Washer M5 x 30 mm Bolt M6 x 10 mm Bolt M6 x 20 mm Bolt M8 x 20 mm Bolt... -
Page 9: Assembly Procedure
Item Quantity Description 13 mm Hex Wrench AA Batteries Water Treatment Tablet Siphon Assembly Manual Notice: Front and rear end cap are different. Rear end cap has rubber pads on inner plate. Assembly Procedure Item Qty. Description Rail Assembly (Left/Right) Front Leg Assembly Rear Leg Assembly M8 Nut... - Page 10 Item Qty. Description Rail Assembly (Left/Right) Front End Cap M6 Washer M6 x 10 mm Bolt Item Qty. Description Main Assembly Rail Assembly (Left/Right) M8 Nut M8 Washer M8 x 20 mm Bolt Item Qty. Description Frame Bumper M5 x 30 mm Bolt Page 10 of 25...
- Page 11 Item Qty. Description Seat Seat Frame M6 Washer M6 x 20 mm Bolt Item Qty. Description Rail Assembly (Left/Right) Rear End Cap (with rubber pads) M6 Washer M6 x 10 mm Bolt Page 11 of 25...
- Page 12 Item Qty. Add Water Siphon 4.5 GALLONS (17 LITERS) Page 12 of 25...
- Page 13 Item Qty. Description Water Treatment Tablet Page 13 of 25...
-
Page 14: Vertical Storage Stand Instructions
Vertical Storage Stand Instructions 7 FT-LBS (9.5Nm) 13 FT-LBS (17.6Nm) Page 14 of 25... -
Page 15: Tank Filling
Note: Where water quality is known to be poor, Cybex recommends the use of distilled water. 3. Move the adjuster knob to the plus sign (+), and begin filling. Note: The siphon valve must be closed to allow siphoning action to occur. -
Page 16: Operation
Operation Computer Instructions TIME: Auto start elapsed time. 500M TIME: Time to row 500 meters, updated at the completion of each stroke. PULSE: Requires optional receiver and chest strap (sold separately). SPM: Strokes per minute updated each stroke. CAL HOUR: Updated each stroke. LEVEL UP/ DOWN: Use the LEVEL UP/DOWN buttons in conjunction with the Fluid Tank Resistance Adjuster Handle for accurate 500M/Distance/CAL/WATTS. -
Page 17: Slider Footplate
Slider Footplate Description Qty. Mounting pegs Footstrap Slide The Slider Footplate is designed to fit a wide range of foot sizes, and is very simple to use. To adjust, lift the top of the sliding portion of the footplate and slide up or down. The numbers 1-6 represent a guideline from which the proper length can be determined. -
Page 18: How To Row
Vertical Storage The Cybex Hydro Rower Pro can be stored in a vertical, upright position with use of the vertical storage stand specified for this machine and with water in the tank. For safety, store on level ground in a suitable location, such as a corner of a room. -
Page 19: Maintenance
Do not use any water treatment other than the tablets supplied with this rower. For replacement tablets, contact Cybex Customer Service. Water treatment schedules for the Cybex Hydro Rower Pro will vary according to the fluid tanks exposure to sunlight, but expect 8-12 months near a bright, sunlit window and 2 years or more for a darker location. -
Page 20: Troubleshooting
(see erratic computer display). fails to address the problem. The Hydro Rower Pro computer Reinstall batteries in correct position and try again. If the LCD screen Batteries installed incorrectly or does not illuminate after battery fails to illuminate, try rotating the batteries slightly in the computer. -
Page 21: Customer Service
To speak with a customer service representative, call 800-351-3737 (for customers living within the USA) or 847-288-3700 (for customers outside the USA). The following information located on the serial number decal will assist our Cybex representatives in serving you. • Unit Serial Number, Product Name and Model Number •... -
Page 22: Damaged Parts
Provide the model and serial number of your Cybex equipment. At Cybex’s discretion, the technician may request that you return the problem part(s) to Cybex for evaluation and repair or replacement. The technician will assign you a RMA number and will send you an ARS label. The ARS label and the RMA numbers must be clearly displayed on the outside of the package that contains the item(s) to be returned. -
Page 23: Warranty
Product’s location, alterations or modifications without our written authorization or by failure on your part to use, operate and maintain the Cybex Hydro Rower Pro as set out in your Owner’s Manual (“Manual”). All terms of this warranty are void if this Product is moved beyond the continental borders of the United States of America (excluding Alaska, Hawaii and Canada) and are then subject to the terms provided by that country’s local authorized Cybex Representative. -
Page 24: How To Get Parts And Service
Cybex Hydro Rower Pro. Some states do not allow the exclusion or limitation of implied warranties or of liability for incidental or consequential damages, so the above limitations or exclusions may not apply to you. - Page 25 Columbia Center III - 9525 West Bryn Mawr Ave, Rosemont, IL 60018 • 800-351-3737 • 847-288-3700 • FAX 800-216-8893 www.cybexintl.com...
