USE AND CARE GUIDE

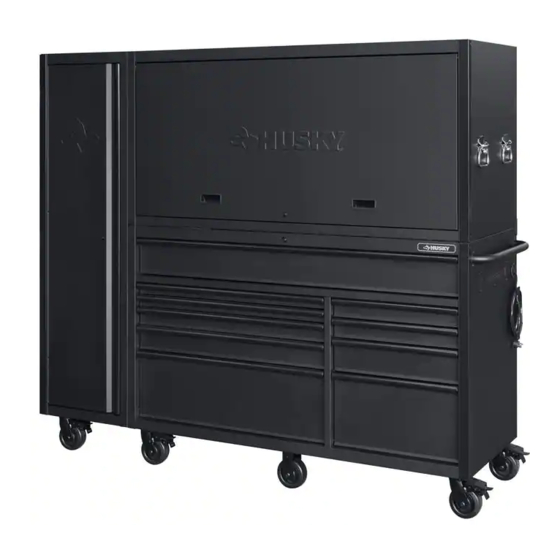

80 IN. 10-DRAWER TOOL CHEST
WITH SIDE LOCKER
Questions, problems, missing parts?
Before returning to the store, call
Husky Customer Service
8 a.m - 7 p.m., EST, Monday-Friday,
9 a.m. - 6 p.m., EST, Saturday
1-888-HD-HUSKY
HUSKYTOOLS.COM
We appreciate the trust and confidence you have placed in Husky through the purchase of this chest/cabinet. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
AND CABINET SET
THANK YOU
improvement needs. Thank you for choosing Husky!
SKU# 1003 103 121
THD.com# 1003 041 640
THD.com# 1006 995 064
Model# HOTC8010BB1S
Model# HOTC8010BL1S
Advertisement
Table of Contents
Related Manuals for Husky HOTC8010BB1S
Summary of Contents for Husky HOTC8010BB1S
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Husky through the purchase of this chest/cabinet. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Table of Contents..............2 Assembly.................6-8 Safety Information..............2-3 Operation................9 Warranty..................3 Maintenance..............10 Pre-Assembly................4 Care and Cleaning............10 Service Parts..............11 Tools Required................4 Hardware Included..............4 Specifications................4 Package Contents..............5 Safety Information 1. Do not open more than one drawer at a time. DANGER: Do not stand on this product. You may fall or cause the product to tip. -
Page 3: Safety Information
The manufacturer specifically disclaims any liability and shall not be liable for any consequential or incidental loss or damage, including but not limited to any labor/expense costs involved in the replacement or repair of said product. Contact the Customer Service Team at 1-888- HD-HUSKY or visit www.huskytools.com. HUSKYTOOLS.COM... -
Page 4: Pre-Assembly
Pre-assembly TOOLS REQUIRED Phillips Safety screwdriver goggles HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Bolt M6x15L Bolt M8x15L Bolt M8x15L Screw M4x10L 10 mm/13 mm wrench SPECIFICATIONS 1500 lbs. Maximum capacity (top chest) 1800 lbs. Maximum capacity (bottom cabinet) Maximum capacity (side locker) 500 lbs. -
Page 5: Package Contents
Pre-assembly (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Handle Lock Top chest Key (set) Bracket Drawer Liner Side handle Grommet Rolling cabinet Power strip Power strip bracket Side locker Swivel caster with brake Side locker shelf clip Regular caster Side locker shelf Drawer silde 120 lbs (pair) LED work light... -
Page 6: Assembly
Assembly Attaching the side handle Placing the chest NOTE: Two people may be required to complete □ Attach the side handle (D) to the rolling cabinet (E) this step. using four bolts (AA). □ Attach two handles (A) to the top chest (B) for each side by using two bolts (BB) per handle. - Page 7 Assembly (continued) Installing the casters Installing the drawer liner □ Place the drawer liners (L) in appropriately sized drawers CAUTION: Do not over tighten the screws. and the chest lid area to protect the surface. □ Lay the side locker (O) on its back. Use the packaging material to protect the finish.
- Page 8 Assembly (continued) Tightening the side locker Installing the brackets on side locker □ Open the door of the side locker (O). NOTE: The holes in the cabinet are tapped and do not require nuts. □ Tighten all the bolts inside the panel by using a screwdriver.
-
Page 9: Operation
Operation Locking and unlocking the unit Removing/installing the drawers Removing the drawers - IMPORTANT : The drawers must be fully closed before □ Fully extend and empty the drawer. □ On the slide, lift up the plastic release lever on one slide locking / unlocking the unit. -
Page 10: Maintenance
Maintenance Maintaining the casters Maintaining the drawers □ Periodically clean the drawer trim, and □ Grease the casters annually using high quality inside the drawers with a mild detergent and water . bearing grease . □ Remove grease and oil with a standard, nonflammable cleaning fluid. -
Page 11: Service Parts
Service Parts Part Description Quantity Part Description Quantity Handle Key (set) Bracket Drawer Liner Side handle Grommet Power strip bracket Power strip Swivel caster with brake Side locker shelf clip Regular caster Side locker shelf Drawer silde 120 lbs (pair) LED work light Lock Coat hook... - Page 12 Questions, problems, missing parts? Before returning to the store, call Husky Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. – 6 p.m., EST, Saturday 1-888-HD-HUSKY HUSKYTOOLS.COM Retain this manual for future use.
