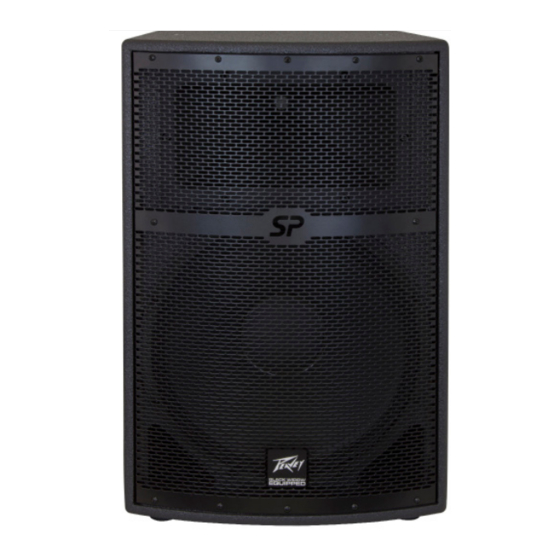

Peavey SP 2P Product Specifications

Powered speaker system
Hide thumbs

Advertisement

Quick Links

Download this manual
SP®2P
Powered Speaker System
Product
Specifications
www.peavey.com

Advertisement

loading

Related Manuals for Peavey SP 2P

Summary of Contents for Peavey SP 2P

  • Page 1 SP®2P Powered Speaker System Product Specifications www.peavey.com...
  • Page 2 (2) I’utilisateur de I’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Warning: Changes or modifications to the equipment not approved by Peavey Electronics Corp. can void the user’s authority to use the equipment.
  • Page 3 ENGLISH SP®2P The Peavey® SP®2P is a powered, bi-amplified, two-way speaker system engineered to provide very high levels of performance in a compact powered loudspeaker. This two-way powered system is comprised of a 1000 W peak switching power amplifier driving a 15” Black Widow® BWX series woofer, now with a long throw voice coil.
  • Page 4 A typical signal source for the line-level inputs of the Peavey SP®2P would be a sound reinforcement mixing console (mixer) or the output from a CD player, MP3 player or tape deck. A dynamic microphone can be connected directly and used as well.

  • Page 5: On/Off Switch

    ON-OFF SWITCH (1) This rocker switch supplies AC power to the SP®2P when switched to the ON position. The ON position is with the top side of the switch pushed “in” or nearly flush with the rear panel. FUSE (2) The unit is AC power line fuse protected from overloads and fault conditions with a slow-blow 5 x 20mm 250V fuse.
  • Page 6 Changing the Voltage Range of the SP®2P First, make sure the SP®2P is disconnected from the power line, and that the power switch (1) is in the OFF posi- tion. Second, unscrew the screws holding the clear switch protector on the voltage selector switch (4) just a little, just enough to allow rotation of the clear switch protector.
  • Page 7 INPUTS (5) Two input channels are provided. The line-level input is of the medium impedance balanced type. The jack is a combo female XLR and 1/4” TRS connector. Sensitivity of this input is 0.42 volts for full output, when the MIC/ LINE switch (7) is in the LINE position.
  • Page 8 DO NOT OVER TORQUE HARDWARE. ALWAYS USE SAFETY CHAIN. INSPECT RIGGING ANNUALLY. This Peavey loudspeaker should be suspended overhead only in accordance with the procedures and limita- tions specified in the User’s Manual and possible manual update notices. This system should be suspended with certified rigging hardware by an authorized rigging professional and in compliance with local, state and federal suspension ordinances.
  • Page 9 Bolts used on custom mounting brackets must be certified to be a metric grade 8.8 or better. If there are any questions regarding the proper hardware or practices for safe flying or rigging of the Peavey SP®2P, contact a certified structural engineer, or consult with those local rigging companies who have trained and certified personnel.
  • Page 10 Use of the SP®2P with a Speaker Stand The SP®2P has a stand mount cup included so that the system can be stand mounted on a standard 1 3/8” (36mm) diameter stand pole. When using stands or poles, be sure to follow these precautions: Check the stand or pole specs to make sure that it can support the weight of the SP®2P (59 lbs./26.8 kg), and observe all safety precautions stated by the stand manufacturer, including the maximum height the stand is rated for.
  • Page 11 materials and will provide greater long-term reliability. The best option is a shielded balanced cable no longer than necessary to reach the SP®2P. It is usually a good idea to leave some slack at the input to the SP®2P and also to tape the cables down or run them under a cable guard to avoid anyone tripping over them or pulling the SP®2P over when stand mounted.
  • Page 12 DSP User Control Menu Operation A two-line, 16-character per line LCD and a rotary push-to-select encoder make up the interface for this prod- uct. The DSP processing control accessible by the user, consists of a 9-band graphic equalizer (GEQ), choice of output Polarity, selection of Bass Enhancement, and signal Delay.
  • Page 13 First Screen displayed after pushing Configure? Use Speaker with Subwoofer? Yes or No If subwoofer = No: then go to location screen No is the default selection. If subwoofer = Yes then: Subwoofer selection screen Subwoofer used: Selections SP Subwoofer Other Sub 100 Hz Other Sub 110 Hz Other Sub 120 Hz...

  • Page 14: Floor Monitor

    Floor Monitor Program EQ: Displays current EQ selection (EDM preset is the default on 1st time power up) (Presets) EDM, Voice, Rock, DJ...etc The program EQ selection is applied to the Graphic Equalizer and Bass enhancer. “Custom” is displayed if GEQ has been adjusted by the user. The last preset used, including a Custom one, is what will load the next time the SP®2P is powered Note: If input source is from the SP Sub High-Pass Processed output, then the screen will display: “EQ Bypassed”...

  • Page 15: Troubleshooting

    If the SP®2P has been subjected to direct sunlight or excessive heat, the built-in thermal protection may have been triggered. If so, turn off the SP®2P and let it cool for a sufficient amount of time. If there is still no output, contact your authorized Peavey dealer or the Peavey International Service Center. Hum or Buzz If the SP®2P is producing a hum or buzz, this can be AC outlet related.
  • Page 16 Do not allow ANY fluids to drip inside the SP®2P. Touch-Up To touch up the painted surfaces of the SP®2P, you can use Peavey® Black Touch-Up paint (part # 00052110). Never paint the enclosure or other parts while the unit is plugged in or turned on!
  • Page 17 130 dB with music as a source, when measured at a distance of 1M and driven to full output capacity. The system shall utilize a Peavey® 15” Black Widow® woofer and a RX22CT compression driver tweeter mounted on an asymmetrical Quadratic Throat CD horn . The nominal radiation pattern shall be 100°...

  • Page 18: Specifications

    Product Specifications SPECIFICATIONS Enclosure: Peavey® SP™2P Frequency response: 57 Hz to 17 kHz Low frequency limit (-3 dB point): 57 Hz Usable low frequency limit (-10 dB point): 51 Hz Internal power amplifiers (@120 VAC line): Woofer - 1000 watts peak available power...
  • Page 19 DDT dynamic range: Greater than 14 dB THD and IM: Typically less than 0.1 % Damping factor: Greater than 50 @ 1000 Hz, 4 ohms Power requirements of Peavey® SP®2P system (domestic): Nominal 200 watts, 120 VAC, 60 Hz Fuse Type For 120 VAC USE: International fuse classification T10AH 250V.
  • Page 20 For 220-240VAC USE: International fuse classification T5AH 250V . This is a cartridge style 5 x 20 mm size time-delay fuse with a 5 amp 250V rating. Specifications subject to change without notice. 53.00 2.087 273.00 10.748 220.00 8.661 427.94 140.29 16.848 5.523...
  • Page 21 Warranty registration and information for U.S. customers available online at www.peavey.com/warranty or use the QR tag below Features and speci cations subject to change without notice. Peavey Electronics Corporation 5022 Hartley Peavey Drive Meridian, MS 39305 (601) 483-5365 FAX (601) 486-1278 Logo referenced in Directive 2002/96/EC Annex IV (OJ(L)37/38,13.02.03 and defined in EN 50419: 2005...
