Connecting the monitor to a home antenna terminal

Cable TV (CATV) connection
- A 75-ohm coaxial cable connector is built into the set for easy hookup. When connecting the 75-ohm
coaxial cable to the set, screw the 75-ohm cable to the ANT (antenna input) terminal.
- Some cable TV companies offer "premium pay channels". Since the signals of these premium pay
channels are scrambled, a cable TV converter/descrambler is generally provided to the subscriber by
the cable TV company. This converter/descrambler is necessary for normal viewing of the scrambled
channels. (Set your monitor to channel 3 or 4, typically one of these channels is used. If this is
unknown, consult your cable TV company.) For more specific instructions on installing cable TV,
consult your cable TV company. One possible method of utilizing the converter/descrambler provided
by your cable TV company is explained below.
Please note: An RF switch provided with two inputs (A and B) is required (not supplied).
"A" position on the RF switch (not supplied): You can view all unscrambled channels by using the
"B" position on the RF switch (not supplied): You can view the scrambled channels via the converter/

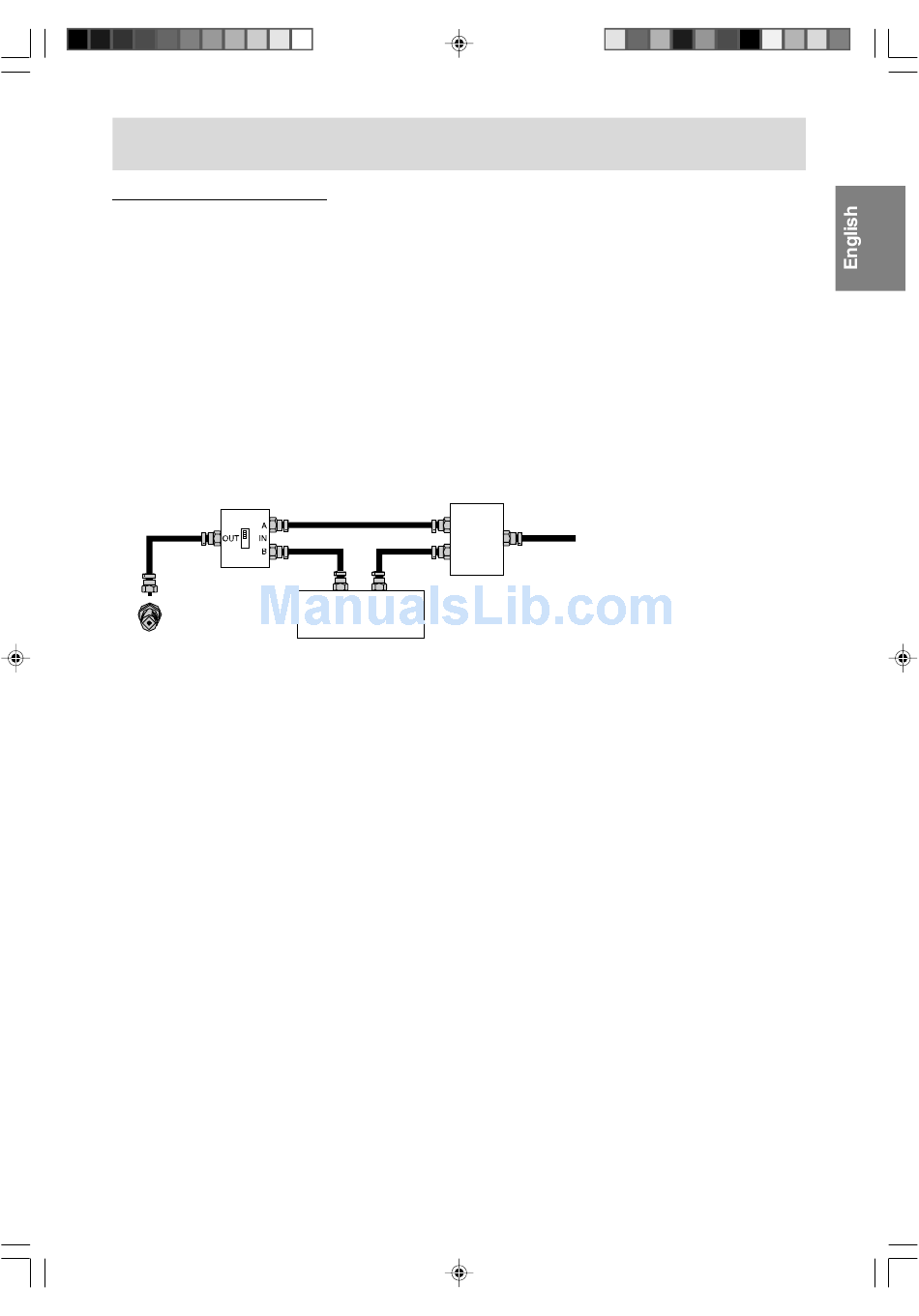

RF switch (not supplied)
Note:
- Consult your SHARP Dealer or Service Center for the type of splitter, RF switch or combiner that might
be required.
IT-23M1U_gb_01.P65
monitor's channel buttons.
descrambler by using the converter's channel keys.
OUT IN
Cable TV converter/
descrambler
(not supplied)
17
Two-set
signal
splitter
Cable TV Line
(not
supplied)
E17
