  • Page 1 USER MANUAL PANACAST Video Bar System Technology for life’s new rhythm...
  • Page 2 ® ® © 2023 GN Audio A/S. All rights reserved. Jabra is a trademark of GN Audio A/S. The Bluetooth word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by GN Audio A/S is under license.

  • Page 3: Table Of Contents

    6.4 Dynamic Composition – Single Stream - only for MS Teams Rooms 2. Overview ........6 6.5 Field of view 2.1 Jabra PanaCast 50 Video Bar System Base 6.6 Pan, Tilt, Zoom presets - only for Zoom Unit overview Rooms 2.2 Jabra PanaCast Control overview...
  • Page 4 13. Support ........35 13.1 FAQ and technical specifications 13.2 How to care for your Jabra device...

  • Page 5: Welcome

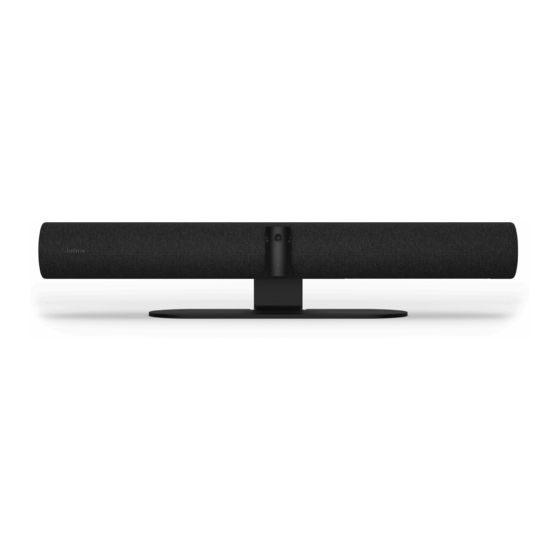

    1. Welcome Thank you for using the Jabra PanaCast 50 Video Bar System. We hope you will enjoy it! Here are some key features you will benefit from the Jabra PanaCast 50 Video Bar System: • World-class audio with full duplex and powerful stereo speakers •...

  • Page 6: Overview

    2. Overview 2.1 Jabra PanaCast 50 Video Bar System Base Unit overview FRONT SIDE Microphones Microphones Cameras Microphones Microphones Speakers Speakers...
  • Page 7 BACK SIDE Port connections HDMI IN HDMI OUT2 HDMI OUT1 USB A USB A ETHERNET USB C POWER 3.5MM JACK Air vents Reset button Adjustable mounting bracket...

  • Page 8: Jabra Panacast Control Overview

    2.2 Jabra PanaCast Control overview Ethernet port (PoE) FRONT SIDE BACK SIDE USB-C port 10-inch LCD Ultrasonic sound Port connections touch screen proximity detector (remove cover for access) Proximity sensor Manual tightening Pinhole reset screws button...

  • Page 9: Included Accessories - Jabra Panacast

    2.3 Included accessories - Jabra PanaCast 50 Video Bar System Base Unit AC power adapter (1.83m/6ft) AC power cable HDMI cable RJ45 Ethernet (1m/3.28ft) (1.83m/6ft) cable (4.57m/15ft) Wall mount Cable cover compartment (2 pcs) Camera privacy cover with embedded screws &...

  • Page 10: Included Accessories - Jabra Panacast Control

    2.4 Included accessories - Jabra PanaCast Control Jabra PanaCast Control POWER OVER ETHERNET (PoE) KIT PoE injector AC power cable RJ45 Ethernet cable (2 pcs) (1m/3.28ft) (4.57m/15ft) Additional accessories can be purchased at jabra.com/accessories...

  • Page 11: Optional Accessories

    2.5 Optional accessories Accessories can be purchased at jabra.com/accessories Screen mount Table stand...
  • Page 12 Accessories can be purchased at jabra.com/accessories Regional power HDMI cable HDMI ingest RJ45 Ethernet cords(1m/3.28ft) (1.83m/6ft) cable cable (4.57m/15ft) (4.57m/15ft) USB-A to C cable USB-A to B cable Jabra PanaCast Control (4.57m/15ft) (1.83m/6ft) table mount...

  • Page 13: Hardware Setup Overview

    3. Hardware setup overview This is an overview of the steps required to set up the Jabra PanaCast 50 Video Bar System. 1. Mount the video bar. Refer to the assembly videos or assembly instructions available in jabra.com/ help/panacast50vbs/getstarted 2. Connect the cables.
  • Page 14 Settings and then Device settings. The Jabra PanaCast 50 Video Bar System settings screen will be displayed. Go to the Admin menu and log in as an administrator. If this is the first login, the default username is admin and the password is the last 6 digits of the touch controller serial number.

  • Page 15: Visual Indicators

    4. Visual indicators LED STATUS (LED off) Off or not streaming Starting up (flashing white) Connected (on for 3 seconds) In call or streaming video/media In call, audio muted Firmware updating (flashing pink)

  • Page 16: Settings Management

    5. Settings management After the Jabra PanaCast 50 Video Bar System configuration process is completed, the touch controller will display the video conferencing app of your service provider. To access the Jabra PanaCast 50 Video Bar System settings, go to the...
  • Page 17 All Jabra PanaCast 50 Video Bar System settings can be configured using the Web Console. To access the Web Console, enter the IP address of the video bar or touch controller in a browser. The IP address is displayed on the installation screen...

  • Page 18: Video Settings

    To access the video conferencing settings using the touch controller, go to the More menu in the video conferencing app, select Settings and then Device settings. The Jabra PanaCast 50 Video Bar System settings screen will be displayed. Go to the Admin menu and log in as an administrator.

  • Page 19: Intelligent Zoom

    6.1 Intelligent Zoom Intelligent Zoom is a camera mode that dynamically frames all visible people within 6 meters (20 feet). Only one camera mode can be active at a time. By default, camera mode is set to Intelligent Zoom. 6.2 Virtual Director Virtual Director is a camera mode that dynamically switches to and focuses on the person who is speaking.

  • Page 20: Dynamic Composition - Single Stream - Only For Ms Teams Rooms

    6.4 Dynamic Composition – Single Stream - only for MS Teams Rooms Dynamic Composition –Single Stream is an advanced camera mode that displays up to 4 participants in a meeting room in a tiled view. The tiled view will dynamically update to display the participants who are actively speaking.

  • Page 21: Field Of View

    6.5 Field of view The angle of the camera can be optically adjusted for a wider or narrower view of the meeting room. By default, Field of view is set to 180°. 6.6 Pan, Tilt, Zoom presets - only for Zoom Rooms Pan, Tilt, Zoom presets allow administrators to adjust and save the camera view using the touch controller.

  • Page 22: Image Quality Settings

    6.7 Image quality settings The image brightness, contrast, saturation, sharpness, and white balance can be adjusted in the Web Console or using the touch controller through the admin device settings. Additionally, Vivid HDR and Automatic white balance can be enabled. If Vivid HDR is enabled, contrast, saturation, and sharpness cannot be adjusted manually.

  • Page 23: Video Flicker

    6.8 Video flicker Video flicker can occur if the Jabra PanaCast 50 Video Bar System is not set to the correct geographical region. To prevent video flicker, select Auto (50Hz/60Hz) for regions that support NTSC format, or 50Hz for regions that support PAL format.

  • Page 24: Share Content

    7. Share content 7.1 Wireless content sharing The touch controller has both Bluetooth technology and an ultrasonic emitter ® that allows users to share content directly from their computers or mobile devices. When sharing content using a wireless signal, the mobile device must be within 10 meters (32.8 feet) of the touch controller and the share content feature must be enabled in the video conferencing app.

  • Page 25: Wired Content Sharing

    The content from the computer will be displayed in the meeting and on the room monitor connected to the video bar. Additional HDMI cables are not supplied and can be purchased at jabra.com/ accessories HDMI IN HDMI OUT2 HDMI OUT1 USB A...

  • Page 26: Privacy Cover

    8. Privacy cover When the video bar is not in use, the privacy cover can be used to cover the lenses of the camera. It is recommended not to use the privacy cover while the video bar is in a meeting as it may cause the image from the camera to flicker, which may be triggering for photosensitive individuals.

  • Page 27: Safety Capacity Settings

    9. Safety capacity settings The JabraPanaCast 50 Video Bar System works together with the video conferencing app to monitor the safety capacity limit of a meeting room. These settings are configured and managed directly in the web portal of your video conferencing service provider.

  • Page 28: Update Firmware

    10. Update firmware Firmware updates improve performance or add new functionality to Jabra devices. Jabra PanaCast 50 Video Bar System firmware updates can be done: • Locally on the video bar (mouse required) and touch controller • Remotely using the Web Console for the video bar and touch controller •...

  • Page 29: Restart Devices

    11. Restart devices To restart the video bar and touch controller, access the Device settings menu on the touch controller and go to the Restart section. Both devices will be restarted. You can also access the Web Console by entering the IP address of the video bar or touch controller in a browser, and go to the System Reset menu.
  • Page 30 Individual restart of the video bar Press and hold the Reset button on the back of the video bar. Release the button after 5 seconds and a ‘Restarting’ message will be displayed on the monitor. The video bar will restart and play an audio notification when ready for use. The reboot takes approximately 1 minute.
  • Page 31 Individual restart of the touch controller Use a paperclip to press and hold the Pinhole reset button on the back of the touch controller. Release the button after 5 seconds and a ‘Restarting’ message will be displayed on the monitor. The touch controller will flash green and restart.

  • Page 32: Factory Reset

    12. Factory reset To factory reset the video bar and touch controller, access the Device settings menu on the touch controller and go to the Restart section and select Factory reset. Both devices will be reset. You can also access the Web Console by entering the IP address of the video bar or touch controller in a browser, and go to the System Reset menu.
  • Page 33 Individual factory reset of the video bar Resetting will restore the video bar to its factory default settings. Press and hold the Reset button on the back of the video bar for 20 seconds until the LED flashes pink and the ‘factory data reset’ message is displayed on the monitor.
  • Page 34 Individual factory reset of the touch controller Resetting will restore the touch controller to its factory default settings. Use a paperclip to press and hold the Pinhole reset button on the back of the touch controller for 20 seconds until the ‘factory data reset’ message is displayed on the screen.
  • Page 35 13.2 How to care for your Jabra device The Jabra PanaCast 50 Video Bar System is for indoor use only. • Avoid direct sunlight and temperatures above 40°C/104°F or below 0°C/32°F. • Do not expose the camera or cables to rain or other liquids.
  • Page 36 To learn more about the Jabra PanaCast 50 Video Bar System, go to jabra.com/help/panacast50vbs/getstarted...
