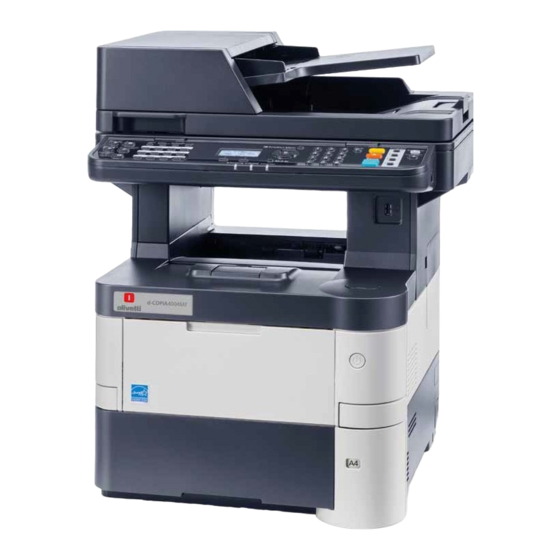

Olivetti d-Copia 4003MF Service Manual

Multifuction digital copier
Hide thumbs
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487

Advertisement

Quick Links

Download this manual
Multifuction Digital Copier
d-Copia 4003MF / d-Copia 4004MF
d-Copia 4003MF Plus / d-Copia 4004MF Plus
d-Copia 5004MF / d-Copia 6004MF
SERVICE MANUAL
Code: Y116540-5

Advertisement

loading

Related Manuals for Olivetti d-Copia 4003MF

Summary of Contents for Olivetti d-Copia 4003MF

  • Page 1 Multifuction Digital Copier d-Copia 4003MF / d-Copia 4004MF d-Copia 4003MF Plus / d-Copia 4004MF Plus d-Copia 5004MF / d-Copia 6004MF SERVICE MANUAL Code: Y116540-5...
  • Page 2 PUBLICATION ISSUED BY: Olivetti S.p.A. Gruppo Telecom Italia Via Jervis, 77 - 10015 Ivrea (TO) Copyright © 2015 Olivetti All rights reserved...
  • Page 3 (40 ppm - LED - without FAX) : 40L Olivetti model d-Copia 4004MF (40 ppm - LED - with FAX) : 40LF Olivetti model d-Copia 4003MF Plus (40 ppm - HyPAS - without FAX) : 40H Olivetti model d-Copia 4004MF Plus...
  • Page 4 Revision history Revision Date Pages Revised contents 14 February 2014 1-1-2 Correction: Power source → Rated input 1-1-3, 1-1-4 Correction: sheets/min → ppm, images/min → ipm 1-1-5 Correction: 18.Left cover → controller cover 1-1-12 Correction: (2)d-Copia ... → 50/60 ppm model ... 1-2-1 Correction: 120V60Hz 10.0A →12.0A 1-2-3...
  • Page 5 Revision Date Pages Revised contents 14 February 2014 1-5-40 Correction: Main/engine → control 1-5-71 Added: (37) “Check ...” 1-5-81 Deleted: (8) “Check...” 1-5-90 to 93 Deleted: The procedure linked to the procedure of other pages 1-5-99 Correction: Names of fan motor Deleted: Center and rear fan motor (Japan only) 2-1-1 Changed: Item number (6 to 3 , 3 to 7)
  • Page 6 Safety precautions This booklet provides safety warnings and precautions for our service personnel to ensure the safety of their customers, their machines as well as themselves during maintenance activities. Service personnel are advised to read this booklet carefully to familiarize themselves with the warnings and precautions described here before engaging in maintenance activities.
  • Page 7 Safety warnings and precautions Various symbols are used to protect our service personnel and customers from physical danger and to prevent damage to their property. These symbols are described below: DANGER: High risk of serious bodily injury or death may result from insufficient attention to or incorrect compliance with warning messages using this symbol.
  • Page 8 1. Installation Precautions WARNING • Do not use a power supply with a voltage other than that specified. Avoid multiple connections to one outlet: they may cause fire or electric shock. When using an extension cable, always check that it is adequate for the rated current...................... •...
  • Page 9 2. Precautions for Maintenance WARNING • Always remove the power plug from the wall outlet before starting machine disassembly....• Always follow the procedures for maintenance described in the service manual and other related brochures............................• Under no circumstances attempt to bypass or disable safety features including safety mechanisms and protective circuits.
  • Page 10 • Do not remove the ozone filter, if any, from the copier except for routine replacement....... • Do not pull on the AC power cord or connector wires on high-voltage components when removing them; always hold the plug itself......................•...
  • Page 11 This page is intentionally left blank.
  • Page 12 CONTENTS 1-1 Specifications 1-1-1 Specifications ........................1-1-1 (1) Common function ......................1-1-1 (2) Copy function........................1-1-3 (3) Printer function ......................... 1-1-3 (4) Scanner function....................... 1-1-4 (5) Document processor ......................1-1-4 1-1-2 Parts names .......................... 1-1-5 (1) Main part appearance....................... 1-1-5 (2) A connector and an inside ....................
  • Page 13 1-4-3 Self-diagnostic function ....................... 1-4-20 (1) Self-diagnostic function ....................1-4-20 (2) Self diagnostic codes...................... 1-4-20 1-4-4 Image formation problems ....................1-4-44 1-4-5 Poor image (due to DP and scanner reading) ..............1-4-45 (1) No image appears (entirely white).................. 1-4-46 (2) No image appears (entirely black).................. 1-4-48 (3) Image is too light.
  • Page 14 (1) Precautions........................1-5-1 (2) Drum unit .......................... 1-5-1 (3) Toner ..........................1-5-1 (4) How to tell a genuine Olivetti toner container..............1-5-2 1-5-2 Paper feed / conveying section ..................... 1-5-3 (1) Cassette paper feed section..................... 1-5-3 (1-1) Detaching and refitting the primary paper feed unit and the pickup roller ....1-5-5 (1-2) Detaching and refitting the retard roller ..............
  • Page 15 1-5-8 Eject section ........................1-5-48 (1) 50/60 ppm model......................1-5-48 (2) 40 ppm model......................... 1-5-50 (2-1) Detaching and refitting the eject unit ..............1-5-52 1-5-9 Duplex conveying section ....................1-5-62 (1) Duplex conveying unit ....................1-5-62 (1-1) Detaching and refitting the duplex conveying unit..........1-5-64 1-5-10 Document processer ......................
  • Page 16 2-2 Operation of the PWBs 2-2-1 Upgrading the firmware ......................2-2-1 2-2-2 Control PWB (CONPWB) ...................... 2-2-3 (1) Connector position......................2-2-3 (2) PWB photograph ......................2-2-3 (3) Connector lists........................2-2-4 (4) Detaching and refitting the PWB. (CONPWB)..............2-2-12 (5) Remarks on Control PWB replacement................2-2-15 2-2-3 Connect Left PWB (CLPWB) ....................
  • Page 17 1-1 Specifications 1-1-1 Specifications (1) Common function Description Item 40 ppm 50 ppm 60 ppm Desktop Type Electrophotography by semiconductor laser, single drum system Printing Method 60 to 120 g/m Paper Cassette Weight 60 to 220 g/m , 230 g/m (Cardstock) Multi Purpose Tray...
  • Page 18 Description Item 40 ppm 50 ppm 60 ppm Exposure by cleaning lamp (LED) Charge erasing system Heat and pressure fusing with the heat roller and the press roller Fusing system Heat source: halogen heater Abnormally high temperature protection devices: thermostat 10 to 32.5°C/50 to 90.5°F Operating Temperature...
  • Page 19 (2) Copy function Description Item 40 ppm 50 ppm 60 ppm A4-R 40 ppm 50 ppm 60 ppm Copy Speed Letter-R 42 ppm 52 ppm 62 ppm (from Cassette) Legal 33 ppm 42 ppm 50 ppm (with DP) B5-R 33 ppm 40 ppm 48 ppm A5-R...
  • Page 20 (4) Scanner function Description Item 40 ppm 50 ppm 60 ppm 600 dpi, 400 dpi, 300 dpi, 200 dpi, 200×400 dpi, 200×100 dpi Resolution TIFF (MMR/JPEG compression), JPEG, PDF (MMR/JPEG compres- File Format sion), XPS, PDF/A, PDF(high compression) Scanning Speed *3 (A4 landscape,300 dpi, Image quality: Text/Photo original) Simplex 40 ipm (B/W)
  • Page 21 1-1-2 Parts names (1) Main part appearance Figure 1-1-1 1. Document Processor 11. USB Memory Slot 2. Original Width Guides 12. Front Cover Open Button 3. Original Tray 13. Slit Glass 4. Original Eject Table 14. Original Size Indicator Plates 5.
  • Page 22 (2) A connector and an inside Figure 1-1-2 1. Option Interface Slot 8. MP Tray 2. Network Interface Connector 9. Paper Length Guide 3. USB Interface Connector 10. Paper Width Guide 4. Envelope Lever 11. Bottom Plate 5. Fuser Cover 12.
  • Page 23 Figure 1-1-3 14. Toner Container 15. Toner Container Lock Lever 16. Registration roller 17. Waste Toner Box Service Manual Y116540-5 1-1-7...
  • Page 24 (3) Option Figure 1-1-4 1. Card Reader 5. Cassette 5 2. Cassette 2 6. Rear Tray 3. Cassette 3 7. Eject Paper Stopper 4. Cassette 4 Service Manual Y116540-5 1-1-8...
  • Page 25 (4) Operation panel (4-1) Basic model 25 24 Figure 1-1-5 1. LCD 17. Power Indication 2. Arrow key 18. Energy Saver key 3. OK key 19. Authentication/Logout key 4. Function Menu key 20. Status/Job Cancel key 5. Select key(Left) 21. Document Box key 6.
  • Page 26 (4-2) HyPAS model 3 4 5 Figure 1-1-6 1. Home Key 11. Quick No. Search key 2. Status/Job Cancel key 12. Enter key 3. Copy key 13. Energy Saver key 4. Send key 14. Reset key 5. FAX key 15. Stop key 6.
  • Page 27 1-1-3 Machine cross section [ DP ] [ Main UNIT ] Original path Paper path Optical path Paper path (Option) Figure 1-1-7 1. Cassette paper feed section 9. Transfer/Separation section 2. MP tray paper feed section 10. Fuser and eject/feed shift section 3.
  • Page 28 1-1-4 Option composition The following optional equipment is available for the machine. (3) Card Authentication Kit (B) (1) PF-320 (5) SD Memory Card SDHC Memory Card (2) PT-320 (50/60 ppm model only) (4) Expansion Memory Software option (6) HD-6/HD-7 (7) IB-50 (8) IB-51 (9) Data Security Kit (E) (10) UG-33...
  • Page 29 1-2 Installation 1-2-1 Installation environment 1. Temperature: 10 to 32.5°C/50 to 90.5°F 2. Humidity: 15 to 80% RH 3. Power supply: 120 V AC, 12.0 A 220 - 240 V AC, 6.0 A 4. Power supply frequency: 50 Hz ±2%/60 Hz ±2% 5.
  • Page 30 1-2-2 Unpacking and installation (1) Installation procedure Start Unpacking Setting of the fuser pressure release lever Precaution for carrying the machine (40 ppm model only) Connecting the power code Remove the tapes and spacer Power on Install the paper feeder (option) Installing software Setup of a toner container Output an own-status report...
  • Page 31 Unpacking Figure 1-2-2 1. Hinge joints 7. Power code 13. Plastic bag 2. Outer case 8. Operation guide etc. 14. Plastic bag 3. Upper front pad 9. Plastic bag 15. Lower left pad 4. Upper left pad 10. Document tray 16.
  • Page 32 Precaution for carrying the machine *: Be sure to hold the both side of the lower part of the machine by two persons when carrying it, as shown in the figure. *: Don't have the operation panel part, because there is fear of breakage. Figure 1-2-3 Remove the tapes and spacer *: Removed the packing components that a fixed tape and shock absorbing material etc.
  • Page 33 Setup of a toner container 1. Push the release button down and open the front cover. Release button Front cover Figure 1-2-5 Lock position Unlock position 2. Rotate the toner container lock lever to the lock position and then the unlock position.
  • Page 34 3. Remove the toner container from the main unit. Main unit Toner container Figure 1-2-7 *: Caution:Do not press too firmly on the center of the toner container or touch the toner feed slot or the terminal parts. Toner container Terminal part Toner feed slot Figure 1-2-8...
  • Page 35 4. Shake the turned toner container 10 times or more as shown in the figure in order to distribute the toner evenly inside the container. Figure 1-2-9 5. Set the toner container to the main unit Lock position and then turn the toner container lock lever to the lock position.
  • Page 36 Installing the waste toner box 1. Openthe controller cover. 2. Open the cap of the waste toner box. 3. Install the waste toner box. 4. Close the controller cover. Waste toner box Controller cover Figure 1-2-11 Connecting the cable Network [Connecting at Network] 1.
  • Page 37 Figure 1-2-12 Loading paper 1. Pull the cassette from the main unit out. Main unit Cassette Figure 1-2-13 *: Push the bottom plate down. (40 ppm model only) Cassette Botom plate Figure 1-2-14 Paper width guides 2. Push the lock lever on the right side guide and slide to the desired paper size.
  • Page 38 Paper length guide 3. Push the lock lever and slide the paper length guide to the desired paper size. 4. Turn the cassette size dial so that the size of the paper you are going to use appears in the cassette size window. Lock lever Cassette size dial Figure 1-2-16...
  • Page 39 Before loading paper When you open a new package of paper, fan the sheets to separate them slightly prior to loading in the following steps. (1)Bend the whole set of sheets to swell them in the middle. (2)Hold the stack at both ends and stretch it while keeping the entire stack swelled.
  • Page 40 Replace the operation panel sheet (except 240V AC model) 1. Slide the right operation lid and the left operation lid. 2. Remove the their lids. Right operation lid Left operation lid Figure 1-2-20 3. Remove the operation panel cover. 4. Replace it to the operation panel sheet of the corresponding language.
  • Page 41 Setting of the fuser pressure release lever (40 ppm model only) 1. Open the rear cover. Release lever 2. Push the release lever down for (Shipment position) changing the lever position to a normal position from a shipment position. 3. Close the rear cover. Release lever (Normal position) Rear cover...
  • Page 42 Power on 1. Turn the power switch on. Power switch Figure 1-2-24 *: At the first time when turning on the System Menu/Counter. 10:10 power switch, the machine runs Startup Machine Setup Wizard to set the following: 1. Date/Time 2. Network 1.
  • Page 43 *: For servise setup only Output an own-status report (maintenance item U000) 1. Enter the maintenance mode by entering 10871087 using the numeric keys. 2. Enter 000 using the numeric keys and press the start key. 3. Select Maintenance and press the start key to output a list of the current settings of the maintenance items.
  • Page 44 1-2-3 Installing an accessories option (1) Installing the SD card. Procedure 1. Open the rear cover. 2. Remove the upper interface cover and Upper the lower interface cover. interface cover Rear cover Lower interface cover Figure 1-2-26 3. Remove two screws and the Slot cover. Slot cover SD card slot 4.
  • Page 45 (2) Installing the expansion memory Procedure 1. Remove the controller cover. Controller cover Figure 1-2-28 2. Open the shield plate by rotating. Shield plate Figure 1-2-29 3. Insert the expansion memory into the Memory socket memory socket so that the notches on the memory align with the correspond- ing protrusions in the slot.
  • Page 46 (3) Installing the HD-6/ HD-7(SSD) Procedure 1. It checks that the indicator has Indicator disap-peared. 2. Turn the power switch off. 3. Unplug the power cord from the Wall outlet Power switch Power cord Figure 1-2-31 Upper 4. Open the rear cover. interface cover 5.
  • Page 47 7. Insert the SSD in an option slot. 8. Fix the SSD with using two screws to main unit. Option slot Screws Figure 1-2-34 9. Refit two interface covers. 10. Close the rear cover. Rear cover Upper interface cover Lower interface cover Figure 1-2-35 11.
  • Page 48 (4) Installing the IC card reader holder (HyPAS model only) IC card reader holder installation requires the following parts): Parts Quantity Part.No. IC card reader holder 10 1702P6UN1 Supplied parts of IC card reader holder 10 (1702P6UN1): Parts Quantity Part.No. IC card reader holder Label M3 ×8 bind screw...
  • Page 49 2. Route the USB cable from the IC card USB cable reader through the IC card reader holder ribs, wind around its back and route through another rib. IC card reder holder Figure 1-2-38 3. Slide the left operation lid and then Left Left operation remove it.
  • Page 50 6. Connect the USB connector to the USB Screw interface slot. 7. Fix the IC card reader holder using a IC card reader holder screw. 8. Refit all the removed parts. USB connector Operation panel assembly Figure 1-2-40 9. Affix a label on the ICcar reader cover aligning it with the positioning mark.
  • Page 51 Enabling IC Card Authentication Precautions To install the optional function, you need the License Key. Please access the designated website of your dealer or service representative, and register “Machine No.” indicated on your machine and “Product ID” indi- cated on the License Certificate supplied with the product to issue the License Key. 1.
  • Page 52 This page is intentionally left blank. Service Manual Y116540-5 1-2-24...
  • Page 53 1-3 Maintenance Mode 1-3-1 Maintenance Mode The machine is equipped with a maintenance function which can be used to maintain and service the machine. (1) Executing a maintenance item Start Enter “10871087” using Maintenance mode is entered. the numeric keys. Enter the maintenance item The maintenance item is selected.
  • Page 54 (2) Maintenance modes item list Item Section Content of maintenance item Summary General U000 Mainte Report It outputs to printing of each report, and USB. U001 Exit Mainte Maintenance mode is canceled. U002 Set Factory Def A factory-shipments setup (initialization) and packing mode are set up.
  • Page 55 Item Section Content of maintenance item Summary Operation U201 Init Touch Panel (HyPAS only) It adjusts, when the detection position of panel and the touch panel has shifted. support U203 Chk DP Ope Each simulation is operated with DP simple equipment substance.
  • Page 56 Item Section Content of maintenance item Summary U600 Init All Data According to the country code and the OEM code which were inputted, all the softswitches, backup data, and an image memory are initialized. U601 Init Keep Data Softswitches other than machine data are initialized according to the country code and the OEM code which were inputted.
  • Page 57 Item Section Content of maintenance item Summary U633 Comm Ctrl 4 It is whether communication by V.34 is per- mitted, and transmission and reception -- it sets up individually. It is set up whether 3429 Hz in V.34 symbol speed is used. The number of times of reception of a DIS signal is set up.
  • Page 58 Item Section Content of maintenance item Summary Others U901 Clr Paper FD Cnt The feed number of sheets count accord- ing to feed stage are displayed and cleared. U905 Option Cnt The each counter of DP and a sorter are displayed and cleared.
  • Page 59 (3) Contents of the maintenance mode items U000 Mainte Report Description Outputs lists of the current settings of the maintenance items and paper jam and service call occurrences. Outputs the event log. Also sends output data to the SD card. Purpose To check the current setting of the maintenance items, or paper jam or service call occurrences.
  • Page 60 [Event log] Event Log 2013/02/19 15:15 ECOSYS M3550idn [XXXXXXXX] Firmware version 2NM_2000.000.000 2013.02.19 [XXXXXXXX] [XXXXXXXX] (11) Paper Jam Log Counter Log Count. Event Descriprions Date and Time J0000: J4209: 5555555 0501.01.08.01.00 2013/02/12 17:30 J0100: J4211: 4444444 4002.01.08.01.00 2013/02/12 17:30 J0101: J4212: 3333333 0501.01.08.01.00...
  • Page 61 [Detail of event log] Items Description System version System date Engine software version Engine boot software version Operation panel software version Machine serial number Paper Jam Count. Event Remembers 1 to 16 of The total page count at the Log code (hexadecimal, 5 occurrence.
  • Page 62 Items Description Paper Jam (d) Detail of paper type (Hexadecimal) cont. 01: Plain 0A: Color 15: Custom 1 02: Transparency 0B: Prepunched 16: Custom 2 03: Preprinted 0C: Envelope 17: Custom 3 04: Labels 0D: Cardstock 18: Custom 4 05: Bond 0E: Coated 19: Custom 5 06: Recycled...
  • Page 63 Items Description (10) Unknown Count. item Toner Log The total page count at the Unknown toner log code Remembers 1 to 5 of occurrence of unknown time of the toner empty (1 byte, 2 categories) toner detection. If the error with using an occurrence of the previous unknown toner container.
  • Page 64 [Service status page] Service Status Page 2013/02/19 15:15 [XXXXXXXX] [XXXXXXXX] [XXXXXXXX] Firmware version 2NM_2000.000.000 2013.02.19 Controller Information FAX Information Memory status (29) Rings (Normal) Total Size 2.0 GB (30) Rings (FAX/TEL) (31) Rings (TAD) Time (32) Option DIMM Size 16 MB Local Time Zone +01:00 Amsterdam Date and Time...
  • Page 65 Service Status Page 2013/02/19 15:15 [XXXXXXXX] [XXXXXXXX] [XXXXXXXX] Firmware version 2NM_2000.000.000 2013.02.19 Engine Information Send Information (38) (42) NVRAM Version _1F31225_1F31225 Date and Time 2013/02/19 15:30 (39) (43) Scanner Version 2NM_1200.001.089 Address mail@bjd.ne.jp (40) FAX Slot1 FAX BOOT Version 2NM_5000.001.001 FAX APL Version 2NM_5100.001.001 FAX IPL Version...
  • Page 66 [Detail of service status page] Supplement Firmware version System date Engine soft version Engine boot version Operation panel mask version Machine serial number Standard memory size Local time zone Report output date Day/Month/Year hour:minute (10) NTP server name (11) Presence or absence of the optional Installed/Not Installed paper feeder 2 (12)
  • Page 67 Description Supplement (29) Number of rings 0 to 15 (30) Number of rings before automatic 0 to 15 switching (31) Number of rings before connecting to 0 to 15 answering machine (32) Optional DIMM size (33) FRPO setting (34) RP code Code the engine software version and the date of update.
  • Page 68 Description Supplement (49) Panel lock information 0: OFF/1: Partial lock/2: Full lock (50) USB information U00: Not installed/U01: Full speed/U02: Hi speed (51) Paper handling information 0: Paper source unit select/1: Paper source unit (52) Black and white printing double count 0: All single counts mode 1: A3, Single count, Less than 420 mm (length)
  • Page 69 Description Supplement FAX Board (Port1)/FAX Board (Port2)/FAX Memory/ (75) Data Sanitization information Main Memory/Panel Memory/Performed time 1: Success 0: Failure - : Not performed or Not installed (76) Toner low setting 0: Enabled 1: Disabled (77) Toner low detection level 0 to 100 (%) 1 to 65535 (78)
  • Page 70 U001 Exit Mainte Description Exits the maintenance mode and returns to the normal copy mode. Purpose To exit the maintenance mode. Method 1. Press the start key. The normal copy mode is entered. U002 Set Factory Def Description Restores the machine conditions to the factory default settings. Purpose To move the mirror frame of the scanner to the position for transport.
  • Page 71 U004 Machine No. Description Sets or displays the machine number. Purpose To check or set the machine number. Method Press the start key. If the machine serial number of engine PWB matches with that of main PWB. Display Description Machine No. Displays the machine serial number.
  • Page 72 U010 Set Mainte ID Description Sets the maintenance mode ID. Purpose Modify maintenance mode ID for more security. Method 1. Press the start key. 2. Select [Change] or [Initialize]. Display Description Change Changes the maintenance mode ID at the market. Initialize Initializes the maintenance mode ID at the market.
  • Page 73 U019 Firm Version Description Displays the part number of the ROM fitted to each board. Purpose To check the part number or to decide, if the newest version of ROM is installed. Method 1. Press the start key. The ROM version are displayed. 2.
  • Page 74 U021 Init memory Description Initializes all settings, except those pertinent to the type of machine, namely each counter, service call history and mode setting. Also initializes backup RAM according to region specification selected in maintenance item U252 Setting the destination. Purpose To return the machine settings to their factory default.
  • Page 75 U025 Firm Update(S) Description Used to execute FW-Update from the USB flash device while Very High is selected in the Security Level settings under the System Menu. Purpose Firmware upgrading is initiated by a service person to conduct U025 while a USB flash device is inserted.
  • Page 76 U034 Adj Paper Timing Description Adjusts the leading edge registration or center line. Purpose Make the adjustment if there is a regular error between the leading edges of the copy image and original. Make the adjustment if there is a regular error between the center lines of the copy image and original.
  • Page 77 5. Change the setting value using the cursor right/left keys or numeric keys. For output example 1, increase the value. For output example 2, decrease the value Leading edge registration (20 ± 1.0 mm) Correct image Output Output example 1 example 2 Figure 1-3-4 6.
  • Page 78 5. Change the setting value using the cursor right/left keys or numeric keys. For output example 1, increase the value. For output example 2, decrease the value. Center line of printing (within ± 2.0 mm) Output Correct image Output example 1 example 2 6.
  • Page 79 U065 Adj Scn Description Adjusts the magnification of the original scanning. Purpose Make the adjustment if the magnification in the main scanning direction is incorrect. Make the adjustment if the magnification in the auxiliary scanning direction is incorrect. Caution The magnification adjustment along the main scanning direction could cause black streaks depending on the content of the original document.
  • Page 80 Adjustment: Sub Scan 1. Change the setting value using the cursor right/left keys or numeric keys. For copy example 1, increase the value. For copy example 2, decrease the value. Increasing the value makes the image longer, while decreasing the value makes the image shorter.
  • Page 81 U066 Table Timing Description Adjusts the scanner leading edge registration of the original scanning. Purpose Make the adjustment if there is a regular error between the leading edges of the copy image and original. Adjustment 1. Press the start key. 2.
  • Page 82 U067 Table Center Description Adjusts the scanner center line of the original scanning. Purpose Make the adjustment if there is a regular error between the center lines of the copy image and original. Adjustment 1. Press the start key. 2. Press the system menu key. 3.
  • Page 83 U068 DP Scn Start Pos Description Adjusts the position for scanning originals from the DP. Performs the test copy at the four scanning positions after adjusting. Purpose Used when the image fogging occurs because the scanning position is not proper when the DP is used.
  • Page 84 U070 Adj DP Motor Description Adjusts the DP original scanning speed. Purpose Make the adjustment if the magnification is incorrect in the auxiliary scanning direction when the DP is used. Adjustment 1. Press the start key. 2. Press the system menu key. 3.
  • Page 85 U071 DP Timing Description Adjusts the DP original scanning timing. Purpose Make the adjustment if there is a regular error between the leading or trailing edges of the original and the copy image when the DP is used. Method 1. Press the start key. 2.
  • Page 86 Adjustment: Trailing edge registration 1. Change the setting value using the cursor right/left keys or numeric keys. For copy example 1, increase the value. For copy example 2, decrease the value. Original Copy Copy example 1 example 2 Figure 1-3-11 2.
  • Page 87 U072 DP Center Description Adjusts the scanning start position for the DP original. Purpose Make the adjustment if there is a regular error between the centers of the original and the copy image when the DP is used. Adjustment 1. Press the start key. 2.
  • Page 88 U130 Set Toner Install Description To set ON/OFF of the toner installation mode. Purpose Toner installation is performed at the time of a machine setup. Setting 1. Press the start key. 2. Select [Mode]. 3. Set at On or Off. 4.
  • Page 89 U147 Set Toner Apply Description A mode setup of the operation which removes the toner in the development unit which carried out the charge rise is performed. Purpose The basic target does not need to change a setup. However, the mode is changed when outputting a manuscript with an always low printing rate in large quantities.
  • Page 90 U201 Init Touch Panel (HyPAS only) Description Adjust touch panel detecting positions. Purpose When the panel PWB or the operation panel is replaced or if the detecting positions are not aligned, perform this simulation to correct and confirm. Method 1. Press the start key. 2.
  • Page 91 U203 Chk DP Ope Description Simulates the original conveying operation separately in the DP. Purpose To check the DP operation. Method 1. Press the start key. 2. Place an original in the DP if running this simulation with paper. 3. Select the speed to be operated. Display Description Normal Speed...
  • Page 92 U207 Chk Panel Key Description Checks operation of the operation panel keys. Purpose To check operation of all the keys on the operation panel. Method 1. Press the start key. The screen for executing is displayed. 2. [Count0] is displayed and the left most LED on the operation panel lights. Display Description Keypress counter.
  • Page 93 U222 Set IC Card Type Setting the IC card type Description Sets the type of IC card. Purpose To change the type of IC card. Setting 1. Press the start key. 2. Select the item. Display Description Other The type of IC card is not SSFC SSFC The type of IC card is SSFC * Initial setting: Other...
  • Page 94 U250 Mnt Cnt Pre-set Description Changes preset values for maintenance cycle. Purpose Provides changing the time when the message to acknowledge to conduct maintenance adjustment is periodically displayed. Setting 1. Press the start key. 2. Select the item to be set. 3.
  • Page 95 U251 Clr Mnt Cnt Description Displays and clears or changes the maintenance count. Purpose To verify the maintenance counter count. Also to clear the count during maintenance service. Setting 1. Press the start key. 2. Select the item to be changed. 3.
  • Page 96 U252 Set Dest Description Switches the operations and screens of the machine according to the destination. Purpose To be executed after initializing the backup RAM, in order to return the setting to the value before replacement or initialization. Method 1. Press the start key. 2.
  • Page 97 U253 Sel D/S Count Description Switches the count system for the total counter and other counters. Purpose Used to select, according to the preference of the user (copy service provider), if folio size paper is to be counted as one sheet (single count) or two sheets (double count). Setting 1.
  • Page 98 U265 Set Model Dest Description Sets the OEM purchaser code. Purpose Sets the code when replacing the main board and the like. Setting 1. Press the start key. 2. Change the setting using the +- keys or numeric keys. Display Description Sets the OEM purchaser code.
  • Page 99 U332 Adj Calc Rate Description Sets the coefficient of nonstandard sizes in relation to the A4/Letter size. The coefficient set here is used to convert the black ratio in relation to the A4/Letter size and to display the result in user simulation.
  • Page 100 U339 Chk Drum Heater Description The change of a system menu display of a drum heater setup is set up. * : This function is available only Asia area. Purpose A setup of a drum heater is performed at the time of the change of a display on a system menu. 1.
  • Page 101 U345 Set Mnt Time Disp Description Sets when to display a message notifying that the time for maintenance is about to be reached,by setting the number of copies that can be made before the current maintenance cycle ends. When the difference between the number of copies of the maintenance cycle and that of the main- tenance count reaches the set value, the message is displayed.
  • Page 102 U346 Slct Sleep Mode Description A sleep mode-related setting change is performed. Purpose It uses in order to perform a sleep mode-related setting change. Method 1. Press the start key. 2. Select the item tobe set. Display Description Timer/Sleep Level BAM conformity country setup Auto sleep An On/Off setup of an AutoSleep function...
  • Page 103 U402 Adjust Margin Description Adjusts margins for image printing. Purpose Make the adjustment if margins are incorrect. Adjustment 1. Press the start key. 2. Press the system menu key. 3. Press the start key to output a test pattern. 4. Press the system menu key. 5.
  • Page 104 U403 Scan Margin Tbl Description Adjusts margins for scanning the original on the contact glass. Purpose Make the adjustment if margins are incorrect. Adjustment 1. Press the start key. 2. Press the system menu key. 3. Place an original and press the start key to make a test copy. 4.
  • Page 105 U404 Scan Margin DP Description Adjusts margins for scanning the original from the DP. Purpose Make the adjustment if margins are incorrect. Adjustment 1. Press the start key. 2. Press the system menu key. 3. Place an original on the DP and press the start key to make a test copy. 4.
  • Page 106 U411 Auto Adj Scn Description Uses a specified original and automatically adjusts the following items in the scanner and the DP scanning sections. Scanner section: Original size magnification, leading edge timing, center line, input gamma, input gamma in monochrome mode and matrix. DP scanning section: Original size magnification, leading edge timing, center line.
  • Page 107 Method: Table To Automaticary enter the target value : Usually, it adjusts here. 1. Set a specified original (P/N: AVGR23234P) on the platen. 2. Enter maintenance item U411. 3. Select [Target]. 4. Select [Auto] and press the start key. 5. Select [Table]. 6.
  • Page 108 Codes Description Corrective Action Black band is not detected (DP main scan- 1. Check the attachment position of ning direction far end) 2. Check a lighting of the lamp or Black band is not detected (DP main scan- replace. ning direction near end) 3.
  • Page 109 Codes Description Corrective Action Lab value searching error Check the following and perform again. - Isn't the bar code dirty? - Is the position of a original right? - Is a bar code position right? Lab value comparing error Check the following and perform again.
  • Page 110 U425 Set Target Description Enters the lab values that is indicated on the back of the chart (P/N: AVGR23234P) used for adjustment. Purpose Performs data input in order to correct for differences in originals during automatic adjustment. Method 1. Press the start key. 2.
  • Page 111 Setting: [Adjust Original] *: This setting is usually unnecessary. Display Description Setting range Initial setting Dist1 Sets the adjustment value of a leading 4.0 to 6.0 edge. Dist2 Sets the adjustment value of a left edge. 9.0 to 11.0 10.0 Dist3 Sets the adjustment value of a trailing 265.0 to 267.0...
  • Page 112 Setting: [DP] *: This setting is usually unnecessary. Display Description Setting range Initial setting Lead A value of length of detecting the leading 14.0 to 16.0 15.0 edge. Main Scan A value of width of main scan. 14.0 to 16.0 15.0 Sub Scan A value of length of sub scan.
  • Page 113 U520 Set TDRS Description Perform TDRS settings and information views. Purpose Perform TDRS settings and information views. Method 1. Press the start key. 2. Select the item. Display Description Registration Transition to the TDRS Manager registering dialog Information Transition to the Device Agent description dialog On/Off Config Transition to the TDRS features dialog Setting: [Registration]...
  • Page 114 Error Codes Codes Description Codes Description e0001 HDD is unavailable. t0001 Fatal error. e0002 t0002 USB memory is unavailable. Error in processing the network. e0003 t0003 The file to import does not exist An illegal parameter error. in the USB. e0004 t0004 Reading from the USB has...
  • Page 115 U600 Init All Data Description Initializes software switches and all data in the backup data on the FAX control board, according to the destination and OEM. Executes the check of the file system, when abnormality of the file system is detected, initializes the file system, communication past record and register setting contents.
  • Page 116 Code Destination Code Destination Russia Austria CTR21 (European nations) ↑ Switzerland ↑ Italy ↑ Belgium ↑ Germany ↑ Denmark ↑ Spain ↑ Finland ↑ U.K. ↑ Portugal ↑ Netherlands ↑ Ireland ↑ Sweden ↑ Norway ↑ France Taiwan Service Manual Y116540-5 1-3-64...
  • Page 117 U601 Init Keep Data Description Initializes software switches on the FAX control board according to the destination and OEM. Purpose To initialize the FAX control board without changing user registration data. 1. Press the start key. The screen for entering the destination code and OEM code is displayed. 2.
  • Page 118 U603 User Data 1 Description Makes user settings to enable the use of the machine as a fax. Purpose To be executed as required. Method 1. Press the start key. 2. Select [Line Type] and press the start key. Display Description Line Type Line Type...
  • Page 119 U604 User Data 2 Description Makes user settings to enable the use of the machine as a fax. Purpose Use this if the user wishes to adjust the number of rings that occur before the unit switches into fax receiving mode when fax/telephone auto-select is enabled. Method 1.
  • Page 120 U610 System Setting 1 Description Makes settings for fax reception regarding the sizes of the fax paper and received images and automatic printing of the protocol list. Method 1. Press the start key. 2. Select the item to be set. Display Description Cut Line:A4...
  • Page 121 Setting the number of lines to be ignored when receiving a fax in the auto reduction mode Sets the maximum number of lines to be ignored if the received data volume exceeds the record- ing capacity when the data is recorded in the auto reduction mode. If the number of excess lines is below the setting, those lines are ignored.
  • Page 122 U611 System Setting 2 Description Sets the number of adjustment lines for automatic reduction. Purpose It carries out to set up the number of adjustment lines of automatic reduction. Method 1. Press the start key. 2. Select the item to be set. Display Description ADJ LINES...
  • Page 123 U612 System Setting 3 Description Makes settings for fax transmission regarding operation and automatic printing of the protocol list. Method 1. Press the start key. 2. Select the item to be set. Display Description Auto Reduct Selects if auto reduction in the auxiliary direction is to be performed. Protocol List Sets the automatic printing of the protocol list.
  • Page 124 U620 FAX System Description Sets the signal detection method for remote switching. Be sure to change the setting according to the type of telephone connected to the machine. Purpose The decision system of a remote change is set up to compensate for a user's telephone classifica- tion, peculiarity.
  • Page 125 U625 Set Comm Description Makes settings for the auto redialing interval and the number of times of auto redialing. Purpose Change the setting to prevent the following problems: fax transmission is not possible due to too short redial interval, or fax transmission takes too much time to complete due to too long redial interval.
  • Page 126 U630 Comm Ctrl 1 Description Makes settings for fax transmission regarding the communication. Purpose The event of a request for user. Reduce transmission time and the reception of accuracy when using poor quality line. Improve the accuracy of communication at international communication. Method 1.
  • Page 127 Setting the waiting period to prevent echo problems at the sender Sets the period before a DCS signal is sent after a DIS signal is received. Used when problems occur due to echoes at the sender. 1. Select the setting. Display Description Sends a DCS 500 ms after receiving a DIS.
  • Page 128 U631 Comm Ctrl 2 Description Makes settings regarding fax transmission. Purpose Transmission and reception of ECM are set up. The frequency of CED is set up. 1. Press the start key. 2. Select the item to be set. Display Description ECM TX Sets ECM transmission.
  • Page 129 Setting: Freq. Sets the frequency of the CED signal. Used as one of the measures to improve transmission per- formance for international communications. 1. Select the setting. Display Description 2100 2100Hz 1100 1100Hz * : Initial setting: 2100 2. Press the start key. The setting is set. Completion Press the stop key.
  • Page 130 U632 Comm Ctrl 3 Description Makes settings for fax transmission regarding the communication. Purpose Reduction of error communication when a low quality circuit is used. When changing a FAX/TEL automatic change. Method 1. Press the start key. 2. Select the item to be set. Display Description DIS 4Byte...
  • Page 131 U633 Comm Ctrl 4 Description Makes settings for fax transmission regarding the communication. Purpose To reduce transmission errors when a low quality line is used. Method 1. Press the start key. 2. Select the item to be set. Display Description V.34 Enables or disables V.34 communication.
  • Page 132 Setting the number of times of DIS signal reception Sets the number of times to receive the DIS signal to once or twice. Used as one of the correction measures for transmission errors and other problems. 1. Select the setting. Display Description Once...
  • Page 133 U634 Comm Ctrl 5 Description Sets the maximum number of error bytes judged acceptable when receiving a TCF signal. Used as a measure to ease transmission conditions if transmission errors occur. Purpose Do to alleviate the communication conditions. Setting 1. Press the start key. 2.
  • Page 134 U640 Comm Time 1 Description Sets the detection time when one-shot detection is selected for remote switching. (This setting item will be displayed, but the setting made is ineffective.) Sets the detection time when continuous detection is selected for remote switching. (This setting item will be displayed, but the setting made is ineffective.) Purpose The decision system of a remote change is set up to compensate for a user's telephone classifica-...
  • Page 135 U641 Comm Time 2 Description Sets the time-out time for fax transmission. Purpose To improve transmission performance for international communications mainly. Method 1. Press the start key. 2. Select the item to be set. Display Description T0 TIME OUT Sets the T0 time-out time. T1 TIME OUT Sets the T1 time-out time.
  • Page 136 Setting: T2 time out The T2 time-out time decides the following. From CFR signal output to image data reception From image data reception to the next signal reception In ECM, from RNR signal detection to the next signal reception 1. Change the setting using the cursor right/left keys. Description Setting range Initial setting...
  • Page 137 Setting: Tb2 time out In the fax/telephone auto select mode, sets the time to start ringing an operator through the con- nected telephone after receiving a call as a fax machine (see figure 1-3-18). In the fax/telephone auto select mode, change the setting when fax reception is unsuccessful or a telephone fails to receive a call.
  • Page 138 U650 Modem 1 Description Sets the G3 cable equalizer. Sets the modem detection level. Purpose Perform the following adjustment to make the equalizer compatible with the line characteristics. To improve the transmission performance when a low quality line is used. Method 1.
  • Page 139 U651 Modem 2 Description Sets the modem output level. Sets the DTMF output level of a push-button dial telephone. Purpose Used if problems occur when sending a signal with a push-button dial telephone. Setting 1. Press the start key. 2. Select the item to be set. 3.
  • Page 140 U660 Set Calls Description Makes setting regarding the network control unit (NCU). Purpose To be executed as required. Method 1. Press the start key. 2. Select the item to be set. Display Description Exchange Sets the connection to PBX/PSTN. Dial Tone Sets PSTN dial tone detection.
  • Page 141 Setting: Busy tone When a fax signal is sent, sets whether the line is disconnected immediately after a busy tone is detected, or the busy tone is not detected and the line remains connected until T0 time-out time. Fax transmission may fail due to incorrect busy tone detection. When set to 2, this problem may be prevented.
  • Page 142 U670 Output List Description Outputs a list of data regarding fax transmissions. Printing a list is disabled either when a job is remaining in the buffer or when [Pause All Print Jobs] is pressed to halt printing. Purpose To check conditions of use, settings and transmission procedures of the fax. Method 1.
  • Page 143 U695 Custom FAX Func Description Sets fax batch transmission ON/OFF. Also changes the print size priority at the time of small size reception. Purpose To be executed as required. Setting * : Select the setting. Display Description FAX Bulk TX fax batch transmission On/Off A5 Pt Pri Chg Change of print size priority at the time of small size reception...
  • Page 144 U699 Set Soft SW Description Sets the software switches on the FAX control board individually. Purpose To change the setting when a problem such as split output of received originals occurs. Since the communication performance is largely affected, normally this setting need not be changed.
  • Page 145 Description 0 2400bps/V34 3 FSK detection in V.8 4 4800 bps when low-speed setting is active 2 FIF length in transmission of more than 4 times of DIS/DTC signal <Communication time setting> Description 76543210 T3 timeout setting 76543210 T4 timeout setting (automatic equipment) 76543210 T5 timeout setting 76543210 Time before transmission of CNG (1100 Hz) signal 76543210 T0 timeout setting (manual equipment)
  • Page 146 Description 76543210 Allowable dial tone interruption time 76543210 Time for transmitting selection signal after closing the DC circuit 76543210 Ringer frequency detection invalid time Service Manual Y116540-5 1-3-94...
  • Page 147 U901 Clr Paper FD Cnt Description Displays copy counts by paper feed locations. Purpose To check the time to replace consumable parts. Method 1. Press the start key. The counts by paper feed locations are displayed. Display Description MP tray Cass1 Cassette 1 Cass2...
  • Page 148 U905 Option Cnt Description Displays the counts of DP. Purpose To check the use of DP. Method 1. Press the start key. 2. Select [DP]. The count is displayed. Display Description Counts of DP Method: [DP] Display Description Counts of single-sided originals that has passed through the DP. RADP Counts of double-sided originals that has passed through the DP.
  • Page 149 U910 Clr Coverage Dat Description Clears the accumulated data for the print coverage per A4 size paper and its period of time (as shown on the service status report). Purpose To clear data as required at times such as during maintenance service. Method 1.
  • Page 150 U917 R/W Bkup Data Description Retrieves the backup data to a USB memory from the machine; or writes the data from the USB memory to the machine. Purpose Machine information is backed up and restored. Method 1. Press the power key on the operation panel, and after verifying the power indicator has gone off, switch off the main power switch.
  • Page 151 7. Select [On] using the cursor right/left keys. 8. Press the start key. Starts reading or writing. The progress of selected item is displayed in %. When an error occurs, the operation is canceled and an error code is displayed. 9.
  • Page 152 U920 Chg Cnt Description Checks the copy counts. Purpose To check the copy counts. Method 1. Press the start key. 2. Select the item to be set. Display Description Main Function Counts of main function Sub Function Counts of sub function [Setting: Main Function] 1.
  • Page 153 U927 Clr Chg/Life Cnt Description Resets all of the counts back to zero. Purpose The total account counter and the machine life counter can be cleared only once if all count values are 1000 or less. Method 1. Press the start key. 2.
  • Page 154 U969 Toner Area Code Description Displays the toner area code. Purpose To check the toner area code. Method 1. Press the start key. The toner area code is displayed. Display Description (Code) Toner area code is displayed. Completion Press the stop/clear key. The screen for selecting a maintenance item No. is displayed. U977 Data capture mode Description...
  • Page 155 U995 Mem Data Indi Description Displays the memory data. Purpose To check the memory data. Method 1. Press the start key. 2. Select [Print Engine]. Display Description Print Engine A display and setup of the Engine section memory 3. Press the start key. Display Description Mode...
  • Page 156 1-3-2 Service mode The machine is equipped with a maintenance function which can be used to maintain and service the machine. (1) Executing a service mode [Message Display] Ready to copy 1. Press the System Menu Key. System Menu: Quick Setup Wisard Language Report Counter...
  • Page 157 Service setting Description Display Page Test page The test page is printed with halftones. P.1-3-105 Developer Installs the toner to the developer unit. P.1-3-106 FAX Country Code Initializes software switches and all data. P.1-3-107 FAX Call Settings Sets FAX for connection. P.1-3-108 Alutitude Adjustment Sets the altitude adjustment mode.
  • Page 158 Service items Description Initializing the developer unit (toner install mode) Developer Description The new developer unit is shipped from the factory with no toner contained. The devel- oper unit can be automatically replete with toner when a toner container is installed onto it and the printer is turned on.
  • Page 159 Service items Description FAX country FAX Country Code code Description Initializes software switches and all data in the backup data on the FAX control PWB, according to the destination. Purpose To initialize the FAX control PWB. Method 1. Enter the Service Setting menu. 2.
  • Page 160 Service items Description FAX call Setting FAX call setting Description Selects if a fax is to be connected to either a PBX or public switched telephone network. Selects the mode to connect an outside call when connected to a PBX. Access code registration for connection to PSTN.
  • Page 161 Service items Description Altitude adjust- Setting altitude adjustment ment Description Sets the altitude adjustment mode. Purpose Used when print quality deteriorates in an installation at the altitude of 1,500 meters or higher. Method 1. Enter the Service Setting menu. 2. Select [Altitude Adj.]. 3.
  • Page 162 Service items Description Memory Perform a memory diagnostic Diagnostics Description Diagnose memory at power up (whether reading and writing are executable). Purpose Execute memory check in purpose of rectifying a defective memory device which may possibly cause an unresolvable F call, locking, or abnormal images. Method 1.
  • Page 163 1-4 Troubleshooting 1-4-1 Paper misfeed detection (1) Paper misfeed indication When a paper misfeed occurs, the machine immediately stops printing and displays the paper misfeed mes- sage on the operation panel. To remove paper misfed in the machine, pull out the cassette, open the paper conveying unit or paper conveying cover.
  • Page 164 (2) Paper misfeed detection condition Machine + PF (Option) DPTS DPOS DPRS MPPS DUS2 DUS1 PS1/2 PFFS1 PFPS1 PFFS2 PFPS2 PFFS3 PFPS3 PFFS4 PFPS4 Figure 1-4-2 Service Manual Y116540-5 1-4-2...
  • Page 165 List of JAM Code Code Contents Conditions location* Initial jam The power is turned on when a sensor in the con- 0000 veying system is on. Secondary feeding timeout Secondary paper feed request given by the con- 0100 troller is unreachable. Wait for ready of print-process Process package won’t become ready.
  • Page 166 Code Contents Conditions location* Multiple sheets jam The registration sensor 1 (RS1)*1 or registration 0511 sensor 3 (RS3)*2 does not turn off during paper feed from cassette 1. PF feed sensor 1 (PFFS1) does not turn off dur- 0512 ing paper feed from cassette 2. PF feed sensor 2 (PFFS2) does not turn off dur- 0513 ing paper feed from cassette 3.
  • Page 167 Code Contents Conditions location* Registration sensor 1 or 3 non The registration sensor 1 (RS1)*1 or registration 4002 arrival jam sensor 3 (RS3)*2 does not turn on during paper feed from cassette 2. The registration sensor 1 (RS1)*1 or registration 4003 sensor 3 (RS3)*2 does not turn on during paper feed from cassette 3.
  • Page 168 Code Contents Conditions location* Registration sensor 2 stay jam The registration sensor 2 (RS2) does not turn off 4111 during paper feed from cassette 1. The registration sensor 2 (RS2) does not turn off 4112 during paper feed from cassette 2. The registration sensor 2 (RS2) does not turn off 4113 during paper feed from cassette 3.
  • Page 169 Code Contents Conditions location* Duplex sensor 1 non arrival The duplex sensor 1 (DUS1) does not turn on 4301 during paper feed from cassette 1. The duplex sensor 1 (DUS1) does not turn on 4302 during paper feed from cassette 2. The duplex sensor 1 (DUS1) does not turn on 4303 during paper feed from cassette 3.
  • Page 170 Code Contents Conditions location* Initial jam of DP registration When DP reading is begun in the state where the 9220 sensor manuscript remains in the conveyance way *1: 40 ppm model only *2: 50/60 ppm model only *: Refer to figure 1-4-1 for paper misfeed indication (see page 1-4-1). Service Manual Y116540-5 1-4-8...
  • Page 171 1-4-2 Troubleshooting (1) First check items If the paper is fed askew, jammed, curled, or leading-edge dog-eared, first perform to check the following items. Check items Check description Corrective measures Paper 1. Check the paper delivered is If a dog-ear has happened, check there are no objects dog-eared, skewed or existing in the conveying paths and, if any, fix.
  • Page 172 Check items Check description Corrective measures Settings/ 1. Check if the margin is If the check line is not situated at 20mm±1mm from the Detection 4.0±2.5mm from the leading leading edge, adjust the leading margin by U402. (see edge of paper. page 1-3-51) 2.
  • Page 173 Check items Check description Corrective measures Conveying 1. Check the conveying rollers Clean the conveying rollers or the pollyes. roller, feed have no paper dusts, toner, If variation in the external diameter or abrasion is roller or foreign objects observed, replace. stucked.Check a variation of the external diameter of the roller or abrasion is not...
  • Page 174 (2) Items and corrective actions relating to the device that will cause paper jam Jam types Check description Corrective measures No-paper-feed jam or 1. Check if the jammed Replace the paper feed roller.(Service life of rubber the leading edge of paper or the printed roller is 300000 images *1) paper is curled back at...
  • Page 175 Jam types Check description Corrective measures Multiple-feed Jam 1. Check if the cutting If the cutting edge of the paper bundle is crumpled or (J0511, J0512, J0513, edge of the paper the cassette is loaded with multiple times of J0514, J0515, J0519) bundle is crumpled or replenishing paper, load new paper.
  • Page 176 Jam types Check description Corrective measures PF conveying sensor 1. Check to see if the If it won't operate without hinderance, re-assemble or stay jam actuator is operative replace the actuator's return spring. (J1413, J1414, J1415, without hinderance. J1614, J1615, J1815) 2.
  • Page 177 (3) Paper jam at feeding from cassette 1 Electrical parts that could cause paper jam during paper travelling at the primary feeding (to regist roller) Timing of detection Jam code J0501, J0511, J4101 *2, J4111 *2 Measures Related parts Registration sensor (RS) Control PWB (CONPWB) Paper feed clutch (PFCL) Drum PWB (DRPWB) *2...
  • Page 178 (4) Paper jam at feeding from cassette 2 (paper feerder) Electrical parts that could cause paper jam during paper travelling at the primary feeding ( to regist roller) Timing of detection Jam code J0502, J0512, J4002, J4012, J4102 2*, J4112 *2 Corrective Action Related parts PF main PWB (PF PWB)
  • Page 179 Checking procedure at the On/Off control signal output connector occurrence of Corrective action at the occurrence (terminal), point of checking connection J4002/J4012 J4102/J4112 *2 Paper feed clutch (PFCL): Operation C-RPWB YC12-4 check Main motor : Operation check C-RPWB YC10-1/2/3/4 Connect right PWB : Replace *2: 50/60 ppm model only (5) Paper jam at feeding from multi paper feed Electrical parts that could cause paper jam during paper travelling at the primary...
  • Page 180 (6) Paper jam at the duplex re-feeding part Electrical parts that could cause paper jam during paper travelling at the primary feeding ( to regist roller) Timing of detection Jam code J0508,J0518 Corrective Action Related parts Registration sensor (RS) Control PWB (CONPWB) Duplex clutch (DUCL) *2 Connect right PWB (C-RPWB) Middle clutch (MIDCL) *2...
  • Page 181 (7) Electrical parts that could cause paper jam at the transfer , the fuser and the eject parts Timing of detection Jam code J4201,J4211 Corrective Action Related parts Eject sensor (ES) Control PWB (CONPWB) Registration clutch (RCL) Connect right PWB (C-RPWB) Connect left PWB (C-LPWB) Main motor (MM) Eject motor (EM)
  • Page 182 1-4-3 Self-diagnostic function (1) Self-diagnostic function This machine is equipped with self-diagnostic function. When a problem is detected, the machine stops print- ing and display an error message on the operation panel. An error message consists of a message prompting a contact to service personnel and a four-digit error code indicating the type of the error.
  • Page 183 Check procedures/ Code Contents Related parts corrective measures 1. Turn the main power swtch off and after EEPROM 0110 Backup memory data error (Control PWB) 5 seconds, then turn power on. 2. Check that the EEPROM on the main circuit PWB is peroperly installed on the main circuit PWB and, if not, re-install it.
  • Page 184 Check procedures/ Code Contents Related parts corrective measures 1. Check that the EEPROMs installed in EEPROM 0170 Billing counting error The values on the main circuit the control PWB are correct and, if not, PWB and on the engine do use the correct EEPROM for the model.
  • Page 185 Check procedures/ Code Contents Related parts corrective measures FAX control PWB 1. Turn the main power swtch off and after 0870 PCFAX control PWB to main 5 seconds, re-mount the FAX controller PWB high capacity data PWB, then turn power on. transfer error High-capacity data transfer 2.
  • Page 186 Check procedures/ Code Contents Related parts corrective measures Bottom plate ele- Check to see if the bottom plate can move 1020 PF lift motor 1 error vation mechanism smoothly and repair it if any problem is (paper feeder) in the cassette found.
  • Page 187 Check procedures/ Code Contents Related parts corrective measures Bottom plate ele- Check to see if the bottom plate can move 1050 PF lift motor 4 error vation mechanism smoothly and repair it if any problem is (paper feeder) in the cassette found.
  • Page 188 Check procedures/ Code Contents Related parts corrective measures Paper feeder Check the wiring connection status with 1820 Paper feeder 3 communica- paper feeder unit 2 and, if necessary, try tion error A communication error from connecting it again. paper feeder is detected 10 PF main PWB 1.
  • Page 189 Check procedures/ Code Contents Related parts corrective measures 1. Confirm that the wiring connector is PF main PWB 1930 Paper feeder 4 EEPROM (EEPROM) firmly connected and, if necessary, error When writing the data, read connect the connector all the way in. and write data does not match 2.
  • Page 190 Check procedures/ Code Contents Related parts corrective measures Connector cable or Reinsert the connector. Also check for conti- 2200 Drum motor drive error poor contact in the nuity within the connector cable. If none, (50/60 ppm model only) connector replace the cable. The drum motor is not stabi- Drum motor and connect right PWB (YC10) lized within 2 s after driving...
  • Page 191 Check procedures/ Code Contents Related parts corrective measures Connector cable or Reinsert the connector. Also check for conti- 2340 Envelope motor error poor contact in the nuity within the connector cable. If none, (Timeout) connector replace the cable. (50/60 ppm model only) Envelope motor and connect left PWB (YC11) The position detection sensor...
  • Page 192 Check procedures/ Code Contents Related parts corrective measures Connector cable or Reinsert the connector. Also check for conti- 2620 PF drive motor 3 error poor contact in the nuity within the connector cable. If none, (paper feeder 3) connector replace the cable. When the PF drive motor is PF drive motor 3 and PF main PWB (YC6) driven, error signal is detected...
  • Page 193 Check procedures/ Code Contents Related parts corrective measures Image scanner 1. Move the scanner by the hand to check 3100 Scanner carriage error The home position is not cor- motor whether it is unusually difficult to move. rect when the power is turned 2.
  • Page 194 Check procedures/ Code Contents Related parts corrective measures Polygon motor 1. Confirm that the wiring connector is 4000 Polygon motor steady-state (LSU) firmly connected and, if necessary, error After Polygon motor is stabi- connect the connector all the way in. lized, the ready signal is at the Laser scanner unit and control PWB H level for 20 s continuously.
  • Page 195 Check procedures/ Code Contents Related parts corrective measures Fuser unit 1. Check that no paper jam is present. 6000 Broken fuser heater wire 2. Confirm that the wiring connector is (Center) firmly connected and, if necessary, (50/60 ppm model) connect the connector all the way in. Fuser thermistor 2 detects a Fuser unit and fuser thermistor connect temperature less than 100°C/...
  • Page 196 Check procedures/ Code Contents Related parts corrective measures Fuser unit 1. Confirm that the wiring connector is 6020 Abnormally high fuser firmly connected and, if necessary, thermistor 2 temperature connect the connector all the way in. (Center) (50/60 ppm model only) Fuser unit and fuser thermistor connect PWB (YC2) Fuser thermistor 2 detects a...
  • Page 197 Check procedures/ Code Contents Related parts corrective measures Fuser unit 1. Check that no paper jam is present. 6030 Broken fuser thermistor 2 2. Confirm that the wiring connector is wire (Center) firmly connected and, if necessary, (50/60 ppm model only) connect the connector all the way in.
  • Page 198 Check procedures/ Code Contents Related parts corrective measures Connector pin If the I/F connector pins of the fuser unit and 6000/ Broken fuser heater wire the main unit are deformed owing to foreign 6020/ Abnormally high fuser matters, replace the connectors or the units thermistor 2 temperature including the connectors.
  • Page 199 Check procedures/ Code Contents Related parts corrective measures Connector pin See page 1-4-36. 6120 Abnormally high fuser thermistor 1 temperature Triac See page 1-4-36. Fuser thermistor Replace the fuser unit (see page 1-5-44). (50/60 ppm model) The detection temperature of Contrl PWB Replace the control PWB and check for cor- fuser thermistor 1 is higher...
  • Page 200 Check procedures/ Code Contents Related parts corrective measures Fuser unit 1. Confirm that the wiring connector is Zero-cross signal error 6400 While fuser heater ON/OFF firmly connected and, if necessary, control is performed, the zero- connect the connector all the way in. cross signal is not input within Power source PWB and connect right 2 s.
  • Page 201 Check procedures/ Code Contents Related parts corrective measures 1. Check the toner sensor output. Toner sensor 7100 Toner sensor error 2. Confirm that the wiring connector is Sensor output value of 930 or firmly connected and, if necessary, more continuously for 5 s. connect the connector all the way in.
  • Page 202 Check procedures/ Code Contents Related parts corrective measures Connector cable or Reinsert the connector. Also check for conti- 7400 Developer unit non-install- poor contact in the nuity within the connector cable. If none, ing error connector replace the cable. Sensor output value of 31 or Developer unit and drum PWB (YC3) less continuously for 5 s.
  • Page 203 Check procedures/ Code Contents Related parts corrective measures 1. Confirm that the wiring connector is Temperature 7810 Short-circuited tempera- firmly connected and, if necessary, sensor ture sensor wire connect the connector all the way in. Input from temperature sensor Temperature sensor and control PWB is 31 or less continuously for 5 (YC30) 2.
  • Page 204 Check procedures/ Code Contents Related parts corrective measures Control PWB Turn the main power switch off/on to restart F010 Control PWB checksum the machine. If the error is not resolved, error replace control PWB and check for correct operation (see page 2-2-12). Main memory Turn the main power switch off/on to restart F020...
  • Page 205 Check procedures/ Code Contents Related parts corrective measures 1. Turn the main power swtch off and after Control PWB F051 Scan engine ROM check- 5 seconds, then turn power on. sum error 2. Confirm that the EEPROM has been properly installed. 3.
  • Page 206 1-4-4 Image formation problems Isolate the component an image defect has occurred from. <A guide to isolate the component of the cause.> Print a test page and check whether an image defect happens. (System Menu > Adjustment/Maintenance > Service setting) YES: Main unit as the cause of defect NO: Scanner as the cause of defect Perform enlarged or reduced copying and verify if the defective images are enlarged or reduced, accordingly.
  • Page 207 1-4-5 Poor image (due to DP and scanner reading) (1) No image (2) No image (3) Image is too (4) The back- (5) White streaks appears appears light. ground is col- are printed ver- (entirely white). (entirely black). ored. tically. See page1-4-46 See page1-4-48 See page1-4-49...
  • Page 208 (1) No image appears (entirely white). Print example 1. Table scanning Defective part Check description Corrective Action Contact glass assy Check the location the contact Re-mount the contact glass if it is hanged off. glass is mounted. FFC cable CCD Reinsert the connector if it its connection is Check the FFC cable between loose.
  • Page 209 2. DP-scanning Defective part Check description Corrective Action Original document Verify the sides of the original If the sides of the original document are document. reversed, place the original document properly. Contact glass assy Check the location the contact Re-mount the contact glass if it is hanged off. glass is mounted.
  • Page 210 (2) No image appears (entirely black). Print example 1. Table scanning Defective part Check description Corrective Action FFC cable CCD Check the FFC cable between Reinsert the connector if its connection is the CCD and control PWB is loose. Or, if conduction is lot, replace the wire. properly connected.
  • Page 211 (3) Image is too light. Print example 1. Table scanning Defective part Check description Corrective Action The settings of the Check the settings of the adjust- 1. Deactivate EcoPrint if it is activated. Or, if adjustment of den- ment of density. the density is too low, chosse an image sity quality that suits the original docuemt in...
  • Page 212 2. DP-scanning Defective part Check description Corrective Action The settings of the Check the settings of the adjust- 1. Deactivate EcoPrint if it is activated. Or, if adjustment of den- ment of density. the density is too low, chosse an image sity quality that suits the original docuemt in type.
  • Page 213 (4) The background is colored. Print example 1. Table scanning Defective part Check description Corrective Action Original document 1. Check if the background 1. If the background density of the original density of the original document is too dense, perform automatic document is too dense.
  • Page 214 2. DP-scanning Defective part Check description Corrective Action Original document 1. Check if the background 1. If the background density of the original density of the original document is too dense, perform automatic document is too dense. background adjustment.Or, adjust density 2.
  • Page 215 (5) White streaks are printed vertically. Print example 1. Table scanning Defective part Check description Corrective Action Original document Check whether the original If the original document is dirty, replace. document is dirty. Contact glass Check whether the contact glass If the contact glass is dirty, clean the contact is dirty.
  • Page 216 Defective part Check description Corrective Action Check whether the lens cover is Re-mount the lens cover if it is hanged off. hanged off. Shading plate Check whether the shading plate If the shading plate is dirty, perform is dirty. maintenance mode U063 to modify the shading position.
  • Page 217 (6) Black streaks appear longitudinally. Print example 1. Table scanning Defective part Check description Corrective Action Original document Check whether the original If the original document is dirty, replace. document is dirty. Original document Check if the size of the original If the size of the original document and its document and its reference size reference size do not match, set the correct...
  • Page 218 2. DP-scanning Defective part Check description Corrective Action Original document Check whether the original If the original document is dirty, replace. document is dirty. Original document Check if the size of the original If the size of the original document and its document and its reference size reference size do not match, set the correct match.
  • Page 219 (7) Streaks are printed horizontally. Print example 1. Table scanning Defective part Check description Corrective Action Original document Check whether the original If the original document is dirty, replace. document is dirty. Contact glass Check whether the contact glass If the contact glass is dirty, clean the contact is dirty.
  • Page 220 Defective part Check description Corrective Action Control PWB The control PWB is defective. Replace the control PWB.(see page 2-2-12) Service Manual Y116540-5 1-4-58...
  • Page 221 (8) One side of the print image is darker or brighter than the other. Print example 1. Table scanning Defective part Check description Corrective Action Original document Check whether the original If the original document is dirty, replace. document is dirty. Original document Check if the original document If the original document has foldings or...
  • Page 222 Defective part Check description Corrective Action Contact glass Check whether the contact glass If the contact glass is dirty, clean the contact is dirty. glass, and the bottom part of the shading plate. Contact glass assy Check the location the contact Re-mount the contact glass if it is hanged off.
  • Page 223 (9) Black dots appear on the image. Print example 1. Table scanning Defective part Check description Corrective Action Original document Check whether the original If the original document is dirty, replace. document is dirty. Contact glass Check whether the contact glass If the contact glass is dirty, clean the contact is dirty.
  • Page 224 (10) Image is blurred. Print example 1. Table scanning Defective part Check description Corrective Action Rail Check that the carriage is If the carriage does not travel smoothly, smoothly operative. remove foreign objects on the front and back optical rails. Lamp unit Check that the carriage is If the carriage does not travel smoothly...
  • Page 225 Defective part Check description Corrective Action Scopper guide Check that the scopper guide is If the scopper guide does not rotate smoothly, smoothly operative. re-install. Conveying roller Check whether the conveying If the conveying roller is dirty, clean. (before and after roller is dirty.
  • Page 226 (11) The leading edge of the image is consistently misaligned with the original. Print example 1. Table scanning Defective part Check description Corrective Action Original document Check if the original document is If the original document is not properly placed loaded correctly on the contact on the contact glass, place it correctly.
  • Page 227 (12) Part of image is missing. Print example 1. Table scanning Defective part Check description Corrective Action Original document Check if the original document is If the original document is not properly placed loaded correctly on the contact on the contact glass, place it correctly. glass.
  • Page 228 Defective part Check description Corrective Action Original document 1. Check that the size of the 1. If the sizes of the original document and original document and the the paper size do not match, manually set paper size match on the the proper paper size for the original panel.
  • Page 229 (13) Image is out of focus. Print example 1. Table scanning Defective part Check description Corrective Action Original document Check whether the original If the original document is wavy, straighten.Or, document is wavy. replace the original document. Contact glass Check whether the contact glass If the contact glass is dew condensed, remove is dew condensed.
  • Page 230 Defective part Check description Corrective Action CCD sensor Check whether the CCD sensor If the CCD sensor glass is dew condensed, glass is dew condensed. remove the dew. Adjustment of the Check the automatic adjustment Perform maintenance mode U411, scanner of the scanner.
  • Page 231 (14) Image center does not align with the original center. Print example 1. Table scanning Defective part Check description Corrective Action Original document Check if the original document is If the original document is not properly placed loaded correctly on the contact on the contact glass, place it correctly.
  • Page 232 (15) Moires Print example 1. Table scanning Defective part Check description Corrective Action Settings of print Confirm whether the moire Switch print quality mode if the moire varies quality mode varies depending on print quality depending on print quality mode. mode.
  • Page 233 (16) Skewed image Print example 1. Table scanning Defective part Check description Corrective Action Original document Check if the original document is If the original document is not placed askew on fed askew. the contact glass, place it correctly. Adjustment of Check the scanner unit is quite If the scanner unit is not quite level, perform height of main unit...
  • Page 234 (17) Abnormal image Print example 1. Table scanning Defective part Check description Corrective Action FFC cable CCD Check the FFC cable between Reinsert the connector if its connection is the CCD and control PWB is loose. Or, if conduction is lot, replace the wire. properly connected.
  • Page 235 1-4-6 Poor image (Image rendering problems: printer engine (1) No image (2) No image (3) Image is too (4) The back- (5) White streaks appears appears light. ground is col- are printed ver- (entirely white). (entirely black). ored. tically. See page1-4-75 See page1-4-76 See page1-4-77 See page1-4-79...
  • Page 236 (16) mage is blurred (18) The leading (19) Paper is wrin- (17)The leading (20)Fusing is loose. (Shifted edge of the edge of the kled. image is con- transferring). image is spo- sistently mis- radically mis- aligned with the aligned with original.
  • Page 237 (1) No image appears (entirely white). Print example Cause of trouble 1. No or defective developing bias output. 2. Failure of the rotation of the developing roller. 3. Defective transfer. 4. Laser is not dispersed from the laser scanner unit (LSU). 5.
  • Page 238 (2) No image appears (entirely black). Print example Cause of trouble 1. No main charging. 2. The laser from the LSU is activated simultaneously. Defective part Check description Corrective Action Charging roller Check whether the charging If the charging roller is not fixed properly, fix the roller is properly mounted.
  • Page 239 (3) Image is too light. Print example Cause of trouble 1. Variance in environments (dew formation). 2. Toner is under supplied, or deteriorated in quality.(Under charged) 3. The volatage of the developing bias is too low. 4. The volatage of the transfer current is too low. 5.
  • Page 240 Defective part Check description Corrective Action 1. The laser diode on the LSU Replace the LSU. (see page 1-5-25) APC PWB is out of control. 2. Check whether the internal mirrors are contaminated. Control PWB The control PWB is detective. Replace the control PWB.(see page 2-2-12) Service Manual Y116540-5...
  • Page 241 (4) The background is colored. Print example Cause of trouble 1. Toner is deteriorated in quality (under-charged). 2. Toner is over-supplied. 3. Developing bias is too high. 4. The layer of toner is too thick on the developing roller (too much toner). 5.
  • Page 242 (5) White streaks are printed vertically. Print example Cause of trouble 1. Dirty LSU slit glass. 2. Foreign objects inside the developer unit. 3. Internal contamination 4. Dirty drum inside. Defective part Check description Corrective Action Developer unit Generate PGs by service mode. Replace the developer unit.
  • Page 243 (6) Black streaks appear longitudinally. Print example Cause of trouble 1. Dirty charging roller 2. Flawed or dirty drum unit 3. Damaged or paper dust bitten cleaning blade Defective part Check description Corrective Action Separation brush Check if the separation brush is If the separation brush is dirty, clean it using a dirty with paper dusts and waste brush.
  • Page 244 Defective part Check description Corrective Action Eject guide The Rib is contaminated with If it is duty,clean. toner. Service Manual Y116540-5 1-4-82...
  • Page 245 (7) Black or white streaks appear horizontally. Print example Cause of trouble 1. Dirty developer unit or terminals 2. Flawed or dirty drum unit Improper grounding 3. Dirty transfer roller terminals Defective part Check description Corrective Action Developer unit 1. If the ends of the developing roller and the 1.
  • Page 246 (8) Uneven density longitudinally. Print example Cause of trouble 1. Dirty LSU inside 2. The transfer roller is not pressed against the drum properly. 3. Drum condensation. Defective part Check description Corrective Action Transfer roller unit Check that the transfer roller unit 1.
  • Page 247 (9) Uneven density horizontally. Print example Cause of trouble 1. Defective laser scanner unit. 2. Improper charging roller rotation 3. Improper contact on the developer unit terminals Defective part Check description Corrective Action Check the emission of laser is Replace the LSU. (see page 1-5-25) even.
  • Page 248 (10) Black dots appear on the image. Print example Cause of trouble 1. Dirty charging roller 2. Flawed or dirty drum unit 3. Damaged or paper dust bitten cleaning blade Defective part Check description Corrective Action Drum unit Check the print image on paper If the drum has scratches, replace the drum has a problem at an interval unit.
  • Page 249 (11) Offset occurs. Print example Cause of trouble 1. Flawed or dirty drum unit 2. Developing bias leakage. Defective part Check description Corrective Action Paper 1. If the type of the paper being used falls Check that the type of the paper used falls within the range of outside the requirements, replace and use specifications.
  • Page 250 (12) Image is partly missing. Print example Cause of trouble 1. Flawed or dirty drum unit. 2. Deformed or dirty transfer roller on its surface. Defective part Check description Corrective Action Paper 1. If the paper is damp, replace.Choose a dry 1.
  • Page 251 (13) Image is out of focus. Print example Cause of trouble 1. Drum condensation. 2. Dirty LSU slit glass. Defective part Check description Corrective Action Paper 1. If the paper is damp, replace.Choose a dry 1. Check that the paper has moisture absorbed.
  • Page 252 (15) Unevenly repeating horizontal streaks in the printed objects. Spots in the printed objects. Print example Cause of trouble 1. Installation at a high altitude. 2. Using the paper with high surface resistance. Defective part Check description Corrective Action Developer unit The device is installed in an If the device is installed in an altitude greater altitude higher than 1500 m sea...
  • Page 253 (16) mage is blurred (Shifted transferring). Print example Cause of trouble 1. The paper used does not conform to the requirement. 2. Imbalanced fuser unit pressures. Defective part Check description Corrective Action Paper 1. Check that the type of the 1.
  • Page 254 (17) The leading edge of the image is consistently misaligned with the original. Print example Cause of trouble 1. Improperly adjusted leading edge timing. 2. Improper amount of slack of the original document in front of the registration. Defective part Check description Corrective Action Regist roller...
  • Page 255 (18) The leading edge of the image is sporadically misaligned with the original. Print example Defective part Check description Corrective Action Paper feed clutch, Check that the clutches are 1. If it is not fixed properly, fix it properly. Registration clutch properly fit.IOr, check they are 2.
  • Page 256 (20) Fusing is loose. Print example Defective part Check description Corrective Action Paper 1. Check that the type of the 1. If the type of the paper being used falls paper used falls within the outside the requirements, replace and use range of specifications.
  • Page 257 (21) Image center does not align with the original center. Print example Defective part Check description Corrective Action Paper setting Check if paper is set correctly. Reload paper if the paper was not loaded correctly. Image position Perform adjustment if the value of U034 Center Excute U034 to check the center adjustment Line Adjustment is inadequate.
  • Page 258 (23) Dirty reverse side of paper. Print example Defective part Check description Corrective Action Conveying guide Check if the conveying guide is If the conveying guide is dirty with toner, clean dirty with toner. the conveying guide, the developer unit and the cooling ducts.
  • Page 259 (24) Carrier leaking occurs. Print example Defective part Check description Corrective Action Paper creased. Check the state of the paper. Replace the paper. The paper kinds are changed A paper setup of a printer is changed. and printed. Menu Paper Settings Press the [OK] key.
  • Page 260 1-4-7 Electric problems If the part causing the problem was not supplied, use the unit including the part for replacement. Troubleshooting to each failure must be in the order of the numbered symptoms. Problem Causes Check procedures/corrective measures 1. No electricity at the Measure the input voltage.
  • Page 261 Problem Causes Check procedures/corrective measures 1. Defective connector Reinsert the connector. Also check for continuity within the Toner motor does cable or poor con- connector cable. If none, replace the cable. not operate. tact in the connector. Toner motor and drum PWB (YC4) Drum PWB and connect left PWB (YC3) Connect left PWB and control PWB (YC2) 2.
  • Page 262 Problem Causes Check procedures/corrective measures 1. Defective connector Reinsert the connector. Also check for continuity within the Registration clutch cable or poor con- connector cable. If none, replace the cable. does not operate. tact in the connector. Registration clutch and connect right PWB (YC12) Connect right PWB and control PWB (YC29) 2.
  • Page 263 Problem Causes Check procedures/corrective measures (13) 1. Defective connector Reinsert the connector. Also check for continuity within the MP solenoid does cable or poor con- connector cable. If none, replace the cable. not operate. tact in the connector. MP solenoid and connect right PWB (YC11) Connect right PWB and control PWB (YC29) 2.
  • Page 264 Problem Causes Check procedures/corrective measures (17) 1. Defective connector Reinsert the connector. Also check for continuity within the The size of paper cable or poor con- connector cable. If none, replace the cable. on the cassette is tact in the connector. Cassette size switch and connect right PWB (YC2) not displayed cor- Connect right PWB and control PWB (YC29)
  • Page 265 Problem Causes Check procedures/corrective measures (20) 1. Defective connector Reinsert the connector. Also check for continuity within the A message indicat- cable or poor con- connector cable. If none, replace the cable. ing cover open is tact in the connector. Rear cover switch and connect left PWB (YC10) displayed when the Connect left PWB and control PWB (YC2)
  • Page 266 Problem Causes Check procedures/corrective measures (25) 1. Defective connector Reinsert the connector. Also check for continuity within the A message indicat- cable or poor con- connector cable. If none, remedy or replace the cable. ing cover open is tact in the connector. DP open/close sensor and control PWB (YC1001) displayed when the 2.
  • Page 267 1-4-8 Mechanical problems If the part causing the problem was not supplied, use the unit including the part for replacement. Problem Causes/check procedures Corrective measures 1. Check if the surfaces of the following Clean with isopropyl alcohol. No primary paper rollers are dirty with paper powder.
  • Page 268 Problem Causes/check procedures Corrective measures 1. Check if the rollers, pulleys and Grease the bushes and gears. Abnormal noise is gears operate smoothly. heard. 2. Check if the following clutches are Check visually and remedy if necessary. installed correctly. Paper feed clutch Registration clutch Duplex clutch Service Manual...
  • Page 269 1-4-9 Send error code This section describes the scanning errors and descriptions, preventive actions, as well as corrective actions. Error codes not described here could fall within software errors. If such an error is encountered, turn power off then on, and advise the service representative. (1) Scan to SMB error codes Code Contents...
  • Page 270 (2) Scan to FTP error codes Code Contents Check procedures/corrective measures FTP server does not exist on the net- 1. Check the FTP server name. 1101 work. 2. Confirm device's network parameters. 3. Confirm the network parameters the device is con- nected.
  • Page 271 Code Contents Check procedures/corrective measures Connection with the FTP server has 1. Confirm device's network parameters. 2231 failed. 2. Confirm the network parameters the device is con- (FTPS communication) nected. FTP server responded with an error. 1. Confirm device's network parameters. 3101 2.
  • Page 272 (3) Scan to E-mail error codes Code Contents Check procedures/corrective measures SMTP/POP3 server does not exist on 1. Check the SMTP/POP3 server name. 1101 the network. 2. Confirm device's network parameters. 3. Confirm the network parameters the device is con- nected.
  • Page 273 Code Contents Check procedures/corrective measures No SMTP authentication is found. 1. Check the SMTP server. 3201 The device supports SMTP authentication services including CRAM-MD5, DIGEST-MD5, PLAIN and LOGIN. Failed to establish the SSL session. 1. Verify the self certificate of the device. 4803 2.
  • Page 274 1-4-10 Error codes (1) Error code Error codes are listed on the communication reports, activity report, etc. The codes consist of an error code indication U followed by a 5-digit number. (Error codes for V34 communication errors start with an E indica- tion, followed by five digits.) The upper three of the five digits indicate general classification of the error and its cause, while the lower two indicate the detailed classification.
  • Page 275 (2) Table of general classification Error code Description No response or busy after the set number of redials. U00000 Transmission was interrupted by a press of the stop/clear key. U00100 Reception was interrupted by a press of the stop/clear key. U00200 Recording paper on the destination unit has run out during transmission.
  • Page 276 Error code Description In polling reception from a unit of our make, operation was interrupted due to a mismatch U03300 in permit ID or telephone number. Or, in interoffice subaddress-based bulletin board reception, operation was interrupted due to a mismatch in permit ID or telephone num- ber.
  • Page 277 Error code Description Relay broadcast was requested from a command station but memory overflowed during U12000 reception. Or, in subaddress-based relay reception, memory overflowed. Relay was commanded but memory overflowed in the destination unit (relay station). U12100 Memory overflowed during confidential reception. Or, in subaddress-based confidential U14000 reception, memory overflowed.
  • Page 278 (2-1) U004XX error code table: Interrupted phase B Error code Description A relay request was received from the host center but interrupted because of a mismatch U00420 in permit ID or telephone number. Subaddress-based relay reception was interrupted because of a mismatch in the speci- U00421 fied subaddress relay box number.
  • Page 279 (2-2) U006XX error code table: Problems with the unit Error code Description The document processor cover is open. U00600 Document jam or the document length exceeds the maximum. U00601 Image scanning section problem. U00602 No document feed. U00603 Document length exceeded the limit of the bitmap memory capacity. U00604 Recording section cover is open.
  • Page 280 (2-5) U010XX error code table: G3 transmission Error code Description An FTT signal was received for a set number of times after TCF signal transmission at U01000 2400 bps. Or, an RTN signal was received in response to a Q signal (excluding EOP) after transmission at 2400 bps.
  • Page 281 Error code Description A DCN or other inappropriate signal was received during standby for DIS signal recep- U01040 tion. A DCN signal was received after transmission of a DNL (MPS or EOM) signal (between U01041 units of our make). A DCN signal was received after transmission of a DCS, TCF signal. U01042 A DCN signal was received after transmission of an NSS1, NSS2 (TCF) signal (between U01043...
  • Page 282 (2-6) U011XX error code table: G3 reception Error code Description Function of the unit differs from that indicated by a DCS signal. U01100 Function of the unit (excl. communication mode select) differs from that indicated by an U01101 NSS signal. A DTC (NSC) signal was received when no transmission data was in the unit.
  • Page 283 Error code Description A DCN signal was received after transmission of a CTR signal (ECM). U01152 A DCN signal was received after transmission of an ERR signal (ECM). U01153 A DCN signal was received after transmission of an RNR signal (ECM). U01154 A DCN signal was received after transmission of an SPA signal (short protocol).
  • Page 284 (2-8) U018XX error code table: V.34 reception Error code Description A communication error occurred in phase 2 (line probing). U01800 A communication error occurred in phase 3 (primary channel equivalent device training). U01810 A communication error occurred in phase 4 (modem parameter exchange). U01820 Operation was interrupted due to the absence of a common communication speed U01821...
  • Page 285 1-5 Sectional Construction 1-5-1 Precautions for assembly and disassembly (1) Precautions Before starting disassembly, press the Power key on the operation panel to off. Make sure that the Power lamp is off before turning off the main power switch. Unplug the power cable from the wall outlet. When the fax kit is installed, be sure to disconnect the modular code before starting disassembly.
  • Page 286 A black-colored band when seen through the left side window ( A shiny or gold-colored band when seen through the right side window ( The above will reveal that the toner container is a genuine Olivetti branded toner container, otherwise, it is a counterfeit.
  • Page 287 1-5-2 Paper feed / conveying section Paper feed/conveying section consists of the paper feed unit that feeds paper from the cassette and the MP tray paper feed unit that feeds paper from the MP tray, and the paper conveying section that conveys the fed paper to the transfer/separation section.
  • Page 288 [Control block diagram] CONPWB PAPER SEN1N YC19-11 HVPWB PAPER SEN2N YC19-10 LSENS LS *2 YC14-3 C-RPWB MMOTCW YC10-1 MMOTRDYN YC10-2 MMOTCLKN YC10-3 MMOTONN YC10-4 LIFTMOTOR LM *2 YC9-1 FEEDCLN YC12-4 PFCL CAS3 YC2-1 CAS2 YC2-2 CSSW CAS1 YC2-4 Figure 1-5-5 *2: 50/60 ppm model only Service Manual Y116540-5...
  • Page 289 (1-1) Detaching and refitting the primary paper feed unit and the pickup roller Procedure 1. Pull out the cassette. 2. Release the lock by pulling the lever. 3. Remove the paper feed roller assembly Holder Paper feed roller assembly by pulling and raising and then sliding forward.
  • Page 290 2. Remove the spring. 3. Remove the retard roller holder by rotating. Retard roller guide 4. Check or replace the retard roller and refit all the removed parts. Retard roller holder Spring Figure 1-5-8 Service Manual Y116540-5 1-5-6...
  • Page 291 (2) MP tray paper feed section The MP tray can contain 100 sheets. Feeding from the MP tray is performed by the rotation of the MP paper feed roller. Also, function of the MP separation pad prevents paper from multiple feeding. [Component formation] 1.
  • Page 292 [Control block diagram] C-LPWB CONPWB MPFSENS MPFSENS YC2-12 MPPS YC8-3 C-RPWB MMOTCW YC10-1 MMOTRDYN YC10-2 MMOTCLKN YC10-3 MMOTONN YC10-4 MPFSOLN MPSOL YC11-2 Figure 1-5-11 Service Manual Y116540-5 1-5-8...
  • Page 293 (2-1) Detaching and refitting the MP paper feed pulley Procedure 1. Push the button and open the front cover. Figure 1-5-12 2. Remove the MP tray from the printer Strap Strap while bending it. 3. Remove two screws and two straps. Screw Screw MP tray...
  • Page 294 4. Remove the fulcrum of leftside by extending a cover. 5. Remove the fulcrum of rightside during twisting a cover. 6. Remove the front cover forward. Front cover Front cover Figure 1-5-14 Service Manual Y116540-5 1-5-10...
  • Page 295 7. Remove two screws on the MP paper feed unit. 8. Remove the MP paper feed unit from the main unit. Screw Main unit Screw MP paper feed unit Figure 1-5-15 9. Release the lock lever and then slide the MP paper feed pulley axis. 10.
  • Page 296 (3) Conveying section The conveying section conveys paper to the transfer/separation section as paper feeding from the cassette or MP tray, or as paper refeeding for duplex printing. Paper by feeding is conveyed by the paper feed roller to the position where the registration sensor (RS) is turned on, and then sent to the transfer/separation section by the upper registration roller and lower registration roller.
  • Page 297 [Control block diagram] CONPWB REGSENSN YC19-12 RS1 *1 / RS3 *2 HVPWB DRPWB REGSEN2 C-LPWB RS2 *2 YC6-2 REGSEN2 YC3-9 YC2-21 DRRPWB C-RPWB MMOTCW YC10-1 MMOTRDYN YC10-2 MMOTCLKN YC10-3 MMOTONN YC10-4 REGCLN YC12-1 MIDCLN MIDCL *2 YC12-8 Figure 1-5-19 *1: 40 ppm model only *2: 50/60 ppm model only Service Manual Y116540-5...
  • Page 298 1-5-3 Optical section The optical section consists of the image scanner section for scanning and the laser scanner section for print- ing. (1) Image scanner section The original image is illuminated by the exposure lamp (EL) and scanned by the CCD, the reflected light being converted to an electrical signal.
  • Page 299 [Control block diagram] CONP W B CCDPWB Reading image data Y C 1000 LEDPWB HP_SWN S C MOTB2 Y C 1002-1 S CMOTA1 Y C 1002-2 S C MOTB1 IS UM Y C 1002-3 S C MOTA2 Y C 1002-4 Figure 1-5-22 Service Manual Y116540-5...
  • Page 300 (1-1) Detaching and refitting the exposure lamp Procedure 1. Slide the right operation lid and the left operation lid. 2. Remove the their lids. Right operation lid Left operation lid Figure 1-5-23 3. Remove the operation panel cover. 4. Replace it to the operation panel sheet of the corresponding language.
  • Page 301 Screw 5. Remove the card reader cover and LCD lower cover. 6. Remove two screws. Operation panel assembly Screw Card reder cover LCD lower cover Figure 1-5-25 7. Pull the LCD up forward during pressing the lock lever and bending the LCD cover.
  • Page 302 9. Release two hooks and remove the left Screw key cover forward. Left key cover 10. Remove two FFCs from the Key Right PWB. Hooks 11. Release the hook and remove the right Screw Right key cover key cover forward. Hook Key-Right FFCs...
  • Page 303 Carriage 14. Remove the drive belt from two pulleys. ISU shaft assembly 15. Remove the carriage assembly , ISU shaft and the lower ISU frame upward. Lower ISU frame Pulley Drive belt Pulley Drive belt Figure 1-5-29 16. Pull the carriage assembly out. 17.
  • Page 304 (1-2) Detaching and refitting the image scanner unit Procedure 1. Remove the upper interface cover. 2. Release two hooks using a flat screw driver and remove the right stay cover. Right stay cover Hooks Flat screw driver Upper interface cover Figure 1-5-31 3.
  • Page 305 7. Release two hooks using a flat screw driver and remove the left upper cover. Hooks Hook Flat screw driver Left upper cover Figure 1-5-33 8. Remove the screw from the center stay cover. 9. Release two hooks using a flat screw Hooks driver and remove the center stay cover.
  • Page 306 10. Remove the front right cover forward. Front right cover Figure 1-5-35 Image scanner 11. Remove three connectors, two FFCs unit and two USB connectors from the Con- trol PWB. 12. Remove three screws and grounding terminal from the image scanner unit. 13.
  • Page 307 (2) Laser scanner section The charged surface of the drum is then scanned by the laser beam from the laser scanner unit. The laser beam is dispersed as the polygon motor (PM) revolves to reflect the laser beam over the drum. Various lenses and mirror are housed in the laser scanner unit, adjust the diameter of the laser beam, and focalize it at the drum surface.
  • Page 308 [Control block diagram] CONPWB PLGDRN YC15-3 PLGRDYN YC15-4 2 PM POLCLK YC15-5 Laser light VDATA1P YC16-2 Laser Photo VDATA1N YC16-3 diode sensor VDATA2P YC16-4 VDATA2N YC16-5 SAMPLEN1 YC16-6 YC2-2 PDPWB SAMPLEN2 YC16-7 OUTPEN Drum YC16-8 APCPWB VCONT1 YC16-9 YC16-10 VCONT2 Figure 1-5-39 Service Manual Y116540-5...
  • Page 309 (2-1) Detaching and refitting the laser scanner unit Procedure Screw 1. Remove the image scanner unit. Left inner 2. Remove two screws. spacer 3. (50/60 ppm model only) Slide the right inner spacer and the left inner spacer forward and then remove it Right inner upward.
  • Page 310 Screw 6. Remove four screws. 7. Remove the upper stay assembly Upper stay assembly upward. Screw Screw Screw Figure 1-5-42 Left inner 8. Remove the screw and then remove the cover right inner cover by leaning it inside and lifting it. Screw 9.
  • Page 311 Screw 10. Remove two screws. 11. Remove the top tray cover upward. Top tray cover Screw Figure 1-5-44 Screw Screw 12. Pull the connector and FFC from control PWB out. Laser Screw scanner unit 13. Pull the connector and FFC out through the apertures.
  • Page 312 1-5-4 Developer section (1) Develolper unit The developing unit consists of the developing roller that forms the magnetic brush, the developing blade and the developing screws that agitate the toner.Also, the toner sensor (TS) checks whether or not toner remains in the developing unit.
  • Page 313 [Control block diagram] DRPWB CPWB CONPWB EECLK EECLK YC2-1 YC2-2 EESIO EESIO CRPWB YC2-3 YC2-3 C-LPWB TSENS YC2-6 TMOT TSENS YC2-15 YC3-2 TMOT YC4-1 DRCPWB HVCLK YC19-7 Developer bias BDCNT YC19-8 HVPWB BACNT YC19-9 Drum C-RPWB DLPCLN YC12-2 DEVSCL MMOTCW YC10-1 MMOTRDYN YC10-2...
  • Page 314 (1-1) Detaching and refitting the developer unit Procedure 1. Open the front cover. Figure 1-5-49 2. Release the lock lever by rotating and then remove the toner container. Toner container Lock lever Figure 1-5-50 Service Manual Y116540-5 1-5-30...
  • Page 315 3. Pull the imaging unit forward. Container guide 4. Release the hook and then remove the container guide by sliding backwards. Hook Imaging unit Figure 1-5-51 Developer unit 5. Pull the connector out. 6. Release the lock lever and then remove the developer unit upward.
  • Page 316 1-5-5 Drum section (1) Chager roller unit The drum section consists of the drum, the charger roller unit, and the cleaning unit, and the drum surface is uniformly charged in preparation for formation of residual image by laser beam. After transfer is complete, toner remaining on the drum surface is chipped off with the cleaning blade and is collected to the waste toner box with the drum screw.
  • Page 317 [Control block diagram] CONPWB EECLK YC2-1 C-LPWB DRCPWB DRPWB EESIO YC2-3 MHVCLK YC19-4 Main charger roller MACCNT YC19-5 HVPWB MDCCNT YC19-6 Drum C-RPWB Ground DMOTCW YC10-7 DMOTRDYN YC10-8 DMOTCLKN YC10-9 DMOTONN YC10-10 Figure 1-5-55 Service Manual Y116540-5 1-5-33...
  • Page 318 (1-1) Detaching and refitting the drum unit Procedure Drum unit 1. Remove the developer unit. (See page 1-5-30) 2. Remove the lock lever L. 3. Remove the lock lever R by sliding backward. 4. Remove the drum unit by sliding for- ward.
  • Page 319 (2) Cleaning unit The drum section consists of the drum, the charger roller unit, and the cleaning unit, and the drum surface is uniformly charged in preparation for formation of residual image by laser beam. After transfer is complete, toner remaining on the drum surface is chipped off with the cleaning blade and is collected to the waste toner box with the drum screw.
  • Page 320 1-5-6 [Transfer/Separation section (1) Transfer/Separation The transfer and separation section consists mainly of the transfer roller, separation electrode and drum sep- aration claws. A high voltage generated by the high voltage PWB (HVPWB) is applied to the transfer roller for transfer charg- ing.
  • Page 321 [Control block diagram] CONPWB Separation bias SCNT YC19-15 TRREM YC19-16 HVPWB TCNT Transfer bias YC19-17 Transfer roller Figure 1-5-62 Service Manual Y116540-5 1-5-37...
  • Page 322 (1-1) Detaching and refitting the transfer roller Procedure 1. Remove the drum unit. (See page 1-5-34) 2. Release four hooks by sliding to left the paper chute guide. 3. Remove the paper chute guide upward. Paper shute guide Hooks Figure 1-5-63 4.
  • Page 323 (1-2) Detaching and refitting the separation needle holder Procedure 1. Remove the transfer roller unit. 2. Release four hooks of separation nee- Separation needle unit dle unit by rotating and then remove the separation needle unit upward. 3. Check or replace the separation needle unit and refit all the removed parts.
  • Page 324 1-5-7 Fuser and eject/feedshift section The paper sent from the transfer/separation section is interleaved between the heat roller and the press roller. The heat roller is heated by the fuser heater (FUH), and the toner is fused by heat and pressure and fixed onto the paper because the press roller is pressed by the fuser press spring.
  • Page 325 [Control block diagram] PSPWB C-RPWB Fuser unit HEART2REM YC4-1 YC2-1 HEART1REM YC4-2 YC2-2 FTS1 FTS2 YC2-3 CONPWB HEART1REM YC29-19 HEART2REM YC29-30 FTHCPWB FTH2 YC21-1 YC2-2 YC21-2 YC1-2 FTH1 EXITSENSN YC26-3 Figure 1-5-68 Service Manual Y116540-5 1-5-41...
  • Page 326 (2) 40 ppm model [Component formation] 1. Heat roller 2. Fuser heater (FUH) 3. Fuser thermostat (FUTS) 4. Fuser thermistor (FUTH) 5. Separators 6. Press roller 7. Actuater (Eject sensor (ES)) 8. Fuser eject roller 9. Fuser eject pulley 10. Fuser thermistor (FUTH2) 11.
  • Page 327 [Control block diagram] C-RPWB PSPWB Fuser unit HEART2REM YC4-1 YC2-1 HEART1REM YC4-2 YC2-2 CONPWB HEART1REM YC29-19 HEART2REM YC29-30 FTHCPWB FTH2 YC21-1 YC2-2 YC21-2 YC1-2 FTH1 EXITSENSN YC26-3 Figure 1-5-71 Service Manual Y116540-5 1-5-43...
  • Page 328 (2-1) Detaching and refitting the fuser unit Procedure 1. Open the rear cover. Rear left cover 2. Release two hooks of the rear left cover while pulling forward. 3. Remove the rear left cover by rotating. Hooks Figure 1-5-72 (50/60 ppm model only) Grounding wire (1)Remove the screw and then the ground- Screw...
  • Page 329 4. Remove the fulcrum axis by sliding the Flucrum axis (Rear cover assembly) rear cover assembly while avoiding rear cover and then remove the rear cover assembly. Rear cover Rear cover assembly Figure 1-5-74 5. Remove the screw and then remove the connector cover A.
  • Page 330 7. Remove the connector cover B by Connector cover B releasing the hook. Screw 8. Remove the screw of connector cover 9. Remove the connector cover C by releasing the hook. 10. Pull two connectors out. Hook Hook Connector cover C Connectors Figure 1-5-76 [50/60 ppm model]...
  • Page 331 [40 ppm model] 11. Pull up the release lever of fixing pres- sure. 12. Remove the screw and then remove the fuser unit forward. 13. Check or replace the fuser unit and refit all the removed parts. Caution: Pull down the release lever of fix- Screw ing pressure after refitting the fuser unit.(pressurization state)
  • Page 332 1-5-8 Eject section The duplex conveying section consists of conveying path which sends the paper sent from the eject/feedshift section to the paper feed/conveying section when duplex printing. (1) 50/60 ppm model [Component formation] 1. Upper eject pulley 2. Upper eject roller 3.
  • Page 333 [Control block diagram] C-LPWB OUTB3 YC12-1 OUTB1 YC12-2 OUTA3 YC12-3 OUTA1 YC12-4 FACEDDRN YC13-1 FSSOL FACEUDRN YC13-3 CONPWB PAPFULN YC12-3 Figure 1-5-81 Service Manual Y116540-5 1-5-49...
  • Page 334 (2) 40 ppm model [Component formation] 1. Upper eject pulley 2. Upper eject roller 3. Actuater (Paper full sensor (PFS)) 4. LowerEject roller 5. Lower eject pulley 6. Eject upper cover 7. DU feed pulley Figure 1-5-82 Figure 1-5-83 Service Manual Y116540-5 1-5-50...
  • Page 335 [Control block diagram] C-LPWB OUTB3 YC12-1 OUTB1 YC12-2 OUTA3 YC12-3 OUTA1 YC12-4 FACEDDRN YC13-1 FSSOL FACEUDRN YC13-3 CONPWB PAPFULN YC12-3 Figure 1-5-84 Service Manual Y116540-5 1-5-51...
  • Page 336 (2-1) Detaching and refitting the eject unit Procedure 1. Remove the upper interface cover. 2. Release two hooks using a flat screw driver and remove the right stay cover. Right stay cover Hooks Flat screw driver Upper interface cover Figure 1-5-85 3.
  • Page 337 7. Release two hooks using a flat screw driver and remove the left upper cover. Hooks Hook Flat screw driver Left upper cover Figure 1-5-87 8. Remove the screw from the center stay cover. 9. Release two hooks using a flat screw Hooks driver and remove the center stay cover.
  • Page 338 10. Remove the front right cover forward. Front right cover Figure 1-5-89 Image scanner 11. Remove three connectors, two FFCs unit and two USB connectors from the Con- trol PWB. 12. Remove three screws and grounding terminal from the image scanner unit. 13.
  • Page 339 Screw 14. Remove two screws. Left inner spacer (50/60 ppm model only) (1)Slide the right inner spacer and the left inner spacer forward and then remove it Right inner upward. spacer Screw Figure 1-5-91 Screw 15. Remove two screws. 16. Remove the eject unit cover. Eject unit cover Screw Figure 1-5-92...
  • Page 340 Screw 17. Remove four screws. 18. Remove the upper stay assembly Upper stay assembly upward. Screw Screw Screw Figure 1-5-93 Left inner 19. Remove the screw and then remove the cover right inner cover by leaning it inside and lifting it. Screw 20.
  • Page 341 21. Open the rear cover. 22. Remove the lower interface cover and the inlet cover. Hook Lower interface cover Rear cover Inlet cover Figure 1-5-95 23. Remove two screws. 24. Release the hooks by bending both- side of the right middle cover and then remove it by pulling and lifting up for- ward.
  • Page 342 25. Pull out the cassette. Hooks 26. Remove three screws. 27. Release two hooks by sliding the right lower cover upward and then remove the right lower cover. Screw Right lower cover Screw Screw Figure 1-5-97 28. Release two hooks of the rear left cover Rear left cover while pulling forward.
  • Page 343 30. Release the hook A by sliding the left Left middle cover Hook C middle cover upward. 31. Release the hook B and hook C and Hooks B then remove the left middle cover and the waste toner box cover. Hook A Waste toner box cover...
  • Page 344 34. Remove all connectors and FFCs from the control PWB. 35. Remove six screws and control PWB from the main unit. Control PWB Connector Screw Screw Screw Screw Screw Screw Figure 1-5-101 (50/60 ppm model) 36. Pull the connector out and then release Exit unit the wires from Hooks.
  • Page 345 (40 ppm model) Exit unit Screws Screw Hooks Wire Connector Figure 1-5-103 Service Manual Y116540-5 1-5-61...
  • Page 346 1-5-9 Duplex conveying section (1) Duplex conveying unit The duplex conveying section consists of conveying path which sends the paper sent from the eject/feedshift section to the paper feed/conveying section when duplex printing. [Component formation] 1. DU conveying roller 2. DU conveying pulley 3.
  • Page 347 [Control block diagram] CONPWB C-LPWB DUJAMSEN1N YC2-20 DUJAMSEN1N YC9-3 DUS1 *2 DUJAMSEN2N YC19-13 HVPWB DUS2 DUCL YC29-29 C-RPWB DUCLN DUCL *2 YC12-10 Figure 1-5-106 *2: 50/60 ppm model only Service Manual Y116540-5 1-5-63...
  • Page 348 (1-1) Detaching and refitting the duplex conveying unit Procedure 1. Remove the upper interface cover. 2. Release two hooks using a flat screw driver and remove the right stay cover. Right stay cover Hooks Flat screw driver Upper interface cover Figure 1-5-107 3.
  • Page 349 7. Release two hooks using a flat screw driver and remove the left upper cover. Hooks Hook Flat screw driver Left upper cover Figure 1-5-109 8. Open the rear cover. 9. Remove the lower interface cover and the inlet cover. Hook Lower interface cover...
  • Page 350 10. Remove two screws. 11. Release the hooks by bending both- side of the right middle cover and then remove it by pulling and lifting up for- ward. Screw Hook Right middle cover Screw Figure 1-5-111 12. Pull out the cassette. Hooks 13.
  • Page 351 15. Release two hooks of the rear left cover Rear left cover while pulling forward. 16. Remove the rear left cover by rotating. Hooks Figure 1-5-113 17. Release the hook A by sliding the left Left middle cover Hook C middle cover upward.
  • Page 352 19. Remove the screw. 20. Release the hook A. Hook A 21. Release two hooks B by sliding the left Hook B lower cover upward and then remove the left lower cover. Hook B Screw Left lower cover Figure 1-5-115 22.
  • Page 353 24. Remove the connector cover B by Connector cover B releasing the hook. Screw 25. Remove the screw of connector cover 26. Remove the connector cover C by releasing the hook. 27. Pull two connectors out. Hook Hook Connector cover C Connectors Figure 1-5-117 28.
  • Page 354 32. Stand the main unit front side up. 33. Remove four screws each and then Screw remove the bottom plate 1 and the bot- tom plate 2. Screw Bottom plate 1 Screw Screw Screw Screw Screw Botom plate 2 Screw Figure 1-5-119 (50/60 ppm model only) Wire cover...
  • Page 355 34. Remove seven screws. 35. Extract the feed roller axis by pushing the joint part. Screw 36. Remove the duplex conveying unit to the front. 37. Check or replace the duplex conveying Screw unit and refit all the removed parts. Screw Joint part Screw...
  • Page 356 1-5-10 Document processer (1) Original feed section The original feed section consists of the parts shown in figure. An original placed on the original tray is con- veyed to the original conveying section. Original is fed by the rotation of the DP forwarding pulley and DP paper feed roller.
  • Page 357 [Control block diagram] CONP W B TIMING _ S W Y C 1003-15 D P TS S E T _ S W Y C 1003-3 D P O S F E E D M O T B2 Y C 1001-9 F E E D M O T B1 Y C 1001-10 D P PF M...
  • Page 358 (1-1) Detaching and refitting DP paper feed roller or DP pickup pulley Procedure 1. Open the DP top cover. DP top cover Figure 1-5-125 2. Rotate the lock lever to unlock position. 3. Pick the frontside of DP paper feed roller axis up and then pull DP paper UNLOCK feed roller assembly out forward.
  • Page 359 4. Remove two stop-ring and the spring- DP paper feed DP pickup pulley roller axis pin. 5. Pull DP paper feed roller axis out. 6. Check or replace DP paper feed roller or DP pickup pulley and refit all the removed parts.
  • Page 360 (1-2) Detaching and refitting the DP separation pad Procedure 1. Push two hooks inside and pull DP sep- aration pad assembly up. 2. Check or replace DP separation pad and refit all the removed parts. *: Check whether the pressure spring is DP separation contained in the projection.
  • Page 361 (2) Original conveying section and switchback/eject section The original conveying section consists of the parts shown in figure. A conveyed original is scanned by the optical section (CCD) of main unit when it passes through the slit glass of main unit. The original switchback/eject sections consists of the parts shown in figure.
  • Page 362 [Control block diagram] D P M P W B R E G IS T _ S W Y C 1003-6 D P R S D P _ O P E N _ S W Y C 1003-9 D P O C S C O NN MOTB2 Y C 1001-1 C O N NMOTB1...
  • Page 363 (2-1) Detaching and refitting the DP switchback motor Procedure 1. Open DP top cover. 2. Unhook five hooks and remove DP rear cover. DP top cover Hooks DP rear cover Hooks Figure 1-5-132 3. Remove the connector from DP shift- back motor.
  • Page 364 (2-2) Detaching and refitting the DP paper feed motor and the DP conveying motor Procedure 1. Open DP top cover. 2. Unhook five hooks and remove DP rear cover. DP top cover Hooks DP rear cover Hooks Figure 1-5-134 Hooks 3.
  • Page 365 5. Remove two screws and the grounding terminal. 6. Remove the Drive B unit from DP. DP shiftback motor Screw Screw Drive B unit Grounding terminal Figure 1-5-136 7. Remove four screws and then remove Drive A unit. Drive A unit DP conveying motor Screw...
  • Page 366 8. Remove two gear. 9. Remove four screws and drive cover. DP conveying 10. Remove DP paper feed motor and DP motor Drive A unit conveying motor. 11. Check or replace DP paper feed motor and DP conveying motor and refit all the removed parts.
  • Page 367 1-5-11 Covers (1) Detaching and refitting the MP paper feed pulley Procedure 1. Push the button and open the front cover. Figure 1-5-140 2. Remove the MP tray from the printer Strap Strap while bending it. 3. Remove two screws and two straps. Screw Screw MP tray...
  • Page 368 4. Remove the fulcrum of leftside by extending a cover. 5. Remove the fulcrum of rightside during twisting a cover. 6. Remove the front cover forward. Front cover Front cover Figure 1-5-142 Service Manual Y116540-5 1-5-84...
  • Page 369 (2) Detaching and refitting the inlet cover and the interface slot cover Procedure 1. Open the rear cover. Upper 2. Remove the Upper interface cover and interface cover then lower interface cover. 3. Remove the inlet cover. Hook Lower interface cover Rear cover Inlet cover Figure 1-5-143...
  • Page 370 (4) Detaching and refitting the right upper cover Procedure 1. Remove the controller cover. Right upper cover 2. Remove the screw from the right upper cover. 3. Release two hooks using a flat screw Hooks driver and remove the right upper cover. Flat screw driver Screw Controller cover...
  • Page 371 (6) Detaching and refitting the center stay cover Procedure 1. Remove the screw from the center stay cover. 2. Release two hooks using a flat screw Hooks driver and remove the center stay cover. Flat screw driver Screw Center stay cover Figure 1-5-147 (7) Detaching and refitting the front right cover Procedure...
  • Page 372 (8) Detaching and refitting the top tray cover Procedure Screw 1. Remove two screws. Left inner spacer (50/60 ppm model only) (1)Slide the right inner spacer and the left inner spacer forward and then remove it Right inner upward. spacer Screw Figure 1-5-149 Screw...
  • Page 373 Screw 4. Remove four screws. 5. Remove the upper stay assembly Upper stay assembly upward. Screw Screw Screw Figure 1-5-151 Left inner 6. Remove the screw and then remove the cover right inner cover by leaning it inside and lifting it. Screw 7.
  • Page 374 Screw 8. Remove two screws. 9. Remove the top tray cover upward. Top tray cover Screw Figure 1-5-153 (9) Detaching and refitting the right middle cover Procedure 1. Remove two screws. 2. Release the hooks by bending both- side of the right middle cover and then remove it by pulling and lifting up for- ward.
  • Page 375 (10)Detaching and refitting the right lower cover Procedure 1. Pull out the cassette. Hooks 2. Remove three screws. 3. Release two hooks by sliding the right lower cover upward and then remove the right lower cover. Screw Right lower cover Screw Screw Figure 1-5-155...
  • Page 376 (12)Detaching and refitting the left middle cover and the waste toner box cover Procedure 1. Release the hook A by sliding the left Left middle cover Hook C upper cover upward. 2. Release the hook B and hook C and Hooks B then remove the left middle cover and the waste toner box cover.
  • Page 377 (14)Detaching and refitting the rear cover Pocedure 1. Open the rear cover. Grounding wire Screw (50/60 ppm model only) (1)Remove the screw and then the ground- ing wire. (2)Open the connector cover and then remove three connectors. Connector cover Connectors Rear cover Figure 1-5-159 2.
  • Page 378 1-5-12 Othes (1) Detaching and refitting the main driving motor unit Procedure 1. Remove right middle cover. Wire holders (See page 1-5-90) Connectors 2. Remove right lower cover. (See Page 1-5-91) 3. Pull the connector out from the motor and then release the wires from wire holder.
  • Page 379 (2) Detaching and refitting the paper feed driving motor unit Procedure 1. Remove right middle cover. (See page 1-5-90) 2. Remove right lower cover. (See Page 1-5-91) 3. Pull the connectors of clutches and solenoid out. Connectors 4. Remove three screws and then remove the paper feed driving motor unit.
  • Page 380 (3) Detaching and refitting the language sheets (3-1) HyPAS model Procedure 1. Slide the right operation lid and left. 2. Remove the their lids. Right operation lid Left operation lid Figure 1-5-164 3. Remove the operation panel cover. 4. Replace it to the operation panel sheet of the corresponding language.
  • Page 381 (3-2) Basic model Procedure 1. Slide the right operation lid and left. 2. Remove the their lids. Right operation lid Left operation lid Figure 1-5-166 3. Remove the operation panel cover. 4. Replace it to the operation panel sheet of the corresponding language. 5.
  • Page 382 (4) Detaching and refitting the FAX control PWB (FAX model only) Procedure 1. Remove the upper interface cover. 2. Release two hooks using a flat screw driver and remove the right stay cover. Right stay cover Hooks Flat screw driver Upper interface cover Figure 1-5-168...
  • Page 383 (5) Direction of installing the principal fan motors When detaching or refitting the fan moter,be careful of the airflow direction (intake or exhaust). LSU fan motor Developer fan motor (Rating label: inside) (Rating label: inside) Intake Intake Powersource fan motor (Rating label: inside) Intake Figure 1-5-170...
  • Page 384 This page is intentionally left blank. Service Manual Y116540-5 1-5-100...
  • Page 385 2-1 Electrical Parts Layout 2-1-1 PWBs Laser scanner unit Document processor Fuser unit 12 9 Drum unit Toner container Developer unit Machine Right Machine Inner Machine Left Figure 2-1-1 Service Manual Y116540-5 2-1-1...
  • Page 386 1. Control PWB (CONPWB)...... Controls the software such as the print data processing and pro- vides the interface with computers. Controls printer hardware such as high voltage/bias output con- trol, paper conveying system control, and fuser temperature con- trol, etc. 2.
  • Page 387 List of correspondences of PWB names Name used in service manual Name used in parts list Part.No. 302NY94020 *1,*4,*5 302P094020 *1,*3,*5 302NX94030 *1,*4,*6 PARTS PWB ASSY CONTROLLER SP 302NZ94020 *1,*3,*6 302NM94040 *8 302P694020 *7 Control PWB (CONPWB) 302NY94030 *1,*4,*5 302P094030 *1,*3,*5 PARTS PWB ASSY CONTROLLER SP 302NX94040 *1,*4,*6 302NZ94030 *1,*3,*6...
  • Page 388 Name used in service manual Name used in parts list Part.No. P.W.BOARD ASSY CONTAINER CONN (DK-3100(U)) *1 (302MS93042) (DK-3100(E)) *1 (302MS93022) Toner container connect PWB (DK-3100(AO)) *1 (302MS93052) (TCONCPWB) (DK-3130(U)) *2 (302LV93062) (DK-3130(E)) *2 (302LV93042) (DK-3130(AO)) *2 (302LV93072) P.W.BOARD ASSY CCD CCD PWB (CCDPWB) (PARTS ISU ASSY SP) (302NM93010)
  • Page 389 2-1-2 Switches and sensors Laser scanner unit Document processor Fuser unit Drum unit Toner container Developer unit Machine Right Machine Inner Machine Left Figure 2-1-2 Service Manual Y116540-5 2-1-5...
  • Page 390 1. MP paper sensor (MPPS) ..... Detects the presence of paper on the MP tray. 2. Lift sensor (LS) *2 ......... Detects the top limit of the bottom plate. 3. Registration sensor 2 (RS2) *2 ..... Controls the secondary paper feed start timing. 4.
  • Page 391 Name used in service manual Name used in parts list Part.No. THERMISTOR ASSY (FK-3100(U)) *1 (302MS93094) Fuser thermistor2 (FTH2) (FK-3100(E)) *1 (302MS93074) (FK-3130(U)) *2 (302LV93132) (FK-3130(E)) *2 (302LV93112) Power source switch (PSSW) PARTS PWB ASSY SWITCH SP 302LV94210 Inter lock switch (ILSW) INTER LOCK SWITCH 2FB27160 Rear cover switch (RCSW) *2...
  • Page 392 2-1-3 Motors Laser scanner unit Document processor Fuser unit Drum unit Toner container Developer unit Machine Right Machine Inner Machine Left Figure 2-1-3 Service Manual Y116540-5 2-1-8...
  • Page 393 1. Main motor (MM) *1 ......Drives the paper feed section and conveying section. 2. Main motor (MM) *2 ......Drives the paper feed section and conveying section. 3. Drum motor (DRM) *2 ......Drives the drum unit and transfer roller. 4.
  • Page 394 Name used in service manual Name used in parts list Part.No. MOTOR ROTARY DP switchback motor (DPSBM) (PARTS DRIVE ASSY B SP) (302NM94240) *1: 40 ppm model only *2: 50/60 ppm model only *7: 60 ppm model only Service Manual Y116540-5 2-1-10...
  • Page 395 2-1-4 Others Laser scanner unit Document processor Fuser unit 9, 10 Drum unit Toner container Developer unit Machine Right Machine Inner Machine Left Figure 2-1-4 Service Manual Y116540-5 2-1-11...
  • Page 396 1. Paper feed clutch (PFCL) ..... Primary paper feed from cassette. 2. Registration clutch (RCL)...... Controls the secondary paper feed. 3. Duplex clutch (DUCL) *2....... Controls the drive of the duplex feed roller. 4. Middle clutch (MIDCL) *2 ...... Controls the paper conveying at the conveying section. 5.
  • Page 397 2-2 Operation of the PWBs 2-2-1 Upgrading the firmware Follow the procedure to upgrade the firmware below. * Controller Firmware * Operation Panel Firmware *1 * Engine Firmware * Option Language Data * Dictionary Data *1 * Browser Data *1 * FAX Firmware * PF (Paper Feeder) Firmware *1: HyPAS model only...
  • Page 398 Emergency-UPDATE If Safe Update is processed to the end, the firmware update is complete. In case the message below is indi- cated, update the firmware after recovery with the steps below. Note that this is unoperable when the device is operating normally. FW-Update Error FFFF...
  • Page 399 2-2-2 Control PWB (CONPWB) (1) Connector position YC1000 YC2002 YC1003 YC1001 YC2003 YC2008 YC1002 YC30 YC2011 YC2009 YC24 YC2007 YC2012 YC2014 YC28 YC2006 YC16 YC21 YC31 YC3 YC15 YC12 YS2000 YC2000 YC27 YC19 YC2013 YC29 YC22 YC14 YC2004 YC2005 YC26 YC2010 Figure 2-2-3 (2) PWB photograph...
  • Page 400 (3) Connector lists Connector Signal Voltage Description EECLK 0/3.3 V DC(pulse) Clock signal Connected to Ground the connect- EESIO I/O 0/3.3 V DC Data signal left PWB ERASER 0/3.3 V DC CL control signal +3.3V2_E2 3.3 V DC 3.3 V DC power input TSENS Analog TS output signal...
  • Page 401 Connector Signal Voltage Description +24V2_E2 24 V DC 24 V DC power output YC15 Connected to Ground the poligon PLGDRN 0/5 V DC PM: On/Off motor PLGRDYN 0/3.3 V DC PM ready signal POLCLK 0/3.3 V DC(pulse) PM clock signal +5V2_E1 5 V DC 5 V DC power output...
  • Page 402 Connector Signal Voltage Description SCNT 0/3.3 V DC Separation output control signal YC19 Connected to TRREM 0/3.3 V DC TC remote signal the high volt- TCNT Analog TC control signal age PWB +24V2_E1 24 V DC 24 V DC power output Analog FUTH2 output signal YC21...
  • Page 403 Connector Signal Voltage Description DEEP_SLEEP 0/3.3 V DC Sleep signal YC29 Connected to RFANH 0/24 V DC RFM: On/Off the connect MPFSOL 0/24 V DC MPSOL: On/Off right PWB COVOPN LIFTMOTOR 0/5 V DC LM: On/Off RFANL 0/24 V DC RFM: On/Off DLPCL 0/3.3 V DC...
  • Page 404 Connector Signal Voltage Description AIRTEMP Analog Temperature sensor input signal YC30 Connected to AIR WET Analog Humid sensor input signal the key right Ground PWB *3 or WETCLK 0/3.3 V DC (pulse) Humid sensor clock signal the opera- tion panel PWB *2 Ground YC31...
  • Page 405 Connector Signal Voltage Description CCDRS- LVDS CCD reset signal YC1000 Connected to Ground the CCD N.C. Not used +3.3V3 E1 3.3 V DC 3.3 V DC power output HP SWN 0/3.3 V DC HPS: On/Off Ground M LED C 0 to 2 V DC LED CATHODE M LED A 3 V DC...
  • Page 406 Connector Signal Voltage Description Ground YC1003 Connected to JHP_SW 0/3.3 V DC DPSBS: On/Off the DP origi- +3.3V3S 3.3 V DC 3.3 V DC power output nal sensor, Ground theDP regist sensor, DP TIMING_SW 0/3.3 V DC DPTS: On/Off open/close sensor, DP switchback sensor, DP...
  • Page 407 Connector Signal Voltage Description Ground YC2002 *2 Connected to Not used the opera- INT_POWER 0/3.3 V DC Power key: On/Off tion panel KEY_N FPRST 0/3.3 V DC Panel reset signal AUDIO Analog Voice output signal Not used PAN_TXD 0/3.3 V DC Serial comunication data signal PAN_RXD 0/3.3 V DC...
  • Page 408 (4) Detaching and refitting the PWB. (CONPWB) Procedure 1. Remove the upper interface cover. 2. Release two hooks using a flat screw driver and remove the right stay cover. Right stay cover Hooks Flat screw driver Upper interface cover Figure 2-2-5 3.
  • Page 409 7. Open the rear cover. 8. Remove the lower interface cover and the inlet cover. Hook Lower interface cover Rear cover Inlet cover Figure 2-2-7 9. Remove two screws. 10. Release the hooks by bending both- side of the right middle cover and then remove it by pulling and lifting up for- ward.
  • Page 410 11. Pull out the cassette. Hooks 12. Remove three screws. 13. Release two hooks by sliding the right lower cover upward and then remove the right lower cover. Screw Right lower cover Screw Screw Figure 2-2-9 14. Remove eight screws and grounding Screw terminal.
  • Page 411 16. Remove all connectors and FFCs from the control PWB. 17. Remove six screws and control PWB from the main unit. 18. Check or replace the control PWB and refit all the removed parts. Control PWB Connector Screw Screw Screw Screw Screw Screw...
  • Page 412 NOTE:The following operations are required when replacing the main board. 1. Execute maintenance mode U004 to resolve machine number mismatch that appears after replacing the main board. * : When the machine number of control board does not match, C0180 will be displayed. 2.
  • Page 413 2-2-3 Connect Left PWB (CLPWB) (1) Connector position YC11 YC10 YC13 YC12 Figure 2-2-13 (2) PWB photograph Figure 2-2-14 Service Manual Y116540-5 2-2-17...
  • Page 414 (3) Connector lists Connector Signal Voltage Description EECLK 0/3.3 V DC(pulse) Clock signal Connected to Ground the controll EESIO I/O 0/3.3 V DC Data signal ERASER 0/3.3 V DC CL control signal +3.3V2_E2 3.3 V DC 3.3 V DC power input TSENS Analog TS output signal...
  • Page 415 Connector Signal Voltage Description LFANN 0/24 V DC LFM: On/Off Connected to +24V0_E3 24 V DC 24 V DC power output the LSU fan motor +3.3V2_E2 3.3 V DC 3.3 V DC power output Connected to WTLEDN 0/3.3 V DC WTS(LED): On/Off the waste WTSENS...
  • Page 416 (4) Detaching and refitting the PWB. (C-LPWB) Procedure 1. Remove the upper interface cover. 2. Release two hooks using a flat screw driver and remove the right stay cover. Right stay cover Hooks Flat screw driver Upper interface cover Figure 2-2-15 3.
  • Page 417 7. Release two hooks using a flat screw driver and remove the left upper cover. Hooks Hook Flat screw driver Left upper cover Figure 2-2-17 8. Remove the screw from the center stay cover. 9. Release two hooks using a flat screw Hooks driver and remove the center stay cover.
  • Page 418 10. Remove the front right cover forward. Front right cover Figure 2-2-19 Image scanner 11. Remove three connectors, two FFCs unit and two USB connectors from the Con- trol PWB. 12. Remove three screws and grounding terminal from the image scanner unit. 13.
  • Page 419 Screw 14. Remove two screws. Left inner spacer (50/60 ppm model only) (1)Slide the right inner spacer and the left inner spacer forward and then remove it Right inner upward. spacer Screw Figure 2-2-21 Screw 15. Remove two screws. 16. Remove the center stay cover. Eject unit cover Screw Figure 2-2-22...
  • Page 420 Screw 17. Remove four screws. 18. Remove the upper stay assembly Upper stay assembly upward. Screw Screw Screw Figure 2-2-23 Left inner 19. Remove the screw and then remove the cover right inner cover by leaning it inside and lifting it. Screw 20.
  • Page 421 Screw 21. Remove two screws. 22. Remove the top tray cover upward. Top tray cover Screw Figure 2-2-25 23. Remove the connectors from the con- nect left PWB and then release the wires from the hooks. 24. Remove the LSU fan motor assembly upward.
  • Page 422 Connect left PWB 25. Remove the connectors and FFC and then remove the connect left PWB. 26. Check or replace the connect left PWB and refit all the removed parts. Connectors Hook Figure 2-2-27 Service Manual Y116540-5 2-2-26...
  • Page 423 2-2-4 Connect Right PWB (CRPWB) (1) Connector position YC12 YC13 YC11 YC10 Figure 2-2-28 (2) PWB photograph Figure 2-2-29 Service Manual Y116540-5 2-2-27...
  • Page 424 (3) Connector lists Connector Signal Voltage Description DEEP_SLEEP 0/3.3 V DC Sleep signal Connected to RFANH 0/24 V DC RFM: On/Off the control MPFSOL 0/24 V DC MPSOL: On/Off COVOPN 0/3.3 V DC ILSW: On/Off LIFTMOTOR 0/5 V DC LM: On/Off RFANL 0/24 V DC RFM: On/Off...
  • Page 425 Connector Signal Voltage Description CAS3 0/24 V DC CSSW: On/Off Connected to CAS2 0/3.3 V DC CSSW: On/Off the cassette CASSET CSSW common signal size switch CAS1 0/3.3 V DC CSSW: On/Off Ground Connected to POWERSW 0/3.3 V DC PSSW: On/Off the switch HEAT1REM 0/3.3 V DC...
  • Page 426 Connector Signal Voltage Description LIFTMOTOR 0/5 V DC LM: On/Off YC9 *1 Connected to Ground the lift motor MMOTCW 0/5 V DC MM drive shift signal YC10 Connected to MMOTRDYN 0/3.3 V DC MM ready signal the main MMOTCLKN 0/5 V DC(pulse) MM clock signal motor and MMOTONN...
  • Page 427 (4) Detaching and refitting the PWB. (CRPWB) Procedure 1. Remove the upper interface cover. 2. Release two hooks using a flat screw driver and remove the right stay cover. Right stay cover Hooks Flat screw driver Upper interface cover Figure 2-2-30 3.
  • Page 428 7. Open the rear cover. 8. Remove the lower interface cover and the inlet cover. Hook Lower interface cover Rear cover Inlet cover Figure 2-2-32 9. Remove two screws. 10. Release the hooks by bending both- side of the right middle cover and then remove it by pulling and lifting up for- ward.
  • Page 429 11. Remove all connectors and FFC from the connect right PWB. 12. Remove three screws and connect right PWB from the main unit. 13. Check or replace the connect right PWB and refit all the removed parts. Connectors Screw Screw Screw Connect rIght Figure 2-2-34...
  • Page 430 2-2-5 High Voltage PWB (HVPWB) (1) Connector position YC102 YC101 Figure 2-2-35 (2) PWB photograph Figure 2-2-36 Service Manual Y116540-5 2-2-34...
  • Page 431 (3) Connector lists Connector Signal Voltage Description +24V2_E1 24 V DC 24 V DC power output YC101 Connected to TCNT Analog Transfer control the control TRREM 0/3.3 V DC Transfer remote signal SCNT Analog Separation control +3.3V2_E2 3.3 V DC 3.3 V DC power output DUJAMSEN2 0/3.3 V DC...
  • Page 432 (4) Detaching and refitting the PWB. (HVPWB) Procedure 1. Remove the upper interface cover. 2. Release two hooks using a flat screw driver and remove the right stay cover. Right stay cover Hooks Flat screw driver Upper interface cover Figure 2-2-37 3.
  • Page 433 7. Release two hooks using a flat screw driver and remove the left upper cover. Hooks Hook Flat screw driver Left upper cover Figure 2-2-39 8. Remove the screw from the center stay cover. 9. Release two hooks using a flat screw Hooks driver and remove the center stay cover.
  • Page 434 10. Remove the front right cover forward. Front right cover Figure 2-2-41 Image scanner 11. Remove three connectors, two FFCs unit and two USB connectors from the Con- trol PWB. 12. Remove three screws and grounding terminal from the image scanner unit. 13.
  • Page 435 14. Open the rear cover. 15. Remove the lower interface cover and the inlet cover. Hook Lower interface cover Rear cover Inlet cover Figure 2-2-43 16. Remove two screws. 17. Release the hooks by bending both- side of the right middle cover and then remove it by pulling and lifting up for- ward.
  • Page 436 18. Pull out the cassette. Hooks 19. Remove three screws. 20. Release two hooks by sliding the right lower cover upward and then remove the right lower cover. Screw Right lower cover Screw Screw Figure 2-2-45 21. Release two hooks of the rear left cover Rear left cover while pulling forward.
  • Page 437 23. Release the hook A by sliding the left Left middle cover Hook C upper cover upward. 24. Release the hook B and hook C and Hooks B then remove the left middle cover and the waste toner box cover. Hook A Waste toner box cover...
  • Page 438 28. Remove eight screws and grounding Screw terminal. 29. Remove the controller box. Screw Grounding terminal Screw Screws Screw Screw Screw Controller box Figure 2-2-49 30. Remove the connector cover B by Connector cover B releasing the hook. Screw 31. Remove the screw of connector cover 32.
  • Page 439 34. Remove the grounding wire by remov- Grounding wire ing the screw. 35. Remove the connector from the power source PWB. Power source PWB 36. Remove three screws and then remove assembly Screw the power source PWB assembly. Screw Screw Connector Screw Figure 2-2-51...
  • Page 440 39. [50/60 ppm model only] Release two hooks and then remove Wire cover the wire cover. Pull the connector of lift sensor out. Hooks Lift sensor Connector Figure 2-2-53 40. Remove seven screws. 41. Extract the feed roller axis by pushing the joint part.
  • Page 441 43. Remove the screw. 44. Pull two connectors out and then remove the high voltage PWB. High voltage PWB 45. Check or replace the high voltage PWB and refit all the removed parts. Screw Connector Connector Figure 2-2-55 Service Manual Y116540-5 2-2-45...
  • Page 442 2-2-6 Power source PWB (PSPWB) (1) Connector position Figure 2-2-56 (2) PWB photograph Figure 2-2-57 Service Manual Y116540-5 2-2-46...
  • Page 443 (3) Connector lists Connector Signal Voltage Description LIVE 100 V AC AC power input Connected to NEUTRAL 100 V AC AC power input the inlet NEUTRAL 100 V AC Fuser heater Connected to LIVE 100 V AC AC power input the fuser unit +24V0_E1 24 V DC...
  • Page 444 (4) Detaching and refitting the PWB. (PSPWB) Procedure 1. Remove the upper interface cover. 2. Release two hooks using a flat screw driver and remove the right stay cover. Right stay cover Hooks Flat screw driver Upper interface cover Figure 2-2-58 3.
  • Page 445 7. Open the rear cover. 8. Remove the lower interface cover and the inlet cover. Hook Lower interface cover Rear cover Inlet cover Figure 2-2-60 9. Remove two screws. 10. Release the hooks by bending both- side of the right middle cover and then remove it by pulling and lifting up for- ward.
  • Page 446 11. Pull out the cassette. Hooks 12. Remove three screws. 13. Release two hooks by sliding the right lower cover upward and then remove the right lower cover. Screw Right lower cover Screw Screw Figure 2-2-62 14. Remove eight screws and grounding Screw terminal.
  • Page 447 16. Remove the connector cover B by Connector cover B releasing the hook. Screw 17. Remove the screw of connector cover 18. Remove the connector cover C by releasing the hook. 19. Pull two connectors out. Hook Hook Connector cover C Connectors Figure 2-2-64 20.
  • Page 448 2-2-7 Operation panel PWB (OPPWB) for HyPAS model (1) Connector position YC17 YC14 YC12 YC21 YC18 Figure 2-2-66 (2) PWB photograph Figure 2-2-67 Service Manual Y116540-5 2-2-52...
  • Page 449 (3) Connector lists Connector Signal Voltage Description Ground Connected to 0/3.3 V DC LCD Control signal the LCD 0/3.3 V DC LCD Control signal 0/3.3 V DC LCD Control signal 0/3.3 V DC LCD Control signal 0/3.3 V DC LCD Control signal 0/3.3 V DC LCD Control signal Ground...
  • Page 450 Connector Signal Voltage Description Ground Connected to SECOND_TR 0/3.3 V DC JEPS: On/Off the control AY_SW BEEP_POWE 0/3.3 V DC Acknowledging beep restoration signal ENERGY_SA 0/3.3 V DC Energy save signal SUSPEND_P 3.3V DC 3.3 V DC power input OWER LED MEM- 0/3.3 V DC Memory LED control signal...
  • Page 451 Connector Signal Voltage Description SCAN0 0/3.3 V DC (pulse) Scan signal 0 Connected to SCAN1 0/3.3 V DC (pulse) Scan signal 1 the key-right SCAN2 0/3.3 V DC (pulse) Scan signal 2 SCAN3 0/3.3 V DC (pulse) Scan signal 3 SCAN4 0/3.3 V DC (pulse) Scan signal 4 LEDRIGHT0...
  • Page 452 (4) Detaching and refitting the PWB. (OPPWB) Procedure 1. Remove the LCD lower cover from the operation panel assembly. Operation panel assembly LCD lower cover Figure 2-2-68 2. Raise the LCD forward during pushing the lock lever. USB connector 3. Remove a USB connector, two FFCs Connectors and four connectors from the operation panel PWB.
  • Page 453 Screw 4. Remove four screws and the operation Operation panel PWB panel PWB. Screw 5. Check or replace the operation panel Screw Operation panel PWB and refit all the removed parts. Screw assembly Figure 2-2-70 Service Manual Y116540-5 2-2-57...
  • Page 454 2-2-8 Operation panel PWB (OPPWB) for Basic model (1) Connector position LCD1 Figure 2-2-71 (2) PWB photograph Figure 2-2-72 Service Manual Y116540-5 2-2-58...
  • Page 455 (3) Connector lists Connector Signal Voltage Description Ground Connected to 3.3V1_C 3.3 V DC 3.3 V DC power input the control LCDCON 0/3.3 V DC LCD control signal 5.0V2_C 5V DC 5 V DC power input PAN_RXD 0/3.3 V DC Serial communication data signal PAN_TXD 0/3.3 V DC...
  • Page 456 (4) Detaching and refitting the PWB. (OPPWB) Procedure Operation panel 1. Raise the operation panel assembly by assembly releasing four hooks using a flat screw driver. Hooks 2. Remove the connector and FFC from the operation panel PWB. Connector Flat screw driver Figure 2-2-73 Screws 3.
  • Page 457 2-3 Appendixes 2-3-1 Appendixes (1) List of maintenance parts Maintenance part name Alternative Part No. part No. Name used in service manual Name used in parts list Paper feed pulley PULLEY FEED ASSY 302F906230 2F906230 Pickup pulley PARTS PULLEY PICKUP ASSY SP (PARTS HOLDER FEED ASSY SP) (302LV94270) (2LV94270)
  • Page 458 (2) Maintenance kits (2-1) 40 ppm model [120 V] Maintenance part name Alternative Parts No. part No. Name used in service Name used in parts list MK-3102/MAINTENANCE KIT MK-3102/MAINTENANCE KIT 1702MS7USV 072MS7UV (300,000 images) [220 V to 240 V] Maintenance part name Alternative Parts No.
  • Page 459 (3) Repetitive defects gauge First occurrence of defect 29.9 mm/1 Chager roller 3/16” 36.8 mm/1 Registration roller 7/16” 44.9 mm/1 Developer roller 3/4” 61.2 mm/2 Transfer roller 7/16” 78.5 mm/3 Press roller (40 ppm model) 1/16” 84.8 mm/3 Heat roller (40 ppm model) 5/16”...
  • Page 460 (4) Firmware environment commands The printer maintains a number of printing parameters in its memory. These parameters may be changed per- manently with the FRPO (Firmware RePrOgram) commands. This section provides information on how to use the FRPO command and its parameters using examples. Using FRPO commands for reprogramming the firmware The current settings of the FRPO parameters are listed as the optional values on the service status page.
  • Page 461 Factory Item FRPO Setting values setting Printing concentration 1: Thin. 2: Slightly Thin. 3: Standard 4: Slightly Deep. 5: Deep. Total host buffer size 0 to 99 in units of the size defined by FRPO S5 Form feed time-out value Value in units of 5 seconds (0 to 99).
  • Page 462 Factory Item FRPO Setting values setting Automatic emulation switching 0: Page eject commands 11(U.S.A) trigger 1: None (For KPDL3) 2: Page eject and PRESCRIBE EXIT 10(Euro and 3: PRESCRIBE EXIT other) 4: Formfeed (^L) 6: Page eject, PRESCRIBE EXIT and formfeed 10: Page eject commands;...
  • Page 463 Factory Item FRPO Setting values setting MP tray paper size Same as the R2 values except: 0 6 (U.S.A) 8 (Euro and other) A4/letter equation 0: Off 1: On Host buffer size 0: 10kB (x H8) 1: 100kB (x H8) 2: 1024kB (x H8) RAM disk size 1 to 1024 MB...
  • Page 464 Factory Item FRPO Setting values setting Code set at power up in daisy- 0: Same as the default emulation mode (P1) wheel emulation 1: IBM 6: IBM PC-8 50: US ASCII (U6 = 21 SET) 52: HP Roman-8 (U6 = 77 SET) Font pitch for fixed pitch scalable Integer value in cpi: 0 to 99 font...
  • Page 465 Factory Item FRPO Setting values setting Paper type for the MP tray 1: Plain 1 2: Transparency 3: Preprinted 4: Label 5: Bond 6: Recycle 7: Vellum 9: Letterhead 10: Color 11: Prepunched 12: Envelope 13: Cardstock 16: Thick 17: High quality 21: Custom1 22: Custom2 23: Custom3...
  • Page 466 Factory Item FRPO Setting values setting Paper type for paper cassettes 2 1: Plain to 5 3: Preprinted 5: Bond 6: Recycled 9: Letterhead 10: Color 11: Prepunched 17: High quality 21: Custom1 22: Custom2 23: Custom3 24: Custom4 25: Custom5 26: Custom6 27: Custom7 28: Custom8...
  • Page 467 Factory Item FRPO Setting values setting Duplex operation for specified 0: Off paper type 1: On (Prepunched, Preprintedand Let- terhead) Default operation for PDF direct 0: Enlarges or reduces the image to fit in the printing current paper size. Loads paper from the current paper cassette.
  • Page 468 (5) System Error (Fxxxx) Outline The document is described for the outline of the factors of the Fxxx errors that are not described in the self- diagnosis error code list of Chapter 1-4. Please utilize it to refer for checking the factors. Please utilize it as the measures when the system is not recovered after power off/on or it frequently occurs.
  • Page 469 4003MF d-Copia 4003MF Plus, d-Copia 4004MF Plus Content Check procedure & check point Remark (Common) d-Copia 5004MF, d-Copia 6004MF d-Copia 4004MF [Control PWB-Operation panel PWB interface] [Control PWB-Operation panel PWB Control PWB: YC30(*1), YC2002, interface] YC2003 Control PWB: YC30, YC2002...
  • Page 470 4003MF d-Copia 4003MF Plus, d-Copia 4004MF Plus Content Check procedure & check point Remark (Common) d-Copia 5004MF, d-Copia 6004MF d-Copia 4004MF 1) Check the connection between the FAX control PWB and control [Check the connection of the PWB and function.
  • Page 471 4003MF d-Copia 4003MF Plus, d-Copia 4004MF Plus Content Check procedure & check point Remark (Common) d-Copia 4004MF d-Copia 5004MF, d-Copia 6004MF 1) Check the wire and the connection of the connectors between the control PWB and CCD, and check function.
  • Page 472 (6) Chart of image adjustment procedures Maintenance mode Setting procedure Adjust- Item Image Page Remarks ing order Item No. Mode Method Setting Adjusting the center line of the MP U034 LSU Out Left P.1-3-24 1. Press the start key. 1. Change the setting value using If a preset value is raised, a picture will move to tray 2.
  • Page 473 Maintenance mode Setting procedure Adjust- Item Image Page Remarks ing order Item No. Mode Method Setting Adjusting the left and right margins U402 A Margin P.1-3-51 1. Press the start key. 1. Change the setting value using A margin will become large if a preset value is (printing adjustment) C Margin 2.
  • Page 474 Image quality When maintenance item U411 (Automatic adjustment in the scanner) is run using the specified original (P/N AVGR23234P) the following adjustments are automatically made: Item Specifications Adjusting the scanner magnification (U065) 100% magnification Print: ±0.8% Adjusting the scanner leading edge registration (U066) Copy: ±1.5% Adjusting the scanner center line (U067) Using DP: ±2.0%...
  • Page 475 (7) Wiring diagram (40 ppm (LED model)) No.1 DRUM UNIT TONER MPFS CONTAINER +3.3V2_E2 EECLK TCONC EESIO TCONPWB EEPROM TSENS +24V2_E2 +24V2_E2 DRCPWB TSENS ERASERN EECLK EESIO TMOT DEVELOPER UNIT +3.3V2_E2 YC12 REGSEN2 +3.3V2_E2 TMOT TMOT EESIO C-LPWB DRPWB EECLK ERASERN +24V2_E2 +24V2_E2...
  • Page 476 No.2 LSU UNIT APCPWB +3.3V2_E2 PSSW CSSW PDPWB MPSOL DEEP_SLEEPN YC29 RFANH YC11 YC15 YC16 +24V0_E1 MPFSOL PSFM FANRN COVOPN LIFTMOTOR RFANL +5V2_E2 FEEDCLN LIVE +24V6 DLPCL DHEATER_REM POWERSW INLET REGCL NEUTRAL CASSET PSLEEPN (+5V2_E1) MMOTCWN RELAY +24V2_E1 MMOTRDYN ZCROSSN Flash MMOTON Debugger...
  • Page 477 No.3 TEMP SENSER +5V5 HUMIDITY SENSOR BLPWB BUZZER BLIGHT OPPWB USB HOST (FRONT) (2NZ) Mini B YC2002 YC2003 YC30 YC2008 YC2011 Flash Mini B writer YC2005 YC2011 Ethernet/ Micro YC2010 DEVICE YC2013 eKUIO0 CONPWB YC2012 eKUIO1 YC2009 (PPC) (ARM) HOST YS2000 Debugger Debagger...
  • Page 478 (8) Wiring diagram (40 ppm (HyPAS model)) No.1 TONER DRUM UNIT MPPS CONTAINER +3.3V2_E2 EECLK TCONC EESIO TCONPWB TSENS EEPROM +24V2_E2 DRCPWB +24V2_E2 TSENS ERASERN EECLK EESIO TMOT DEVELOPER UNIT +3.3V2_E2 YC12 REGSEN2 +3.3V2_E2 TMOT TMOT C-LPWB EESIO DRPWB EECLK ERASERN +24V2_E2 +24V2_E2...
  • Page 479 No.2 LSU UNIT YC1001 APCPWB +3.3V2_E2 PSSW CSSW PDPWB MPSOL DEEP_SLEEPN YC29 RFANH YC11 YC15 YC16 MPFSOL +24V0_E1 COVOPN PSFM FANRN LIFTMOTOR RFANL +5V2_E2 FEEDCLN +24V6 DLPCL DHEATER_REM POWERSW REGCL LIVE CASSET PSLEEPN (+5V2_E1) MMOTCWN INLET RELAY +24V2_E1 NEUTRAL MMOTRDYN ZCROSSN MMOTON Debugger...
  • Page 480 No.3 Back light Touch panel YC18 YC21 SUPEND_POWER INT_POWERKEY_N A LED SCAN0 M LED YC12 KEYLEFT1 P LED Debugger K-RPWB LEDLEFT1 LEDRIGHT1 KEYLEFT2 KEYRIGHT4 SCAN1 KEYRIGHT3 OPPWB K-LPWB SCAN2 YC14 SD CARD KEYRIGHT2 SCAN3 KEYRIGHT1 Micro KEYLEFT0 KEYRIGHT0 LEDLEFT0 LEDRIGHT0 LEDLEFT2 SCAN4 S LED...
  • Page 481 (9) Wiring diagram (50/60 ppm (HyPAS model)) No.1 DUS1 TONER DRUM UNIT FUSOL CONTAINER MPPS RCSW ENVM +3.3V2_E2 EECLK TCONC EESIO TCONPWB TSENS EEPROM +24V2_E2 +24V2_E2 TSENS DRCPWB ERASERN EECLK EESIO TMOT DEVELOPER UNIT +3.3V2_E2 REGSEN2 REGSEN2 TMOT YC10 YC11 YC12 YC13 DRPWB...
  • Page 482 No.2 LSU UNIT APCPWB +3.3V2_E2 CSSW PSSW PDPWB MPSOL DEEP_SLEEPN YC29 RFANH YC15 YC16 YC11 MPFSOL +24V0_E1 COVOPN PSFM FANRN LIFTMOTOR RFANL +5V2_E2 DLPCL +24V6 DHEATER_REM FEEDCL POWERSW LIVE REGCL CASSET PSLEEPN INLET (+5V2_E1) MMOTCWN NEUTRAL RELAY +24V2_E1 MMOTRDYN ZCROSSN MMOTON Flash writer Debugger...
  • Page 483 No.3 Back light Touch panel YC18 SUPEND_POWER YC21 INT_POWERKEY_N YC12 A LED SCAN0 M LED KEYLEFT1 P LED K-RPWB Debugger LEDLEFT1 LEDRIGHT1 KEYLEFT2 KEYRIGHT4 YC14 SCAN1 KEYRIGHT3 K- LPWB OPPWB SCAN 2 SD CARD KEYRIGHT2 SCAN 3 KEYRIGHT1 Micro KEYLEFT0 KEYRIGHT0 LEDLEFT0 TEMS...
  • Page 484 Installation Guide PF-320 (Paper Feeder) Installation Guide...
  • Page 485 PF-320 For U.S.A.: To install the optional paper feeder unit, contact your service representative. This unit is for use only with Laser Printers, FS-2100DN, Models FS-4100DN, FS-4200DN, FS-4300DN, ECOSYS M3040idn, ECOSYS M3540idn, ECOSYS M3550idn and ECOSYS M3560idn. For Canada: CAN ICES-3B/NMB-3B PF-320 PF-320 PF-320...
  • Page 486 (For Legal/Folio/OficioII)
  • Page 487 UPDATING STATUS DATE UPDATED PAGES PAGES CODE 03/2015 4 8 7 EDITION Y116540-5...

This manual is also suitable for:

D-copia 4004mfD-copia 4003mf plusD-copia 4004mf plusD-copia 5004mfD-copia 6004mf
