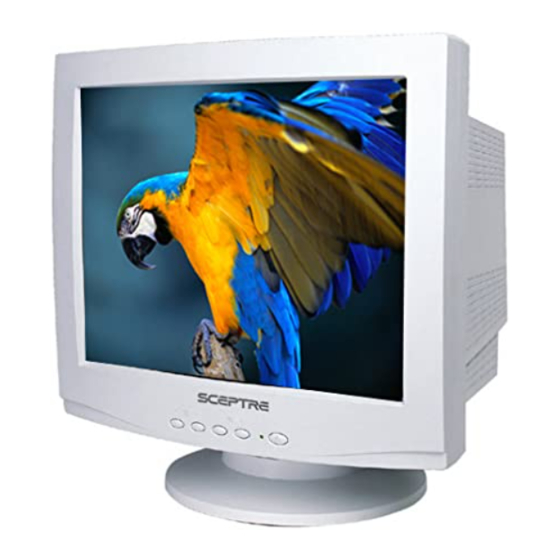

17" monitor
Hide thumbs Also See for D73P:

Advertisement

Important Safety Instructions

1.
Please read these instructions thoroughly.
2.
Please keep this guide for future use.
3.
Please disconnect the device from the main supply before cleaning. Do not use any liquid or
aerosol spray cleaners. The best for cleaning is a piece of cloth dampened with water.
4.
To avoid damage of the device, you should only use accessory parts permitted by the
manufacturer.
5.
The device must be protected against moisture.
6.
To setup the device, it must be put in a stable stand position. Tipping it over or dropping it may
cause injuries. Only use safety setup locations and follow the setup instructions of the
manufacturer.
7.
The ventilation openings are used for air circulation which protect the device against
overheating.
8.
To connect the device, follow the connected load values of the main supply.
9.
Due to electrical safety, the wall socket must be equipped with a non-fused earthed conductor
contact.
10. The power cable must be laid in a way that nobody may trip over it. There should also nothing
be resting on the cable.
11. All instructions and warning remarks on the device must be followed.
12. If the device will not be used for a long period of time, you should disconnect it from the main
supply to avoid overvoltage damage.
13. Any objects or liquid should never enter the device via its openings for air circulation. This
could cause a fire or an electric shock.
14. Do not open the device ever. For electrical safety, the device shall be opened by authorized
technical service personnel only.
15. If following conditions occur, the device must be disconnected from the main supply, and it
must be checked by a qualified service center:
a-
Power cable or power plug are damaged;
b-
Liquid has entered the device;
c-
The device was exposed to moisture;
d-
The device does not operate according to the user's guide, or you do not achieve any im-
provement with the aid of this guide;
e-
The device has dropped and/or the casing is damaged;
f-
The device shows obvious signs of a defect.
16. For repair, only original spare parts or parts in accordance with the original parts may be used.
Use of unsuitable spare parts can cause more damage.
17. Please turn to your service center for all questions concerning service and repair to guarantee the
device's performance reliability.
18. The socket outlet must be installed near the equipment to be easily accessible.
i

Advertisement

Table of Contents
loading

Summary of Contents for Sceptre D73P

  • Page 1: Important Safety Instructions

    Important Safety Instructions Please read these instructions thoroughly. Please keep this guide for future use. Please disconnect the device from the main supply before cleaning. Do not use any liquid or aerosol spray cleaners. The best for cleaning is a piece of cloth dampened with water. To avoid damage of the device, you should only use accessory parts permitted by the manufacturer.
  • Page 2: Federal Communications Commission

    FEDERAL COMMUNICATIONS COMMISSION (FCC STATEMENT) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion.
  • Page 3: Table Of Contents

    Table of Contents Chapter 1 : Introduction ____________________________ 1 Unpacking __________________________________________ 1 Connecting the Monitor and Stand________________________ 2 Removing the Monitor and Stand ________________________ 2 Choosing a Workstation________________________________ 3 The AC Connection ___________________________________ 4 The Signal Cable Connection____________________________ 4 Monitor Adjustments __________________________________ 5...
  • Page 5: Chapter 1 : Introduction

    Introduction Congratulations on your purchase of the new high performance 17" Monitor. Much consideration has gone into the design of the monitor in order to meet your requirements for full compatibility and versatility as well as quality. Using state-of-the-art electronics, the monitor can support a resolution of 1280x1024, and the on-screen display allows you to customize the display settings to suit your individual needs.
  • Page 6: Connecting The Monitor And Stand

    Align the stand’s four tabs with the slots in the bottom of the monitor. Slide the stand toward the front of monitor. After insert the tabs into the slots. Push back of swivel ball with angle 45 slowly. You will hear the spring lock click into place.
  • Page 7: Choosing A Workstation

    Place the monitor on a stable even surface. Access to an electrical outlet. Ensure at least three inches clearance at the rear of the monitor to allow for sufficient airflow. Position the Monitor a little above eye-level to reduce neck-strain.
  • Page 8: The Ac Connection

    Chapter 1 The AC Connection Locate the AC port on the rear of the monitor (refer to Figure 3). Plug the female end of the AC cord into the AC port. Plug the male end into the power supply. Figure 3: Connecting the Power Cord The Signal Cable Connection Make sure that the monitor is powered Off.
  • Page 9: Monitor Adjustments

    The monitor is capable of both tilt and swivel adjustments. Figure 5: Tilt Adjustment With the tilt feature, the monitor is capable of vertical adjustments of +15 to -5 . The swivel feature allows for horizontal monitor adjustments of +45 to -45 .
  • Page 10: Chapter 2

    Function options. OSD ON/OFF Control When this switch is OFF , the other four controls can be used to adjust the monitor’s Brightness and contrast. When this switch is ON , the OSD Menu appears and OSD Function control can be used.
  • Page 11: Adjusting The Brightness And Contrast

    This field displays the current Vertical Refresh Rate. Display only field. Resolution This field shows the display resolution to which your monitor is set. This is a display only field. (Note: It only shows the resolution in presetting mode.) ) right button to increase the contrast. Press the ( —...
  • Page 12: The On-Screen Display(Osd)

    Chapter 2 The On-Screen Display (OSD) The monitor features an intuitive, on-screen display (OSD), making changes to the display settings convenient and simple. You can access the OSD any time your PC is powered On. If the PC is in Standby mode, or is powered Off, the OSD cannot be accessed.
  • Page 13 H-Size Scroll to the H-Size icon. Press the display. H-Center Scroll to the H-Center icon. Press the horizontal axis of the screen. V-Size Scroll to the V-Size icon. Press the display. V-Center Scroll to the V-Center icon. Press the vertical axis of the screen. Pincushion Scroll to the Pincushion icon.
  • Page 14: Color Temperature Setup

    To access the Color setup menu, selet to the Display Color Setting icon. The following screen appears: This screen allows you to select a color temperature for your monitor. Press the button to select the desired option. The available options are:...
  • Page 15 Chapter 2 Red Gain Scroll to the Red Gain icon. Press the Contrast Control adjust the red gain for your display. Green Gain Scroll to the Green Gain icon. Press the Contrast Control to adjust the green gain for your display.
  • Page 16: Osd Window Status

    Chapter 2 OSD Window Status The OSD Window status icons allow you to adjust the position of the OSD window on your screen. You can also set the time that the OSD window will be displayed on the screen. OSD Horizontal Position Scroll to the OSD Horizontal Position icon.
  • Page 17: Reset And Degauss

    OSD window. Self-Test Screen When the monitor is powered On, but there is no video signal, the following self- test screen will appear. If the VGA cable is properly connected but the monitor screen is blank, (i.e., there is no picture and none of the above icons appear), then there may be a problem with the monitor.
  • Page 18: Summary Of Osd Icons

    Use this option to adjust the color setup. Refer to The Color Setup in the following section for more information. Select this option to set the monitor for the CIE coordinate 9300 color temperature. Select this option to set the monitor for the CIE coordinate 6500 color temperature.
  • Page 19 Degauss The Degauss option removes unwanted magnetism from the monitor’s CRT. This concludes Chapter 2. The following appendix provides details on your moni- tor’s technical specifications. You will also find tips on troubleshooting any problems you may run into.
  • Page 20: Appendix

    Troubleshooting This section will try to anticipate potential problems that you may encounter in the day-to-day use of your monitor. Included in this section is information which should help solve these problems for you. If after trying the suggested solutions, your monitor’s symptom remains the same, contact your authorized service center.
