Dear Sceptre Customer,

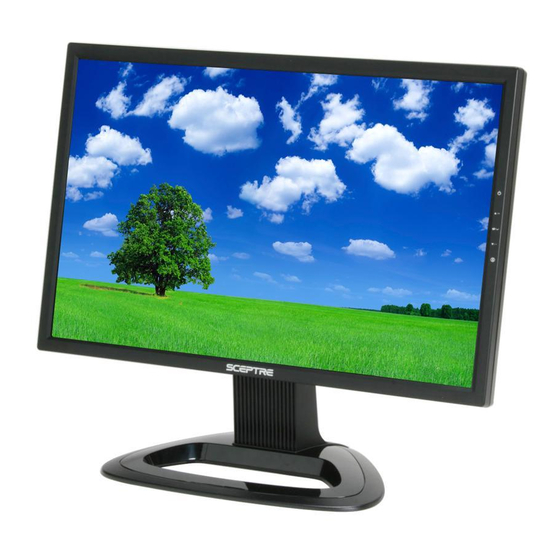

Congratulations on your new SCEPTRE X22 LCD monitor
purchase. Thank you for your support. To ensure safety and
many years of trouble free operation of your LCD monitor,
please read the manual carefully before making any
adjustments, and keep them in a safe place for future
reference. We hope you enjoy your new SCEPTRE X22 LCD
monitor.
For technical assistance, please call 1800-788-2878 and
select option 3 or email our tech support group at
monitor-ts@sceptre.com.
For all other inquiries, please call 1800-788-2878 and select
option 4 or email our customer service group at
cs@sceptre.com.
We recommend you register your SCEPTRE X22 LCD monitor
with the enclosed registration card and mail it in. For peace of
mind and to protect your investment beyond the standard
warranty, SCEPTRE offers a two year extended warranty
service for your LCD monitor. This plan gives additional
coverage once your standard warranty period runs out.
Please call our customer service group to purchase the
extended warranty.
SCEPTRE X22
Page1
Advertisement
Table of Contents
Related Manuals for Sceptre X22
Summary of Contents for Sceptre X22
- Page 1 LCD monitor, please read the manual carefully before making any adjustments, and keep them in a safe place for future reference. We hope you enjoy your new SCEPTRE X22 LCD monitor. For technical assistance, please call 1800-788-2878 and select option 3 or email our tech support group at monitor-ts@sceptre.com.
-
Page 2: Important Information
Important Information Page2 SCEPTRE X22... -
Page 3: Tips And Safety Precautions
• Do not place the X22 LCD MONITOR on an unstable cart, stand, or table. If the X22 LCD MONITOR falls, it can injure a person and cause serious damage to the appliance. Use only a cart or stand recommended by the manufacturer or sold with the X22 LCD MONITOR. - Page 4 • Unplug the unit during a lightning storm or when it will not be used for a long period of time. This will protect the X22 LCD MONITOR from damage due to power surges. •...
-
Page 5: Table Of Contents
Supported PC Resolution…………………………………………………………32 Supported Video Resolution…………………………………………………….. 33 Troubleshooting…………………………………………………………………… 34 How do I clean the LCD?... 37 Specification……………………………………………………………………….. 38 Call Us If You Need Help!... 40 LIMITED PRODUCT WARRANTY……………………………………………… 41 Disclaimer & Copyright Information……………………………………………...43 FCC Compliance Statement……………………………………………………... 44 SCEPTRE X22 Page5... -
Page 6: Opening The Package
Opening the Package The SCEPTRE X22 is packaged in a carton together with standard accessories. The weight of the LCD display is approximately 15.2 lbs. Since the LCD panel can be easily scratched or broken, please handle the product gently. Never place the unit on a surface with the glass facing downwards unless it is on a protective padding. -
Page 7: Installing The Base
Installing the Base 1. Please place the base on a flat surface (i.e. table). 2. Hold the monitor directly 90 degrees above the base. SCEPTRE X22 Page7... -
Page 8: Quick Start
On the monitor, press the MENU button to bring up the OSD. – 10. Use the buttons to navigate to Auto Adjust. Press the MENU button to use Auto Adjust. 11. Reboot your computer and when Windows finishes loading; your monitor is ready for use. Page8 SCEPTRE X22... -
Page 9: Mounting Preparations
Mounting Preparations 1. Place the monitor on a flat surface with cloth so the bezel does not get scratched. 2. Please remove the label sticker that covers the screws you need to remove. SCEPTRE X22 Page9... - Page 10 3. Unscrew the 4 screws that lock the arm to the monitor. 4. Once the 4 screws are removed, the stand will come off and the monitor will be ready for mounting. Page10 SCEPTRE X22...
-
Page 11: Identifying Front And Rear Panel
If the light is blinking blue, the monitor is turned on but not receiving a signal from the computer. NATIVE RESOLUTION : This monitor’s clearest picture is produced under its native resolution. The native resolution of the monitor is 1680 x 1050 at 60 Hz refresh rate. SCEPTRE X22 Page11... -
Page 12: Side View Control Buttons
With the OSD off, this buttons functions as the hotkey for adjusting VOLUME. Use the ▲ and ▼ key to adjust the actual value. – SOURCE This button allows you choose the source of the monitor between VGA and DVI. Page12 SCEPTRE X22... -
Page 13: Side View Tilt Angle
Side View Tilt Angle The LCD Monitor’s angle settings range from 0° to 12°. SCEPTRE X22 Page13... -
Page 14: Rear View
Rear View Mounting Specification : 100mm x 100mm using screw size M4. Length of screw should not exceed 10mm. Page14 SCEPTRE X22... -
Page 15: Rear View Connections
VGA – VGA stands for Video Graphics Array. This connection is for computers to send video signals to the monitor by an analog signal. This method of connection is the most commonly used connection. This port does not support video input. SCEPTRE X22 Page15... -
Page 16: Understanding Your Cables & Connections
Understanding Your Cables & Connections Cable Name Cable Picture (digital video) (analog video) 3.5 mm Mini-jack Power Cord Conversion Cable Name HDMI to DVI (optional accessory) 3.5mm Mini-jack to Female RCA Audio (optional accessory) Page16 Corresponding Connection Picture Conversion Cable Picture SCEPTRE X22... -
Page 17: Connecting The Lcd To Your Pc
Audio In connection of the monitor. Connect the other end of the 3.5 mm Mini-jack cable to your PC’s audio line out connection. Turn on the power of both the X22 LCD MONITOR and the PC. Please Note : •... -
Page 18: If You Have Vga Connection On Your Video Card
Obtain the VGA cable and connect to the VGA connection on your PC. Connect the other end of the cable to your X22 LCD MONITOR. Obtain the Audio In cable and connect the 3.5 mm Mini-jack cable to the Audio In connection of the monitor. -
Page 19: Connecting The Lcd To Your Video Device
If you have HDMI connection on your DVD player, purchase a HDMI to DVI video conversion cable and connect the HDMI end to the DVD player. Connect the DVI end to the X22 LCD monitor. Make sure to match the shapes on both connections. -
Page 20: If You Have Hdmi Connection On Your Hd Box
RCA red / white end to regular RCA red / white cables and regular RCA red / white cables to your HD set-top box. Connect the 3.5 mm Mini-jack end to the X22 LCD MONITOR’s Audio In connection. -
Page 21: If You Have Hdmi Connection On Playstation® 3
If You Have HDMI Connection on PlayStation® 3… Make sure the power of X22 LCD MONITOR is turned off. If you have HDMI connection on your PlayStation® 3, purchase a HDMI to DVI video conversion cable and connect the HDMI end to your PlayStation® 3 and connect the DVI end to the X22 LCD monitor. -
Page 22: If You Have Vga Connection On Xbox 360
If You Have VGA Connection on Xbox 360™… Make sure the power of X22 LCD MONITOR is turned off. If you have VGA connection on your Xbox 360™, purchase an Xbox 360™ VGA video cable and connect the proprietary single head to your Xbox 360™. Connect the VGA end to the X22 LCD monitor. -
Page 23: On Screen Display (Osd) Menu
1. You can use this function by pressing MENU, then (▲/+) press 2. Once Auto Adjust is highlighted, press MENU again to use the function. SCEPTRE X22 (▼/–) to select Auto Adjust Page23... -
Page 24: Luminance
If the value is adjusted too high, the picture will not have any details in bright parts of the picture. If set too low, the picture will looked washed out. Page24 button. (▼/–) button to select BRIGHTNESS (▼/–) button to adjust the values. SCEPTRE X22... -
Page 25: Geometry
VGA. When using VGA connection, you need to use this option for changing the resolutions below then use AUTO ADJUST after changing the format option. SCEPTRE X22 (▲/+) (▼/–) (▼/–) buttons to select the option buttons to adjust the values. - Page 26 SCREEN SETTING adjustments are only available under VGA. Page26 for any resolution besides the three resolutions below it. monitor for 1024x768 resolution, making the screen clearer. monitor for 1280x768 resolution, making the screen clearer. monitor for 1360x768 resolution, making the screen clearer. SCEPTRE X22...
-
Page 27: Color
GREEN, and BLUE color. e. AUTO COLOR – This option adjusts the overall balance of white colors in a picture automatically. i. To use this option with hotkeys, press SCEPTRE X22 (▲/+) (▼/–) buttons. (▼/–) button to select the option you (▲/+) -
Page 28: Volume
Use the iii. Use the VOLUME This function changes the X22 LCD MONITOR’s speaker volume. 1. Press MENU to open the OSD then highlight OSD SETTING by pressing the 2. Press MENU to enter the function. (▲/+) 3. Press the option. -
Page 29: Osd
OSD TIME – This option change the time which the OSD will remain on screen while idle. LANGUAGE This function allows you to change the language of the OSD. SCEPTRE X22 (▼/–) buttons. (▼/–) buttons to select the option (▼/–) -
Page 30: Recall
COLOR RECALL – recalls all settings of COLOR function. b. RECALL ALL – recalls all settings besides COLOR function. Page30 (▲/+) (▼/–) buttons to select the (▲/+) (▼/–) buttons. (▼/–) buttons to select the option SCEPTRE X22 (▼/–) (▲/+) -
Page 31: Miscellaneous
DCR – This option turns dynamic contrast on or off. v. DISPLAY INFORMATION – This option shows the monitor’s information such as resolution and refresh rate. SCEPTRE X22 (▲/+) (▼/–) buttons to select the (▼/–) buttons to adjust the value (▲/+) -
Page 32: Exit
74.93 75.06 25.18 70.09 28.32 70.08 25.18 59.94 31.50 72.81 31.50 60.32 72.19 49.5 57.28 74.55 70.07 78.75 75.03 SCEPTRE X22 (▼/–) Horizontal Scanning Frequency (kHz) 35.00 60.24 68.68 31.47 31.47 31.47 37.86 37.50 37.88 48.08 46.88 49.73 48.36 56.48... -
Page 33: Supported Video Resolution
*Once a mode is optimized, there is no need to make any further adjustment as long as the VGA card remains unchanged. **Specifications are subject to change without notice. Supported Video Resolution Item Standards 720x480i 720x480P 1280x720P 1920x1080i 1920x1080P SCEPTRE X22 71.53 84.75 59.8 88.75 106.5 59.883 146.25 59.954 Vertical Horizontal... -
Page 34: Troubleshooting
LCD on the computer. If you do NOT have a CRT monitor or it’s already broken, please make sure both the X22 monitor and your computer is turned off. Page34 Possible solutions 1. - Page 35 START then RUN. Type in “DXDIAG”. When the diagnostic window pops up, click on the DISPLAY tab. The program SCEPTRE X22 1. Turn on the LCD and the computer. 2. While the computer is turned on, press the “F8”...
- Page 36 Sometimes the colors are not correct THE COLORS because your VGA or DVI cable is loose ARE NOT or corrupt. Please try reconnecting your CORRECT cable or swap out your current cable to see if the problem persists. Page36 SCEPTRE X22...
-
Page 37: How Do I Clean The Lcd
Wipe the display with a dry micro-fiber cloth or 100% cotton cloth afterwards. SCEPTRE X22 Make sure you wring the water out of the cloth before cleaning the bezel or remote in order to prevent water from penetrating into the electronics. -
Page 38: Specification
Native: 1680 x 1050 300 nits (Typical) 2000:1 (DCR) 2ms (Gray to Gray) Typical 170/160 Degree (Horizontal/Vertical) > 50,000hrs Monitor Display 22.7(L)X4.7(D)X19.7(H) inches 557(L)X115(D)X483(H) mm 11.46 lbs (5.2 Kgs) 100V to 240VAC @ 50/60 Hz Max, Features 2w + 2w SCEPTRE X22... - Page 39 1360 * 768 @ 60 Hz 1440 * 900 @ 60 Hz 1680 * 1050 @ 60 Hz 1920 * 1080P @ 60 Hz VGA, DVI (HDCP) (5)I/O Audio Line In *Specifications are subject to change without notice. SCEPTRE X22 Page39...
-
Page 40: Call Us If You Need Help
Customer Service Email : TEL : 1800-788-2878 Operation Hours : Mon - Fri at 8:30 AM – 5:30 PM (PST) 16800 East Gale Ave. City of Industry, CA 91745 TEL : 626-369-3698 FAX : 626-855-5711 Website : Page40 monitor-ts@sceptre.com cs@sceptre.com www.SCEPTRE.com SCEPTRE X22... -
Page 41: Limited Product Warranty
TVs on which the serial number has been removed or defaced. Image Sticking caused by operating at excessive brightness levels for extended periods or mishandling are not covered by this warranty. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF SCEPTRE X22 Page41... - Page 42 Protect your investment beyond the standard warranty and experience piece of mind with SCEPTRE’s Extended Service Warranty. Depending on your model, plans are offered for an additional 2 years. Visit www.SCEPTRE.com or call 1-800-788-2878 to purchase a plan today. Page42 SCEPTRE X22...
-
Page 43: Disclaimer & Copyright Information
Information in this document may change without notice. No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from Sceptre, Inc.. SCEPTRE is a trademark or registered trademark of Sceptre Group. SCEPTRE X22 Page43... -
Page 44: Fcc Compliance Statement
European Notice Products with the CE marking comply with both the EMC Directive (89/336/EEC), (93/68/EEC) and the Low Voltage Directive (72/23/EEC) issued by the Commission of the European Community. Page44 SCEPTRE X22...
