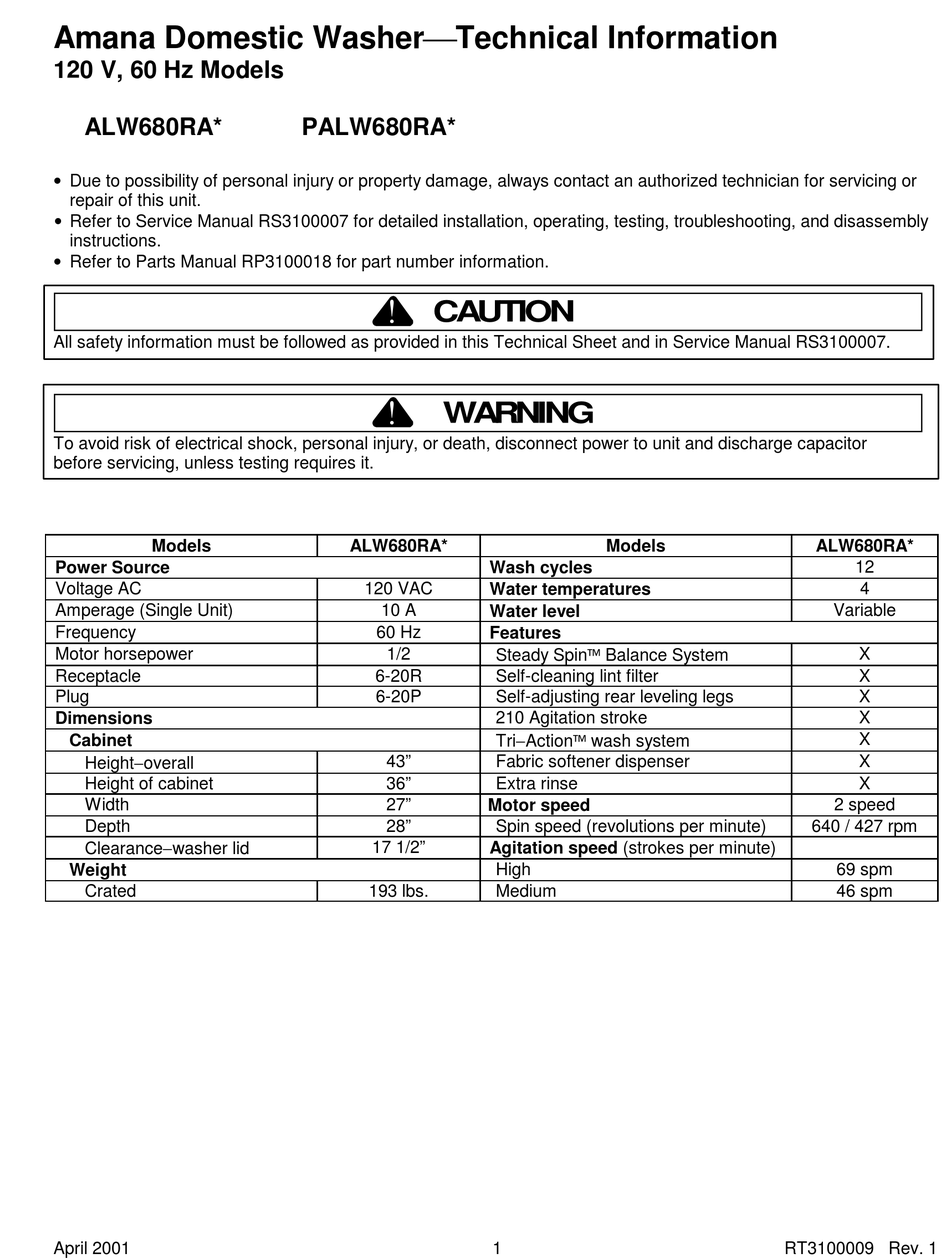

Amana Domestic Washer Technical Information
120 V, 60 Hz Models
ALW680RA*
• Due to possibility of personal injury or property damage, always contact an authorized technician for servicing or
repair of this unit.
• Refer to Service Manual RS3100007 for detailed installation, operating, testing, troubleshooting, and disassembly
instructions.
• Refer to Parts Manual RP3100018 for part number information.
All safety information must be followed as provided in this Technical Sheet and in Service Manual RS3100007.
To avoid risk of electrical shock, personal injury, or death, disconnect power to unit and discharge capacitor
before servicing, unless testing requires it.
Models
Power Source
Voltage AC
Amperage (Single Unit)
Frequency
Motor horsepower
Receptacle
Plug
Dimensions
Cabinet
Height− overall
Height of cabinet
Width
Depth
Clearance− washer lid
Weight
Crated
April 2001
PALW680RA*
!
CAUTION
!
WARNING
ALW680RA*
120 VAC
10 A
60 Hz
1/2
6-20R
6-20P
43"
36"
27"
28"
17 1/2"
193 lbs.
Models
Wash cycles
Water temperatures
Water level
Features
Steady Spin™ Balance System
Self-cleaning lint filter
Self-adjusting rear leveling legs
210 Agitation stroke
Tri− Action™ wash system
Fabric softener dispenser
Extra rinse
Motor speed
Spin speed (revolutions per minute)
Agitation speed (strokes per minute)
High
Medium
1
ALW680RA*
12
4
Variable
X
X
X
X
X
X
X
2 speed
640 / 427 rpm
69 spm
46 spm
RT3100009 Rev. 1
Advertisement
Related Manuals for Amana ALW680RA Series
Summary of Contents for Amana ALW680RA Series
- Page 1 Amana Domestic Washer Technical Information 120 V, 60 Hz Models ALW680RA* PALW680RA* • Due to possibility of personal injury or property damage, always contact an authorized technician for servicing or repair of this unit. • Refer to Service Manual RS3100007 for detailed installation, operating, testing, troubleshooting, and disassembly instructions.
-
Page 2: Component Testing Information
Component Testing Information WARNING To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless testing requires it. Illustration Component Test Procedure Results 40046601 Temperature switch Disconnect wires from component to properly measure the resistance of the component. - Page 3 Component Testing Information WARNING To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless testing requires it. Illustration Component Test Procedure Results 038424* Rocker switch Measure resistance of switch (Extra Rinse) positions: >1 Ω Closed (ON position).....
-
Page 4: Internal Motor Diagram And Schematic
Internal Motor Diagram and Schematic WARNING To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless testing requires it. One or Two Speed Motors Continuity exists between switch terminal R and Red wire. Start Terminals Manually depress actuator. - Page 5 Internal Motor Diagram and Schematic WARNING To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless testing requires it. Wire harness connection block White Brown Yellow Blue Violet 4P M Yellow 6P M Overload Aux.
-
Page 6: Wiring Diagram
Wiring Diagram WARNING To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless testing requires it. RT3100009 Rev. 1 April 2001... - Page 7 Schematic WARNING To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless testing requires it. SCHEMATIC PART NO. 40101601 120 VOLTS A.C. 60 HZ PRESSURE SWITCH MIXING VALVE COLD EXTRA RINSE SWITCH 4 POSITION WATER TEMP.
-
Page 8: Timer Cycle Chart
Timer Cycle Chart WARNING To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless testing requires it. MOTOR MOTOR WATER TEMP WATER TEMP CYCLE/FUNCTION SPEED CYCLE CHART CYCLE/FUNCTION SPEED CYCLE CHART SELECT SELECT Water Temperature Speed hh:mm:ss... - Page 9 Timer Cycle Chart WARNING To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless testing requires it. Failure to install, maintain, and/or operate this machine according to manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage.
- Page 10 Notes: RT3100009 Rev. 1 April 2001...
