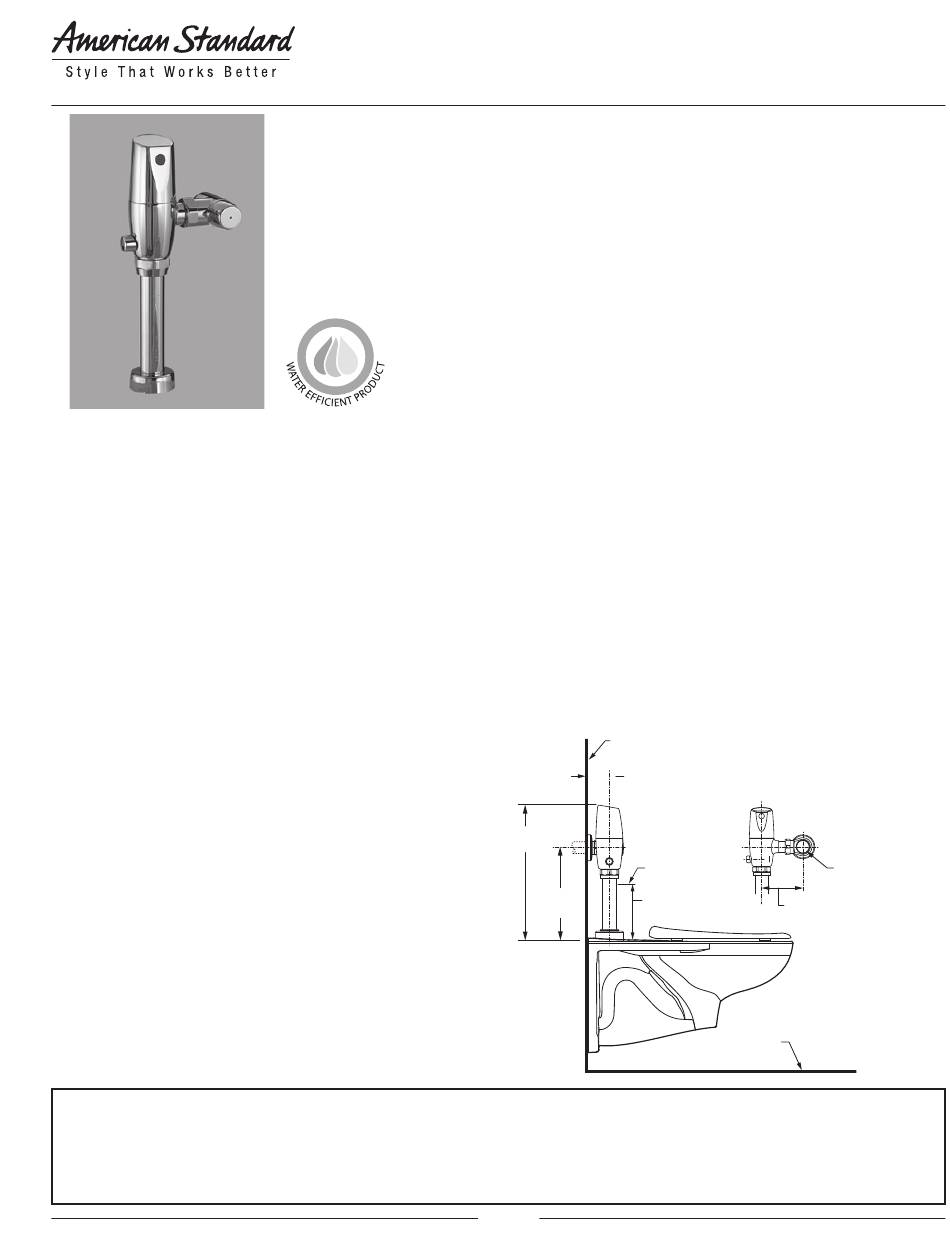

American Standard SELECTRONIC FloWise Quick Start Manual

GENERAL DESCRIPTION:
Exposed, Battery Powered, Sensor Operated
Selectronic™ Dual Flush Water Closet Flush Valve
for floor-mounted or wall-hung 1-1/2" top spud bowls.
Inlet includes 1" I.P.S. angle stop with back-flow
protection, vandal-resistant cap, sweat solder kit,
cover tube and wall flange.
Outlet includes 1-1/2" vacuum breaker with
adjustable tailpiece, spud coupling and flange.
PRODUCT FEATURES:
• Light flush (1.1 gpf: 30% water savings) if user
is in detection zone for 60 seconds or less
• Standard flush (1.6 gpf) if user is in detection zone
for more than 60 seconds
• Electronic flush valve with Selectronic™ proximity
system for "Hands Free" operation
• Self-Cleaning Piston operation helps prevent
clogging and reduces maintenance
• Positive seal ensures leak-free performance
• Fully mechanical Manual Override Button can
flush toilet during a power outage
• Range can be adjusted manually or by remote control
• Sensor & electronic controls are fully enclosed
and water resistant
• Automatically flushes after 24 hours of non-use
to maintain trap seal
• Safety timer helps prevent vandalism by turning off
the valve if sensor is covered for more than 1 minute
• 3-second Flush Delay
• Low Battery indicator
• Battery can be changed without turning off the water
• Factory-installed 6V lithium battery included
• Can be installed left or right-handed
• ADA compliant
RECOMMENDED SPECIFICATION:
Electronic proximity infrared sensor activated dual flush toilet flush valve shall feature self-cleaning piston valve. Flush volume is determined
by amount of time user is in detection zone. 60 seconds or less: 1.1 gpf/4.2 Lpf. More than 60 seconds: 1.6 gpf/6.0 Lpf. Includes a fully
mechanical manual over-ride that can provide a complete flush without battery power. Includes cast brass valve body and metal cover with
chrome finish, vandal resistant stop cap and lithium battery. Angle stop with back-flow protection and vacuum breaker included. Flush valve shall be
American Standard Model # 6065.76_.002.
© 2010 AS America Inc.
DUAL FLUSH TOILET FLUSH VALVE
BATTERY POWERED, SENSOR OPERATED, 1.6/1.1 GPF
MODEL NUMBER:
❑ 6065.761.002 Dual Flush Toilet Flush Valve
for 11-1/2" Supply C\L to top of bowl, 1.6/1.1 gpf
❑ 6065.762.002 Dual Flush Toilet Flush Valve
for 27" Supply C\L to top of bowl, 1.6/1.1 gpf
❑ 6065.561.002 Dual Flush Retrofit for Existing
Flush Valves, 1.6/1.1 gpf. Replaces industry
standard manual and electronic valves. Does
not include the vacuum breaker assembly, angle
stop or sweat solder kit.
OPERATING PRESSURE:
Overall Range: 20-125 psi**
Recommended: 25 psi (flowing)-80 psi (static)
FLOW REQUIREMENT:
25gpm (94.6 L/min.)
** Water pressure over 80 psi is not recommended
for most plumbing fixtures.
BATTERY LIFE:
Up to 4-year life, (approx. 200,000 cycles)
ACCESSORIES:
• Cast wall flanges (1" & 1-1/2")
• Solid ring pipe supports (2-1/2" & 6" C-E)
• Split ring pipe supports (2-1/2" & 6" C-E)
TYPICAL WATER CLOSET INSTALLATION:
409mm
(16-1/8")
293mm
(11-1/2")
L155
SELECTRONIC
AFWALL™ TOILET SHOWN
FINISHED WALL
73mm
(2-7/8")
CRITICAL
LEVEL
-C-L-
SEE ROUGH-IN
ON BACK
FINISHED
FLOOR
FloWise
™ ®
SUPPLY
DN 25mm
(1" I.P.S.)
121mm, +13mm, -6mm
(4-3/4")(+1/2", -1/4")
