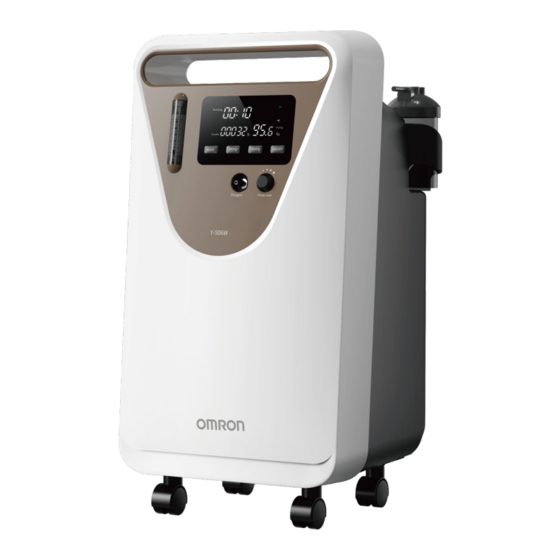

- Page 1 Instruction Manual – Basic Omron Y-506W (Oxygen Concentrator) This manual provide basic information on Installation and usage, for complete information on product please check the instruction manual provided inside the product.
-
Page 2: Table Of Contents
Content 1. Intended Use ---------------------------------------------- Page 1 2. Storage And Transportation --------------------------- Page 1 3. General Instruction While Usage --------------------- Page 1 4. Safety Instructions --------------------------------------- Page 1 5. Product Installation -------------------------------------- Page 2 6. Know your product --------------------------------------- Page 3 7. -
Page 3: Intended Use
1. Intended Use: - Oxygen inhalation in the general home and relief of respiratory disease. Oxygen in the air is concentrated to support the respiration of patients living at home with respiratory problems, mainly chronic obstructive pulmonary disease, etc. Your doctor may prescribe one for you if you have a health condition that causes your oxygen level to drop too low. 2. - Page 4 Unbox the product by pulling from the top (by Handle), do not bend the product sideways to pull the same. Firstly, Put the device down on its one side and check the bottom cable ties. III. Secondly, Cut off the cable ties. Untie the cable and take it out.
-
Page 5: Know Your Product
6. Know your Product: - Operational Panel: - It display the cumulative of running time, total running time, adjustable running time, oxygen purify and alarms or fault codes and adjustable running time timer. a. Running Time:- It shows how current running time or current operational time, in case if time is activated then available running time will be displayed. -
Page 6: Product Usage
Timer+ will increase the timer and Timer- will decrease the timer by 10 mins machine will turn off once timer will turn to zero. On/Off Button:- To turn the machine on and Off. 7. Product Usage: - Place humidification bottle at the back of machine as shown in image (2 Image under know your product). -
Page 7: Troubleshooting
Troubleshooting: - a. No Power: - Please check the power cord of is properly connected and power button is turned ON at the back of machine. Check if fuse if working properly, in case fuse wire is broken or turned white or black please replace the fuse by below steps: - Fuse holder is Pull Out the... - Page 8 II. Clean/ Replace the Primary filter: - Please follow the below steps. Remove the primary filtration panel Remove the filter, use light detergent from the back of machine by pull it firstly, rinse with clean water, and then install it after it is completely dry Note: - Please clean the primary filter in every 15 days for better performance.
- Page 9 Solution: - Please contact at customer care number. Customer Care details: - 1800-419-0492 Call us on our Toll-free Number: - callcentre@omron.com Mail us at: - Working Hours: Monday-Friday 9am - 5.30pm. Closed on Saturdays, Sundays, and Public Holidays Important links:- Please find video links for information on Installation, operations and troubleshooting.
