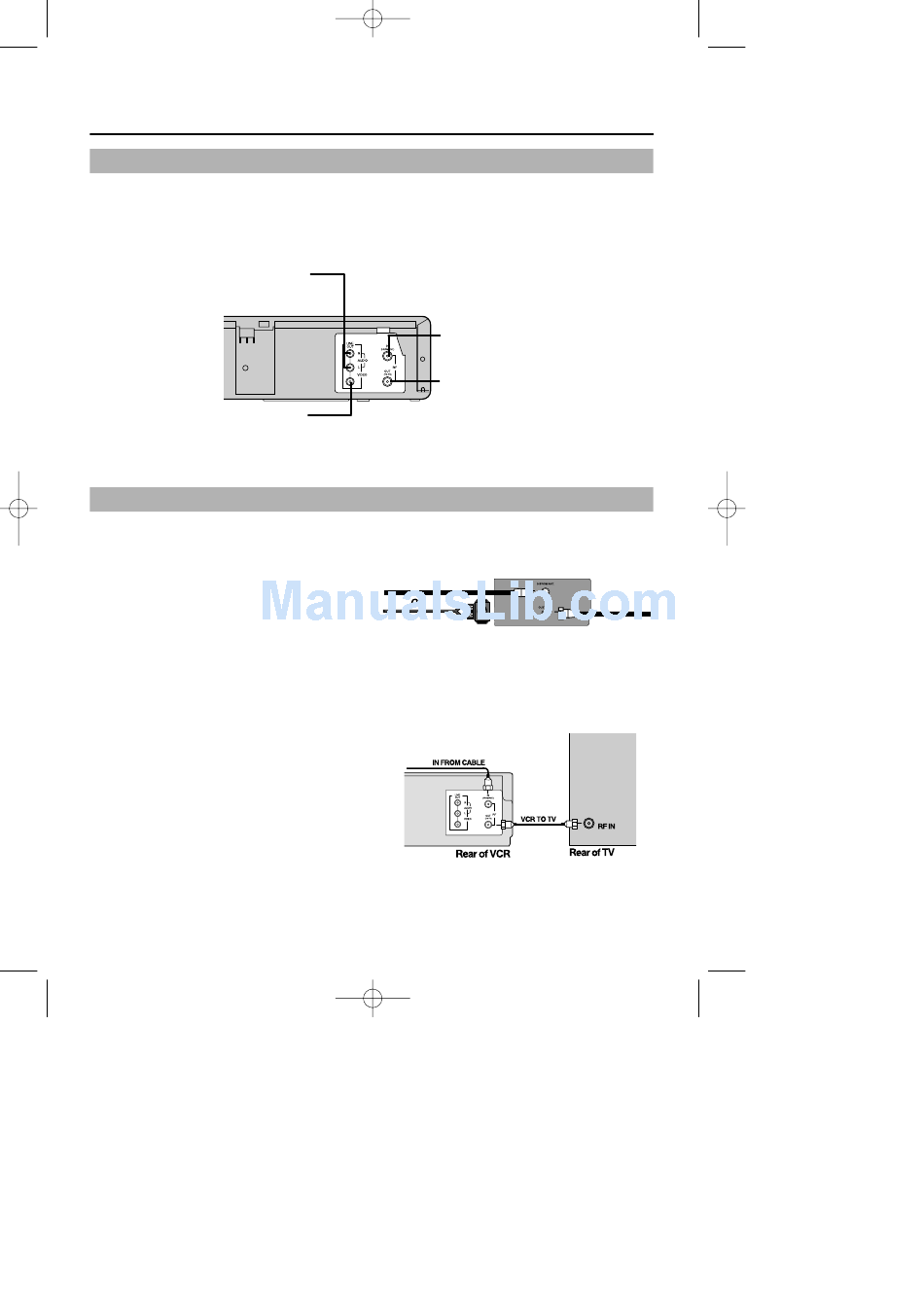

Rear Panel

Use the jacks on the rear panel to connect the VCR to other components and signals, including: VCRs, TVs,
stereo equipment, digital video components, antenna and cable signals.
Note: CMV42002 has one Audio out on the rear panel.
Used to output audio signals to
connected equipment.
Used to output video signals from
VCR to connected equipment.

Connections

Antenna Connection
If your outside antenna cable is a 300 ohm flat feeder, use
an adapter to connect the antenna to the VCR input terminal.
You can purchase an adapter at an electronics store.
If your antenna already has a round lead, simply connect it
to the terminal on the rear panel of the VCR.
Once your antenna is connected to the VCR, connect a
cable from the VCR to your TV from the "Out to TV"
terminal on the rear panel of the VCR.
Cable Connections
Basic Cable TV Connection
This set-up will enable you to:
- Record an unscrambled channel.
- Watch an unscrambled channel while recording it.
- Record an unscrambled channel while watching
another (only when you connect a cable-compatible TV).
You will need to:
• To record a channel while watching another, press
TV/VCR on the remote control to turn off the "VCR"
indicator in the VCR display and select a desired
channel on the TV.
Page 3

VCR Setup

AUDIO OUT (L/R)
VIDEO OUT
75-ohm round
antenna lead
300-ohm flat
antenna lead with adapter
IN FROM ANT
Used to input cable or antenna signals.
OUT TO TV
Used to output VCR signals to a TV.
Cable/Antenna
IN TO VCR
VCR
OUT TO TV
