Operation
EMU27883
Adjusting trim angle (Power trim and
tilt)
EWM00752
WARNING
Be sure all people are clear of the out-
G
board motor when adjusting the tilt an-
gle. Body parts can be crushed
between the motor and the clamp
bracket when the motor is trimmed or
tilted.
Use caution when trying a trim position
G
for the first time. Increase speed gradu-
ally and watch for any signs of instabil-
ity or control problems. Improper trim
angle can cause loss of control.
If equipped with a power trim and tilt
G
switch located on the bottom cowling,
use the switch only when the boat is at
a complete stop with the engine off. Do
not adjust the trim angle with this
switch while the boat is moving.

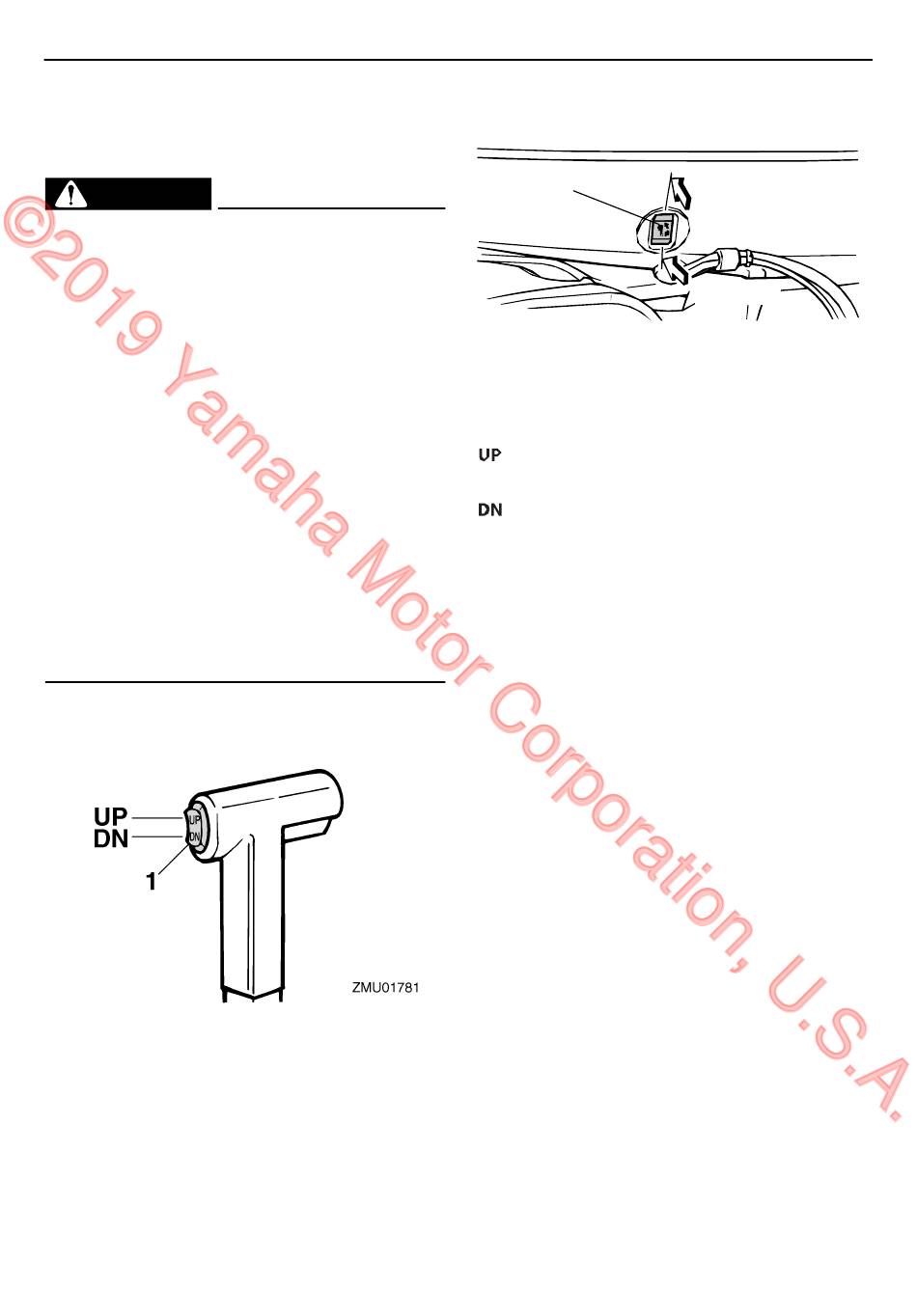

Adjust the outboard motor trim angle using
the power trim and tilt switch.
1. Power trim and tilt switch
40
1
1. Power trim and tilt switch
To raise the bow (trim-out), press the switch
"
" (up).
To lower the bow (trim-in), press the switch
"
" (down).
Make test runs with the trim set to different
angles to find the position that works best for
your boat and operating conditions.
EMU27911
Adjusting boat trim
When the boat is on plane, a bow-up attitude
results in less drag, greater stability and effi-
ciency. This is generally when the keel line of
the boat is up about 3 to 5 degrees. With the
bow up, the boat may have a greater tenden-
cy to steer to one side or the other. Compen-
sate for this as you steer. The trim tab can
also be adjusted to help offset this effect.
When the bow of the boat is down, it is easier
to accelerate from a standing start onto
plane.
UP
DN
ZMU03522
