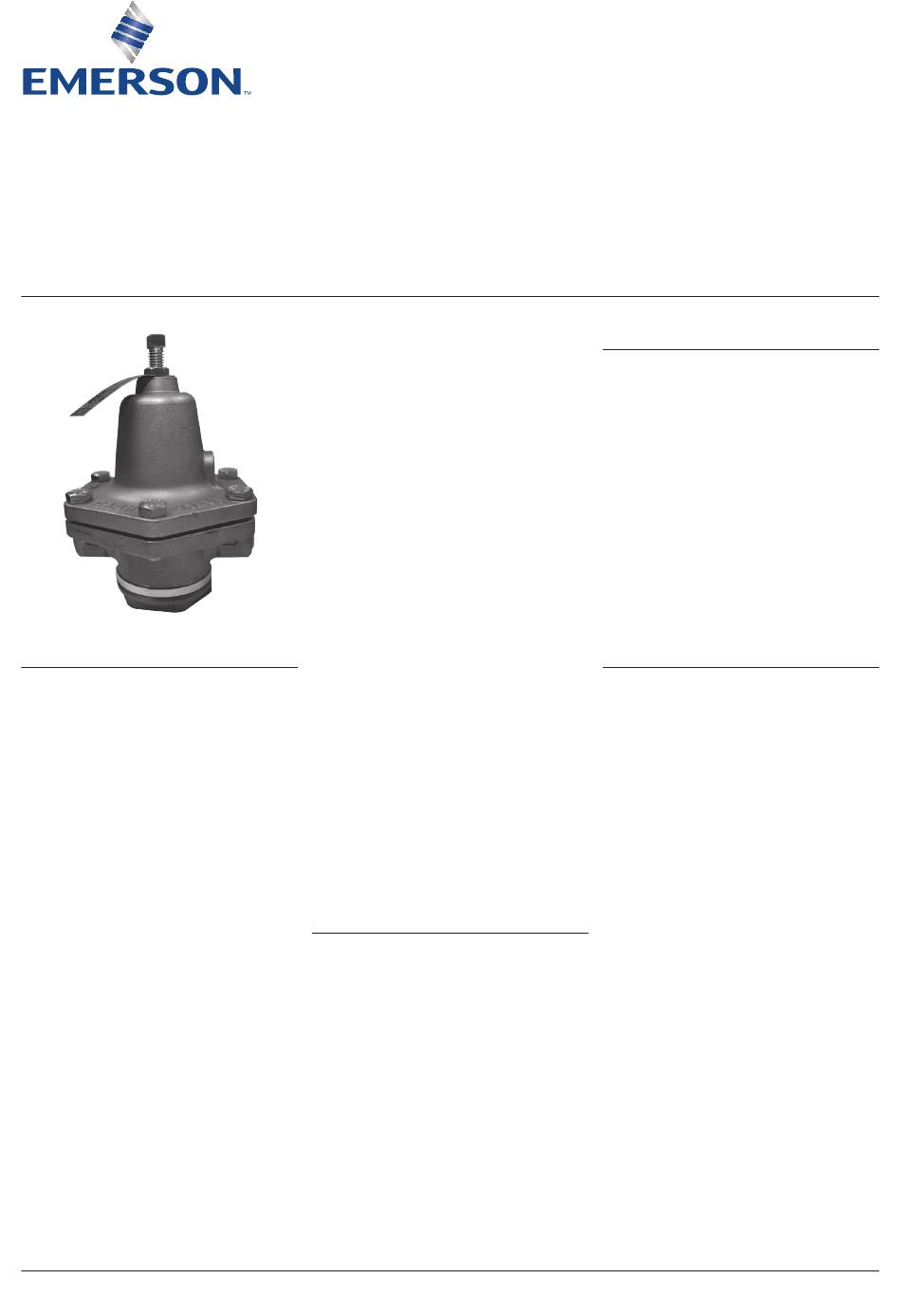

CASH VALVE™ TYPE B-95 PRESSURE REDUCING OR PRESSURE BUILD REGULATOR
INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
Before installation, these instructions must be carefully read and understood.
SPECIFICATION DATA
Service: Air, water, steam,
oil and other liquids.
also cryogenic liquids
and gases.
Sizes: ½, and 1"
/
3
4
(15, 20, 25 mm)
Connections: Threaded Female NPTF
inlet and outlet
Temperature Rating: -320 to 400°F
(-195 to 204°C),
depending on
construction.
Maximum 720 psig (49.6 bar) at
Inlet Pressure: 180°F (82°C)
400 psig (27.5 bar) at
-320 to 400°F
(-195 to 204°C)
Emerson.com
WARNING
Failure to follow these instructions or to properly
install and maintain this equipment could result in
an explosion, fire and/or chemical contamination
causing property damage and personal injury
or death.
Cash Valve regulators must be installed, operated
and maintained in accordance with federal,
state and local codes, rules and regulations
and Emerson Process Management Regulator
Technologies, Inc. instructions.
If the regulator vents gas or a leak develops in
the system, service to the unit may be required.
Failure to correct trouble could result in a
hazardous condition.
Installation, operation and maintenance
procedures performed by unqualified personnel
may result in improper adjustment and unsafe
operation. Either condition may result in
equipment damage or personal injury. Only
a qualified person shall install or service the
Type B-95 regulator.
CALIFORNIA PROPOSITION 65 WARNING
This product can expose you to chemicals
including lead, which is known to the State of
California to cause cancer, birth defects or other
reproductive harm. For more information, go to
www.P65Warnings.ca.gov.
INTRODUCTION
Scope of the Manual
This manual provides instructions for the
installation, adjustment, and maintenance for
the Type B95 pressure regulator.
© 2020 Emerson. All rights reserved.
DESCRIPTION

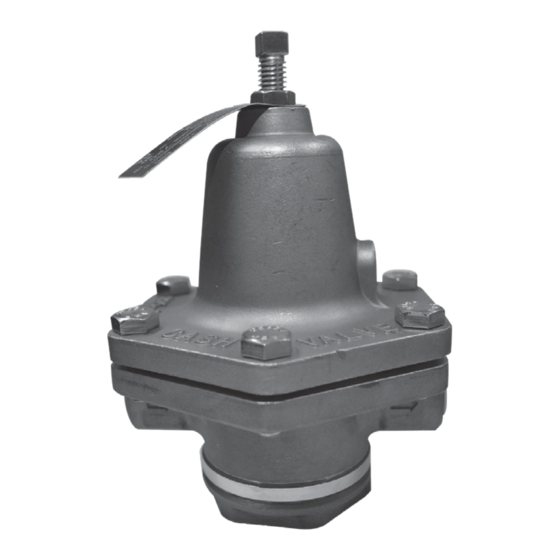

The Type B-95 is a fully automatic pressure
reducing valve designed to reduce a high inlet
pressure to a lower pressure and maintain the
lower pressure to reasonably close limits. Also
available in a cryogenic version, it is ideal for
use in the pressure build-up circuit, for either
liquid oil or gas service.
Steel or stainless steel bodies and chambers,
stainless steel trim. Choice of metal, Teflon or
Buna-N seating. Buna-N diaphragm (limited to
180°F) or Stainless steel laminated diaphragms
(to 450°F). Cryogenic version incorporates
Stainless steel pressure spring, cap screws,
and adjusting screw and lock nut.
INSTALLATION INSTRUCTIONS
The Type B-95 regulator may be installed
in the horizontal positon with the spring
chamber up or down. For other installation
requirements, consult the factory. For ease
of operation and maintenance, it is suggested
that manual shutoff valves be installed
upstream and downstream from the valve.
Before installing the valve, all piping should be
thoroughly flushed out to remove any foreign
material. Install the valve with the inlet pipe
fitted to the inlet connection identified on the
valve body. Use a compatible sealant on the
male pipe threads and do not overtighten the
valve connections.
