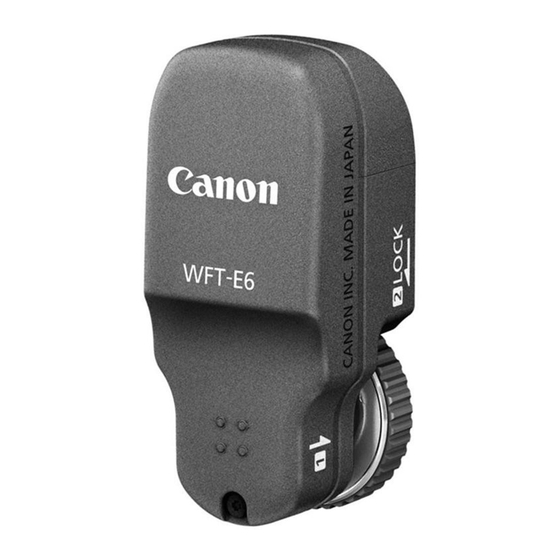

Canon WFT-E6 Manual

Wft-e6 / wft-e8
Hide thumbs Also See for WFT-E6:
Table of Contents

Advertisement

Quick Links

Download this manual
DIE-0478-000A
Wireless File Transmitter
WFT-E6 / WFT-E8
Guide for EOS C300 Mark II Users
E

Advertisement

Table of Contents
loading

Related Manuals for Canon WFT-E6

Summary of Contents for Canon WFT-E6

  • Page 1 DIE-0478-000A Wireless File Transmitter WFT-E6 / WFT-E8 Guide for EOS C300 Mark II Users...

  • Page 2: Introduction

    “transmitter”. Canon shall not be liable for any loss of data or damage to the transmitter resulting from incorrect Wi-Fi network configuration or settings. Additionally, Canon shall not be liable for any loss or damage caused by the use of the wireless file transmitter.

  • Page 3: Table Of Contents

    Contents Introduction About this Guide ..........................2 Attaching to the Camera ........................4 Network Settings Available Network Functions......................6 Connecting to a Wi-Fi Network ......................7 Camera Access Point Connection ..................... 9 Infrastructure Connection......................... 11 Wi-Fi Protected Setup (WPS) ......................12 Searching for Access Points ......................

  • Page 4: Attaching To The Camera

    Attaching to the Camera Turn off the camera before attaching the transmitter. The transmitter is powered by the camera. Make sure the camera’s battery pack is sufficiently charged before using the transmitter. Turn off the camera. Attach the transmitter. Open the camera’s system extension terminal cover ( ), align the transmitter’s plug with the system extension terminal as shown in the illustration and firmly push the transmitter in ( ).

  • Page 5: Network Settings

    Network Settings Complete the network settings using the camera’s menu screens.

  • Page 6: Available Network Functions

    Available Network Functions After you connect the camera to a network via Wi-Fi (A 7), you can use the following network functions. Wi-Fi functions and connection types Wi-Fi connection Camera Function Description Infrastructure Access Point Control the camera remotely from the Web Browser Remote Ü...

  • Page 7: Connecting To A Wi-Fi Network

    Connecting to a Wi-Fi Network Before using the network functions, you need to complete the network settings on a camera with the transmitter attached. Once you attach the transmitter to the camera, you can check the current network settings on the status screens (A 21) and change them if necessary. The camera can be connected to a Wi-Fi enabled device either through an access point (Infrastructure connection) or directly (Camera Access Point connection).
  • Page 8 Connecting to a Wi-Fi Network [Manual] If the access point you want to use has stealth mode activated and it cannot be automatically detected by the camera, you can enter all the necessary settings manually. This requires more advanced knowledge of Wi-Fi and network settings. Depending on the country/region of use, some restrictions on outdoor use or camera access point connections may apply when operating the IEEE802.11a/n/ac wireless standard in the 5 GHz band.

  • Page 9: Camera Access Point Connection

    Camera Access Point Connection When the camera is set to mode, connect a Wi-Fi enabled device using a Camera Access Point connection. Initially, basic default network settings (SSID, password, etc.) are saved in the camera and you can use these settings to immediately connect a device to the camera.
  • Page 10 Camera Access Point Connection To change the [Encryption Key] (password), select [Input] and then press SET. Enter the encryption key (password) the camera will use as a Wi-Fi access point using the keyboard screen. The encryption key (password) is needed to connect the Wi-Fi enabled device to the camera.

  • Page 11: Infrastructure Connection

    Infrastructure Connection When the camera is set to mode, connect the camera to an access point. You can save up to 4 network configuration profiles for different networks and select which one to use depending on where you plan to use the camera. Set the camera to mode and open the [Connection Settings] submenu.

  • Page 12: Wi-Fi Protected Setup (Wps)

    Wi-Fi Protected Setup (WPS) Wi-Fi Protected Setup (WPS) is the easiest way to connect to a Wi-Fi access point. You can do so simply by pushing a button (if the access point (wireless router) you want to connect to has a WPS button) or using a PIN code issued by the camera.
  • Page 13 Wi-Fi Protected Setup (WPS) Wireless Routers without a WPS Button The camera will generate and display an 8-digit PIN code. Enter it into the wireless router’s WPS (PIN code) setup screen. For most wireless routers, you must use a Web browser to access the setup screen.

  • Page 14: Searching For Access Points

    Searching for Access Points The camera will automatically detect access points in the vicinity. After you select the desired access point, you only need to enter the selected network’s encryption key (password) to connect the camera. For details about the encryption key, refer to the instruction manual of the wireless router or consult the network administrator.

  • Page 15: Manual Setup

    Manual Setup If you prefer, you can enter manually the details of the Wi-Fi network you want to connect to. Follow the instructions on the screen to complete the procedure. To enter the [SSID] (network name), select [Input] and then press SET. Enter the SSID (network name) using the keyboard screen (A 10).

  • Page 16: Configuring Network (Tcp/Ip) Settings

    Configuring Network (TCP/IP) Settings Select [Automatic] or [Manual] and then press SET. If you selected [Automatic], IP settings will be assigned automatically. Continue with the procedure to review and save the configuration (A 17). Enter the network’s TCP/IP settings manually. Enter the IP address assigned to the camera and the network’s subnet mask.

  • Page 17: Saving The Configuration

    Saving the Configuration Review the access point’s configuration and then press SET. Push the joystick up/down or turn the SELECT dial to review additional settings before pressing SET. mode (Camera Access Point connection) Save the current configuration. Select [OK] and then press SET twice. When the confirmation message appears, press SET.

  • Page 18: Browser Remote: Camera Settings

    Browser Remote: Camera Settings Initially, basic default network settings for a browser connection are already saved in the camera. You can check these settings on the status screens (A 21). With the following procedures you can change the default settings, if you prefer. [Camera ID] A unique camera identification code that will appear on the Browser Remote screen.

  • Page 19: Browser Remote: User Settings

    Browser Remote: User Settings A user name and password are required before the Browser Remote application can access and operate the camera. Initially, basic default user settings (user names and passwords) are already saved in the camera and single-user operation (full control) is selected by default. You can check these settings on the status screens (A 21).
  • Page 20 Browser Remote: User Settings To change the [Password] for the [Full Control User] or [Camera Control User], select [Input] and then press SET. Enter the desired password using the keyboard screen (A 10). If you selected [Two Users (Camera/Meta)] in step 2, repeat steps 3 and 4 to enter the user name and password for the [Meta Control User].

  • Page 21: Checking Settings

    Checking Settings You can check the current Wi-Fi network settings using the camera’s [Network Settings] status screens. Press an assignable button set to [Status]. For details about using assignable buttons, refer to Assignable Buttons in the camera’s Instruction Manual. Push the joystick up/down or turn the SELECT dial to display the four [Network Settings] status screens.

  • Page 23: Using Network Functions

    Using Network Functions After completing the preparations in the previous chapter, you can connect the camera via Wi-Fi to any computer or other supported Wi-Fi enabled device that has a Web browser and use the network functions.

  • Page 24: Starting Browser Remote

    . Refer also to the instruction manual of the Wi-Fi enabled device used. For details about compatible devices, operating systems, Web browsers, etc. please visit your local Canon Web site. A Web browser is required that supports JavaScript and is enabled to accept cookies.
  • Page 25 Starting Browser Remote Start the Web browser on the device. Enter the camera’s URL. You can specify the port number Enter the URL from step 2 into the Web browser’s address bar. If you chose to use a port other than “80”, you can specify it by adding “:nnn”...
  • Page 26 Starting Browser Remote Select the language for Browser Remote. Click/touch [H] (the language selection button) and select the desired language from the list. Most buttons and controls emulate physical controls on the camera and are labeled in English only, regardless of the language selected.

  • Page 27: Starting The Media Server Mode

    Starting the Media Server Mode mode, you can select one of the network configuration profiles you have previously configured (up to 4) to connect the camera to the desired Wi-Fi network. If you just saved a new network configuration (A 17), the camera will automatically connect to that Wi-Fi network and steps 1 and 2 in the following procedure are not necessary.

  • Page 29: Troubleshooting

    Troubleshooting...

  • Page 30: Troubleshooting

    Check this section if you encounter problems connecting to the Wi-Fi network or accessing the camera remotely from a Wi-Fi enabled device. If the problem persists, consult a Canon Service Center (listed on the back cover of the camera’s Instruction Manual).

  • Page 31: Precautions Regarding Wi-Fi Networks

    Precautions Regarding Wi-Fi Networks When using a Wi-Fi network, try the following corrective actions if the transmission rate drops, the connection is lost, or other problems occur. Location of the access point (wireless router) When using a Wi-Fi network indoors, place the access point in the same room where you are using the camera.

  • Page 32: Error Messages

    Refer to this list when an error message is displayed on the camera’s screen. Messages are listed alphabetically. If the problem persists, consult a Canon Service Center (listed on the back of the camera’s Instruction Manual). A User is already accessing the server. Try again later.
  • Page 33 Error Messages Unable to complete WPS. The access point’s encryption method is set to [WEP]. Wi-Fi Protected Setup (WPS) cannot connect to access points set to this encryption method. Change the access point’s encryption method or use another connection method (A 7). Unable to complete WPS.
  • Page 34 Error Messages Wi-Fi error. Incorrect encryption method. Make sure the camera and access point are using the same authentication/encryption method. Wireless communication cannot be used while the wireless microphone is attached Wi-Fi connections cannot be used while an optional WM-V1 Wireless Microphone is attached to the camera.

  • Page 35: Index

    Index Access point .......... 2, 11 Password ..........19, 25 Area of use ..Areas of Use and Restrictions PIN code connection mode....... 13 Port number ..........18 Attaching to a camera ......... 4 Authentication..........15 Router ........... 7, 31 Browser Remote......
  • Page 36 Windows and Microsoft are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. Wi-Fi is a registered trademark of the Wi-Fi Alliance. Wi-Fi Certified, WPA, WPA2, and the Wi-Fi Certified logo are trademarks of the Wi-Fi Alliance.
  • Page 37 The information in this guide is current as of December 2016. For information on using the transmitter with accessories introduced after this date, contact your nearest Canon Service Center. DIE-0478-000A © CANON INC. 2016...
