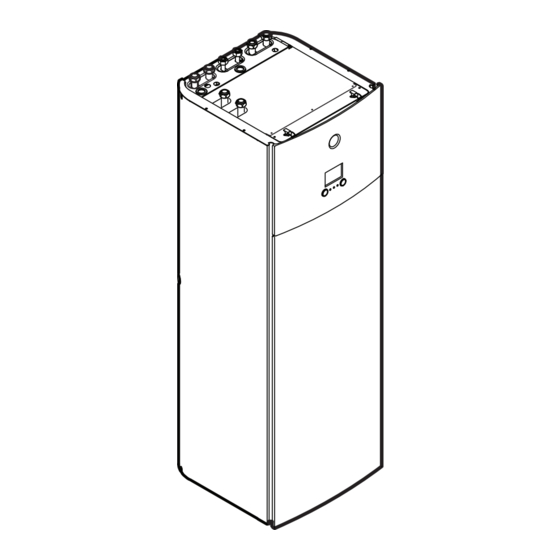

Daikin ETVZ16S23EA9W Installation Manual
Hide thumbs
Also See for ETVZ16S23EA9W:
- Installer's reference manual (272 pages) ,
- Operation manual (24 pages) ,
- User reference manual (68 pages)
Related Manuals for Daikin ETVZ16S23EA9W
Summary of Contents for Daikin ETVZ16S23EA9W
- Page 1 Installation manual Daikin Altherma 3 H HT F https://daikintechnicaldatahub.eu ETVZ16S18EA6V ETVZ16S23EA6V Installation manual ETVZ16S18EA9W English Daikin Altherma 3 H HT F ETVZ16S23EA9W...
- Page 2 3P644742-4A...
-
Page 3: Table Of Contents
▪ Format: Paper (in the box of the indoor unit) + Digital files on Weather-dependent curve............26 http://www.daikineurope.com/support-and-manuals/product- 7.3.1 What is a weather-dependent curve? ......26 information/ 7.3.2 2-points curve ............. 26 ETVZ16S18+23EA6V+9W Installation manual Daikin Altherma 3 H HT F 4P644730-1 – 2021.02... -
Page 4: Specific Installer Safety Instructions
▪ A subset of the latest technical data is available on the regional Ethylene glycol is toxic. Daikin website (publicly accessible). ▪ The full set of latest technical data is available on the Daikin WARNING Business Portal (authentication required). Due to the presence of glycol, corrosion of the system is Online tools possible. -
Page 5: About The Box
Handles at the back of the unit Handles at the bottom of the unit. Carefully tilt the unit to the back so that the handles become visible. ETVZ16S18+23EA6V+9W Installation manual Daikin Altherma 3 H HT F 4P644730-1 – 2021.02... -
Page 6: Opening And Closing The Unit
During the installation, you will need access to the inside of the indoor unit. To have easier front access, put the switch box lower on the unit as follows: Installation manual ETVZ16S18+23EA6V+9W Daikin Altherma 3 H HT F 4P644730-1 – 2021.02... -
Page 7: To Close The Indoor Unit
3 Slide the indoor unit into position. 4 Adjust the height of the leveling feet to compensate for floor irregularities. The maximum allowed deviation is 1°. ETVZ16S18+23EA6V+9W Installation manual Daikin Altherma 3 H HT F 4P644730-1 – 2021.02... -
Page 8: Piping Installation
7H will be generated (no heating or operation). See the installer reference guide for more information. See the recommended procedure as described in "8.2 Checklist commissioning" [ 4 30]. during Installation manual ETVZ16S18+23EA6V+9W Daikin Altherma 3 H HT F 4P644730-1 – 2021.02... -
Page 9: Connecting Water Piping
It is recommended to install shut-off valves to domestic cold water in and domestic hot water out connections. These shut-off valves are field supplied. 4 Reattach the top panel. ETVZ16S18+23EA6V+9W Installation manual Daikin Altherma 3 H HT F 4P644730-1 – 2021.02... -
Page 10: To Fill The Water Circuit
▪ galvanized pipes are NOT used in glycol systems since reference guide (topic "To check the water volume and flow rate"). the presence may lead to the precipitation of certain components in the glycol's corrosion inhibitor. Installation manual ETVZ16S18+23EA6V+9W Daikin Altherma 3 H HT F 4P644730-1 – 2021.02... -
Page 11: To Fill The Domestic Hot Water Tank
The distance between the high voltage and low voltage cables should be at least 50 mm. About electrical compliance Only for the backup heater of the indoor unit supply" [ 4 13]. "6.3.2 To connect the backup heater power ETVZ16S18+23EA6V+9W Installation manual Daikin Altherma 3 H HT F 4P644730-1 – 2021.02... -
Page 12: To Connect The Main Power Supply
2 Connect the main power supply. [2.9] Control In case of normal kWh rate power supply [1.6] Room sensor offset Interconnection Wires: (3+GND)×1.5 mm² cable (= main power supply) — Installation manual ETVZ16S18+23EA6V+9W Daikin Altherma 3 H HT F 4P644730-1 – 2021.02... -
Page 13: To Connect The Backup Heater Power Supply
2 kW 1N~ 230 V 9 A — (b)(c) 4 kW 1N~ 230 V 17 A 0.22 Ω (b)(c) 6 kW 1N~ 230 V 26 A 0.22 Ω 2 kW 3~ 230 V 5 A — 4 kW 3~ 230 V 10 A — 6 kW 3~ 230 V 15 A — ETVZ16S18+23EA6V+9W Installation manual Daikin Altherma 3 H HT F 4P644730-1 – 2021.02... -
Page 14: To Connect The Shut-Off Valve
For more information, see the installer reference guide. Wires: 2×0.75 mm² Maximum running current: 100 mA 230 V AC supplied by PCB [2.D] Shut off valve unit" [ 4 6]): 1 Open the following (see "4.2.1 To open the indoor Installation manual ETVZ16S18+23EA6V+9W Daikin Altherma 3 H HT F 4P644730-1 – 2021.02... -
Page 15: To Connect The Electricity Meters
X5M/6 and X5M/4; the negative polarity to X5M/5 and X5M/3. unit" [ 4 6]): 1 Open the following (see "4.2.1 To open the indoor 1 Top panel 2 User interface panel 3 Upper switch box cover ETVZ16S18+23EA6V+9W Installation manual Daikin Altherma 3 H HT F 4P644730-1 – 2021.02... -
Page 16: To Connect The Alarm Output
2 Connect the space cooling/heating ON/OFF output cable to the appropriate terminals as shown in the illustration below. Wires connected to the space cooling/heating ON/OFF output Wire between X2M and A4P A4P Installation of EKRP1HBAA is required. Installation manual ETVZ16S18+23EA6V+9W Daikin Altherma 3 H HT F 4P644730-1 – 2021.02... -
Page 17: To Connect The Changeover To External Heat Source
2 Connect the power consumption digital inputs cable to the appropriate terminals as shown in the illustration below. 2 Connect the changeover to external heat source cable to the appropriate terminals as shown in the illustration below. ETVZ16S18+23EA6V+9W Installation manual Daikin Altherma 3 H HT F 4P644730-1 – 2021.02... -
Page 18: To Connect The Safety Thermostat (Normally Closed Contact)
4 Connect the safety thermostat (normally closed) cable to the appropriate terminals as shown in the illustration below. Note: The jumper wire (factory-mounted) must be removed from the respective terminals. Installation manual ETVZ16S18+23EA6V+9W Daikin Altherma 3 H HT F 4P644730-1 – 2021.02... -
Page 19: To Connect A Smart Grid
The 2 incoming Smart Grid contacts can activate the following Smart Grid modes: Smart Grid contact Smart Grid operation mode Free running Forced off Recommended on Forced on ETVZ16S18+23EA6V+9W Installation manual Daikin Altherma 3 H HT F 4P644730-1 – 2021.02... - Page 20 Wires between the relays and X5M (AWG22 ORG) Wires between the relays and X10M (AWG18 RED) High voltage Smart Grid contact 1 High voltage Smart Grid contact 2 Installation manual ETVZ16S18+23EA6V+9W Daikin Altherma 3 H HT F 4P644730-1 – 2021.02...
-
Page 21: To Connect The Wlan Cartridge (Delivered As Accessory)
▪ Browse through the list of digits and change the selected digit. ▪ Move the cursor from left to right. ▪ Confirm the pin code and proceed. ETVZ16S18+23EA6V+9W Installation manual Daikin Altherma 3 H HT F 4P644730-1 – 2021.02... -
Page 22: Configuration Wizard
This setting is read only. Code Description [9.2.1] [E‑05] ▪ Integrated [E‑06] The backup heater will also be used for domestic hot water heating. [E‑07] Installation manual ETVZ16S18+23EA6V+9W Daikin Altherma 3 H HT F 4P644730-1 – 2021.02... - Page 23 This is important in case glycol is used to protect the water circuit against freezing. If NOT set correctly, the liquid in the piping can freeze. ETVZ16S18+23EA6V+9W Installation manual Daikin Altherma 3 H HT F 4P644730-1 – 2021.02...
-
Page 24: Configuration Wizard: Backup Heater
Only for systems with integrated domestic hot water tank: If the storage temperature setpoint is higher than 50°C, ▪ Enable leaving water temperature modulation and Daikin recommends NOT to disable the backup heater increase the maximum modulation [2.C]. second step because it will have a big impact on the... -
Page 25: Configuration Wizard: Additional Zone
ONLY be heated For more info about this functionality, see "7.2.5 Configuration according to a schedule. zone" [ 4 24]. wizard: Main See the operation manual for more details. ETVZ16S18+23EA6V+9W Installation manual Daikin Altherma 3 H HT F 4P644730-1 – 2021.02... -
Page 26: Weather-Dependent Curve
Go to the next temperature. the curve can be adjusted by an installer or user. Confirm changes and proceed. Installation manual ETVZ16S18+23EA6V+9W Daikin Altherma 3 H HT F 4P644730-1 – 2021.02... -
Page 27: Slope-Offset Curve
X1, X2 Examples of outdoor ambient temperature Additional zone – Heating [3.5] Additional zone > Heating WD curve Additional zone – Cooling [3.6] Additional zone > Cooling WD curve ETVZ16S18+23EA6V+9W Installation manual Daikin Altherma 3 H HT F 4P644730-1 – 2021.02... -
Page 28: Settings Menu
The installer can fill in his contact number here. applicable when [C‑07]=0): Code Description ▪ [C‑07]=2 (Room thermostat) [8.3] Number that users can call in case of problems. Installation manual ETVZ16S18+23EA6V+9W Daikin Altherma 3 H HT F 4P644730-1 – 2021.02... -
Page 29: Menu Structure: Overview Installer Settings
Solar kit settings are shown but are NOT applicable for this unit. Settings shall NOT be used or changed. INFORMATION Depending on the selected installer settings and unit type, settings will be visible/invisible. ETVZ16S18+23EA6V+9W Installation manual Daikin Altherma 3 H HT F 4P644730-1 – 2021.02... -
Page 30: Commissioning
The power supply voltage matches the voltage on the commissioning checklist is also available on the Daikin identification label of the unit. Business Portal (authentication required). There are NO loose connections or damaged electrical The general commissioning checklist is complementary to components in the switch box. -
Page 31: To Perform An Air Purge
NOT operate or may NOT deliver 4 Select the zone where you want to perform the UFH the required capacity. screed dryout program: go to the Zone selection screen. ETVZ16S18+23EA6V+9W Installation manual Daikin Altherma 3 H HT F 4P644730-1 – 2021.02... -
Page 32: Hand-Over To The User
▪ Show the user what to do for the maintenance of the unit. ▪ Explain the user about energy saving tips as described in the operation manual. Installation manual ETVZ16S18+23EA6V+9W Daikin Altherma 3 H HT F 4P644730-1 – 2021.02... -
Page 33: 10 Technical Data
10 Technical data Technical data A subset of the latest technical data is available on the regional Daikin website (publicly accessible). The full set of latest technical data is available on the Daikin Business Portal (authentication required). 10.1 Piping diagram: Indoor unit... - Page 34 10 Technical data Loose nut 1" Installation manual ETVZ16S18+23EA6V+9W Daikin Altherma 3 H HT F 4P644730-1 – 2021.02...
-
Page 35: Wiring Diagram: Indoor Unit
Connector Heat pump convector Heat pump convector Position in switch box Terminal strip English Translation * Optional Position in switch box Position in switch box # Field supply ETVZ16S18+23EA6V+9W Installation manual Daikin Altherma 3 H HT F 4P644730-1 – 2021.02... - Page 36 16 V DC detection (voltage by PCB) supplied by PCB) Shut-off valve Shut-off valve Smartgrid contacts Smart Grid contacts Smartgrid PV power pulse meter Smart Grid photovoltaic power pulse meter Installation manual ETVZ16S18+23EA6V+9W Daikin Altherma 3 H HT F 4P644730-1 – 2021.02...
- Page 37 4 core communication A3P: X11M: 3-4-5-6 signal main & add: X2M: 3-4 Only for Human Comfort Interface 2 core 2×0.75 X5M: 11-12 A14P: P1-P2 user interface communication 4D133216A ETVZ16S18+23EA6V+9W Installation manual Daikin Altherma 3 H HT F 4P644730-1 – 2021.02...
