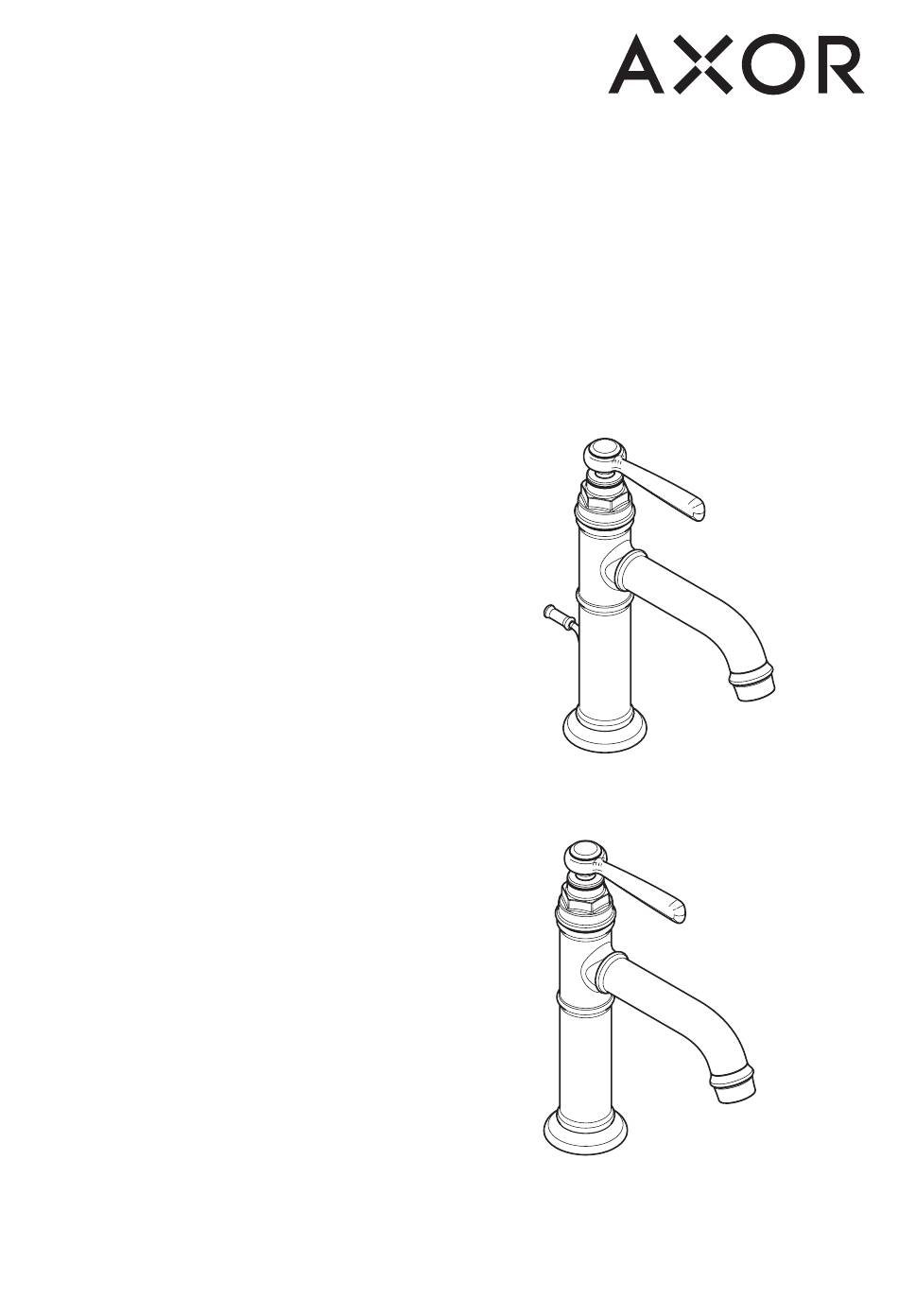

- Page 1 AXOR Montreux 16515XX1 EN Installation / User Instructions / Warranty AXOR Montreux FR Instructions de montage / Mode d'emploi / Garantie 16516XX1 ES Instrucciones de montaje / Manejo / Garantía I N S T A L L A T I O N...
-
Page 2: Technical Information
E N G L I S H F R A N A I S T EC HN IC A L I N F ORMAT IO N D ONNÉ ES TEC HN IQUE S Water pressure Pression d’eau Recommended 15 - 75 PSI (0.1 - 0.5 MPa) recommandée 15 - 75 PSI (0.1 - 0.5 MPa) Maximum... -
Page 3: Datos Tecnicos
E S P A Ñ O L DATOS TEC N ICO S TOOLS REQUIRED / OUTILS RE QUIS / HERRA MIENTA S ÚTIL ES Presión en servicio recomendada 15 - 75 PSI (0.1 - 0.5 MPa) max. 145 PSI (1 MPa) Temperatura del agua caliente recomendada 120°-140°... - Page 4 AXOR Montreux AXOR Montreux 16515XX1 16516XX1 2⅛" 2⅛" 1¼" 1¼" 5⅝" 5⅝" ⅜ ⅜ 88509XX0 2¼" 1¼" 1¼" O.D.
- Page 5 I N S T A L L A T I O N / I N S T A L L A T I O N / I N S T A L A C I Ó N Place the faucet and sealing ring on the mounting surface. Install the fiber washer, metal washer and mounting nut.
- Page 6 Install the pull rod. Installez la tirette. Instale el tirador. Connect the hot and cold supply hoses to the stops. Use two wrenches as shown. Do not allow the hoses to twist. 5.9 ft-lb 8 Nm Connectez les tuyaux d’arrivée d’eau chaude et d’eau froide aux butées d’arrêt.
- Page 7 Remove the aerator. Retirez l’aérateur. Retire el aireador. Flush the faucet for at least two minutes. Rincez le robinet pendant au moins 2 minutes. Lave el grifo durante al menos 2 minutos. Install the aerator. Installez l’aérateur. Instale el aireador.
- Page 8 I N S T A L L A T I O N / I N S T A L L A T I O N / I N S T A L A C I Ó N shorter longer plus court plus long más corto más largo...
- Page 9 SET HOT WATER LIMITER / POSITIONNER LE LIMITEUR DE TEMPÉRATURE / AJUSTAR TOPE 140 °F 50 °F 44 PSI 3 mm 100ºF 38ºC 95ºF 140ºF 36ºC 122ºF 60ºC 50ºC 131ºF 108ºF 55ºC 43ºC 3 mm 1.5 ft-lb 2 Nm...
- Page 10 R E P L A C E M E N T P A R T S / P I È C E S D É T A C H É E S / R E P U E S T O S AXOR Montreux...
- Page 11 U S E R I N S T R U C T I O N S / I N S T R U C T I O N S D E S E R V I C E / M A N E J O fermé...
- Page 12 C L E A N I N G / N E T T O Y A G E / L I M P I E Z A...
- Page 13 C L E A N I N G R E C O M M E N D A T I O N F O R H A N S G R O H E P R O D U C T S Modern bathroom faucets, kitchen faucets and shower products are made from different materials to comply with the needs of the market with regard to design and functionality.
- Page 14 I MP O RTA N T ⁄ Les residus de produits pour le corps comme les savons liquides, shampooings, gels de douche, teintures pour cheveux, parfums, apres-rasage et vernis a ongles peuvent causer des deteriorations. Rincez le produit avec de l’eau propre après chaque utilisation.
-
Page 15: What We Will Do
Hansgrohe, Inc. (ii) a limited warranty on our hansgrohe and AXOR branded products. any hansgrohe or AXOR product sold for display purposes or (iii) hans- ® ® grohe or AXOR products purchased from unauthorized sellers. - Page 16 Limited Warranty, please write us have other rights which vary from state to state. or call us toll-free at 800 -334- 0455. AXOR ⁄ Hansgrohe, Inc. 1490 Bluegrass Lakes Parkway Alpharetta, GA 30004 Tel. 800-334-0455 Fax 770-889-1783 axor-design.com...
