Summary of Contents for Multitech MultiConnect Conduit AP MTCAP-LNA3-915

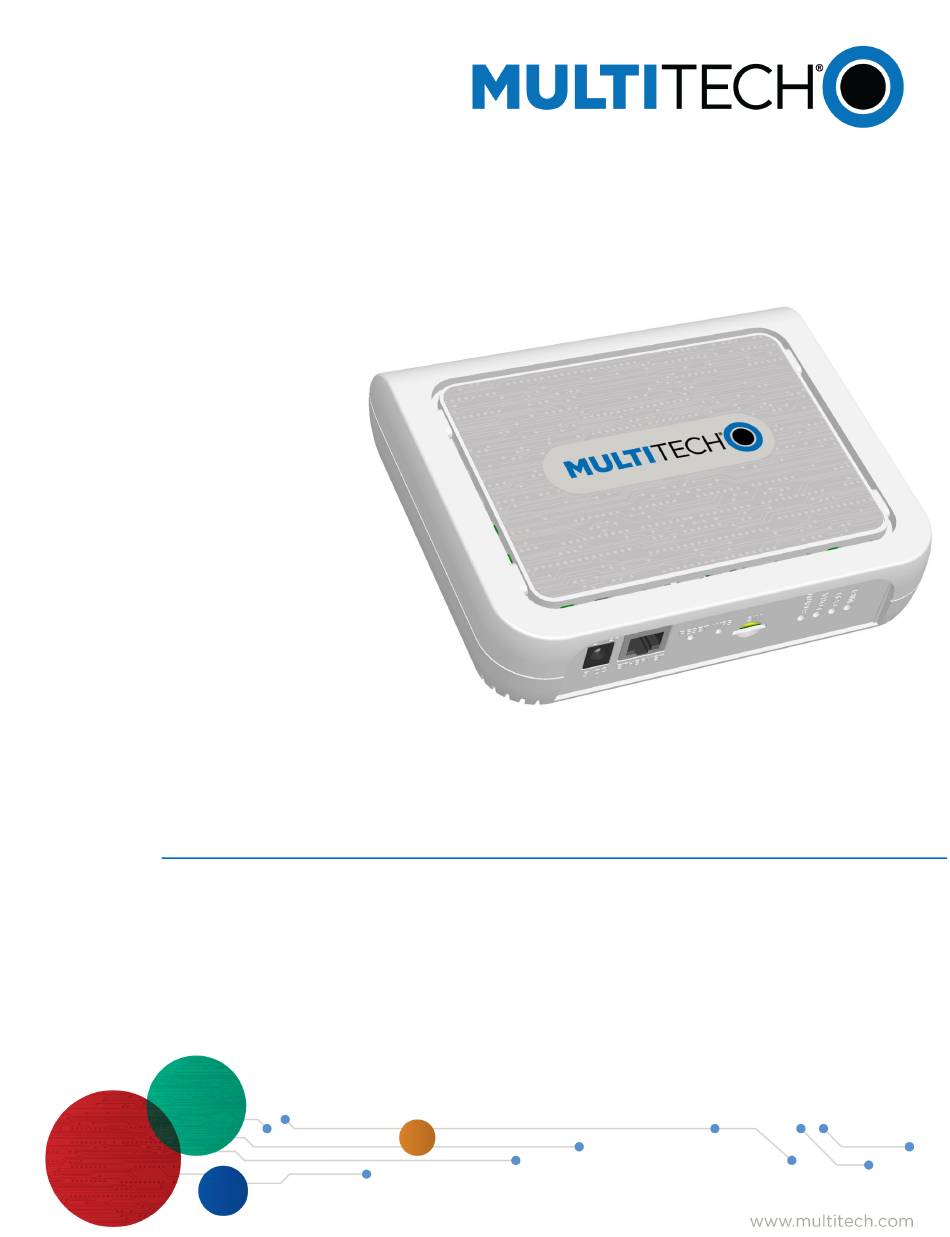

- Page 1 ® MultiConnect Conduit MTCAP-LNA3-915 and MTCAP-915 User Guide...
- Page 2 Legal Notices The MultiTech products are not designed, manufactured or intended for use, and should not be used, or sold or re-sold for use, in connection with applications requiring fail-safe performance or in applications where the failure of the products would reasonably be expected to result in personal injury or death, significant property damage, or serious physical or environmental damage.
-
Page 3: Table Of Contents
CONTENTS Contents Chapter 1 – Chapter 1 Product Overview ......................... 5 Overview ..................................5 Product Build Options ..............................5 Package Contents................................5 Documentation Overview ............................. 6 Related Documentation .............................. 6 Chapter 2 – Chapter 2 Specifications and Hardware Information ................7 Dimensions.................................. - Page 4 CONTENTS Chapter 6 – Getting Started with mLinux Models....................18 Accessing the Terminal Interface..........................18 Setting Time Zone, Time, and Date..........................18 Setting the Custom IP Address, Network Information, and Ethernet Internet Access ..........19 Configuring the Cellular Connection ........................... 19 Verify ppp0 is up ...............................
-
Page 5: Chapter 1 - Chapter 1 Product Overview
1 – 5 Volt, 2.5 Amp power supply 1 – RJ45 Ethernet cable 1 – Quick Start Important: Contact MultiTech Systems if a replacement power supply is needed. Using a different power supply may damage the device and voids the warranty. ® MultiConnect... -
Page 6: Documentation Overview
CHAPTER 1 PRODUCT OVERVIEW Documentation Overview The following documents are available at http://www.multitech.com/brands/multiconnect-conduit-ap. Select your model to find the documents specific for that device. Document Description Part Number MultiConnect Conduit AP MTCAP- This document. Hardware, regulatory, and S000659 LNA-915 and MTCAP-915 User getting started information. -
Page 7: Chapter 2 - Chapter 2 Specifications And Hardware Information
CHAPTER 2 SPECIFICATIONS AND HARDWARE INFORMATION Chapter 2 – Chapter 2 Specifications and Hardware Information Dimensions ® MultiConnect Conduit AP MTCAP-LNA3-915 and MTCAP-915 User Guide... -
Page 8: Specifications
CHAPTER 2 SPECIFICATIONS AND HARDWARE INFORMATION Specifications Category Description General Standards LoRaWAN 1.0.2 specifications LTE 3GPP Release 9 HSPA+ with GPRS fallback 256MB Flash 256MB Radio Frequency ISM Band 915 MHz ISM band for US and Canada 4G/LTE 1900 (B2) / AWS 1700 (B4) / 850 (B5) / 700 (B12/13) 1900 (B2) / 850 (B5) Physical Description Weight... -
Page 9: Connectors And Leds
CHAPTER 2 SPECIFICATIONS AND HARDWARE INFORMATION Connectors and LEDs Note: Some features are available only on select models. The above image shows the model with all features. For models that don't have a cellular radio, the chassis will not have a SIM slot. Item Description Connectors... -
Page 10: Resetting The Device
CHAPTER 2 SPECIFICATIONS AND HARDWARE INFORMATION Resetting the Device You need: A pin, paperclip, or similar thin object that can fit into the reset hole To reset the device: Find the hole labeled RESET. The reset button is recessed into the case. Use the pin to press and release the RESET button as follows: Reset options: To reboot, press RESET for less than 3 seconds. -
Page 11: Mtcap-915-001
CHAPTER 2 SPECIFICATIONS AND HARDWARE INFORMATION MTCAP-915-001 Note: Multi-Tech Systems, Inc. recommends that you incorporate a 10% buffer into the power source when determining product load. Maximum Power: MTCAP LoRa connection to MTXDOT running TXP =20 and at+txdr=2. The MTXDOT was initialized to send packets by joining MTCAP and rapidly sending packet to the MTCAP. Tx Pulse: The average peak current. -
Page 12: Chapter 3 - Chapter 3 Safety Information
This battery has an estimated life expectancy of ten years. When this battery starts to weaken, the date and time may be incorrect. Battery is not user replaceable. If the battery fails, the device must be sent back to MultiTech Systems for battery replacement. -
Page 13: Handling Precautions
CHAPTER 3 SAFETY INFORMATION Attention: Maintenir une distance d'au moins 20 cm (8 po) entre l'antenne du récepteur et le corps de l'utilisateur ou à proximité de personnes. Le modem n'est pas conçu pour, ou destinés à être utilisés dans les applications portables, moins de 20 cm du corps de l'utilisateur. -
Page 14: Interference With Pacemakers And Other Medical Devices
CHAPTER 3 SAFETY INFORMATION Éteignez votre appareil sans fil dans les hôpitaux ou dans toutes les zones où des appareils médicaux sont susceptibles d'être utilisés. Interference with Pacemakers and Other Medical Devices Potential interference Radio frequency energy (RF) from cellular devices can interact with some electronic devices. This is electromagnetic interference (EMI). -
Page 15: Ul Notice
Do not place the device alongside computer discs, credit or travel cards, or other magnetic media. The information contained on discs or cards may be affected by the device. Using accessories, such as antennas, that MultiTech has not authorized or that are not compliant with MultiTech's accessory specifications may invalidate the warranty. -
Page 16: Chapter 4 - Chapter 4 Labels
(2) this device must accept any interference received, including interference that may cause undesired operation. The label shown is not the actual size. 1 - MultiTech Model Identification. 2 - MultiTech Ordering Part Number. 3 - IMEI Number 4 - Device Node Number 5 - UUID Example 915 Models Device Label ®... -
Page 17: Chapter 5 - Setting Up Hardware
SETTING UP HARDWARE Chapter 5 – Setting Up Hardware Installing a SIM Card If your device has a SIM slot, you'll need a micro (3FF) SIM card from your network provider. Note: -LNA3 models work on both Verizon and AT&T networks. The device detects the carrier based on your SIM card. -
Page 18: Chapter 6 - Getting Started With Mlinux Models
To use sudo, either execute : sudo [command] or start the root shell: sudo -s Then enter the mtadm password. The prompt changes to mtcap:/home/mtadm# For tips on using sudo, go to http://www.multitech.net/developer/software/mlinux/using-mlinux/log-in- as-an-admin-post-production/. The following commands require sudo: ln -sf /usr/share ... hwclock ifdown... -
Page 19: Setting The Custom Ip Address, Network Information, And Ethernet Internet Access
GETTING STARTED WITH MLINUX MODELS ln -fs /usr/share/zoneinfo/Europe/Zurich /etc/localtime Update the date and time to the current time: date "2016-12-11 14:58:01" Update the hardware clock: hwclock -u -w Setting the Custom IP Address, Network Information, and Ethernet Internet Access Network configuration is defined in /etc/network/interfaces. To change the static IP, change the address and netmask fields in /etc/network/interfaces, (use vi or nano). -
Page 20: Verify Ppp0 Is Up
Only edit the non-vzw script if the AT&T APN changes or if the IP type changes or the SIM is not AT&T. The APN can be changed with the script mlinux-set-apn if needed (not required if Multitech provided the SIM): # mlinux-set-apn "phone"... -
Page 21: To Stop A Ppp Connection
GETTING STARTED WITH MLINUX MODELS # ifconfig ppp0 ppp0 Link encap:Point-to-Point Protocol inet addr:33.140.12.18 P-t-P:33.140.12.18 Mask:255.255.255.255 UP POINTOPOINT RUNNING NOARP MULTICAST MTU:1500 Metric:1 RX packets:7 errors:0 dropped:0 overruns:0 frame:0 TX packets:8 errors:0 dropped:0 overruns:0 carrier:0 collisions:0 txqueuelen:3 RX bytes:106 (106.0 B) TX bytes:145 (145.0 B) Additionally, you can view the pppd... -
Page 22: Additional Lora And Mlinux Information
For additional information, including how to configure LoRa devices to communicate with your gateway, visit http://www.multitech.net. For an introduction to Lora, go to : http://www.multitech.net/developer/software/lora/introduction-to-lora/ For help using mLinux, go to: http://www.multitech.net/developer/software/mlinux/. For additional packet forwarder information, go to: http://www.multitech.net/developer/software/lora/conduit-mlinux-convert-to-basic-packet-forwarder/ ®... -
Page 23: Chapter 7 - Getting Started With Aep Models
GETTING STARTED WITH AEP MODELS Chapter 7 – Getting Started with AEP Models Logging in to AEP After connecting and powering up your device, log in to AEP: Open an Internet browser. In the browser’s address field, enter the device's default address for the device: http://192.168.2.1 The login page appears. -
Page 24: Setting Up Ppp Authentication
GETTING STARTED WITH AEP MODELS To enable dial-on-demand, check Dial-on-Demand. This tells the device to only make a PPP connection when there is outgoing IP traffic, and it brings the PPP connection down after a given idle timeout. The default Idle timeout is 180 seconds. If desired, you can enter a different value. Type the APN (Access Point Name). -
Page 25: Finishing Configuration
Getting Started with LoRa Using DeviceHQ for Device Management DeviceHQ is a cloud-based device management tool for remote monitoring, upgrades, and configuration AEP devices. For information on creating and using a DeviceHQ account, go to the http://www.multitech.net/developer/software/devicehq/. ® MultiConnect Conduit... -
Page 26: Chapter 8 - Mounting The Device
MOUNTING THE DEVICE Chapter 8 – Mounting the Device Mounting the Device The device ships with a mounting bracket. You will need Mounting bracket MTCAP Four #6 screws, with anchors (not provided) Screwdriver Drill Mounting Bracket Determining Location Follow these guidelines for best performance: The LoRa antenna is omnidirectional, but for best results, mount the device so the LoRa antenna is in a vertical position as shown in the following image. -
Page 27: Mounting The Device
MOUNTING THE DEVICE Note the LoRa antenna location in the following image. The LoRa signal will be strongest radiating from that side of the device. The LoRa antenna is 31.2 mm long. We recommend conducting a site survey to test the signal strength in different locations before you mount the device. - Page 28 MOUNTING THE DEVICE ® MultiConnect Conduit AP MTCAP-LNA3-915 and MTCAP-915 User Guide...
-
Page 29: Chapter 9 - Regulatory And Environmental Information
REGULATORY AND ENVIRONMENTAL INFORMATION Chapter 9 – Regulatory and Environmental Infor- mation 47 CFR Part 15 Regulation Class B Devices This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 30: Industry Canada
REGULATORY AND ENVIRONMENTAL INFORMATION Industry Canada Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: l'appareil ne doit pas produire de brouillage, et l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. -
Page 31: Waste Electrical And Electronic Equipment Statement
Substances) complements the WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all MultiTech products imported into the EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements. -
Page 32: Restriction Of The Use Of Hazardous Substances (Rohs)
2015/863 of the European Parliament (Restriction of the use of certain Hazardous Substances in electrical and electronic equipment - RoHS). These MultiTech products do not contain the following banned chemicals Lead, [Pb] < 1000 PPM Mercury, [Hg] <... -
Page 33: Information On Hs/Ts Substances According To Chinese Standards
REGULATORY AND ENVIRONMENTAL INFORMATION Information on HS/TS Substances According to Chinese Standards In accordance with China's Administrative Measures on the Control of Pollution Caused by Electronic Information Products (EIP) # 39, also known as China RoHS, the following information is provided regarding the names and concentration levels of Toxic Substances (TS) or Hazardous Substances (HS) which may be contained in Multi-Tech Systems Inc. -
Page 34: Information On Hs/Ts Substances According To Chinese Standards (In Chinese)
REGULATORY AND ENVIRONMENTAL INFORMATION Information on HS/TS Substances According to Chinese Standards (in Chinese) 依 依 照 照 中 中 国 国 标 标 准 准 的 的 有 有 毒 毒 有 有 害 害 物 物 质 质 信 信 息 息 根据中华人民共和国信息产业部... -
Page 35: Index
INDEX Index build options ..............5 Industry Canada Class B ..............29 interférence des radiofréquences.........13 IP address..............19 24 CELL LED ................9 cellular configuration ............19 cellular connection on startup ........21 certifications..............8 labels ................16 Chinese hazardous substances LEDs.................9 Chinese version............34 lithium battery ..............12 English version ............33 login Class B ................29 default..............23... - Page 36 INDEX SIM card ..............17 interférences RF............13 reset button ..............9 reset device..............10 RoHS................32 terminal interface ............18 time ................18 23 transmission ..............8 safety................12 modem..............12 RF interference ............13 SIM card user responsibility............15 remove..............17 SIM installation .............17 specifications..............8 static................13 WIFI LED ................9 STATUS LED ..............9 sécurité................12 ®...
