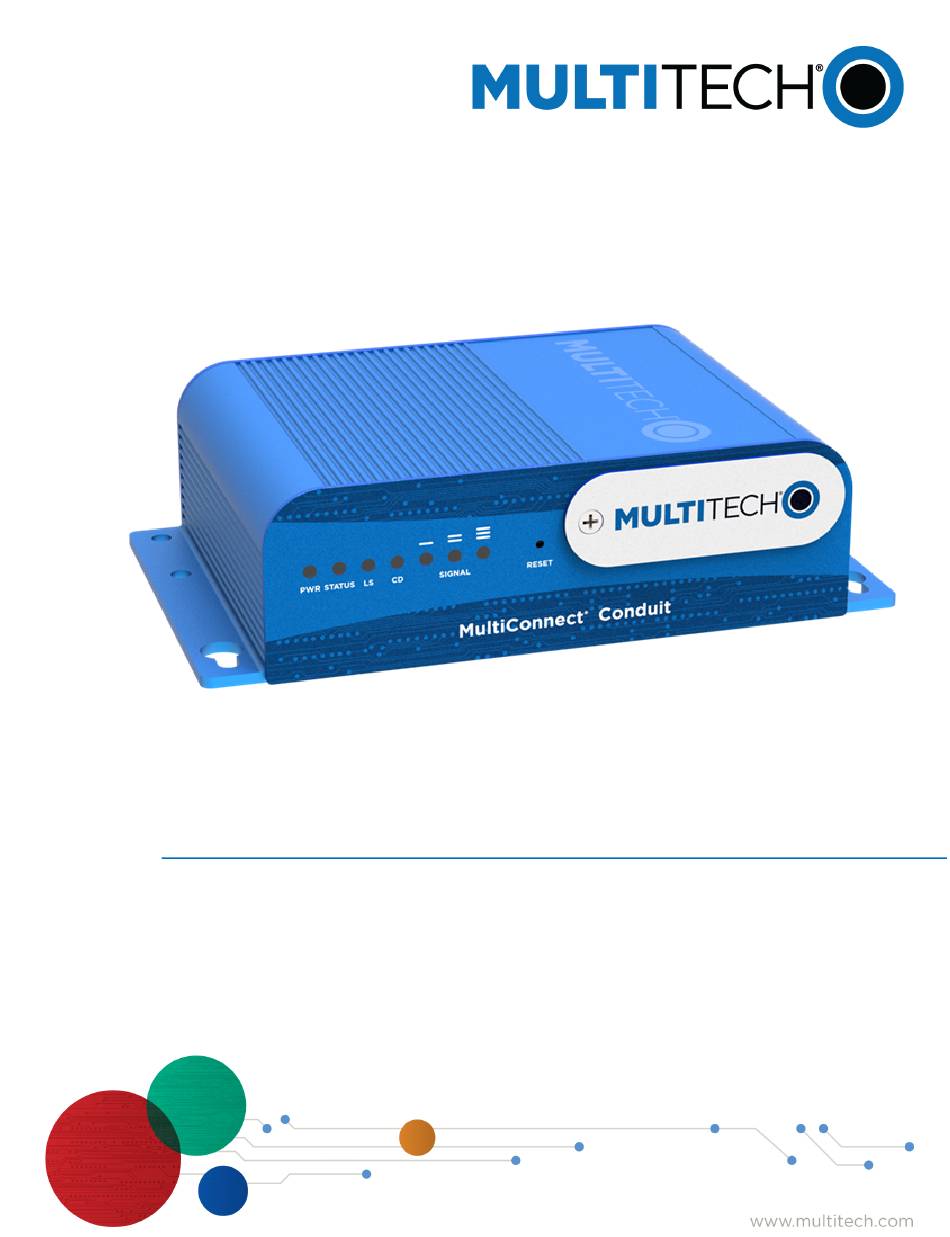

  • Page 1 ® MultiConnect Conduit MTCDT-LAP3 Hardware Guide (AU)
  • Page 2 Legal Notices The MultiTech products are not designed, manufactured or intended for use, and should not be used, or sold or re-sold for use, in connection with applications requiring fail-safe performance or in applications where the failure of the products would reasonably be expected to result in personal injury or death, significant property damage, or serious physical or environmental damage.
  • Page 3: Table Of Contents

    CONTENTS Contents Chapter 1 – Product Overview ..........................4 Introduction .................................. 4 Product Kit Contents ..............................5 Build Options................................. 6 Chapter 2 – Specifications............................7 Conduit Specifications..............................7 Mechanical Drawing..............................8 Backpanel Connectors ..............................9 LED Descriptions ................................. 10 Chapter 3 – Antenna Information .......................... 12 Wieson Antenna................................
  • Page 4: Chapter 1 - Product Overview

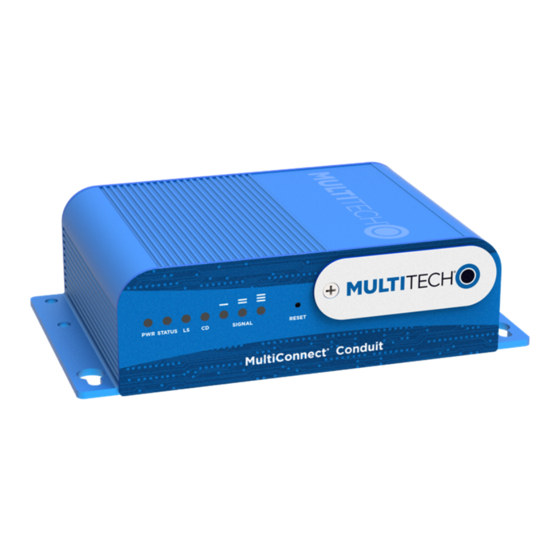

    PRODUCT OVERVIEW Chapter 1 – Product Overview Introduction ® MultiConnect Conduit™ is a programmable gateway that uses an open Linux development environment to enable machine-to-machine (M2M) connectivity using various wireless interfaces. It also provides an online application store for industrial things as a platform for developers to provision and manage their gateway and associated sensors and devices.
  • Page 5: Product Kit Contents

    PRODUCT OVERVIEW Product Kit Contents Your product kit typically includes the following (varies with model): Device 1 - MTCDT-Conduit Power Supply 1 - 100-240V 9V-1.7A power supply with removable blades 1 - AU blade/plug Cables 1 - Micro USB Cable 1 - Ethernet Cable RJ45 6-ft.
  • Page 6: Build Options

    PRODUCT OVERVIEW Build Options Product Description Region MTCDT-LAP3-246A-915-AU Conduit 4G LTE Cat 1 w/ 3G Fallback Application Australia Enablement Programmable Gateway using GNSS w/AU Accessory Kit and LoRa Accessory Card MTCDT-LAP3-246A-AU Conduit 4G LTE Cat 1 w/ 3G Fallback Application Australia Enablement Programmable Gateway using GNSS w/AU Accessory Kit...
  • Page 7: Chapter 2 - Specifications

    SPECIFICATIONS Chapter 2 – Specifications Conduit Specifications Category Description General Performance 4G LTE Cat 1 with 3G Fallback Release 9 Frequency Bands (MHz) 4G LTE Cat 1 FDD 2100 (B1), 850 (B5) , 900 (B8), 1800 (B3), and 700 (B28) 3G WCDMA 2100 (B1), GSM 850 (B5), and EGSM 900 (B8) Physical Description Dimensions...
  • Page 8: Mechanical Drawing

    SPECIFICATIONS UL Listed @ 40° C, limited by AC power supply. UL Recognized @ 65° C for Conduit LTE devices within IP67 enclosure or when used with the fused DC power cable, part number FPC-532-DC. Installation in outdoor locations or ambient above 70° C has not been evaluated by UL. UL Certification does not apply or extend to use in outdoor applications.
  • Page 9: Backpanel Connectors

    H5: CELL - Primary. AUX - Diversity. AP1, AP2 Slots for MultiTech accessory cards. You can install an accessory card in either slot. Both slots can be occupied at one time. An exception is an SDIO (Secure Digital Input/Output) card, which can be used only in the AP1 slot.
  • Page 10: Led Descriptions

    SPECIFICATIONS LED Descriptions Conduit mLinux Model Front Panel Conduit Application Model Front Panel Label Name Description Power Solid (constant) green if unit is on indicating that DC power is present. STATUS Power Status Default condition: LED blinks when mLinux is fully loaded. Link Status Varies with radio model.
  • Page 11 SPECIFICATIONS On the back of the Conduit, the RJ-45 Ethernet LEDs (located at the bottom of the connector) are defined as follows: Orange LED (lower-left) indicated activity/link. Blinks when there is transmit and receive on the Ethernet link. It shows a steady light when there is a valid Ethernet connection. Green LED (lower-right) indicates link speed.
  • Page 12: Chapter 3 - Antenna Information

    ANTENNA INFORMATION Chapter 3 – Antenna Information Wieson Antenna Devices were approved with the following antenna: Manufacturer: Wieson Description: LTE GY115HT467-017 Model Number: 11320Y11194A1 MultiTech ordering information: Model Quantity ANLTE2-1HRA ANLTE2-10HRA ANLTE2-50HRA Antenna Specifications Category Description Frequency Range .069~0.96GHz, 1.71~2.17GHz, 2.3GHz~2.69GHz...
  • Page 13: Chapter 4 - Setting Up And Configuring The Device

    Gently push the new SIM card into SIM card holder face up with the cut corner to the right and the SIM contacts facing toward the Conduit’s interior. If not installing a battery or micro SD card, reattach the MultiTech nameplate to the Conduit using the screw removed in Step 2.
  • Page 14: Accessory Port (Mcard) Interfaces

    SETTING UP AND CONFIGURING THE DEVICE Accessory Port (mCard) Interfaces The accessory card interface on the Conduit base board has the following interface options: Interface Description Used by all accessory cards. I2C is required for Electronic Identification (EID) support on the accessory card but can be used for other I2C devices.
  • Page 15: Installing A Micro Sd Card

    Disconnect power to the Conduit, if it is connected. At the front of the Conduit, remove the screw that secures the MultiTech nameplate. Locate the SD card at the left side of the opening on the underside of the PC board.
  • Page 16: Installing A Battery

    To install or replace the battery: If connected, disconnect power to the Conduit. At the front of the Conduit housing, remove the screw that secures the MultiTech nameplate to the housing. The battery holder is located at the right side of the opening on the underside of the PC board. To remove an existing battery, use non-metal tweezers as necessary.
  • Page 17: Connecting To The Debug Interface

    To connect the debug cable: Disconnect power to the Conduit, if it is connected. At the front of the Conduit housing, remove the screw that secures the MultiTech nameplate to the housing. Locate the USB debug cable connector in the center of the opening.
  • Page 18: Restoring User Defined Settings

    SETTING UP AND CONFIGURING THE DEVICE Restoring User Defined Settings You need: A pin, paperclip, or similar thin object that can fit into the reset hole. To restore user defined settings for an AEP device: Locate the hole in the panel labeled RESET. The reset button is recessed into the housing. Use the pin to press in the button for between 3 to 29 seconds, then release the reset button.
  • Page 19: Powering Up The Device

    To power up the device: Install the desired MultiTech accessory card or cards into the slots at the back of the device. Refer to the appropriate installation documentation for the accessory card. Connect the power cord to an outlet or power strip and to the power adapter.
  • Page 20: Chapter 5 - Regulatory Information

    2011/65/EU of the European Parliament (Restriction of the use of certain Hazardous Substances in electrical and electronic equipment - RoHS). These MultiTech products do not contain the following banned chemicals Lead, [Pb] < 1000 PPM Mercury, [Hg] <...
  • Page 21: Reach Statement

    Substances) complements the WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all MultiTech products imported into the EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements.
  • Page 22 REGULATORY INFORMATION ® MultiConnect Conduit MTCDT-LAP3 Hardware Guide (AU)
  • Page 23: Information On Hs/Ts Substances According To Chinese Standards

    REGULATORY INFORMATION Information on HS/TS Substances According to Chinese Standards In accordance with China's Administrative Measures on the Control of Pollution Caused by Electronic Information Products (EIP) # 39, also known as China RoHS, the following information is provided regarding the names and concentration levels of Toxic Substances (TS) or Hazardous Substances (HS) which may be contained in Multi-Tech Systems Inc.
  • Page 24: Information On Hs/Ts Substances According To Chinese Standards (In Chinese)

    REGULATORY INFORMATION Information on HS/TS Substances According to Chinese Standards (in Chinese) 依 依 照 照 中 中 国 国 标 标 准 准 的 的 有 有 毒 毒 有 有 害 害 物 物 质 质 信 信 息 息 根据中华人民共和国信息产业部...
