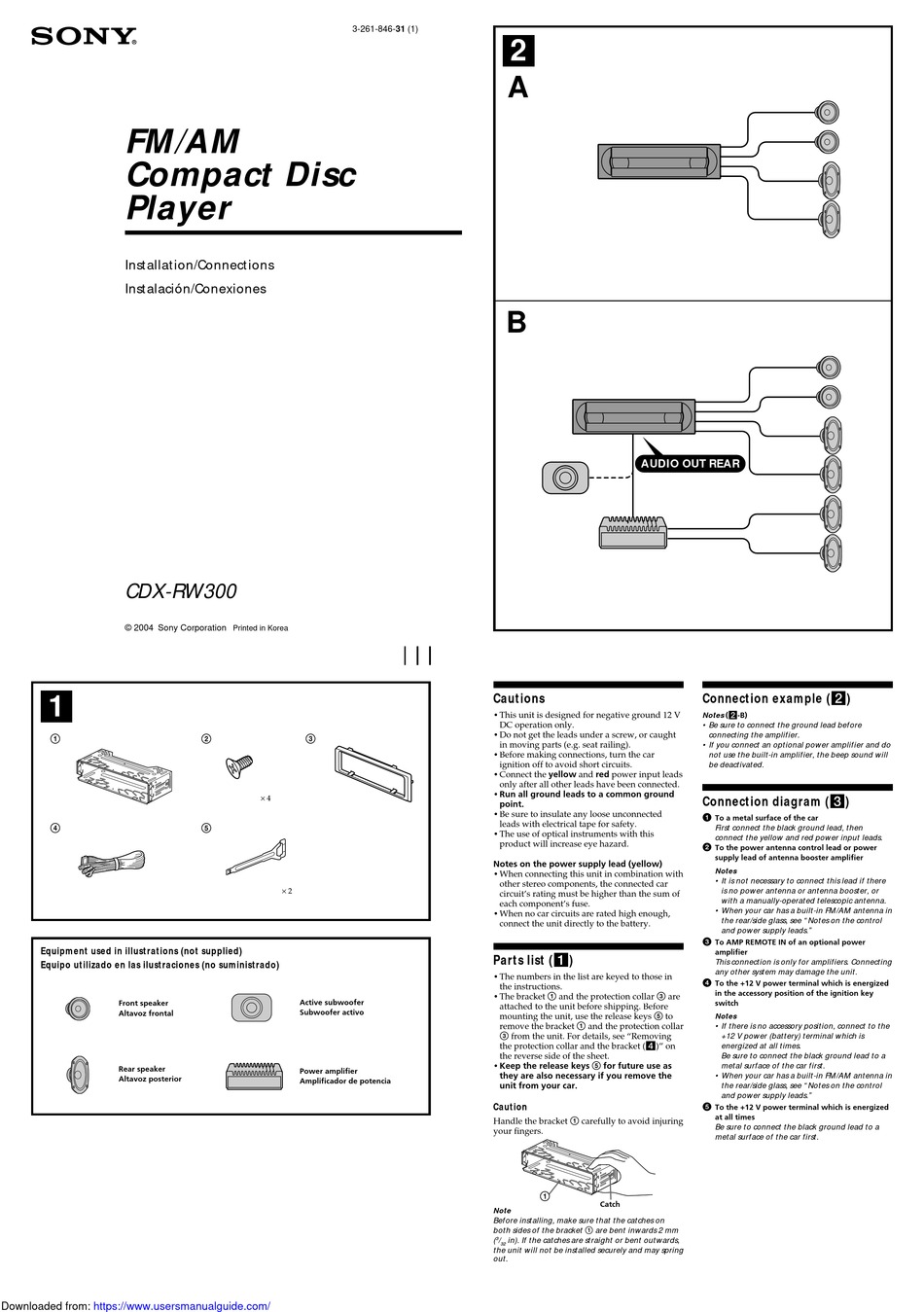

Sony CDX-RW300 User Manual

FM /AM
Compact Disc
Player
Inst allat ion/Connect ions
Inst alación/Conexiones
CDX-RW300
© 2004 Sony Corporation
1
1
4
Equipm ent used in illust rat ions (not supplied)
Equipo ut ilizado en las ilust raciones (no sum inist rado)
Front speaker
Altavoz frontal
Rear speaker
Altavoz posterior
Downloaded from: https://www.usersmanualguide.com/
3-261-846-31 (1)
Printed in Korea
2 3
× 4
5
× 2
Active subwoofer
Subwoofer activo
Power amplifier
Amplificador de potencia
2
A
B
AUDIO OUT REAR
Caut ions
• This unit is designed for negative ground 12 V
DC operation only.
• Do not get the leads under a screw, or caught
in moving parts (e.g. seat railing).
• Before making connections, turn the car
ignition off to avoid short circuits.
• Connect the yellow and red power input leads
only after all other leads have been connected.
• Run all ground leads to a common ground
point.
• Be sure to insulate any loose unconnected
leads with electrical tape for safety.
• The use of optical instruments with this
product will increase eye hazard.
Notes on the power supply lead (yellow)
• When connecting this unit in combination with
other stereo components, the connected car
circuit's rating must be higher than the sum of
each component's fuse.
• When no car circuits are rated high enough,
connect the unit directly to the battery.
Part s Iist (1)
• The numbers in the list are keyed to those in
the instructions.
• The bracket 1 and the protection collar 3 are
attached to the unit before shipping. Before
mounting the unit, use the release keys 5 to
remove the bracket 1 and the protection collar
3 from the unit. For details, see "Removing
the protection collar and the bracket (4)" on
the reverse side of the sheet.
• Keep the release keys 5 for future use as
they are also necessary if you remove the
unit from your car.
Caut ion
Handle the bracket 1 carefully to avoid injuring
your fingers.
1
Catch
Note
Bef ore inst alling, make sure t hat t he cat ches on
bot h sides of t he bracket 1 are bent inw ards 2 mm
( 3 / in). If t he cat ches are st raight or bent out w ards,
32
t he unit w ill not be inst alled securely and may spring
out .
Connect ion exam ple (2)
Notes (2-B)
• Be sure t o connect t he ground lead bef ore
connect ing t he amplif ier.
• If you connect an opt ional pow er amplif ier and do
not use t he built -in amplif ier, t he beep sound w ill
be deact ivat ed.
Connect ion diagram (3)
1
To a metal surface of the car
First connect t he black ground lead, t hen
connect t he yellow and red pow er input leads.
2
To the power antenna control lead or power
supply lead of antenna booster amplifier
Notes
• It is not necessary t o connect t his lead if t here
is no pow er ant enna or ant enna boost er, or
w it h a manually-operat ed t elescopic ant enna.
• When your car has a built -in FM /AM ant enna in
t he rear/side glass, see " Not es on t he cont rol
and pow er supply leads."
3
To AMP REMOTE IN of an optional power
amplifier
This connect ion is only f or amplif iers. Connect ing
any ot her syst em may damage t he unit .
4
To the +12 V power terminal which is energized
in the accessory position of the ignition key
switch
Notes
• If t here is no accessory posit ion, connect t o t he
+12 V pow er (bat t ery) t erminal w hich is
energized at all t imes.
Be sure t o connect t he black ground lead t o a
met al surf ace of t he car f irst .
• When your car has a built -in FM /AM ant enna in
t he rear/side glass, see " Not es on t he cont rol
and pow er supply leads."
5
To the +12 V power terminal which is energized
at all times
Be sure t o connect t he black ground lead t o a
met al surf ace of t he car f irst .
