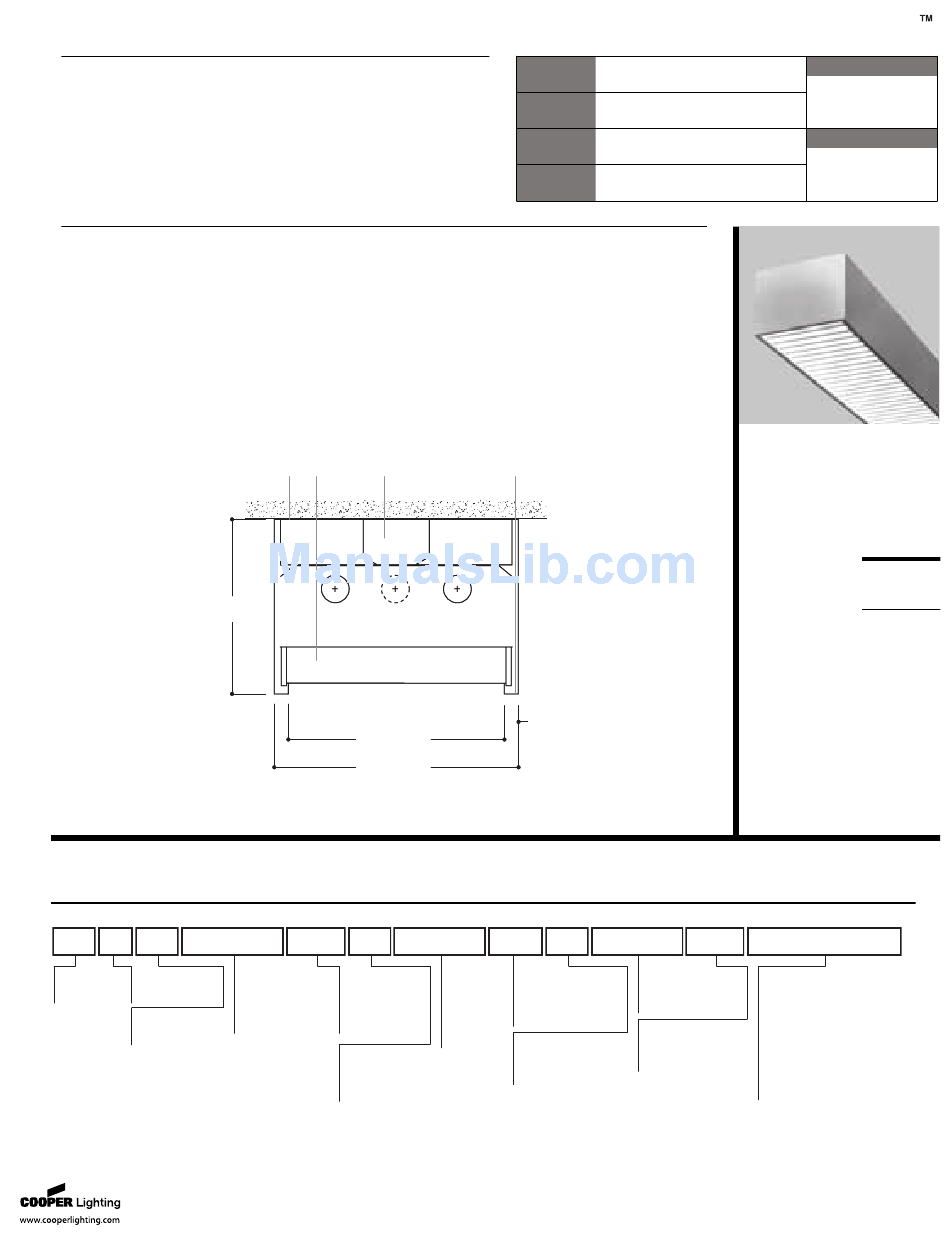

Cooper Lighting Neo-Ray Geo 44-DS Specification

DESCRIPTION
Series 44 offers individual or continuous illuminated runs and patterns; each
fixture is uniquely suited to achieve many functional and aesthetic spatial
effects.
Features:
- The light is continuous and unbroken.
- Individual units and runs are provided to the nearest foot.
- Patterns are created by butting standard length fixtures.
- Rigid "U" shaped trim is double formed with a 3/8" regress soft lit edge.
- Housing may be ordered custom finished.
SPECIFICATION FEATURES
A ... Construction
20-gauge steel housing. Nominal
3', 4', 6' or 8' illuminated sections.
End Caps
20-gauge steel construction.
6-1/4" 6-1/4"
[159mm] [159mm]
ORDERING INFORMATION
Sample Number: S44DS/2T8/84/1EB-DU
Series Light Output
= =
44 Geo D Direct
Mounting
=
S Surface
Notes:
1
Due to various constraints, some options may not be
combined with others. Please consult your Cooper
Lighting Representative for availability.
B ... Shielding
White bold baffle louver. White
acrylic diffuser. Prismatic acrylic
lens. Parabolic baffle.
C ... Electrical
120, 277, 347 or Universal Voltage
electronic ballast. Fixtures and
electrical components certified to
UL and CUL standards.
A A B B C C
7-3/4" [197mm] 7-3/4" [197mm]
8-3/4" [223mm] 8-3/4" [223mm]
Number of Lamps Lamp Type
=
1 1 Lamp T8
=
2 2 Lamps T5
=
3 3 Lamps T5HO
Run Length
Overall Nominal Run Length __ ft.
(Any combination of 8', 6', 4' , and
3' sections)
Specifications and Dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
D ... Finish
Durable, low gloss, white, powder
coated acrylic finish.
Mounting
Surface.
D D
1/2" 1/2"
[13mm] [13mm]
Voltage 1 Ballast
= EB Electronic Ballast =
1 120V
(Standard)
=
2 277V
DB Dimming Ballast =
=
3 347V
=
U Universal
Switching Options
SI Single Switching =
=
DU Dual Switching
NEO-RAY
Light Distribution:
Emergency Shielding Options
EM Emergency Pack = S22 White Acrylic =
(Consult Factory) Diffuser with mullions
S72 White Bold Baffle =
S58 KSH-12 Clear Acrylic =
Fusing
Prismatic Lens with
GLR
mullions
GMF
S79 Semi-specular =
Aluminum
Parabolic Baffle
04/28/2008 10:58:45 AM
Type
Date
Geo
44-DS
1, 2 & 3T8
1, 2 & 3T5
1, 2 & 3T5HO
Surface
Direct
Indirect - 0.0%
Direct - 100.0%
ADN041945
