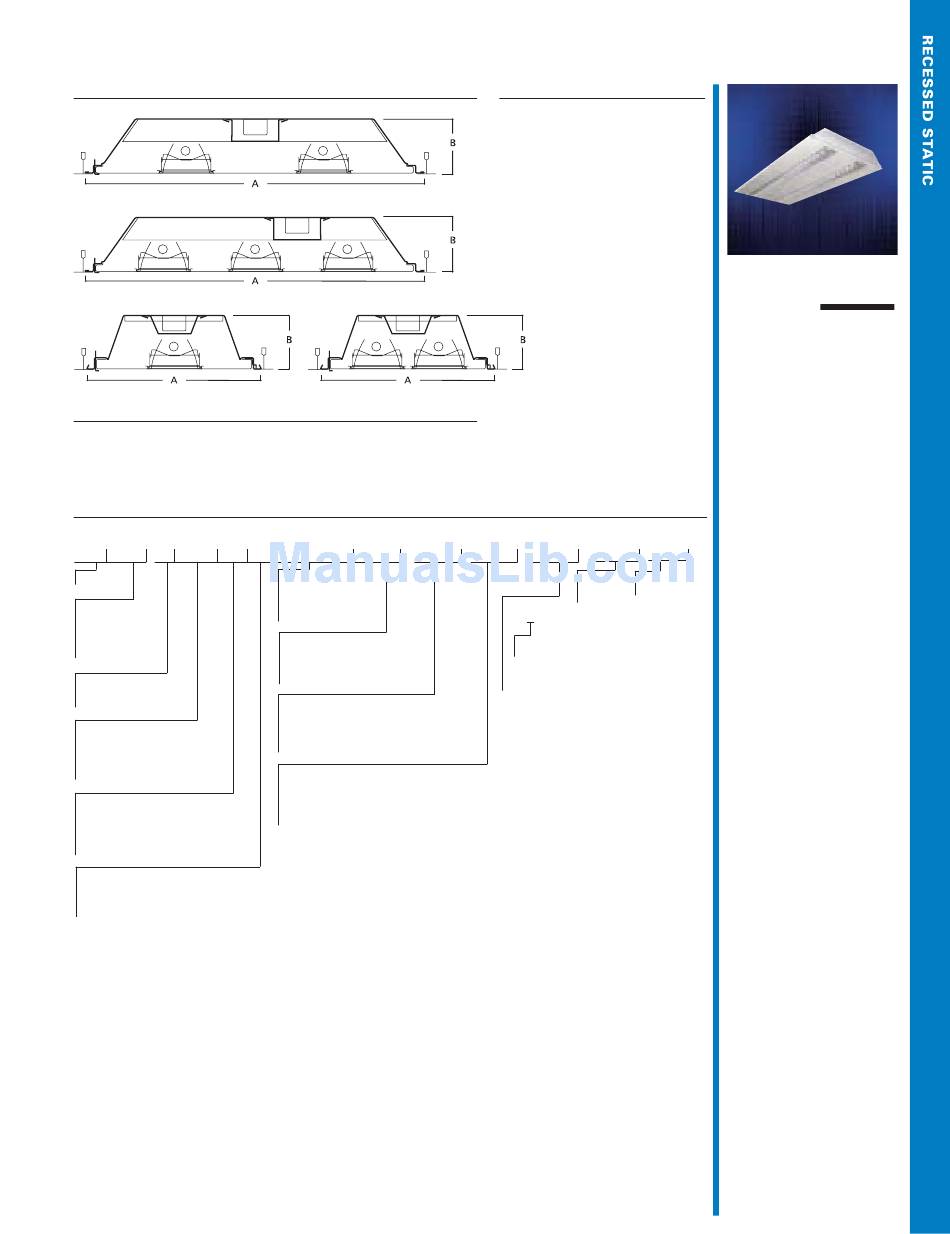

D I M E N S I O N S
2' x 4'
2' x 2'
1' x 4'
NOMINAL SIZE
A
2' x 2'
23-3/4" (603mm)
2' x 4'
23-3/4" (603mm)
1' x 4'
11-3/4" (298mm)
O R D E R I N G I N F O R M AT I O N
S A M P L E N U M B E R : 2 G R 5 - 3 2 8 T 5 M I X 3 2 5 - U N V - E B T 2 - U
2=2' Width
Series
GR5=General
Purpose T5
Commercial
(1)
Troffer
Number of Lamps
1, 2 or 3 Lamps
(Not included)
Wattage (Length)
14T5=14W T5 (24")
24T5=24W T5 HO (24")
28T5=28W T5 (48")
54T5=54W T5 HO (48")
Lens/Louver
A=#12 PatternAcrylic
MI=Specular Low Iridescent Louver
I=Semi-Specular Low Iridescent Louver
W=White Painted Louver
Blank=for Lens or White Louver
X=Convex Blade
V=Concave Blade
B=Straight Blade
(1)
NOTES:
An EQ Grid Clip is recommended for all 9/16" ceiling systems.
For complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change without notice. Consult your Cooper Lighting
Representative for availability and ordering information.
COOPER LIGHTING - METALUX
B
3-3/4" (95mm)
3-3/4" (95mm)
3-3/4" (95mm)
Number of Rows
Blank=for Lens option
2=2 Rows (2 lamp)
3=3 Rows (3 lamp)
Number of Cells
Blank=for Lens option
12=12 Cells (2' x 2')
25=25 Cells (2' x 4')
Voltage
120V=120 Volt
277V=277 Volt
347V=347 Volt
(2)
UNV=Universal Voltage 120-277
Options
GL=Single Element Fuse
GM=Double Element Fuse
Lamps - for lamps installed, see lamp options table
Emergency - for EM installed, see EM options table
(2)
Not available when specifying emergencies, voltage must be specific.
D E S C R I P T I O N
The GR5 is a T5-dedicated troffer
designed to offer premium
performance in a low profile
housing. The GR5's shallow, low
profile housing is compatible with
today's popular ceiling systems.
The GR5 offers great performance
and great quality. The series is an
excellent choice for commercial
offices, schools, hospitals, retail
merchandising and many other
applications.
Options
Packaging
(See Options
U=Unit Pack
Section)
Ballast Type
EBT =T5 Linear Electronic Program Rapid
Start Total Harmonic Distortion < 10%
No. of Ballast
1,2 or 3
DLS=Digital Lighting System Dimming
(For complete details on generic or to specify
manufacturer's ballast see pg. 469)
®
GR5 SERIES
1 ' x 4 ' , 2 ' x 2 ' , 2 ' x 4 '
T 5 Tr o f f e r
1 , 2 o r 3 L a m p
L O W P R O F I L E
C O M M E R C I A L R E C E S S E D
T 5 S TAT I C T R O F F E R
• Optimized for T5 lamps
• Spring loaded cam
latches/T hinges
• Rotor lock T5 lampholders
• Available in either lens or
louver options
• Full length mechanical light
traps and positive end light
seals
• Die formed housing with
full length stiffeners and
mechanical endplate
attachment for added
strength
• End plate grid-lock feature
• Four auxiliary fixture end
suspension points
provided
• For drywall applications,
field install flange kit
available. See Technical
Section for detail.
• UL/CUL Listed. Suitable for
damp locations.
COOPER LIGHTING
401
