Randell 20042RF Specifications

Equipment Stand Remote Freezer Base
model
20042RF
Description:
32 1/2" deep remote freezer base cooking equipment stand
with reinforced stainless steel top. 12 gauge steel subtop, and
full marine edge. R-404a refrigeration system, with evaporator
blower coil and expansion valve supplied & installed. Condensing
unit not provided. Unit on 6" high adjustable legs.
These units feature our Patented Drawer Cartridge Assembly.
A fully welded, unitized drawer cartridge assembly with a
quick release that allows the refrigerated drawers to be
easily removed for cleaning. 3 year warranty on the entire
drawer system.
Specifications:
CABINET EXTERIOR: Cabinet body is constructed of all metal. The
top, front, and louver panel are stainless steel. Full length, 12
gauge steel subtop beneath one piece stainless steel top with
1/2" marine edged. Body ends are stainless steel. 6" stainless
steel legs with adjustable bullet feet are mounted to a heavy
gauge steel frame assembly which is integrally welded to bottom
of assembly. Unit totally prewired to junction box.
CABINET INTERIOR: Interior of cabinet is fully coved to meet
N.S.F. standard #7. The interior is constructed of anodized
aluminum with coved corners for easy clean-up. Drawer opening
frames are A.B.S. and contain magnetic strip for positive seal of
drawer gaskets. Unit insulated with CFC free, foamed in place
polyurethane.
REFRIGERATED DRAWERS: Fully welded, unitized drawer
cartridge assembly -patented. Heavy duty full extension 14
gauge drawer tracks on 1 5/8" heavy duty stainless steel
bearings. Will accommodate (2) 12" x 20" x 4" deep pans per
drawer (pans not included). Quick release allows drawers to be
easily removed for cleaning. Stainless fronts, mounted to drawer
cartridge assembly with easy to grasp drawer handles. Provided
with drawer frame heater to prevent gaskets freezing. Drawers
with press fit magnetic gaskets - (designed for installation &
removal without tools).
REFRIGERATION: CFC free, R-404a refrigeration systems
standard. Includes Randell blower coil, defrost timer, and
thermostatic control for operator adjustability. Blower coil fitted
with expansion valve for fast recovery. Includes solenoid valve &
thermostat, condensing unit not provided. Mullion coil, is coated
to resist corrosion, and offers maximum air flow.
20065RF 20092RF
1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, fax 888-266-5244
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
model 20000RF

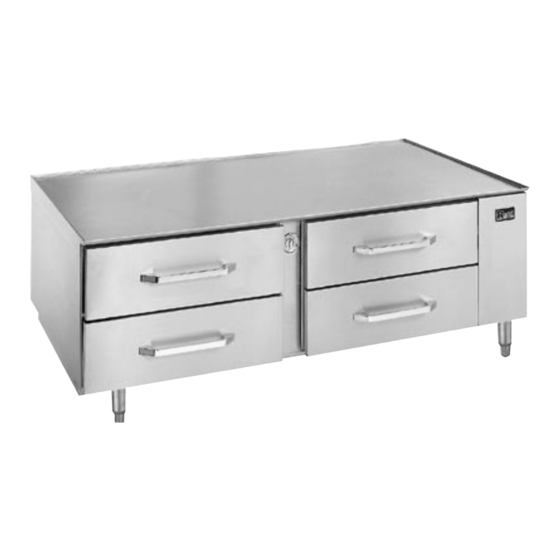

model 20065RF shown
Standard Features:
• R-404a refrigeration system, "CFC free" features
thermostatic control for operator adjustability. Evaporator
blower coil with expansion valve and refrigeration lines
provided and installed. Condensing unit and controls not provided.
• Hot gas condensate evaporator
• Drawer Cartridge Assemblies are fully removable with
Quick Release feature
• Foamed in place "CFC" free urethane insulation
• Marine edged stainless steel top with 12 gauge steel
subtop to hold the heaviest cooking equipment
• Removable 14 gauge drawer tracks on 1 5/8" heavy duty
stainless steel bearings
• Drawers to accommodate (2)12"x 20"x 4"
pans per drawer (pans not included)
• 6" high adjustable legs
Options & Accessories:
Heavy duty casters
Flat top
32" drawer option
Electric condensate evaporator
Note: Specify Refrigerant
Randell supplies R-404a as standard.
Randell Equipment Stand, Page 4
Revised 11/05
