Operating your Receiver

Connection of Audio source

You can connect up to 2 audio sources to this
amplifier:
Source button Corresponding connector
(remote control) (receiver back panel)
- DVD/CD built-in
- TUNER built-in
- AUX 1 AUX 1 IN
- AUX 2 AUX 2 IN
When a source is selected, the source name is shown on the
display.
14
Note:
1. Your receiver has a built in tuner. Just
connect the appropriate antenna to the
back of the receiver and you will be able
to listen to radio stations. (See details in
Tuner section)
2. The receiver is also equipped with DVD/CD player. Press
the SOURCE button on the main unit or DVD/CD button on
the remote to activate the feature.
3. Other sources (Tapes,etc) can be connected to this unit
provided that the connections are compatible.
4. Refer to the "Connecting To Audio-Visual Components"
section for details on connection.

Sound Enhancement Systems

This receiver is equipped with several built-in sound
enhancement systems.

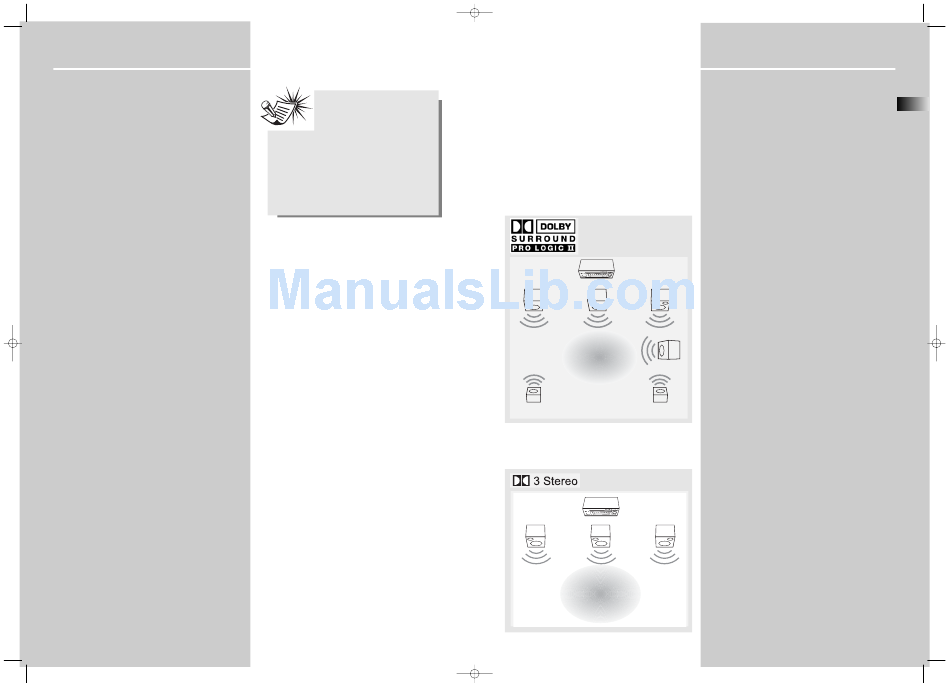

Dolby Pro Logic II
The Pro Logic II mode uses the built-in circuit to steer the
Left, Center, Right and Surround left and right channel
audio signals and uses all five speakers to play both stereo
and Dolby Pro Logic program source, such as TV and VCR.
Dolby Pro Logic II includes Dolby Pro Logic II Movie, Dolby
Pro Logic II Music and Dolby Pro Logic Emulation.
You can use this mode to suit any stereo program source
to enjoy multi-channel sound experience.
Front Left Speaker Front Right Speaker
Center Speaker
Subwoofer
Listening
Zone
Rear Right Speaker
Rear Left Speaker
Dolby 3 Stereo
The 3 Stereo mode will redirect the Surround signals to the
front left and right speakers when only the front and
center speakers are used.
Front Left Speaker
Center Speaker Front Right Speaker
Listening
Zone

Advanced Sound Control

Dolby Digital
The Dolby Digital mode lets you enjoy full digital
surround from software processed in the Dolby Digital for-
mat. Dolby Digital provides better sound quality and a
more powerful presence than conventional Dolby
Surround.
This unit is equipped with Dolby Digital 5.1-channel so
that you can enjoy enhanced full digital surround sound.
Different from Dolby Pro Logic in that only four channels (
Front Left, Front Right, Centre and Rear ) are used, the new
system provides stereo separation of the rear speakers
(Rear-Right, Rear-Left ). Adding the to the 5 channels the
subwoofer channel for bass sounds (counted as 0.1 channel)
results in 5.1 channels (or 6 Channels) that bring you the
most sophisticated Dolby Digital sound enjoyment.
