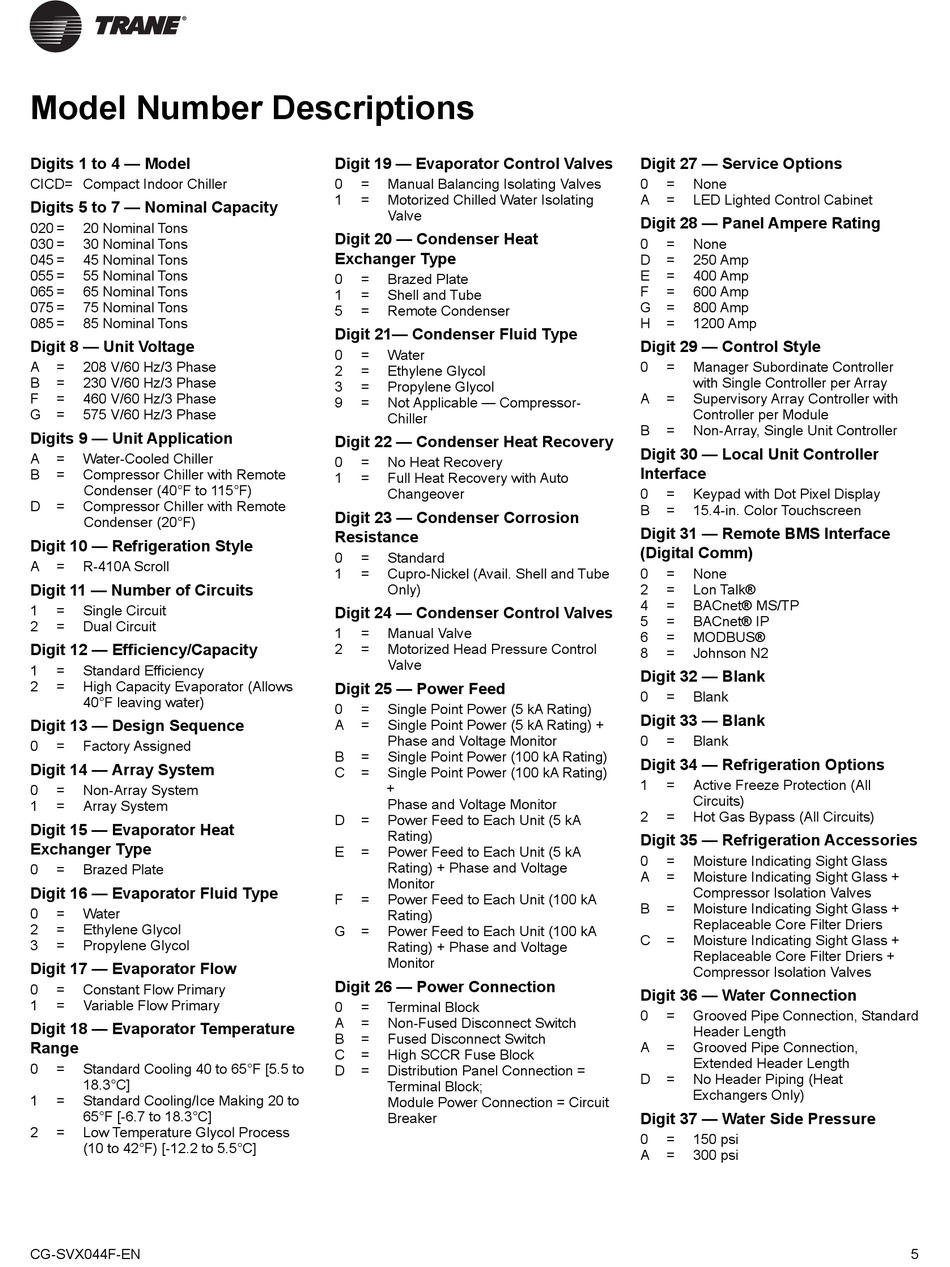

Model Number Descriptions
Digits 1 to 4 — Model
CICD= Compact Indoor Chiller
Digits 5 to 7 — Nominal Capacity
020 =
20 Nominal Tons
030 =
30 Nominal Tons
045 =
45 Nominal Tons
055 =
55 Nominal Tons
065 =
65 Nominal Tons
075 =
75 Nominal Tons
085 =
85 Nominal Tons
Digit 8 — Unit Voltage
A
=
208 V/60 Hz/3 Phase
B
=
230 V/60 Hz/3 Phase
F
=
460 V/60 Hz/3 Phase
G
=
575 V/60 Hz/3 Phase
Digits 9 — Unit Application
A
=
Water-Cooled Chiller
B
=
Compressor Chiller with Remote
Condenser (40°F to 115°F)
D
=
Compressor Chiller with Remote
Condenser (20°F)
Digit 10 — Refrigeration Style
A
=
R-410A Scroll
Digit 11 — Number of Circuits
1
=
Single Circuit
2
=
Dual Circuit
Digit 12 — Efficiency/Capacity
1
=
Standard Efficiency
2
=
High Capacity Evaporator (Allows
40°F leaving water)
Digit 13 — Design Sequence
0
=
Factory Assigned
Digit 14 — Array System
0
=
Non-Array System
1
=
Array System
Digit 15 — Evaporator Heat
Exchanger Type
0
=
Brazed Plate
Digit 16 — Evaporator Fluid Type
0
=
Water
2
=
Ethylene Glycol
3
=
Propylene Glycol
Digit 17 — Evaporator Flow
0
=
Constant Flow Primary
1
=
Variable Flow Primary
Digit 18 — Evaporator Temperature
Range
0
=
Standard Cooling 40 to 65°F [5.5 to
18.3°C]
1
=
Standard Cooling/Ice Making 20 to
65°F [-6.7 to 18.3°C]
2
=
Low Temperature Glycol Process
(10 to 42°F) [-12.2 to 5.5°C]
CG-SVX044F-EN
Digit 19 — Evaporator Control Valves
0
=
Manual Balancing Isolating Valves
1
=
Motorized Chilled Water Isolating
Valve
Digit 20 — Condenser Heat
Exchanger Type
0
=
Brazed Plate
1
=
Shell and Tube
5
=
Remote Condenser
Digit 21— Condenser Fluid Type
0
=
Water
2
=
Ethylene Glycol
3
=
Propylene Glycol
9
=
Not Applicable — Compressor-
Chiller
Digit 22 — Condenser Heat Recovery
0
=
No Heat Recovery
1
=
Full Heat Recovery with Auto
Changeover
Digit 23 — Condenser Corrosion
Resistance
0
=
Standard
1
=
Cupro-Nickel (Avail. Shell and Tube
Only)
Digit 24 — Condenser Control Valves
1
=
Manual Valve
2
=
Motorized Head Pressure Control
Valve
Digit 25 — Power Feed
0
=
Single Point Power (5 kA Rating)
A
=
Single Point Power (5 kA Rating) +
Phase and Voltage Monitor
B
=
Single Point Power (100 kA Rating)
C
=
Single Point Power (100 kA Rating)
+
Phase and Voltage Monitor
D
=
Power Feed to Each Unit (5 kA
Rating)
E
=
Power Feed to Each Unit (5 kA
Rating) + Phase and Voltage
Monitor
F
=
Power Feed to Each Unit (100 kA
Rating)
G
=
Power Feed to Each Unit (100 kA
Rating) + Phase and Voltage
Monitor
Digit 26 — Power Connection
0
=
Terminal Block
A
=
Non-Fused Disconnect Switch
B
=
Fused Disconnect Switch
C
=
High SCCR Fuse Block
D
=
Distribution Panel Connection =
Terminal Block;
Module Power Connection = Circuit
Breaker
Digit 27 — Service Options
0
=
None
A
=
LED Lighted Control Cabinet
Digit 28 — Panel Ampere Rating
0
=
None
D
=
250 Amp
E
=
400 Amp
F
=
600 Amp
G
=
800 Amp
H
=
1200 Amp
Digit 29 — Control Style
0
=
Manager Subordinate Controller
with Single Controller per Array
A
=
Supervisory Array Controller with
Controller per Module
B
=
Non-Array, Single Unit Controller
Digit 30 — Local Unit Controller
Interface
0
=
Keypad with Dot Pixel Display
B
=
15.4-in. Color Touchscreen
Digit 31 — Remote BMS Interface
(Digital Comm)
0
=
None
2
=
Lon Talk®
4
=
BACnet® MS/TP
5
=
BACnet® IP
6
=
MODBUS®
8
=
Johnson N2
Digit 32 — Blank
0
=
Blank
Digit 33 — Blank
0
=
Blank
Digit 34 — Refrigeration Options
1
=
Active Freeze Protection (All
Circuits)
2
=
Hot Gas Bypass (All Circuits)
Digit 35 — Refrigeration Accessories
0
=
Moisture Indicating Sight Glass
A
=
Moisture Indicating Sight Glass +
Compressor Isolation Valves
B
=
Moisture Indicating Sight Glass +
Replaceable Core Filter Driers
C
=
Moisture Indicating Sight Glass +
Replaceable Core Filter Driers +
Compressor Isolation Valves
Digit 36 — Water Connection
0
=
Grooved Pipe Connection, Standard
Header Length
A
=
Grooved Pipe Connection,
Extended Header Length
D
=
No Header Piping (Heat
Exchangers Only)
Digit 37 — Water Side Pressure
0
=
150 psi
A
=
300 psi
5
