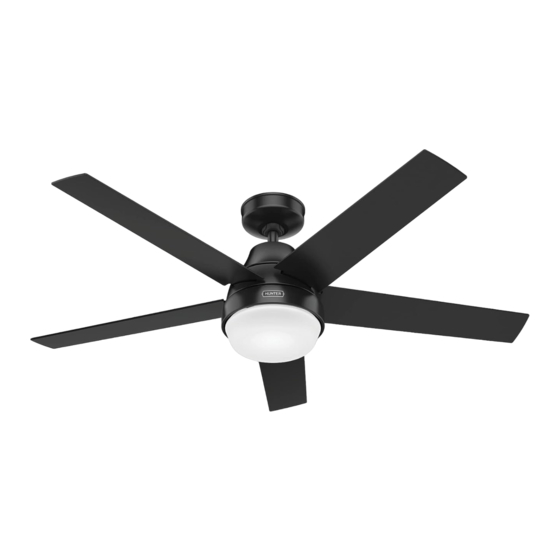

- Page 1 Aerodyne Installation Manual Model: 51314 Matte Black 51315 Matte Silver 51336 Fresh White 52614 Dove Grey Fan weight ±2 lbs: 21.6 lbs (9.8 kg) ©2023 Hunter Fan Co. PG3963 r031423...
- Page 2 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualified electrician. c.2 - Use only Hunter replacement parts. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 3 We recommend that you pull everything out of the box and lay it out. We have grouped the drawn components below with the hardware you’ll need for those Hunter Pro Tip: parts. The screws below are drawn to scale to make it easier to identify what piece of hardware is needed to install each component.
-
Page 4: Choosing The Right Installation Location
A little more information on Angled Mounting: For optimum performance and appearance, a longer downrod should be used with your Hunter ceiling fan when installing on high or angled ceiling. If your ceiling is angled greater than 34° you will also need an Angled Mounting Kit. -
Page 5: Installing The Ceiling Bracket
You have two options for installation. Pick which one works best for your location. Remove any existing Hunter Pro Tip: bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan’s box. The machine screws are the ones that came with your outlet box. -
Page 6: Hanging The Fan
1886 Hanging the Fan NOTICE To prevent damage to fan, ALWAYS lift holding either the fan housing or the downrod. Place the downrod ball into the slot in the ceiling bracket. Progress Check: Your fan should look like this. Note: Fan style may vary. -
Page 7: Wiring The Fan
Follow these steps to get your fan wired quickly and safely. Follow the route below that best matches your wall switch setup. If you are unfamiliar with wiring or uncomfortable doing it yourself, please contact a quali ed electrician. Hunter Pro Tip: You are going to need these:... -
Page 8: Installing The Canopy
1886 Installing the Canopy Insert the two canopy screws found in the hardware bag. Canopy Screw Lift the canopy into place so that the screw holes are aligned. Installing the Blades Put the blade washers found in the hardware bag onto the blade screws found in the hardware bag. -
Page 9: Assembling The Light Kit
1886 Assembling the LIght Kit Feed the wire plugs through the center hole of the upper switch housing, then Loosen the two pre-installed screws wrap keyhole slots around the screws and twist counterclockwise. Connect the single-pin connectors from the light kit assembly to the connectors from the fan. -
Page 10: Preparing The Remote
1886 Preparing the Remote The remote control is already paired for use. For Key Press Function your convenience, a remote To access the battery compartment, remove the function card is packed in + Quick Press Light On/Off small Phillips head screw that with your remote. - Page 11 Follow the onscreen prompts to set up your fan. (fan style may vary). Hunter Pro Tip: Need to install the app later? When ready, turn the wall switch off and then on.
-
Page 12: Troubleshooting
Please do not ship your fan or any fan parts to Hunter. Delivery will be refused. provide maintenance to the fan, or acts of God (e.g. flood).
