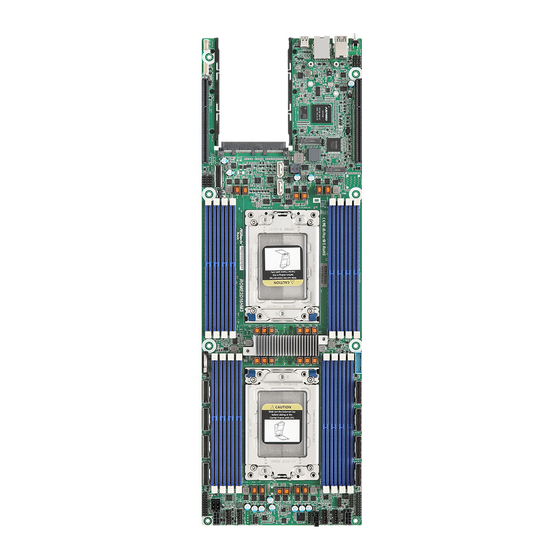

ASROCK ROME2D16HM3 User Manual
  1. Manuals
  2. Brands
  3. ASROCK Manuals
  4. Server
  5. ROME2D16HM3
  6. User manual
ASROCK ROME2D16HM3 User Manual

ASROCK ROME2D16HM3 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ROME2D16HM3
User Manual
Version 1.0
Published October 2021
Copyright©2021 ASRock Rack INC. All rights reserved.

Advertisement

Table of Contents
loading

Related Manuals for ASROCK ROME2D16HM3

Summary of Contents for ASROCK ROME2D16HM3

  • Page 1 ROME2D16HM3 User Manual Version 1.0 Published October 2021 Copyright©2021 ASRock Rack INC. All rights reserved.
  • Page 2 In no event shall ASRock Rack, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock Rack has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
  • Page 3 Contact Information If you need to contact ASRock Rack or want to know more about ASRock Rack, you’re welcome to visit ASRock Rack’s website at www.ASRockRack.com; or you may contact your dealer for further information. ASRock Rack Incorporation 6F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,...

  • Page 4: Table Of Contents

    Contents Chapter 1 Introduction Package Contents Specifications Unique Features Motherboard Layout Onboard LED Indicators I/O Panel Block Diagram Chapter 2 Installation Screw Holes Pre-installation Precautions Installing the CPU Installation of Memory Modules (DIMM) Expansion Slots (PCI Express Slots) Onboard Headers and Connectors Unit Identification purpose LED/Switch Driver Installation Guide M.2_SSD (NGFF) Module Installation Guide...
  • Page 5 Advanced Screen 3.3.1 CPU Configuration 3.3.2 Chipset Configuration 3.3.3 Storage Configuration 3.3.4 ACPI Configuration 3.3.5 USB Configuration 3.3.6 Super IO Configuration 3.3.7 Serial Port Console Redirection 3.3.8 H/W Monitor 3.3.9 PCI Subsystem Settings 3.3.10 AMD CBS 3.3.11 AMD PBS 3.3.12 PSP Firmware Versions 3.3.13 Tls Auth Configuration 3.3.14 Network Stack Configuration 3.3.17 Instant Flash...
  • Page 6 Event Logs Exit Screen Chapter 4 Software Support Install Operating System Support CD Information 4.2.1 Running The Support CD 4.2.2 Drivers Menu 4.2.3 Utilities Menu 4.2.4 Contact Information Chapter 5 Troubleshooting Troubleshooting Procedures Technical Support Procedures Returning Merchandise for Service...

  • Page 7: Chapter 1 Introduction

    In case any modifications of this manual occur, the updated version will be available on ASRock Rack website without further notice. You may find the latest memory and CPU support lists on ASRock Rack website as well. ASRock Rack’s Website: www.ASRockRack.com If you require technical support related to this motherboard, please visit our website for specific information about the model you are using.

  • Page 8: Specifications

    1.2 Specifications ROME2D16HM3 MB Physical Status Form Factor Half Width Dimension 6.6’’ x 20’’ (16.8 cm x 50.8 cm) Processor System Supports AMD EPYC™ 7003 and 7002 Series Processors Socket 2 × AMD Socket SP3 Thermal Design 225W (240W cTDP)
  • Page 9 ROME2D16HM3 Ethernet Interface 1 x RJ45 Dedicated IPMI LAN port Management BMC Controller ASPEED AST2500 IPMI Dedicated 1 x Realtek RTL8211E for dedicated management GLAN GLAN Features - Watch Dog - NMI Graphics Controller ASPEED AST2500 VRAM DDR4 512MB Rear Panel I/O...
  • Page 10 BIOS Features - Plug and Play (PnP) - ACPI 2.0 Compliance Wake Up Events - SMBIOS 2.8 Support - ASRock Rack Instant Flash Hardware Monitor Temperature - CPU Temperature Sensing - MB/Card side Temperature Sensing - Fan Tachometer - CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by...

  • Page 11: Unique Features

    POST or the <F2> key to enter into the BIOS setup menu to access ASRock Rack Instant Flash. Just launch this tool and save the new BIOS file to your USB flash drive, floppy disk or hard drive, then you can update your BIOS only in a few clicks without preparing an additional floppy diskette or other complicated flash utility.

  • Page 12: Motherboard Layout

    1.4 Motherboard Layout 16.8cm (6.6 in) 8.1cm (3.2 in) VGA2 7.2cm (2.8 in) NUT80_2 NUT110 NUT60_2 NUT80 CLRMOS1 ASPEED 2500 M2_2 Super OCP3 M2_1 CPU1 SLIMLINE8 SLIMLINE4 SLIMLINE7 SLIMLINE3 CPU2 SLIMLINE6 SLIMLINE2 SLIMLINE5 SLIMLINE1 30 29 28 27 26 25 22 21...
  • Page 13 ROME2D16HM3 Description Serial Port Header (COM1) Clear CMOS Pad (CLRMOS1) PCI Express 4.0 x24 Slot (PCIE1) M.2 Socket (M2_2) (Type 2260 / 2280) M.2 Socket (M2_1) (Type 2280 / 22110) 2 x 288-pin DDR4 DIMM Slots (DDR4_E1, DDR4_G1)* 2 x 288-pin DDR4 DIMM Slots (DDR4_F1, DDR4_H1)* AMD Socket SP3 (LGA 4094 ) (CPU1) USB 3.2 Gen1 Header (USB3_3_4)
  • Page 14 Description Slimline SAS Connector (SLIMLINE7) Slimline SAS Connector (SLIMLINE8) SATA3 Connector (SATA_5) Hot Plug Detect Header (HP_SMB) 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_C1)* 2 x 288-pin DDR4 DIMM Slots (DDR4_B1, DDR4_D1)* System Panel Header (PANEL1) Auxiliary Panel Header (AUX_PANEL1) Slimline SAS Connector (SLIMLINE9) SATA3 Connector (SATA_4) PCI Express 4.0 x24 Slot (PCIE2)

  • Page 15: Onboard Led Indicators

    ROME2D16HM3 1.5 Onboard LED Indicators...
  • Page 16 Item Status Description BMC_LED1 Green BMC heartbeat LED FAN_LED4 Amber FAN4 failed FAN_LED3 Amber FAN3 failed FAN_LED1 Amber FAN1 failed FAN_LED2 Amber FAN2 failed SB_PWR1 Green STB PWR ready...

  • Page 17: I/O Panel

    ROME2D16HM3 1.6 I/O Panel No. Description No. Description UID Switch (UID) LAN RJ-45 Port (IPMI_LAN1)* USB 3.2 Gen1 Ports (USB3_1_2) Mini DisplayPort (VGA1) LAN Port LED Indications *There are two LED next to the LAN port. Please refer to the table below for the LAN port LED indications.

  • Page 18: Block Diagram

    1.7 Block Diagram DDR4 Ch. A, B, C, D DDR4 Ch. E, F, G, H DDR4 Ch. I, J, K, L DDR4 Ch. M, N, O, P...

  • Page 19: Chapter 2 Installation

    ROME2D16HM3 Chapter 2 Installation This is a half form factor (20’’ x 6.6’’, 50.8 cm x 16.85 cm) motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Make sure to unplug the power cord before installing or removing the motherboard. Failure to do so may cause physical injuries to you and damages to motherboard components.

  • Page 20: Installing The Cpu

    2.3 Installing the CPU 1. Before you insert the CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found.
  • Page 21 ROME2D16HM3...
  • Page 22 Carr ier Frame with CPU Rail Frame Please make sure that the carrier frame with CPU is closely attached to the rail frame while inserting it. Install the carrier frame with CPU. Don’t separate them.
  • Page 23 ROME2D16HM3...

  • Page 24: Installation Of Memory Modules (Dimm)

    2.4 Installation of Memory Modules (DIMM) This motherboard provides eight 288-pin DDR4 (Double Data Rate 4) DIMM slots in two groups, and supports Eight Channel Memory Technology. CPU1 1 DIMM 2 DIMMS 4 DIMMS 8 DIMMS 1. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot; otherwise, this motherboard and DIMM may be damaged.
  • Page 25 ROME2D16HM3 The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

  • Page 26: Expansion Slots (Pci Express Slots)

    2.5 Expansion Slots (PCI Express Slots) There are 2 PCI Express slots on this motherboard. PCIE slot: PCIE1 and PCIE2 (PCIE 4.0 x16 slot, from CPU) are used for PCI Express x24 lane width cards. Slot Generation Mechanical Electrical Source PCIE1 CPU1 PCIE2...

  • Page 27: Onboard Headers And Connectors

    ROME2D16HM3 2.6 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard. System Panel Header...
  • Page 28 Front Panel Board Header Connect this header to the PWRBTN# +5VSB_FPB (9-pin 2U4N_FPB) Front Panel Board on the PLED- USB+0 (see p.6, No. 18) system. FP_RESETCON_N USB-0 LOCATORLED- +5V_FPB SLIMLINE SAS These connectors are used for Connectors the NVME PCIE devices. (SLIMLINE1) (see p.6, No.
  • Page 29 3-Pin CPU fan, (see p.6, No. 27) please connect it to Pin 1-3. (6-pin FAN3) *For more details, please refer to the Cooler QVL list on the ASRock Rack (see p.6, No. 21) website. (6-pin FAN4) (see p.6, No. 20)
  • Page 30 USB 3.2 Gen1 Header Besides two default USB 3.2 Vbus Vbus Vbus IntA_P3_SSRX- (19-pin USB3_3_4) Gen1 ports on the I/O panel, IntA_P2_SSRX- IntA_P3_SSRX+ (see p.6, No. 9) there is one USB 3.2 Gen1 IntA_P2_SSRX+ header on this motherboard. IntA_P3_SSTX- This USB 3.2 Gen1 header IntA_P2_SSTX- IntA_P3_SSTX+ IntA_P2_SSTX+...
  • Page 31 ROME2D16HM3 Baseboard Management This header is used for the SM BMC_SMBDATA Controller SMBus Header BUS devices. BMC_SMBCLK (5-pin BMC_SMB1) Power (see p.6, No. 48) BMC_SMB_PRESENT_1_N Serial Port Header This COM1 header RRXD1 DDCD#1 TTXD1 DDTR#1 (9-pin COM1) supports a serial port DDSR#1 (see p.6, No.

  • Page 32: Unit Identification Purpose Led/Switch

    2.7 Unit Identification purpose LED/Switch With the UID button, You are able to locate the server you’re working on from behind a rack of servers. Unit Identification When the UID button on the purpose LED/Switch front or rear panel is pressed, (UID) the front/rear UID blue LED indicator will be truned on.

  • Page 33: M.2_Ssd (Ngff) Module Installation Guide

    ROME2D16HM3 2.9 M.2 SSD Module Installation Guide The Hyper M.2 Socket (M2_1/M2_2, Key M) supports either a M.2 SATA3 6.0 Gb/s module or a M.2 PCI Express module up to Gen4 x4 (64Gb/s). The diagrams in this documentation are for reference only. The actual supported M.2 type varies per motherboard.
  • Page 34 Step 3 Move the standoff based on the module type and length. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut. Otherwise, release the standoff by hand. Step 4 Peel off the yellow protective film on the nut to be used.

  • Page 35: Chapter 3 Uefi Setup Utility

    ROME2D16HM3 Chapter 3 UEFI Setup Utility 3.1 Introduction This section explains how to use the UEFI SETUP UTILITY to configure your system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You may run the UEFI SETUP UTILITY when you start up the computer. Please press <F2> or <Del> during the Power-On-Self-Test (POST) to enter the UEFI SETUP UTILITY;...

  • Page 36: Navigation Keys

    3.1.2 Navigation Keys Please check the following table for the function description of each navigation key. Navigation Key(s) Function Description Moves cursor left or right to select Screens Moves cursor up or down to select items + / - To change option for the selected items <Tab>...

  • Page 37: Main Screen

    ROME2D16HM3 3.2 Main Screen Once you enter the UEFI SETUP UTILITY, the Main screen will appear and display the system overview. The Main screen provides system overview information and allows you to set the system time and date.

  • Page 38: Advanced Screen

    3.3 Advanced Screen In this section, you may set the configurations for the following items: CPU Configuration, Chipset Configuration, Storage Configuration, ACPI Configuration, USB Configuration, Super IO Configuration, Serial Port Console Redirection, H/W Monitor, PCI Subsystem Settings, AMD CBS, AMD PBS, PSP Firmware Versions, Tls Auth Configuration, Network Stack Configuration and Instant Flash.

  • Page 39: Cpu Configuration

    ROME2D16HM3 3.3.1 CPU Configuration SVM Mode Enable or disable CPU Virtualization. Node 0 Information View Memory Information related to Node 0. Node 1 Information View Memory Information related to Node 1.

  • Page 40: Chipset Configuration

    3.3.2 Chipset Configuration SPI/LPC TPM Switch Use this item to configure SPI/LPC TPM switch. OnBrd/Ext VGA Select Select between onboard or external VGA support. SLIMLINE1 Mode Use this item to configure SLIMLINE1 Mode. SLIMLINE3 Mode Use this item to configure SLIMLINE3 Mode. SLIMLINE9 Mode Use this item to configure SLIMLINE9 Mode.
  • Page 41 ROME2D16HM3 SLIMLINE2/SLIMLINE1 Link Width This allows you to select SLIMLINE2/SLIMLINE1 Link Width. The default value is [x4x4x4x4]. SLIMLINE4/SLIMLINE3 Link Width This allows you to select SLIMLINE4/SLIMLINE3 Link Width. The default value is [x4x4x4x4]. SLIMLINE6/SLIMLINE5 Link Width This allows you to select SLIMLINE6/SLIMLINE5 Link Width. The default value is [x4x4x4x4].

  • Page 42: Storage Configuration

    3.3.3 Storage Configuration SATA Hot Plug Enable/disable the SATA Hot Plug Function.

  • Page 43: Acpi Configuration

    ROME2D16HM3 3.3.4 ACPI Configuration PCIE Devices Power On Allow the system to be waked up by a PCIE device and enable wake on LAN. RTC Alarm Power On Use this item to enable or disable RTC (Real Time Clock) to power on the system.

  • Page 44: Usb Configuration

    3.3.5 USB Configuration Legacy USB Support Use this option to enable or disable legacy support for USB devices. The default value is [Enabled].

  • Page 45: Super Io Configuration

    ROME2D16HM3 3.3.6 Super IO Configuration Serial Port 1 Configuration Use this item to set parameters of Serial Port 1 (COM1). Serial Port Use this item to enable or disable the serial port. Serial Port Address Use this item to select an optimal setting for Super IO device.

  • Page 46: Serial Port Console Redirection

    3.3.7 Serial Port Console Redirection COM1 / SOL Console Redirection Use this option to enable or disable Console Redirection. If this item is set to Enabled, you can select a COM Port to be used for Console Redirection. Console Redirection Settings Use this option to configure Console Redirection Settings, and specify how your computer and the host computer to which you are connected exchange information.
  • Page 47 ROME2D16HM3 Bits Per Second Use this item to select the serial port transmission speed. The speed used in the host computer and the client computer must be the same. Long or noisy lines may require lower transmission speed. The options include [9600], [19200], [38400], [57600] and [115200].
  • Page 48 Redirect After POST When Bootloader is selected, then Legacy Console Redirection is disabled before booting to legacy OS. When Always Enable is selected, then Legacy Console Redirection is enabled for legacy OS. Default setting for this option is set to Always Enable. Serial Port for Out-of-Band Management/Windows Emergency Management Services (EMS) Console Redirection...

  • Page 49: H/W Monitor

    ROME2D16HM3 3.3.8 H/W Monitor In this section, it allows you to monitor the status of the hardware on your system, includ- ing the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage.

  • Page 50: Pci Subsystem Settings

    3.3.9 PCI Subsystem Settings Above 4G Decoding Enable or disable 64bit capable Devices to be decoded in Above 4G Address Space (only if the system supports 64 bit PCI decoding). SR-IOV Support If system has SR-IOV capable PCIe Devices, this option Enables or Disables Single Root IO Virtualization Support.

  • Page 51: Amd Cbs

    ROME2D16HM3 3.3.10 AMD CBS CPU Common Options Use this item to configure CPU Common options. DF Common Options Use this item to configure DF Common options. UMC Common Options Use this item to configure UMC Common options. NBIO Common Options Use this item to configure NBIO Common options.

  • Page 52: Amd Pbs

    3.3.11 AMD PBS Use this item to configure AMD CPM RAS related settings.

  • Page 53: Psp Firmware Versions

    ROME2D16HM3 3.3.12 PSP Firmware Versions The PSP Firmware Verions displays the version information of PSP Recovery BL, PSP BootLoader, SMU FW, ABL, APCB, APDB, and APPB.

  • Page 54: Tls Auth Configuration

    3.3.13 Tls Auth Configuration Server CA Configuration Press <Enter> to configure Server CA. Client Cert Configuration Enroll Cert Press <Enter> to enroll cert. Delete Cert Press <Enter> to delete cert.

  • Page 55: Network Stack Configuration

    ROME2D16HM3 3.3.14 Network Stack Configuration Network Stack Use this item to enable or disable UEFI Network Stack. Ipv4 PXE Support Use this item to enable or disable IPv4 PXE boot support. If disabled, IPv4 PXE boot support will not be available.
  • Page 56 PXE boot wait time Wait time in seconds to press ESC key to abort the PXE boot. Use either +/- or numeric keys to set the value. Media detect count Number of times the presence of media will be checked. Use either +/- or numeric keys to set the value.

  • Page 57: Instant Flash

    ROME2D16HM3 3.3.17 Instant Flash Instant Flash is a UEFI flash utility embedded in Flash ROM. This convenient UEFI update tool allows you to update system UEFI without entering operating systems ® first like MS-DOS or Windows . Just save the new UEFI file to your USB flash drive,...

  • Page 58: Server Mgmt

    3.4 Server Mgmt Wait For BMC Wait For BMC response for specified time out. BMC starts at the same time when BIOS starts during AC power ON. It takes around 90 seconds to initialize Host to BMC interfaces.

  • Page 59: System Event Log

    ROME2D16HM3 3.4.1 System Event Log SEL Components Change this to enable ro disable event logging for error/progress codes during boot. Erase SEL Use this to choose options for earsing SEL. When SEL is Full Use this to choose options for reactions to a full SEL.

  • Page 60: Bmc Network Configuration

    3.4.2 BMC Network Configuration BMC Out of Band Access Use this item to enable or disable BMC Out of Band Access. Lan Channel (Failover) Manual Setting IPMI LAN If [No] is selected, the IP address is assigned by DHCP. If you prefer using a static IP address, toggle to [Yes], and the changes take effect after the system reboots.
  • Page 61 ROME2D16HM3 The default login information for the IPMI web interface is: Username: admin Password: admin For more instructions on how to set up remote control environment and use the IPMI man- agement platform, please refer to the IPMI Configuration User Guide or go to the Support...

  • Page 62: Bmc Tools

    3.4.3 BMC Tools Load BMC Default Settings Use this item to Load BMC Default Settings. KCS Control Use this item to configure KCS Settings.

  • Page 63: Security

    ROME2D16HM3 3.5 Security In this section, you may set or change the supervisor/user password for the system. For the user password, you may also clear it. Supervisor Password Set or change the password for the administrator account. Only the administrator has authority to change the settings in the UEFI Setup Utility.

  • Page 64: Key Management

    3.5.1 Key Management In this section, expert users can modify Secure Boot Policy variables without full authenti- cation. Factory Key Provision Install factory default Secure Boot keys after the platform reset and while the System is in Setup mode. Install Default Secure Boot Keys Please install default secure boot keys if it’s the first time you use secure boot.
  • Page 65 ROME2D16HM3 b) EFI_CERT_X509 (DER encoded) c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHA256, 384, 512 2. Authenticated UEFI Variable 3. EFI PE/COFF Image(SHA256) Key Source: Default, External, Mixed, Test Key Exchange Keys Enroll Factory Defaults or load certificates from a file: 1. Public Key Certificate in:...
  • Page 66 1. Public Key Certificate in: a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER encoded) c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHA256, 384, 512 2. Authenticated UEFI Variable 3. EFI PE/COFF Image(SHA256) Key Source: Default, External, Mixed, Test Authorized TimeStamps Enroll Factory Defaults or load certificates from a file: 1.

  • Page 67: Boot Screen

    ROME2D16HM3 3.6 Boot Screen In this section, it will display the available devices on your system for you to configure the boot settings and the boot priority. Boot Option #1 Use this item to set the system boot order. Boot Option #2 Use this item to set the system boot order.
  • Page 68 Bootup Num-Lock If this item is set to [On], it will automatically activate the Numeric Lock function after boot-up. Boot Beep Select whether the Boot Beep should be turned on or off when the system boots up. Please note that a buzzer is needed. Full Screen Logo Use this item to enable or disable OEM Logo.

  • Page 69: Csm Parameters

    ROME2D16HM3 3.6.1 CSM Parameters Enable to launch the Compatibility Support Module. Please do not disable unless you’re running a WHCK test. Launch PXE OpROM Policy Select UEFI only to run those that support UEFI option ROM only. Select Legacy only to run those that support legacy option ROM only. Select Do not launch to not execute both legacy and UEFI option ROM.

  • Page 70: Event Logs

    3.7 Event Logs Change Smbios Event Log Settings This allows you to configure the Smbios Event Log Settings. When entering the item, you will see the followings: Smbios Event Log Use this item to enable or disable all features of the SMBIOS Event Logging during system boot.
  • Page 71 ROME2D16HM3 entries which utilize a multiple-event counter. The value ranges from 0 to 99 minutes. Log EFI Status Code Enable or disable the logging of EFI Status Codes as OEM reserved type E0 (if not already converted to legacy). Convert EFI Status Codes to Standard Smbios Type Enable or disable the converting of EFI Status Codes to Standard Smbios Types (Not all may be translated).

  • Page 72: Exit Screen

    3.8 Exit Screen Save Changes and Exit When you select this option, the following message “Save configuration changes and exit setup?” will pop-out. Press <F10> key or select [Yes] to save the changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option, the following message “Discard changes and exit setup?”...

  • Page 73: Chapter 4 Software Support

    4.2.4 Contact Information If you need to contact ASRock Rack or want to know more about ASRock Rack, welcome to visit ASRock Rack’s website at http://www.ASRockRack.com; or you may contact your...

  • Page 74: Chapter 5 Troubleshooting

    Chapter 5 Troubleshooting 5.1 Troubleshooting Procedures Follow the procedures below to troubleshoot your system. Always unplug the power cord before adding, removing or changing any hardware com- ponents. Failure to do so may cause physical injuries to you and damages to motherboard components.
  • Page 75 1. Verify if the battery on the motherboard provides ~3VDC. Install a new battery if it does not. 2. Confirm whether your power supply provides adaquate and stable power. Other problems... 1. Try searching keywords related to your problem on ASRock Rack’s FAQ page: http://www.asrockrack.com/support...

  • Page 76: Technical Support Procedures

    5.2 Technical Support Procedures If you have tried the troubleshooting procedures mentioned above and the problems are still unsolved, please contact ASRock Rack’s technical support with the following information: 1. Your contact information 2. Model name, BIOS version and problem type.
