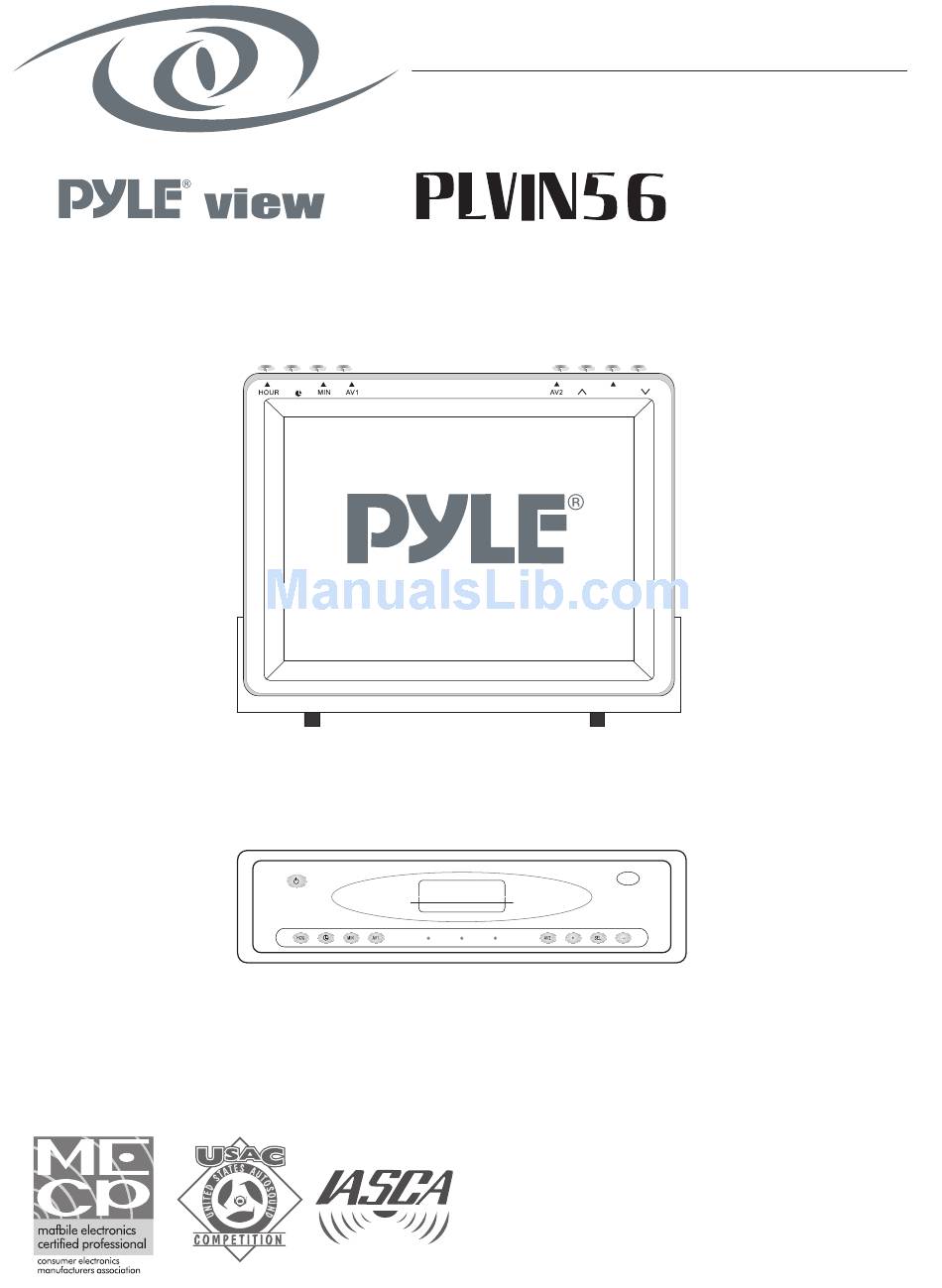

- Page 1 Ｉ Ｎ Ｓ Ｔ Ｒ Ｕ Ｃ Ｔ Ｉ Ｏ Ｎ Ｍ Ａ Ｎ Ｕ Ａ Ｌ IN DASH COLOR TT-LCD MONITOR ＳＥＬＥＣＴ ＰＯＷＥＲ ＯＮ ＣＯＬＯＲ ＴＦＴ ＬＣＤ ＩＮ ＤＡＳＨ ＭＯＮＩＴＯＲ 5.6 IN-DASH TFT-LCD MONITOR...
-
Page 2: Remote Control Operation
Thanks for purchasing In-dash type TFT-LCD Monitor. Please read this menu carefully before the installation. ******************************** Remote Control Operation ＰＯＷＥＲ POWER ＢＲＩ／ＣＯＬ ＢＲＩ／ＣＯＬ BRI/COL Ａ Ｖ１ Ａ Ｖ２ ＴＦＴ－ＬＣＤ ＭＯＮＩＴＯＲ TFT-LCD MONITOR ＲＥＭＯＴＥ ＣＯＮＴＲＯＬ ＵＮＩＴ REMOTE CONTROL UNIT Operation 1.Press the open button and the screen wil pop-up automatically. - Page 3 Instruction for Panel Functions COLOR TFT-LCD Ａ Ｖ Ａ Ｖ１ １ 1.Power--Monitor Power Switch Push this button to turn on the monitor power supply. Power supply indication-lamp 9 will be turned on. Push this button again to turn off the monitor power supply. Power supply indication-lamp 9 will be turned off.
-
Page 4: Specifications
Specifications Electric Properties 1.Power Requirements: 2.Power output: 3.Video color system: 4.TFT Display Angle: Mechanic Rotate Angle: 5.Effective Display Size: 6.Back light: 7.Digital Clock display Mode: 8.Clock Oscillation Mode: 9.Pixs: Usage Environment 1.Environment Temperature: 2.relative Humidity: 12-14.4V DC 10 W PAL/NTSC Horizontal:+45 ;Vertical:+55 Horizontal:+30 ;vertical:0-+120 5.6inch(diagonal)
