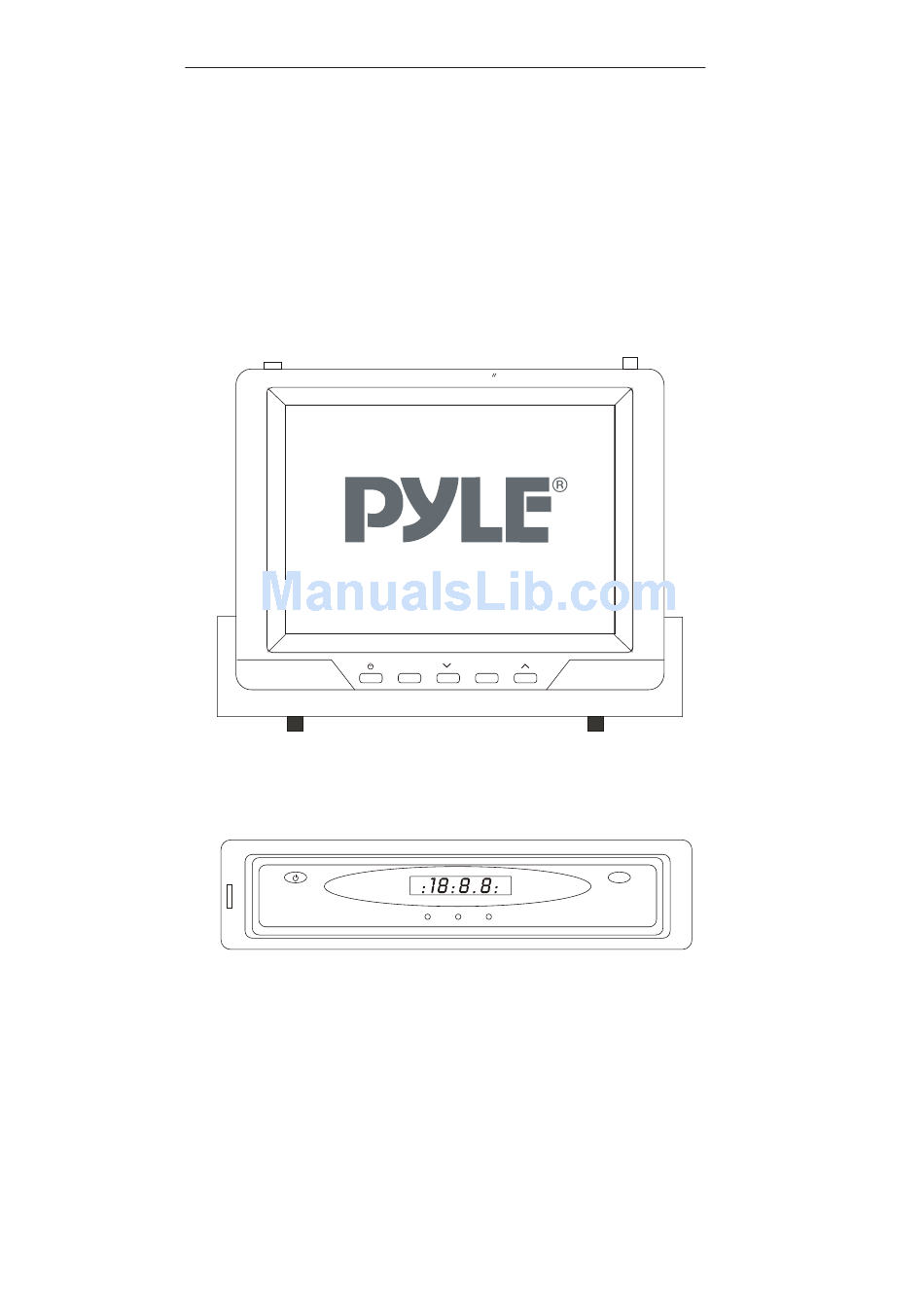

- Page 1 INSTRUCTION MANUAL IN DASH COLOR TFT-LCD MONITOR PLVIN60 PLVIN60 6 IN DASH TFT-LCD MONITOR AV1/2 POWER OPEN/CLOSE...
- Page 2 Thanks for purchasing In-dash type TFT-LCD Monitor. Please read this menu carefully before the installation. Remote Control Operation POWER TFT-LCD MONITOR Operation 1.Press the open button and the screen wil pop-up automatically. 3.Upturn the screen, the maximum angle is 120 . Power On/Off Brightness adjustment Color adjustment...
- Page 3 Instruction for Panel Functions POWER 1 . S c r e e n p o w e r s w i t c h P r e s s p o w e r t o s w i t c h o n t h e p r o d u c t s , t h e c l o c k a p p e a r s a n d t h e b a c k g r o u n d l i g h t s o n a n d p r e s s p o w e r a g a i n t o t u r n o f f .
- Page 4 Specifications 1.Power requirements DC12-14.4V 2.Power output 3.Video color system NTSC 4.TFT display angle Horizontal:+ 45 ; Vertical:+55 Mechanic rotate angle Horizontal:+30 ; Vertical:0~120 5.Effective display size 6 inch 6.Back light board use longevity 25, Min=10,000h 7.Digital Clock Display mode 24-hour LED display 8.Clock oscillation mode Quartz crystal 9.Environment temperature...
