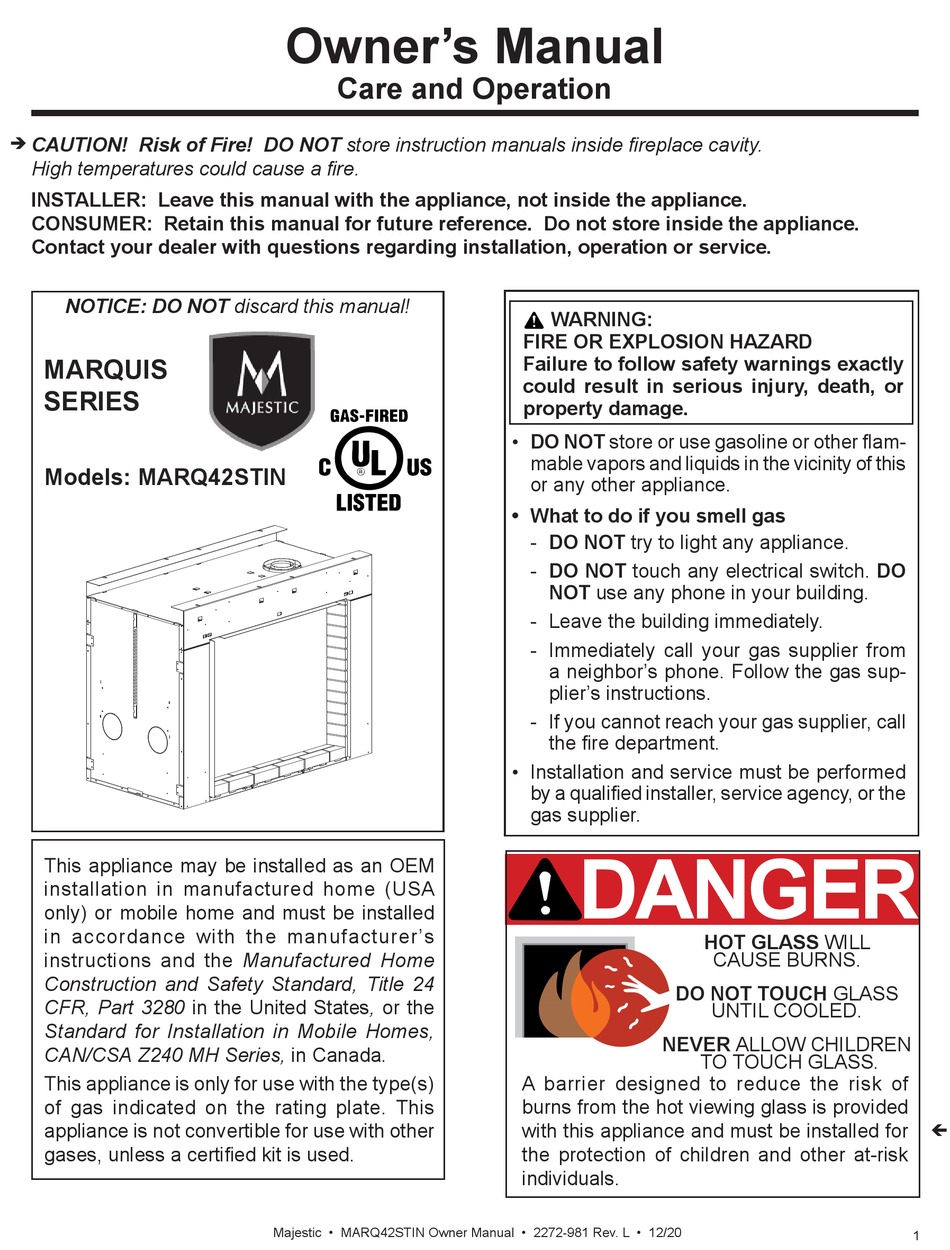

CAUTION! Risk of Fire! DO NOT store instruction manuals inside fireplace cavity.
High temperatures could cause a fire.
INSTALLER: Leave this manual with the appliance, not inside the appliance.
CONSUMER: Retain this manual for future reference. Do not store inside the appliance.
Contact your dealer with questions regarding installation, operation or service.
NOTICE: DO NOT discard this manual!
MARQUIS
SERIES
Models: MARQ42STIN
This appliance may be installed as an OEM
installation in manufactured home (USA
only) or mobile home and must be installed
in accordance with the manufacturer's
instructions and the Manufactured Home
Construction and Safety Standard, Title 24
CFR, Part 3280 in the United States, or the
Standard for Installation in Mobile Homes,
CAN/CSA Z240 MH Series, in Canada.
This appliance is only for use with the type(s)
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certified kit is used.
Owner's Manual
Care and Operation
Majestic • MARQ42STIN Owner Manual • 2272-981 Rev. L • 12/20
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
• DO NOT store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from
a neighbor's phone. Follow the gas sup-
plier's instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or the
gas supplier.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and must be installed for
the protection of children and other at-risk
individuals.
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
1
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Majestic MARQUIS Series
Summary of Contents for Majestic MARQUIS Series
- Page 1 gases, unless a certified kit is used. the protection of children and other at-risk individuals. Majestic • MARQ42STIN Owner Manual • 2272-981 Rev. L • 12/20...
-
Page 2: Welcome
BTUH: 00,000 00,000 00,000 00,000 MIN. MIN. INPUT INPUT BTUH: BTUH: 00,000 00,000 00,000 00,000 Serial Serial XXXXXXXX XXXXXXXX ORIFICE ORIFICE SIZE: SIZE: #XXXXX #XXXXX #XXXXX #XXXXX (Serie): (Serie): Majestic • MARQ42STIN Owner Manual • 2272-981 Rev. L • 12/20... -
Page 3: Table Of Contents
C. Contact Information ......28 = Contains updated information. Majestic • MARQ42STIN Owner Manual • 2272-981 Rev. L • 12/20... -
Page 4: Limited Lifetime Warranty
Firebox and heat exchanger, FlexBurn® System 3 years Lifetime (engine, inner cover, access cover and fireback) None 1 Year All purchased replacement parts Page 1 of 2 4021-645L 10/20 Majestic • MARQ42STIN Owner Manual • 2272-981 Rev. L • 12/20... - Page 5 EXPRESSED WARRANTY SPECIFIED ABOVE FOR THE APPLICABLE PRODUCT. Some States do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Page 2 of 2 4021-645L 10/20 Majestic • MARQ42STIN Owner Manual • 2272-981 Rev. L • 12/20...
-
Page 6: Product Specific Information
Installation and service of this appliance should be performed by qualified personnel. Hearth & Home Technologies recommends HHT Factory Trained or NFI certified professionals. Majestic • MARQ42STIN Owner Manual • 2272-981 Rev. L • 12/20... -
Page 7: Important Safety And Operating Information
• Keep remote controls out of reach of children. Figure 3.1 Clear Space Requirement - All Models • Never leave children alone near a hot fireplace, whether operating or cooling down. Majestic • MARQ42STIN Owner Manual • 2272-981 Rev. L • 12/20... -
Page 8: General Operating Parts
Use appropriate finishing materials that are able to withstand these conditions. For additional finishing guidelines, see Section 10 in the appliance installation manual. Majestic • MARQ42STIN Owner Manual • 2272-981 Rev. L • 12/20... - Page 9 Sugges ons on how to further reduce TV temperatures: Increase “A” dimension. Increase “C” dimension, however, increasing “B” dimension beyond maximum recommended typically results in higher temperatures. Figure 3.4. Good Faith TV Guidelines Majestic • MARQ42STIN Owner Manual • 2272-981 Rev. L • 12/20...
-
Page 10: Before Lighting Appliance
• Ensure that the glass is sealed and in the proper position and that the integral barrier is in place. WARNING! Risk of Fire or Asphyxiation! DO NOT op- erate fireplace with fixed glass assembly removed. Majestic • MARQ42STIN Owner Manual • 2272-981 Rev. L • 12/20... -
Page 11: Lighting Instructions (Ipi)
For additional information on operating your Keep burner and control compartment clean. See installation and operating instructions Hearth & Home Technologies fireplace, please 593-913K accompanying appliance. refer to www.hearthnhome.com. Majestic • MARQ42STIN Owner Manual • 2272-981 Rev. L • 12/20... -
Page 12: Appliance Break-In
Note: Some IPI systems have a safety feature that automatically shuts down the fireplace after 9 hours of continuous operation without receiving a command from the remote control. If this occurs, restart the appliance. Majestic • MARQ42STIN Owner Manual • 2272-981 Rev. L • 12/20... -
Page 13: Operation During A Power Outage - Intellifire
Slide the ON/REMOTE/OFF switch to the ON position. NOTICE: Some functionality will be lost when using battery backup including fan, lights, or any other auxiliary functions that require household 110-120 VAC power. Majestic • MARQ42STIN Owner Manual • 2272-981 Rev. L • 12/20... -
Page 14: Detailed Component Operating Instructions - Intellifire
2. If multiple control options are installed, the IFT-ECM will respond to the last command from the wired wall switch, IFT-RC400 or IFT-RC150. The wired wall switch is NOT available if a Power Vent is used. Majestic • MARQ42STIN Owner Manual • 2272-981 Rev. L • 12/20... -
Page 15: Touch
Remove batteries before using the transformer, and unplug the transformer before installing the batteries. Battery polarity must be correct or module damage will occur. Majestic • MARQ42STIN Owner Manual • 2272-981 Rev. L • 12/20... -
Page 16: Maintenance And Service
CAUTION! Risk of Burns! The fireplace should be turned off and cooled before servicing. Majestic • MARQ42STIN Owner Manual • 2272-981 Rev. L • 12/20... -
Page 17: Maintenance Tasks - Qualified Service Technician
Tools Needed: Protective gloves, ceramic glass cleaner, drop cloth and a stable work surface. WARNING! Risk of Injury! Glass installation and re- moval must be performed only by a qualified service tech- nician. Majestic • MARQ42STIN Owner Manual • 2272-981 Rev. L • 12/20... - Page 18 Verify proper operation after servicing. WARNING! Risk of Shock! Replace damaged wire with type 105º C rated wire. Wire must have high temperature Figure 4.1 IPI Pilot Flame Patterns insulation. Majestic • MARQ42STIN Owner Manual • 2272-981 Rev. L • 12/20...
-
Page 19: Frequently Asked Questions And Troubleshooting
Surfaces above and around the appli- Section 3. Specifications of the attached non-combustible material are listed in the Install- ance feel hot to the touch. er’s Manual for this appliance. Majestic • MARQ42STIN Owner Manual • 2272-981 Rev. L • 12/20... -
Page 20: Frequently Asked Questions - Intellifire Touch Controls (Ift-Rc400)
90 seconds. If this failure appliance did not start. Try again period of appliance inactivity. persists, contact dealer for service. by pressing Flame On. Gas control system failure. Majestic • MARQ42STIN Owner Manual • 2272-981 Rev. L • 12/20... -
Page 21: Troubleshooting
If open or shorted, replace valve. Check valve harness wire continuity, if open replace 6-pin harness. Pilot won’t light, there is no noise Spark coil failure. Replace ECM. or spark, 2 Red/2 Green Lockout. Majestic • MARQ42STIN Owner Manual • 2272-981 Rev. L • 12/20... - Page 22 Check resis- Damaged pilot assembly. tance between tip of sense rod and IFT-ECM connector, should be less than 1 ohm. Replace pilot assembly if damage is de- tected. Majestic • MARQ42STIN Owner Manual • 2272-981 Rev. L • 12/20...
-
Page 23: Reference Materials
After a qualified service technician has installed the Heat- Zone Gas Kit, follow the instruction supplied with the kit ® for operation. See your dealer if you have questions. Majestic • MARQ42STIN Owner Manual • 2272-981 Rev. L • 12/20... -
Page 24: Service Parts
B. Service Parts Beginning Manufacturing Date: Oct 2016 Ending Manufacturing Date: Active Marquis 42” See Through Gas Fireplace - DV Log Set Assembly Part number list on following page. 12/20 Majestic • MARQ42STIN Owner Manual • 2272-981 Rev. L • 12/20... - Page 25 050-721 Mineral Wool Remote RC400 SRV2326-110 Teco-Sil, 5lb. Bag White Ember Bed Rock SRV700-790 Touch Up Paint TUP-GBK-12 Vermiculite Embers MYSTIC-EMBERS Additional service part numbers appear on following page. Majestic • MARQ42STIN Owner Manual • 2272-981 Rev. L • 12/20...
- Page 26 SRV2326-131 23.15 **Fuse for battery pack can be sourced locally, not a warranty item. Specs are 250v, 3A fuse, 3/4” long Additional service part numbers appear on following page. Majestic • MARQ42STIN Owner Manual • 2272-981 Rev. L • 12/20...
- Page 27 BRICKMQ42STTB Conversion Kits Conversion Kit, NG NGKMARQ42ST Conversion Kit, Propane LPKMARQ42ST Pilot Orifice, NG SRV593-528 Pilot Orifice, Propane SRV593-527 Regulator, NG w/stepper motor NGK-DXV-50 Regulator, Propane w/stepper motor SRVLPK-DXV-50 Majestic • MARQ42STIN Owner Manual • 2272-981 Rev. L • 12/20...
-
Page 28: Contact Information
This product may be covered by one or more of the following patents: (United States) 6601579, 6769426, 6863064, 7077122, 7074035, 7098269, 7234932, 7258116, 7322819, 7422011, 7470729, 7726300, 8147240, 9625149 or other U.S. and foreign patents pending. 2000-945E Printed in U.S.A. - Copyright 2020 Majestic • MARQ42STIN Owner Manual • 2272-981 Rev. L • 12/20...
