Majestic MARQ36IN Glass Refractory Installation Instructions
Hide thumbs
Also See for MARQ36IN:
- Installation manual (63 pages) ,
- Owner's manual (33 pages) ,
- Installation instructions manual (7 pages)
Advertisement
Quick Links
Models: MARQ36IN, MARQ42IN, MARQ36IN-B, MARQ42IN-B
Leave this manual with party responsible for use
and operation.
CAUTION! Risk of Cuts or Abrasions. Wear protective
gloves and safety glasses during installation.
NOTICE: Handle refractory panels with care. Refractory
may chip or crack if dropped or impacted.
SPECIAL TOOLS
Screw gun equipped with 1/4 in. socket
1/4 in. wrench or socket
Phillips screwdriver bit for screw gun
REFRACTORY KIT COMPONENTS
(1) Left Glass Refractory Panel
(1) Right Glass Refractory Panel
(1) Rear Glass Refractory Panel
(2) Side White Refractory Spacers
(1) Rear White Refractory Spacer
(2) Edge Brackets
(1) Rear Light Cover
COMPONENTS SOLD SEPARATELY
(1) Right Base Refractory
(1) Left Rear Base Refractory
(1) Left Front Base Refractory
(1) Center Base Refractory
(1) Top Refractory
NOTE: The pictures show the MARQ36IN, MARQ42IN
base refractory being installed. The same instructional
steps apply to MARQ36IN-B, MARQ42IN-B.
Majestic • GLMQ36, GLMQ42 Glass Refractory Kit Instructions • 2270-933 Rev. D • 1/19
GLMQ36, GLMQ42
Glass Refractory Installation Instructions -
INSTALLATION

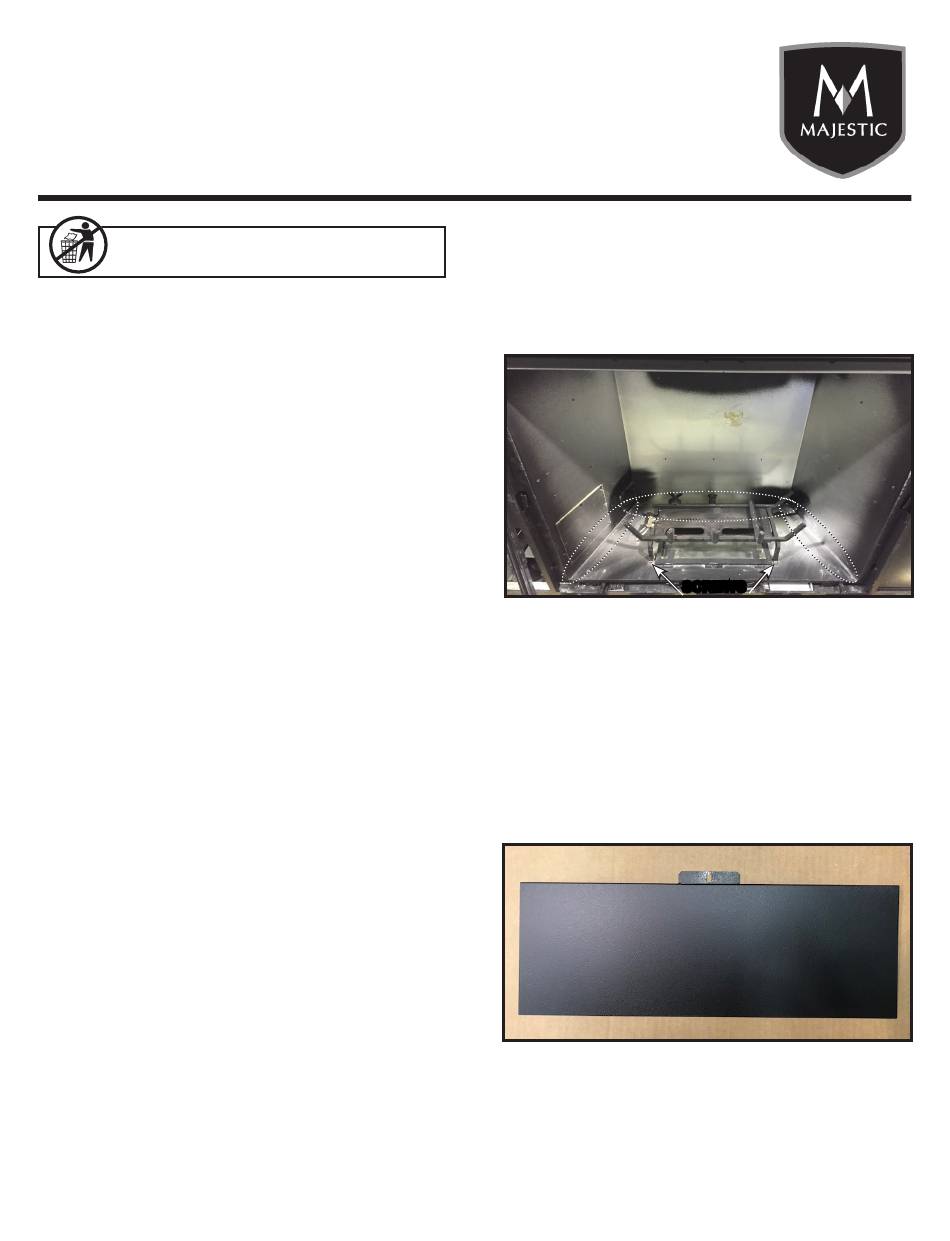

1. Examine the firebox and clear any debris from the base
Figure 1 Firebox
2. Remove the grate / burner assembly by removing the
3. Locate the rear light cover. See Figure 2.
Figure 2 Rear Light Cover
and corners. Remaining debris may prevent correct fit
up of refractory. See Figure 1.
SCREWS
screws that fasten the grate to the bottom of the fire-
box. See Figure 1. Pull the grate / burner assembly
towards you so that it disengages from the orifice on
the back wall and place the entire grate / burner as-
sembly in a safe place.
1
Advertisement
Related Manuals for Majestic MARQ36IN
Summary of Contents for Majestic MARQ36IN
- Page 1 (1) Left Front Base Refractory 3. Locate the rear light cover. See Figure 2. (1) Center Base Refractory (1) Top Refractory NOTE: The pictures show the MARQ36IN, MARQ42IN base refractory being installed. The same instructional steps apply to MARQ36IN-B, MARQ42IN-B. Figure 2 Rear Light Cover Majestic • GLMQ36, GLMQ42 Glass Refractory Kit Instructions • 2270-933 Rev. D • 1/19...
-
