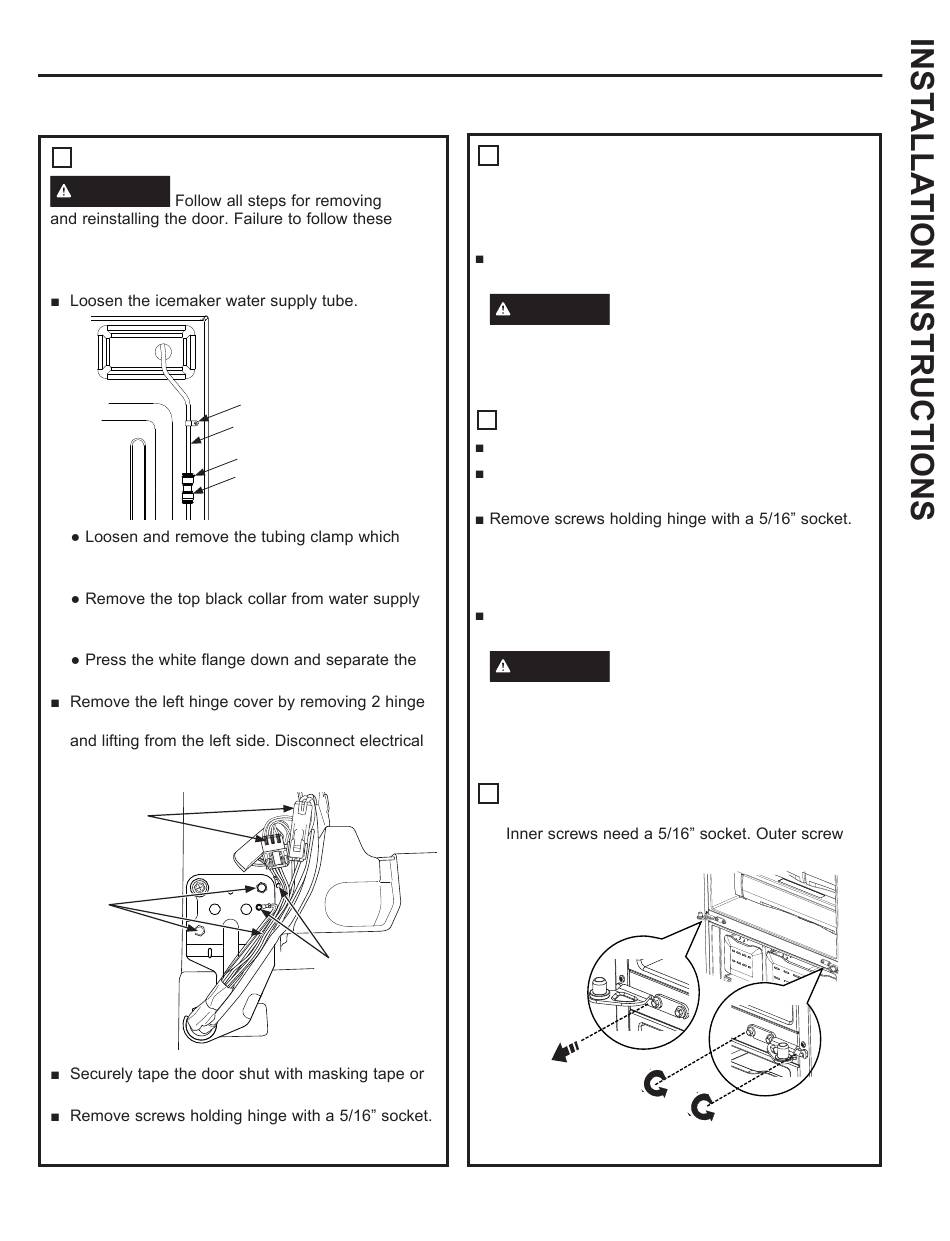

Installation Instructions
INSTALLING THE REFRIGERATOR (Cont.)
2
REMOVE THE LEFT-HAND DOOR
WARNING
instructions, leaving off parts, or overtightening
screws, can lead to the door falling off and result in
injury and property damage.
holds the water supply tube to the back of the
refrigerator.
tube connector at the top right back of the
refrigerator.
water supply line from the connector.
cover screws with a Phillips head screwdriver
connectors and pull the water supply tube through
the case.
Electrical
Connections
Hinge
Screws
have a second person support the door.
Lift hinge from refrigerator and door.
49-1000332 Rev. 4
Tubing Clamp
Water Supply Tube
Collar
Connector
Ground
Screws
2
REMOVE REFRIGERATOR DOORS
(cont)
For proper installation later, please follow
these next steps carefully:
Remove the tape keeping the door as straight as
possible, then lift up to remove.
CAUTION
Lifting Hazard.
A single person lift could cause injury. Gain
assistance when handling, moving, or lifting
refrigerator doors.
3 REMOVE THE RIGHT-HAND DOOR
Remove right hinge cover.
Securely tape the door shut with masking tape or
have a second person support the door.
Lift hinge from refrigerator and door.
For proper installation later, please follow
these next steps carefully:
Remove the tape keeping the door as straight as
possible, then lift up to remove.
CAUTION
Lifting Hazard.
A single person lift could cause injury. Gain
assistance when handling, moving, or lifting
refrigerator doors.
To reassemble doors, reverse removal steps.
4 REMOVE CENTER HINGE (if necessary)
Remove screws that secure hinge to the cabinet.
needs a Phillips #2.
Remove
center screw
Loosen outer
screws
