Installation Instructions

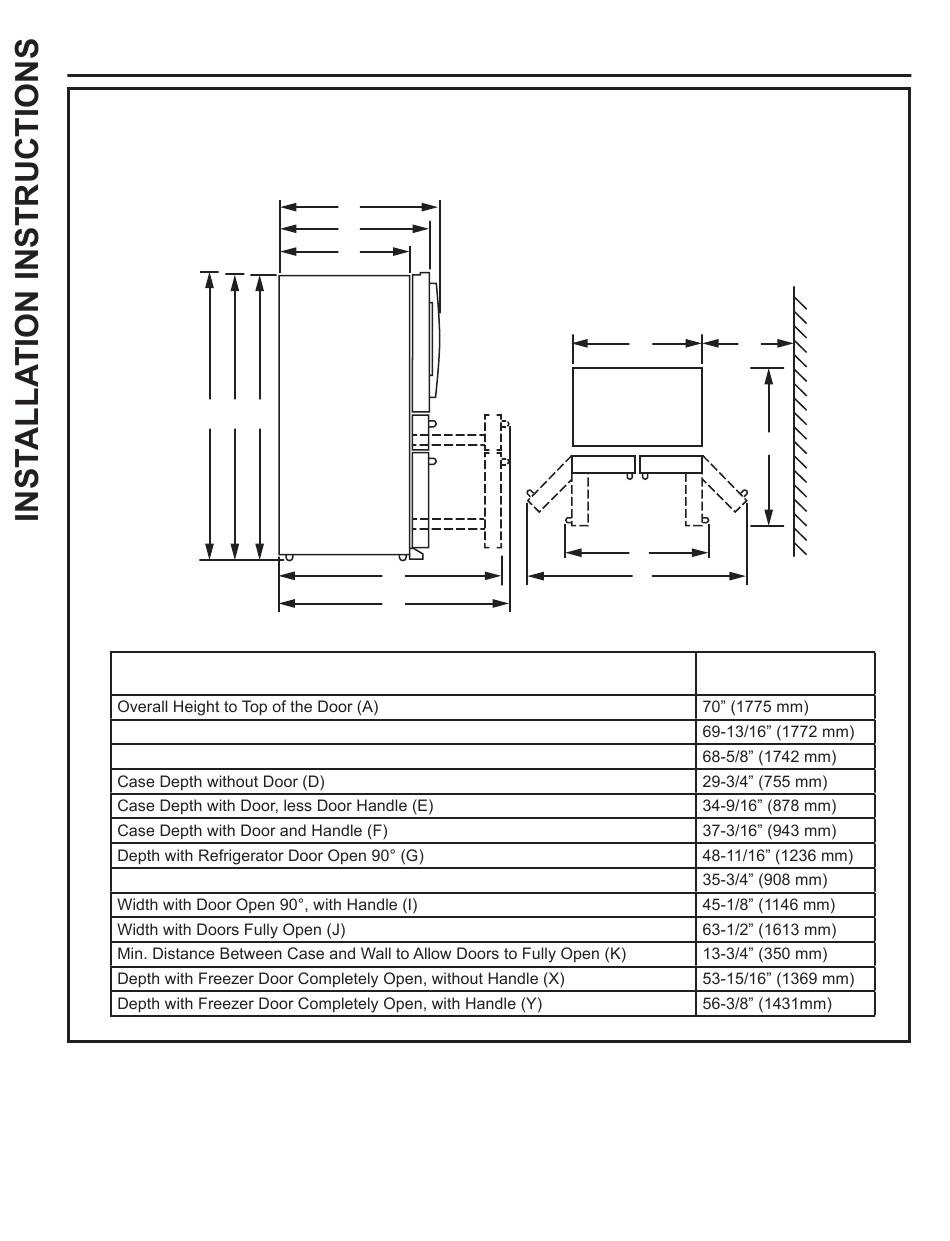

DIMENSIONS
NOTE: It is recommended that the floor be protected with a plastic covering throughout the installation process.
NOTE: Not recommended for installation on carpeted flooring.
A
Height to Top of Hinge Cover (B)
Height to Top of Case (C)
Width (H)
22
F
E
D
B C
X
Y
H K
G
I
J
Standard Depth
Models
