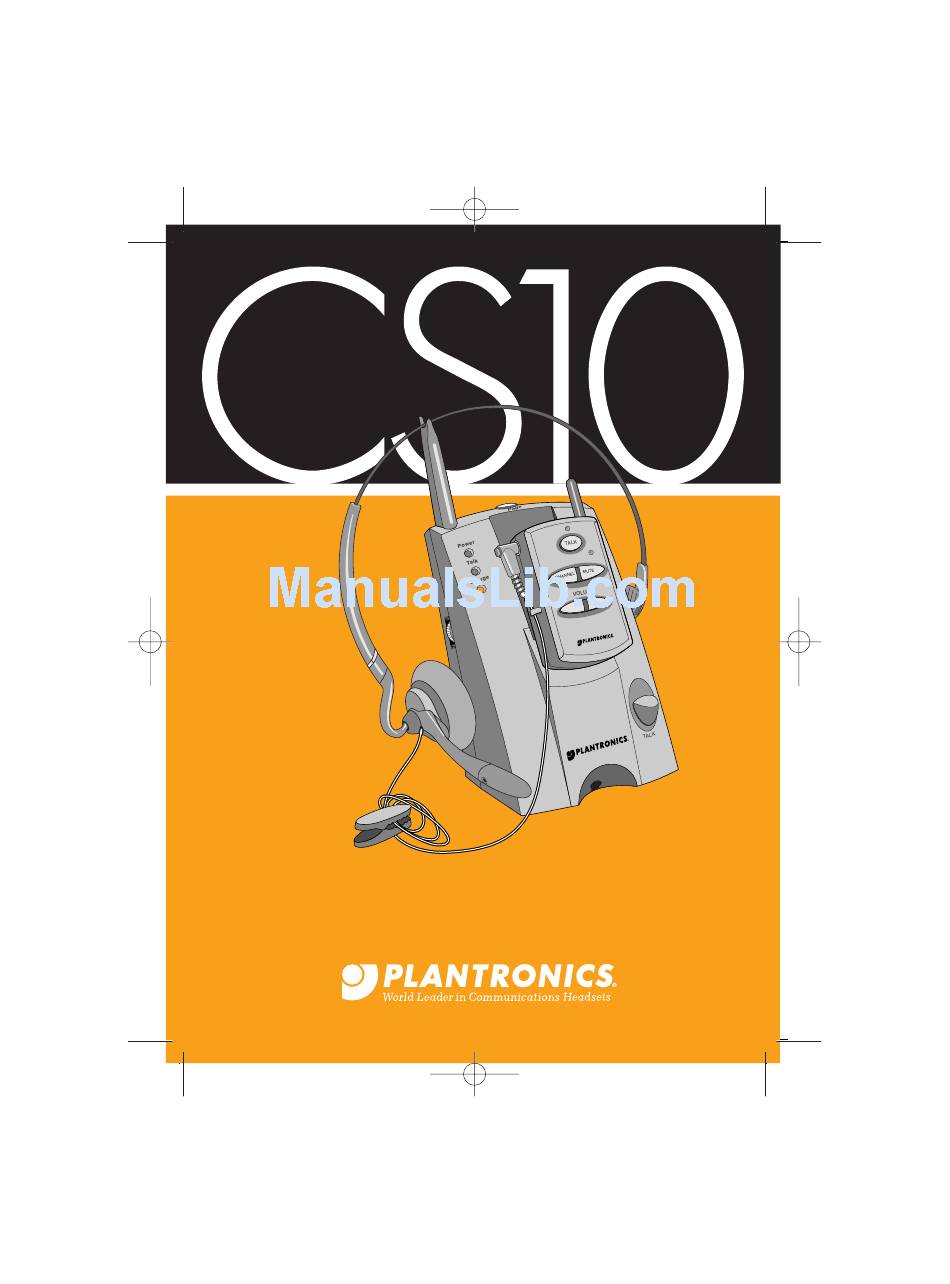

- Page 1 CS10Prdct Info Bklt13.R2 12/27/01 Includes: safety instructions specific operating instructions alternate headset configurations troubleshooting warranty and other information Product Information Booklet 4:23 PM Page 1 Cordless Telephone Headset System...
-
Page 2: Table Of Contents
CS10Prdct Info Bklt13.R2 12/27/01 WELCOME Thank you for purchasing the CS10 Cordless Telephone Headset System. This Product Information Booklet provides additional product details once you have used the Quick Start Guide to set up and test your system. 4:23 PM... -
Page 3: Safety Information
CS10Prdct Info Bklt13.R2 12/27/01 SAFETY INSTRUCTIONS When using your telephone equipment these basic safety precautions should be followed to reduce the risk of fire, electric shock, and injury to persons. Read and understand all instructions. Follow all warnings and instructions marked on the product. - Page 4 CS10Prdct Info Bklt13.R2 12/27/01 Do not overload outlets and extension cords as this can result in risk of fire or electric shock. Never push objects of any kind into this product as they may touch dan- gerous voltage points or short out parts that could result in a risk of fire or electric shock.
- Page 5 This product is intended to be supplied by a Listed Class 2 Direct Plug - In Power Unit rated 9VDC 800mA. Plantronics Part No. 45669- 01, rated at an input voltage of 120 VAC, 60Hz and an output voltage of 9 VDC at 800mA.
- Page 6 CS10Prdct Info Bklt13.R2 12/27/01 BATTERY PRECAUTIONS To reduce the risk of fire or injury to persons, read and follow these instructions. Use only the battery pack supplied with this product. Do not dispose of battery pack in a fire. The cells may explode.
-
Page 7: Operating Instructions
CS10Prdct Info Bklt13.R2 12/27/01 OPERATING INSTRUCTIONS Placing a Call With your headset in position move the telephone handset off its cradle. Press the talk button on either the remote or the base unit. The in-use indicators light and you will hear a dial tone. -
Page 8: Receiving A Call
CS10Prdct Info Bklt13.R2 12/27/01 Receiving a Call When your telephone notifies you of an incoming call, put on your headset and lift the telephone handset off its cradle. Press the talk button on either the remote or the base. The in-use indicator lights will go on. -
Page 9: Re-Configure Headset
CS10Prdct Info Bklt13.R2 12/27/01 HOW TO RE-CONFIGURE YOUR HEADSET Your CS10 system comes with the Plantronics Convert- ible headset. This headset allows for use in the Over- the-Head or Over-the-Ear configuration on the right side or left side. The headset is shipped in the Over-the-Head configuration. - Page 10 Push pin portion of the flexible earloop through hole in pivot ball ring. Reverse the pin direction for left ear. Note: For added stability, press the headset cord under the cord retainers on the ear- loop. Move the flexible earloop away from the headset...
-
Page 11: Features
Button 4:23 PM Page 11 Audio Indicators Linked – One beep is heard through the headset whenever the base or remote talk button is activated. Low Battery – Two beeps are heard, through the head- set when in the talk mode at 30 second intervals, whenev- er the power is low. -
Page 12: Visual Indicators
CS10Prdct Info Bklt13.R2 12/27/01 Visual Indicators On the Remote Unit Talk (in-use) – green LED ‘On’ only when the remote or base talk button is pushed. Flashes in time with the telephone ringer when the optional handset lifter (see Accessories) is used. Talk (In-Use) Indicator... -
Page 13: Troubleshooting
Remove and replace ■ the AC power cord from the base. Caller cannot hear my voice Adjust headset so the ■ voice boom is closer to your mouth. Make sure the mute button ■ is off. Adjust the talk volume ■... - Page 14 Be sure the headset micro- ■ phone is pointing towards your mouth. Reduce the listen volume ■ control by pressing the (-) button on the remote. If you have multiple ■ CA10/CS10 base units, move them as far as possible from each other.
- Page 15 (Ensure manual channel settings are ‘0/0’.) If others are using an ■ amplifier in your immediate vicinity, call Plantronics for instructions on adjusting the manual channel settings. I need more talk time A second battery pack ■...
-
Page 16: Accessories
CS10Prdct Info Bklt13.R2 12/27/01 ACCESSORIES CS10 Remote Unit P/N 46366-01 Battery Pack P/N 46365-01 Extend talk time by having a second battery charged and ready. Handset Lifter P/N 60961-01 Rings the remote for incom- ing calls and automatically places handset off cradle when you press talk button. -
Page 17: Warranty & Service
Plantronics, destruction or alteration, improper electrical voltages or currents, or repair or mainte- nance attempted by anyone other than Plantronics or an authorized service center, is not a defect covered by this warranty. In addition, Plantronics does not warrant the consumable spares and accessories (e.g., voice tubes,... - Page 18 CS10Prdct Info Bklt13.R2 12/27/01 Incidental or Consequential Damages Neither Plantronics nor your retail dealer or selling distribu- tors has any responsibility for any incidental or consequential damages including without limitation, commercial loss or profit, or for any incidental expenses, expenses, loss of time, or inconvenience.
-
Page 19: Fcc Information
If you experience problems with your headset, please refer to the warranty section for information on warranty and repair service. If the problem is causing harm to the telephone net-... - Page 20 (800) 544-4660 www.plantronics.com © 2001 Plantronics Inc. All rights reserved. Plantronics, the logo design, and the Plantronics and logo design combined are registered trademarks of Plantronics Inc. Patents U.S. 5,259,780 and 5,835,852; D394,437 and D403,327 and Patent Pending Finland 20183 and 20184 Germany M9802622.4...
