Summary of Contents for Planar PE2010

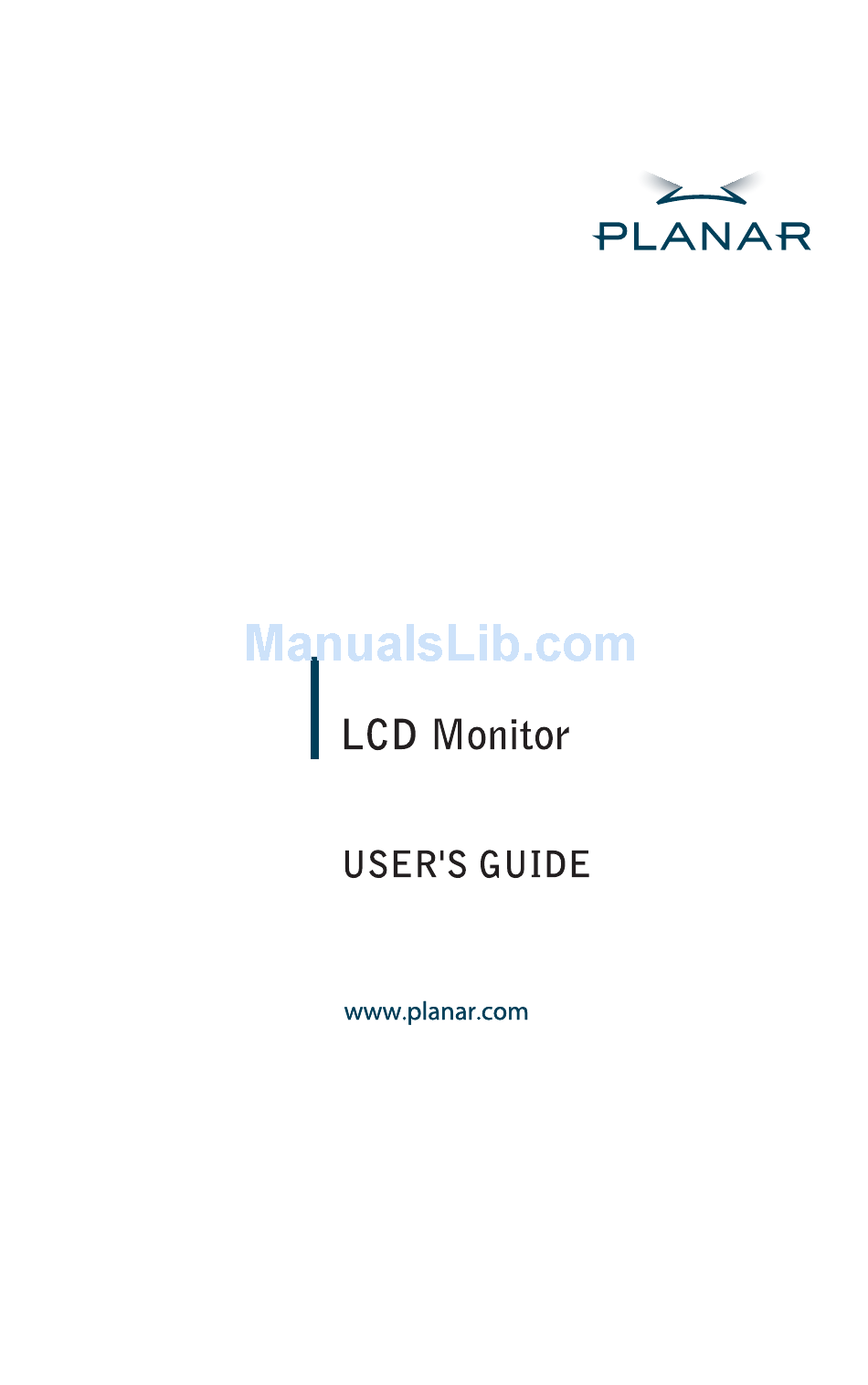

- Page 1 PE2010...
- Page 2 Planar your support question. Talk to a Customer Service Representative To contact Planar's Customer First(TM) Technical Support Service call 1.866.PLANAR.1 (866.752.6271). This service is available 5am - 5pm Pacific Time, 8am - 8pm Eastern Time, Monday through Friday. Contact Us 24x7 Online Technical Support: http://www.planar.com/support...
- Page 3 The information contained in this document is subject to change without notice. This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be reproduced, translated to another language or stored in a retrieval system, or transmitted by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission.
-
Page 4: Table Of Contents
TABLE OF CONTENTS For Your Safety ------------------------------------------------------- For Your Safety General Notes Special notes on LCD monitors ---------------------------------------------------------- Other notes Before You Operate The Monitor -------------------------------------------------------------- Features Checking the contents of the package Installation Instructions ---------------------------------------------------------- 9 Power source ------------------------------------------------- 10... -
Page 5: For Your Safety
WARNING: To prevent fire or shock hazard, do not expose the monitor to rain or moisture. Dangerously high voltages are present inside the monitor. Do not open the cabinet. Refer servicing to qualified personnel only. - Page 6 Use only a cart or stand recommended by the manufacturer or sold with the monitor. If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions.
-
Page 7: General Notes
• The LCD panel used in this monitor is a very high technology product with 3,932,160 thin film transistors giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed point of red, green, blue, white or black. - Page 8 Plug & Play DDC1/2B Feature - DDC1/2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
-
Page 9: Before You Operate The Monitor
User Manual 24-Pin DVI Cable Register Your Planar Products Today Thank you for choosing Planar. To assure you receive all the benefits of your Planar product and services, register your Planar product today. Visit our website to register your product at http://www.planar.com/support/product_registration.html... -
Page 10: Installation Instructions
Power Source: 1. Make sure that the power cord is the correct type required in your area. 2. This LCD monitor has an internal Universal Power Supply that allows operation in either 100/120V AC or 220/240V AC voltage area (No user adjustment is required.) -
Page 11: Connecting The Cables
1. Connect the female end of the AC power cord to the AC-in port on the back of the monitor. Connect the other end to a nearby AC-outlet. 2. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer’s D-Sub port. -
Page 12: Adjusting The Viewing Angle
INSTALLATION INSTRUCTIONS (cont.) ADJUSTING THE VIEWING ANGLE For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference. Hold the stand so you do not topple the monitor when you change the monitor's angle. -
Page 13: Operating Instructions
2. Auto Config / Exit 3. ∧ /ECO changing 4. ∨ / Bri / con • Power Button: Press this button to turn the monitor ON or OFF. • MENU / ENTER: Active OSD menu or function adjust confirm • ∧ / ECO ECO switching •... -
Page 14: Power Indicator
OPERATING INSTRUCTIONS (cont.) • Auto Adjust button / Exit: When OSD menu is in active status, this button will act as EXIT-KEY (EXIT OSD menu) or go back to the previous menu. When OSD menu is in off status, press this button for 2 seconds to activate the Auto Adjustment function. -
Page 15: How To Adjust A Setting
OPERATING INSTRUCTIONS (cont.) How To Adjust A Setting 1. Press the MENU-button to activate the OSD window (Figure 5). 2. Press ∧or ∨ to navigate through the functions. Once the desired function is highlighted, press the MENU-button to activate it. If the function selected has a sub-menu, press ∧... -
Page 16: Adjusting The Picture
OPERATING INSTRUCTIONS (cont.) ADJUSTING THE PICTURE The descriptions for function control LEDS Main Main Sub Menu Menu Menu Item Item Icon Contrast Luminance Brightness Focus Image Setup Clock H. Position Image Position V. Position Color Temp. sRGB User Menu Description Icon Contrast from Digital- register. - Page 17 OPERATING INSTRUCTIONS (cont.) Input Select H. Position Setup V. Position Language Français 简体中文 Portugues Pyccknn Information Information Reset Exit Select input signal from Analog analog source (D-Sub) Select input signal from Digital digital source (DVI) Adjust the horizontal position of the OSD. Adjust the vertical position of the OSD.
-
Page 18: Technical Support (Faq)
*Check if the Video Card is Plug & Play compatible *Check if the D-15 plug pin of Video Cable is bent *Make sure the LCD Monitor Drivers are installed. *Adjust the Contrast and Brightness Controls. *Move electrical devices that may cause electrical interference. -
Page 19: Error Message & Possible Solution
TECHNICAL SUPPORT (FAQ) (cont.) CLOCK (pixel frequency) controls the number of pixels scanned by one horizontal sweep. If the frequency is not correct, the screen shows vertical stripes and the picture has not correct width. FOCUS adjusts the phase of the pixel clock signal. With a wrong phase adjustment the picture has horizontal disturbances in light picture. -
Page 20: Appendix
APPENDIX SPECIFICATIONS LCD Panel Input Display Colors Max. Resolution Plug & Play ® EPA ENERGY STAR Input Connector Input Video Signal Maximum Screen Size Power Source Environmental Considerations Dimensions Weight (N. W.) Driving system TFT Color LCD Size 51cm(20") Pixel pitch 0.2916mm( H )x 0.2916mm( V ) Viewable angle 160°... - Page 21 APPENDIX (cont.) External Controls: Power Consumption Regulatory Compliance • Switch Source • Auto Config / Exit • ∧ / ECO • ∨ / Bri/Con • Menu / Enter • Power Button • Functions Contrast • Brightness • Focus • Clock •...
-
Page 22: Preset Display Modes
APPENDIX (cont.) Preset Display Modes STANDARD RESOLUTION 720 × 400 640 × 480 640 × 480 800 × 600 SVGA 800 × 600 VESA 1024 × 768 1024 × 768 1024 x 768 1024 x 768 1024 x 768 1280 × 1024 SXGA 1280 ×... -
Page 23: Connector Pin Assignment
APPENDIX (cont.) Connector Pin Assignment 15 - Pin Color Display Signal Cable PIN NO. DESCRIPTION Video-Red Video-Green Video-Blue Ground GND-R GND-G GND-B PI N NO. DESCRIPTION Detect Cable DDC-Serial data H-sync V-sync DDC-Serial clock... - Page 24 APPENDIX (cont.) 24 - Pin Color Display Signal Cable PIN NO. DESCRIPTION TMDS Data 2- TMDS Data 2+ TMDS Data 2/4 Shield TMDS Data 4- TMDS Data 4+ DDC Clock DDC Data TMDS Data 1- TMDS Data 1+ TMDS Data 1/3 Shield TMDS Data 3- PI N NO.
- Page 25 Beaverton, OR 97006-1992 www.planar.com © 2006 Planar Systems, Inc. Planar is a registered trademark of Planar Systems, Inc. Other brands and names are the property of their respective owners. Technical information in this document is subject to change without notice.
