Dome EX Display
User's Guide

Advertisement

Table of Contents
loading

Related Manuals for Planar Dome E2

Summary of Contents for Planar Dome E2

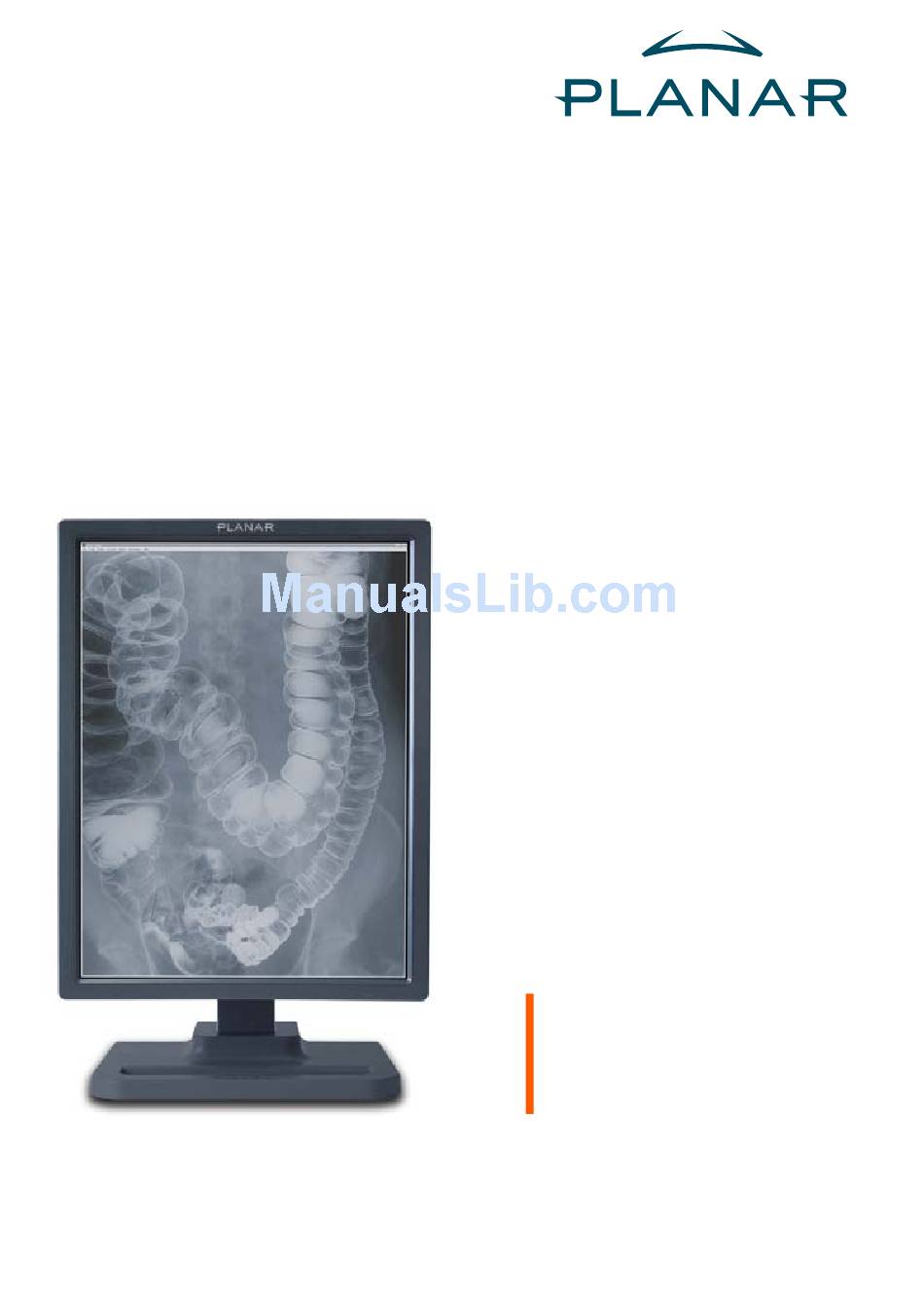

  • Page 1 Dome EX Display User’s Guide...
  • Page 2 Planar, Dome, Dome E2, Dome E3, Dome E3c, Dome E5, Dome CXtra, RightLight are either registered trademark or trademarks of Planar Systems, Inc. All other trademarks are the property of their respective owners.

  • Page 3: Table Of Contents

    Contents Product Information About the Display Installing the Display Appendix Index Regulatory Compliance Standard Warranty...

  • Page 4: Product Information

    Product Information The design of the Dome EX digital display takes into account every known measure to ensure your personal safety. Improper use of the display can result in electric shock, fire, or damage to the display. Read all instructions before setting up the display. Classification: Important recycle instruction: iv | Dome EX Display...

  • Page 5: Symbol Explanations

    1.83 m perimeter and 2.29 m vertical. IMPORTANT: Only the Dome E5 display can be used for primary image diagnosis in mammography. The Dome E2, Dome E3, and Dome E3c display units must not be used for primary image diagnosis in mammography.

  • Page 6: Safety Precautions

    • To avoid damage to the display, use the grounded power supply and video cable supplied by Planar, or use certified replacements. • Be sure the display is electrically grounded. You must connect the third grounding pin on the US power cord to a grounded outlet.

  • Page 7: Unpacking And Handling Tips

    Unpacking and handling tips The Dome EX display is a precision instrument that requires proper care to maintain product operation and adherence to specification. Unpack the display and components carefully, then set up and handle the unit properly to avoid damage to the LCD panel. •...

  • Page 8: Cleaning The Display

    Cleaning the display Observe the following guidelines to maintain the display and the LCD screen. • Use a clean, lint-free, absorbent cotton cloth to clear off any residual glue from removal of the protective film or to remove surface dust. Apply light pressure to remove the dust.

  • Page 9: Disposal Information

    Shipping/storing the display Keep the display in its shipping container until installation. Return the display to its original container whenever you need to store the unit, move it to another location, or return it for repair. The packaging supplied by the manufacturer protects the display while it is in transit.
  • Page 10 AMLCD panel mounted on desk stand Power cords Display controller DC power adapter Display driver and DVI cable Quick reference calibration software...

  • Page 11: About The Display

    About the Display The Dome EX display systems, ranging from 2 to 5 megapixels, consists of a TFT LCD panel and a display board and driver. The display’s thin film transistors, in a transmissive-type display, use an integrated cold cathode fluorescent tube (CCFT) backlight system. The display is designed for medical imaging in diagnostic settings, in portrait or landscape orientation, and comes fully tuned with gamma correction that complies with the DICOM Part 14 Standard.

  • Page 12: System Requirements

    System Requirements Display systems using the DX2 board: • PCI slot (64 bit recommended) • 50 MB hard disk space • 256 MB RAM • CD-ROM drive • Windows XP or Windows 2000 Service Pack 4 Display systems using the AX5 board: •...

  • Page 13: Display Components

    2 LED status lights. Provides information about the status of the display. 3 DIN connector. Drives power to the display; 4-pin connector on the Dome E2 display, 8-pin connector on the Dome E3, Dome E3c, and Dome E5 displays. 4 DVI connector. Drives the data to the display.

  • Page 14: Height Range

    Display Positions You can adjust the tilt, height, viewing angle, and orientation of the display to maintain an ergonomic and comfortable viewing position. Make sure that your eyes are level with the top of the display cabinet so that you look downward to read the screen contents. Select a suitable workspace for the display.

  • Page 15: Desk Stand Features

    Desk Stand Features Unfasten the stand lock to adjust display height. Remove the stand cover to thread the power cord and DVI cable connections to the display. To activate the USB hub function, the display must be connected to a USB-compliant computer or another hub with a USB cable.

  • Page 16: Installing The Display

    Installing the Display Before you install the Dome DX2 or the AX5 display controller, remove any existing graphics card and its driver from your system. Also disable any onboard graphics capability on the motherboard. If you are installing the Dome DX2 board, you must set the DIP switches for your system configuration.
  • Page 17 Set the DIP Switch on the Dome DX2 Board If you are using the Dome DX2 display controller, you need to enable or disable VGA mode according to your system configuration. Enable VGA on only one board when you install multiple Dome DX2 display controllers.

  • Page 18: Install The Display Controller

    Install the Display Controller Before you install the Dome DX2 or the AX5 display controller, choose a well-ventilated location with an adequate amount of space. Excessive heat cannot dissipate when display vents are blocked. Make sure a grounded AC outlet is within easy reach. Turn your computer off.
  • Page 19 Use the Dome EX display with the power adapter and video cable shipped. For the Dome E2 display, the power adapter is the Ault MW116KA1249F53. For the Dome E3, Dome E3c, and Dome E5 displays, the power adapter is Ault MW122RA1223F52 or Ault MW122KA1223F52.
  • Page 20 1 Log on with administrator privileges. 2 Right-click the desktop. Select Properties > Settings. 3 Select the display icon. 4 Select Extend my Windows desktop onto this monitor. Click Apply. 5 Click OK. To change the display properties Use the Dome tab to change display properties after the Dome EX display is attached to the Windows desktop.
  • Page 21 1 Log on with administrator privileges. 2 Right-click the desktop. Select Properties > Settings. 3 Select the Plug and Play Monitor on Dome DX2/PCI Properties from the Display list. 4 Select Extend my Windows desktop onto this monitor. Click Apply.
  • Page 22 4 Click Yes to the license agreement. The installation starts. 5 Follow the onscreen instructions to complete the installation. Planar recommends that you select the Express installation option. 6 When the Setup complete message appears, select Yes, I want to restart my computer now, and click Finish.
  • Page 23 To rotate display orientation manually 1 Right-click the desktop and select Properties > Settings. 2 Select the monitor that you want to change. Then click Advanced. 3 Double-click the monitor icon, or click Advanced. 4 Click the Rotation tab and select the rotation angle you desire.

  • Page 24: Appendix

    Appendix Troubleshooting Dome E2 Specification Dome E3 Specification Dome E3c Specification Dome E5 Specification Video Modes Connector Ports LED Status Lights Single Desktop Auto Installation Component Removal Power Management Grayscale Palette Options 14 | Dome EX Display...

  • Page 25: Troubleshooting

    Troubleshooting Problem No image appears on the screen VGA not enabled Conflict with driver version Possible Cause Computer is not powered on. Power cord is not securely connected. Video cable connected incorrectly. Incorrect DIP switch settings. A previous version of the display driver is still installed on the computer system.
  • Page 26 Dome E2 Specification In locations where 240V outlets are used, connect the Dome E2 display to only a center- tapped, 240V, single-phase supply (for Canada and the United States). Category Characteristic Item Screen Screen size diagonal Resolution Pixel pitch Pixel arrangement...

  • Page 27: Power Supply

    Power Supply CAUTION: Use only the power adapter supplied with the Dome E2 display unit; Ault MW116KA1249F53. Category Characteristic Item Power input Voltage selection requirements Voltage Current Frequency Power output Voltage requirements Current Physical Size Weight Reliability Characteristic item Specification Display MTBF >50,000 hours...
  • Page 28 Dome E3 Specification In locations where 240V outlets are used, connect the Dome E3 display to only a center- tapped, 240V, single-phase supply (for Canada and the United States). Category Characteristic Item Screen Screen size diagonal Resolution Pixel pitch Pixel arrangement Active area (mm) Color supported Refresh rate...
  • Page 29 Power Supply CAUTION: Use only the power adapter supplied with the Dome E3 display unit; Ault MW122RA1223F52 or Ault MW122KA1223F52. Category Characteristic Item Power input Voltage selection requirements Voltage Current Frequency Power output Voltage requirements Current Physical Size Weight Reliability Characteristic item Specification Display...
  • Page 30 Dome E3c Specification In locations where 240V outlets are used, connect the Dome E3c display to only a center- tapped, 240V, single-phase supply (for Canada and the United States). Category Characteristic Item Screen Screen size diagonal Resolution Pixel pitch Pixel arrangement Active area (mm) Color supported Refresh rate...
  • Page 31 Power Supply CAUTION: Use only the power adapter supplied with the Dome E3c display unit; Ault MW122RA1223F52 or Ault MW122KA1223F52. Category Characteristic Item Power input Voltage selection requirements Voltage Current Frequency Power output Voltage requirements Current Physical Size Weight Reliability Characteristic item Specification Display...
  • Page 32 Dome E5 Specification In locations where 240V outlets are used, connect the Dome E5 display to only a center- tapped, 240V, single-phase supply (for Canada and the United States). Category Characteristic Item Screen Screen size diagonal Resolution Pixel pitch Pixel arrangement Active area Grayscale supported Refresh rate...
  • Page 33 Power Supply CAUTION: Use only the power adapter supplied with the Dome E5 display unit; Ault MW122RA1223F52 or Ault MW122KA1223F52. Category Characteristic Item Power input Voltage selection requirements Voltage Current Frequency Power output Voltage requirements Current Physical Size Weight Reliability Characteristic item Specification Display...

  • Page 34: Video Modes

    Video Modes Resolutions expressed in pixels (W x H). Single desktop requires dual displays. Display Resolution Dome E2 1200 x 1600 1600 x 1200 1200 x 1600 1600 x 1200 Dome E3 1536 x 2048 2048 x 1536 3072 x 2048...

  • Page 35: Connector Ports

    Connector Ports The video signal connector is a standard DVI connector. The Dome E2 display uses a 4-pin DIN connector. The power input is 12V ±5% (80 W). The Dome E3, Dome E3c, and Dome E5 displays use a 8-pin DIN connector.

  • Page 36: Led Status Lights

    LED Status Lights The two LEDs on the back panel provide information about the display. • LED A describes the digital-link status between the display controller and the interface. • LED B describes the display-panel status. it shows any faults currently in the panel.
  • Page 37 Power-up sequence information from LED LED A Action/Sequence Dark Initial power-on Blink yellow Self test Dark One (1) second after power -on LED A status information after initial power-on LED Status Solid green Flashing yellow Solid yellow LED B status information after initial power-on LED Status Solid green Flashing green...

  • Page 38: Single Desktop

    1 Right-click the desktop, and select Properties > Settings. The Settings tab appears. 2 Select the Plug and Play Monitor on Dome DX2/PCI Properties from the Display list. Make sure the box for Extend my Windows desktop onto this monitor is checked. Click Apply.
  • Page 39 To change the configuration to single desktop If you are working on a dual-headed display, you can use the following procedure to change your hardware and software configuration to single desktop. 1 Use the InstallShield Wizard to uninstall the existing driver. 2 On the DIP switch, place switch 3 in the ON position.
  • Page 40 Automatic installation enables all displays and rearranges the displays on the Windows desktop so that any attached third- party color monitor appears to the left of the Dome EX displays (also applies to Dome CX displays). All displays are arranged with top alignment.
  • Page 41 • Run fastinst.bat. Silent installation that enables all displays and rearranges the monitors on the Windows desktop so that any attached third-party monitor appears to the left of the Dome EX displays (also applies to Dome CX displays). All monitors are arranged with top alignment.
  • Page 42 -f1<path\response file> -f2<path\log file> -remove -bit8 -bit32 -static -notstatic -yesddraw -noddraw -autodetect -noautodetect 32 | Dome EX Display Silent mode. Use a response file instead of prompting user response during installation. Use the response file specified during installation. If no -f1 switch is given, the installation uses the response file in the same directory in which setup.exe resides.
  • Page 43 Four sample batch files are provided with the Dome DX display driver. The content of each file, shown here, illustrates the use of these switches. fastinst.bat setup.exe -s -f2%TEMP%\fastinst.log uninst.bat setup.exe -s -f1un_install\setup.iss -f2%TEMP%\uninst.log -remove sample1.bat setup.exe -s -f2%TEMP%\sample1.log -bit8 -noddraw -static -noautodetect sample2.bat setup.exe -s -f2%TEMP%\sample2.log -bit8 -notstatic -yesddraw –noautodetect Auto-Installation | 33...
  • Page 44 Display Driver Removal Follow the appropriate procedure below to remove either the Dome DX or the AX5 driver from your system. To remove the Dome DX driver 1 Log on with administrator privileges. 2 Insert the W2KDXPCI CD and open the CD folder. 3 Double-click Setup.exe.

  • Page 45: Power Management

    Power Management You have two ways to lower energy usage when the Dome EX display is idle: • Dome CXtra Backlight Saver service (preferred) • Screen Saver (set via Windows operating system) Activate the power saver when you anticipate periods of inactivity, such as at the end of the work day.
  • Page 46 Grayscale Palette Options The Dome DX2 display controller supports different palette options on Windows systems. In the Palette Options field of the Dome tab, use the pull-down menu to select a palette. Then click Apply or OK. Dome palette options must coordinate with the primary display. All flat panels must be set to either palette devices or non-palette devices, as shown in this table.
  • Page 47 Palette options with multiple displays The SelectPalette and RealizePalette functions in the Microsoft Developer’s Network, or MSDN, work across all flat-panel displays if the primary panel is palettized. The palettes of all palette-type devices are synchronized. If, however, the primary panel is not palettized, the SelectPalette and RealizePalette functions select the palette into the background, and palettized devices are not synchronized.
  • Page 48 Static gray palette The static gray palette provides 256 shades of gray in a static palette. This palette does not reserve the first and last 10 palette entries for icons and other standard Windows graphics, which frees the entire grayscale ramp for applications. The static gray palette does not provide gray-mapped Windows colors for the first and last 10 palette entries.

  • Page 49: Index

    Index auto-installation brightness, setting viii cleaning connecting DVI cable power cord connector port contents, package desk stand DIN connector DIP switch, setting display about components install positions display controller installing setting DIP switch display driver 10, 12 installing removing 10, 13 display properties, changing disposal driver options, setting...
  • Page 50 Dome E2 display Dome E3 display Dome E3c display Dome E5 display symbols, explained system requirements tips installation safety troubleshooting use, intended using single desktop video modes...

  • Page 51: Regulatory Compliance

    Regulatory Compliance Canada, European Union, United States This display has been tested and found to comply with IEC/EN 60601-1 and IEC/EN 60601-1-2 standards, and is certified to meet medical standard C22.2 No. 601.1-M1990 (C US Mark). The medical display, in addition to meeting medical requirements, has been tested and found to comply with the limits for Federal Communications Commission (FCC) Class B computing devices in a typically configured system since many medical offices are located in residential areas.
  • Page 52 Planar Systems, Inc. has made great efforts to support the medical device industry, in particular, medical device manufacturers and medical device system integrators. We offer state-of-the-art color displays that are compliant with worldwide accepted medical device safety standards, and for the European market, CE-marked displays based on compliance with counsel directive 93/42/EEC—commonly referred to as the Medical Device Directive...
  • Page 53 Planar Systems, Inc., located in Beaverton, Oregon, USA, is the manufacturer of these displays in the meaning of the directive. As required by the MDD in Article 14, Planar Systems, Inc., not residing in the European Economic Area (EEA), has a European representative, Planar Systems, Inc.—Olarinluoma 9, P.
  • Page 54 EU Declaration of Conformity for Medical Application A Declaration of Conformity has been filed for this product. For additional copies of the Declaration of Conformity document, contact Planar Systems. The Dome EX digital flat-panel display meets the essential health and safety...
  • Page 55 U.S. FCC Compliance Statement For Dome E2, Dome E3, and Dome E3c Displays This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 56 Australian C-Tick Australian Communications Authority regulating product EMC compliance. China China Compulsory Certification regulating safety and EMC. GB4943-2001 GB9254-1998 (Class A) CB17625.1-2003 Japan VCCI Voluntary Control Council for Interference by information technology equipment sold in Japan. Korea MIC Mark Ministry of Information and Communications.

  • Page 57: Standard Warranty

    +358 9 420 0200. Have the model number, serial number, and proof-of-purchase available. 2 Planar customer service staff will attempt to correct any minor issues that may be causing the problem. If we are unable to correct the problem to your satisfaction, we will issue a Return Material Authorization (RMA).
  • Page 58 Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product. b) Repair or attempted repair by anyone not authorized by Planar. c) Any damage of the product due to shipment. d) Removal or installation of the product.
  • Page 59 Exclusion of Damages THE LIABILITY OF PLANAR IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE PRODUCT. PLANAR SHALL NOT BE LIABLE FOR THE FOLLOWING: 1 DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THE PRODUCT, DAMAGES BASED UPON INCONVENIENCE, LOSS OF USE OF THE...
  • Page 60 America Sales Planar Systems, Inc. 1195 NW Compton Drive Beaverton, OR 97006-1992 USA (503) 748-1100 phone (503) 748-1493 fax Medical Sales Planar Systems, Inc. 400 Fifth Avenue Waltham, MA 02451-8738 USA (781) 895-1155 phone (781) 895-1133 fax medicalsales@planar.com medicalsupport@planar.com www.planar.com...
