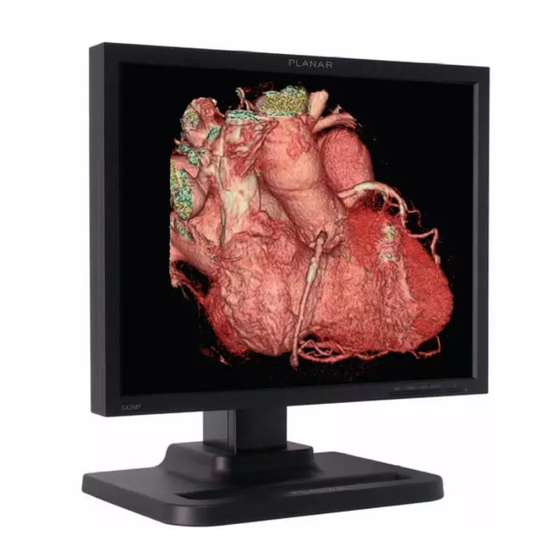

Planar Dome E2c Specifications

Dome E2c
LCD DISPLAY
Technology TFT AMLCD SPVA, 3 subpixels per pixel
Screen Size (diagonal) 21.3" (541.02 mm)
Display Resolution (pixels) 1200 x 1600 Portrait, 1600 x 1200 Landscape
Pixel Pitch 270µm, 94 dpi
Viewing Angle (CR 10:1) +/- 85˚ (170˚) horizontal and vertical
Response Time 16/16 ms typical
OPTICAL CHARACTERISTICS
Brightness Typical: 600 cd/m 2
Default Calibrated: 500 cd/m 2
Contrast Ratio 600:1 – typical
Palette 1786 unique shades of gray
DICOM Calibration Panel individually characterized and calibrated at factory, DICOM calibration validation performed via RightLight™ and Dome CXtra™
PANEL INTERFACE/CONNECTIVITY
Digital Video Input DVI Revision 1.0 single data channel connector
Analog Video Input VGA, S-Video, composite
Digital Communication & ID DDC2B+EDID
USB interface Built-in USB 1.1 Hub, one upstream port,
two downstream ports
VIDEO INPUT FORMATS
Landscape Orientation 1600 x 1200 (24-bit color per pixel)
Portrait Orientation 1200 x 1600 (24-bit color per pixel)
VGA to XGA/SXGA 640 x 480, 600 x 800, 1024 x 768, 1280 x 1024
displayed in both landscape and horizontal rotation
CALIBRATION
Technique Automatic with Internal photometer
TEST STANDARDS
Calibration Type LCD Panel Individually characterized and calibrated at the factory, DICOM calibration verification performed via RightLight™ (internal photometer) and Dome CXtra™
IMAGING/GRAPHICS CONTROLLER
Compatible Controller Support
PHYSICAL CHARACTERISTICS
Display Size (without stand) 19" x 14.75" x 4.0" (482.6mm x 374.65mm x 102mm)
H x W x D
Weight (without stand) Less than 12 pounds (5.44 Kg)
Mounting Options 100 mm VESA mounting standard.
Desktop stand height, pivot, swivel and tilt adjustment.
POWER REQUIREMENTS
Power Input 100 to 240 VAC, Frequency of 50-60 Hz single phase,
Less than 120 watts (typical)
ENVIRONMENTAL
Operating Temperature Range 10 to 35 degrees C
CERTIFICATIONS
Medical FDA 510(k)
Safety & Emission CSA, EN60601-1, FCC, CE, CCC, TUV-GM, VCCI, C-Tick
SERVICE AND SUPPORT
Warranty 5-year standard warranty
Specifications may vary based on customized solution requirements. Because we continually improve our products, specifications are subject to change without notice.
June 2008
Dome ®
Color Medical Imaging Displays
Quality. Performance. Reliability.
Dome E3c
TFT AMLCD Dual Domain IPS, 3 subpixels per pixel
20.8" (528mm)
1536 x 2048 Portrait, 2048 x 1536 Landscape
207µm, 123 dpi
+/- 85˚ (170˚) horizontal and vertical
50 ms max
Typical: 400 cd/m 2
Default Calibrated: 350 cd/m 2
400:1 – typical
2041 unique shades of gray
Dual channel DVI (Dual Link)
NA
DDC2B+EDID
Built-in USB 1.1 Hub, one upstream port,
two downstream ports
2048 x 1536 (8-bit and 24-bit color per pixel)
1536 x 2048 (8-bit and 24-bit color per pixel)
640 x 480 – 1280 x 1024 displayed in both landscape
and horizontal rotation
Automatic with Internal photometer
18.7" x 14.5" x 4.0" (475mm x 369mm x 102mm)
Less than 15 pounds (6.35Kg)
100mm VESA mounting standard.
Desktop stand height, pivot, swivel and tilt adjustment.
100 to 240 VAC, Frequency of 50-60 Hz single phase,
Less than 60 watts (typical)
10 to 35 degrees C
FDA 510(k)
CSA, EN60601-1, FCC, CE, CCC, TUV-GM, SEMKO, VCCI, MIC, C-Tick
5-year standard warranty
Dome E4c
TFT AMLCD Dual Domain IPS, 3 subpixels per pixel TFT AMLCD MVA, 3 subpixels per pixel
30.0" (76.2 cm) 20.1" (510.5 mm)
1600 x 2560 Portrait, 2560 x 1600 Landscape 1600 x 1200 Landscape, 1200 x 1600 Portrait
250µm, 102 dpi 255 µm
+/- 85˚ (170˚) horizontal and vertical +/- 85˚ (170˚) horizontal and vertical
16 ms typical 16 ms typical
Typical: 330 cd/m 2 Typical: 300 cd/m
Default Calibrated: 300 cd/m 2 Default Calibrated: 200 cd/m
600:1 typical 1000:1 typical
1786 unique shades of gray 16.7 million – programmable gamma
DICOM calibration validation via external photometer
and Dome CXtra
DVI Revision 1.0 digital dual-link connector DVI Connector
NA VGA Connector
DDC2B+EDID DDC2B+EDID
NA NA
2560 x 1600 (24 bit color per pixel) 1600 x 1200 24 bit color per pixel
NA 1200 x 1600 24 bit color per pixel
640 x 480 – 1280 x 800 640 x 480 – 1024 x 768
Automatic with Internal photometer Manual with External Photometer
DICOM Part 14, CXtra DiCAL
Refer to the board specifications line card
28" x 18.6" x 2.8" (713mm x 473mm x 72mm) 13.8" x 17.5" x 2.8" (345mm x 445mm x 72mm)
28 pounds (12.7kg) typical Less than 23 pounds
100mm x 200mm VESA mounting standard. 100 VESA mounting standard.
Desktop stand height, pivot, swivel and tilt adjustment. Desktop stand height, pivot, swivel and tilt adjustment.
100 to 240 VAC, Frequency of 50-60 Hz single phase, 110–220 VAC, 50-60 Hz Universal Auto Switching.
120 Watts Max, 105 Watts Typical 50 Watts typical, 1 Watt standby
0 to 35 degrees C 0 to 40 degrees C
FDA 510(k) —
CSA, EN60601-1, FCC, CE, CCC, TUV-GM, VCCI, MIC, C-Tick Complies with CCC, CE, Cul, FCC Class B, MIC, TÜV-GS, VCCI
5-year standard warranty 3-year standard warranty (w/48 hr. advanced exchange)
Planar GX2MP Planar GX46
TFT AMLCD MVA, 3 subpixels per pixel
46" (1168 mm)
1920 x 1080 Landscape
530 µm
+/- 89˚ (178˚)
8 ms typical
2 Typical: 500 cd/m 2
2
1200:1 typical
16.8 Million colors
Manual with CXtra DiCAL
DVI-D
VGA D-SUB15
DDC2B+EDID, RS232
N/A
1920 x 1080 24 bit color per pixel
1080 x 1920 24 bit color per pixel
640 x 480 – 1920 x 1080
Manual with External Photometer
DICOM Part 14, Cxtra DiCAL
43.1" x 25.1" x 5" (1095.7mm x 637.5mm x 127mm)
92 lbs (41.73 kg)
VESA MIS F, 600 x 400 mounting standard
100-120/200-240V AC,50-60 Hz, 278 Watts Max
0 to 35 degrees C
EN60905, CE, CCISPR22/85, FCC Class A, EU ROHS
3-year standard warranty
When image experience matters.
