Recycle Disassemble Instruction
(Dismantled Information)
Requirements according to ANNEX VII of DIRECTIVE 2012/19/EU
on waste electrical and electronic equipment (WEEE)
Materials and components with hazardous content
LCDs may contain hazardous substances like Pb and BFRs which are covered by
exemptions under the RoHS directive. However, the majority is present in the printed
circuit boards assembly. In order to reduce emissions as much as possible, a complete
disposal of the old appliance is required. This treatment may only be performed in
authorized handling plants.

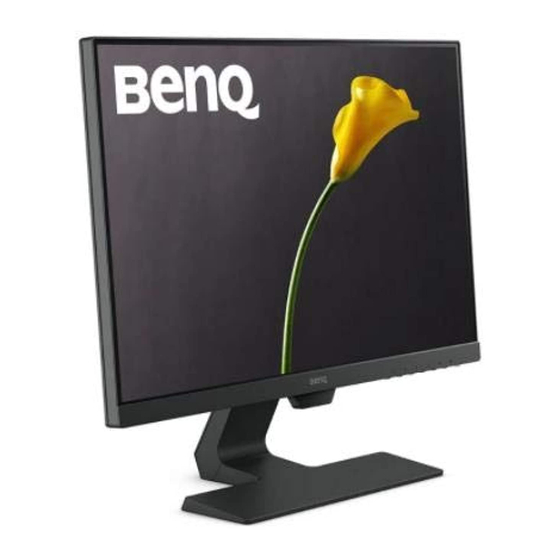

Product Name: LCD Monitor
Model No.: GW2381,GW2381E
Advertisement
Related Manuals for BenQ GW2381
Summary of Contents for BenQ GW2381
- Page 1 RoHS directive. However, the majority is present in the printed circuit boards assembly. In order to reduce emissions as much as possible, a complete disposal of the old appliance is required. This treatment may only be performed in authorized handling plants. Product Name: LCD Monitor Model No.: GW2381,GW2381E...
-
Page 2: Disassembly Tools
Disassembly Tools Tool picture Philips Screwdriver for M3 Screw Nosed Pliers Diagonal Cutting Pliers Slotted screwdriver Six Point Sockets Philips Screwdriver for M2.5 Screw Knife... -
Page 3: Product Exploded View
1. Product exploded view... -
Page 4: Package View
2. Package view External cable Item Description Unit Power cable D-Sub cable DVI cable IP cable Audio cable Disassembly process 1) Remove the base 1.1. Place the monitor face down on a smooth surface, use your fingers to release the screw located at the bottom of the base. - Page 5 Place the monitor face down on a smooth surface, use your fingers to release the screw located at the bottom of the base. Remove the stand assembly with both hands. While using the sharp object to insert into the release hole, slide the base out. Remove the rear cover 3.1 Use the screwdriver (not provided) to release the screws first.
- Page 6 Remove the main frame from the panel. 4.1 Remove all the tapes. 4.2 Release the screws located on the top of main frame and disconnect all the cables to remove the main frame. Remove the boards from the main frame...
- Page 7 5.1 Turn over the main frame and remove the mylar from board first. 5.2 Release all the screws from the boards and main frame. 5.3 Disconnect all the cables to separate the boards from each other. Remove the middle frame and bezel from panel...
- Page 8 6.1 Release all the screws first. 6.2 Carefully pull down the bezel. Now, the panel is totally separated from middle frame. Disassemble the sensor board and key board from middle frame. 1.1 Remove the sensor board 1.1.1 Take out the cover first, then release the screw on the top of board. 7.2 Remove the key board, press the key button to take the board out of middle frame.
- Page 9 Assembly: Prepare main board, power board and some essential cables. Connect the cables between boards as below picture showed. Put the boards to main frame in the place by tightening the screws to fasten it. Return Mylar back to the power board.
- Page 10 Tighten the screws on the side of main frame Assemble the sensor board to the bottom center of middle frame as above reverse steps. Assemble the key board to the middle frame as above reverse steps. Assemble the middle frame and main frame to the panel. 7.1 Locate the assembled middle frame in the place, install the bezel and tighten all the screws.
- Page 11 7.3 Place the assembled main frame to the panel with tightening the screws, connect all the cables, return back the black covers and attach the tapes to fix it. Assemble the rear cover with tightening the screws. Slide the stand to the rear cover using the sharp object to insert into hole. Assemble the base by tightening the screw to fix it.
- Page 13 Recycle characteristics Recycle characteristics Part Reuse Recycle 1~22, 30 WEEE annex II 25~29, P01~P05 Recovery Disposal 23, 24, 31 Disassembly Time Total time: 30 minutes...
