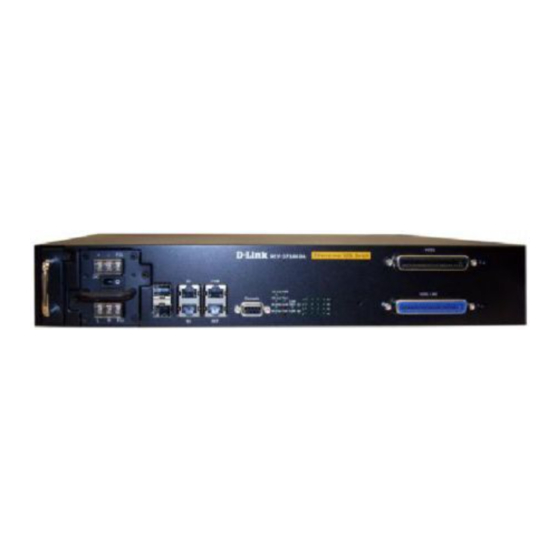

- Page 1 User Manual DAS-3626 Product Model: VDSL2 Switch Release 1.00 ©Copyright 2009. All rights reserved...
- Page 2 © 2009 D-Link Corporation. All rights reserved. Reproduction in any manner whatsoever without the written permission of D-Link Corporation is strictly forbidden. Trademarks used in this text: D-Link and the D-LINK logo are trademarks of D-Link Corporation; Microsoft and Windows are registered trademarks of Microsoft Corporation.
- Page 3 DAS-3626 VDSL2 Switch User Manual Table of Contents Web-based Switch Configuration ............................ 6 System Configuration ..............................14 Switch Configuration ..............................26 VDSL Configuration ............................... 53 Multicasting ..................................59 Storm Control ................................74 QoS ....................................76 ACL ....................................84 VLAN ................................... 103 Security ..................................
- Page 4 DAS-3626 VDSL2 Switch User Manual Preface The DAS-3626 User Manual is divided into sections that describe the system installation and operating instructions. Section 2 through Section 13 corresponds to a menu folder in the web management interface presented in the same order they appear in the web interface.
-
Page 5: Intended Readers
DAS-3626 VDSL2 Switch User Manual Intended Readers The DAS-3626 User Manual Manual contains information for setup and management of the switch. This manual is intended for network managers familiar with network management concepts and terminology. Typographical Conventions Convention Description In a command line, square brackets indicate an optional entry. For example: [copy filename] means that optionally you can type copy followed by the name of the file. -
Page 6: Web-Based Switch Configuration
DAS-3626 VDSL2 Switch User Manual Section 1 Web-based Switch Configuration Introduction Out-of-Band Access to System Management Interface IP Settings for Switch Management Login to Web Manager Web-based User Interface Web Pages Introduction All software functions of the switch can be managed, configured and monitored via the embedded web-based (HTML) interface. - Page 7 Name and Password, there is no default user name or password, simply press the Enter at each prompt to obtain the administrator’s prompt DAS-3626:admin# as seen in the example below. The switch is not ready for configuration. Figure 2. Menus Command Prompt using out-of-band Telnet connection NOTE: Telnet can also be used in-band by connecting through port 25 or 26.
-
Page 8: Login To Web Manager
DAS-3626 VDSL2 Switch User Manual Login to Web Manager To use the web-based management module for switch management, run the browser you have installed on your computer and point it to the IP address you have defined for the device. The URL in the address bar should read something like: http://123.123.123.123, where the numbers 123 represent the IP address of the switch;... - Page 9 Area 1 Select the folder or window to be displayed. The folder icons can be opened to display the hyper- linked window buttons and subfolders contained within them. Click the D-Link logo to go to the D- Link website. Area 2 Presents a graphical near real-time image of the front panel of the switch.
-
Page 10: System Save Menus
DAS-3626 VDSL2 Switch User Manual System Save Menus The web interface for the switch includes two drop-down menus, the Save and Tools menus, located just above the menu folders. The Save menu includes options to save switch configuration settings and switch log. -
Page 11: System Tools Menus
DAS-3626 VDSL2 Switch User Manual System Tools Menus The Tools drop-down menu includes links Configuration File Backup & Restore, Upload Log File, Reset, Download Firmware and Reboot System menus. Figure 7. Tools drop-down menu These menus are described below. Configuration File Backup & Restore The switch supports dual image storage for configuration file backup and restoration. -
Page 12: Download Firmware
DAS-3626 VDSL2 Switch User Manual Reset The Reset function has several options when resetting the switch. Some of the current configuration parameters can be retained while resetting all other configuration parameters to their factory defaults. NOTE: Only the Reset System option will enter the factory default parameters into the switch's non-volatile RAM, and then restart the switch. -
Page 13: Device Information And Quick Configuration Links
This window contains the main settings for all major functions on the switch and appears automatically when you log on. To return to the Device Information and Quick Configuration likns, click the DAS-3626 device name above the menu folders. The Device Information display shows the switch’s MAC Address (assigned by the factory and unchangeable), the Boot PROM Version, Firmware Version and Hardware Version as well as other information about different settings on the switch. -
Page 14: System Configuration
DAS-3626 VDSL2 Switch User Manual Section 2 System Configuration System Information IP Settings IPv6 Neighbor Settings Serial Port Settings Web Settings Telnet Setting Time Setting TimeZone Setting Users Setting System Log Setting System Log Server Configuration menus in the System Configuration folder are used to change general system settings sucha as IP settings for the two switch IP interfaces, system time settings and user account settings.This section describes the... -
Page 15: System Information
DAS-3626 VDSL2 Switch User Manual System Information Use the System Information menu to add name, location and administrator contact information. To view the menu, click System Configuration > System Information as shown below: Figure 14. System Information menu Interface Settings The Interface Settings menu is used to access the IP settings for the two IP interefaces of the switch. - Page 16 DAS-3626 VDSL2 Switch User Manual The following parameters can be configured: Parameter Description Interface Name Displays the interface being edited. VLAN Name Enter the name of the VLAN corresponding to the interface. (System interface only) Enter an alternative IPv4 address. Currently an interface can only have one IPv4 address defined.
-
Page 17: Ipv6 Neighbor Settings
DAS-3626 VDSL2 Switch User Manual IPv6 Neighbor Settings This window allows the user to create and configure IPv6 Neighbor settings on the switch. The switch’s current IPv6 neighbor settings will be displayed in the table at the bottom of this window. -
Page 18: Serial Port Setting
DAS-3626 VDSL2 Switch User Manual Serial Port Setting Use the Serial Port Setting window to console serial port setting, config Baud Rate and Auto Logout setting. To view this window, click System Configuration > Serial Port Settings as shown below: Figure 19. -
Page 19: System Time And Sntp Settings
DAS-3626 VDSL2 Switch User Manual System Time and SNTP Settings Simple Network Time Protocol Settings used to set system time are configured in two menus, the Time Settings and Time Zone Settings menus. Time Settings This window is used to configure the time settings for the switch. -
Page 20: Time Zone Settings
DAS-3626 VDSL2 Switch User Manual Time Zone Settings The following window is used to configure time zones and Daylight Savings time settings for SNTP. To view this window, click System Configuration > TimeZone Settings as shown below: Figure 23. Time Zone and DST Settings menu...
