Crestron 4 Series Quick Start Manual

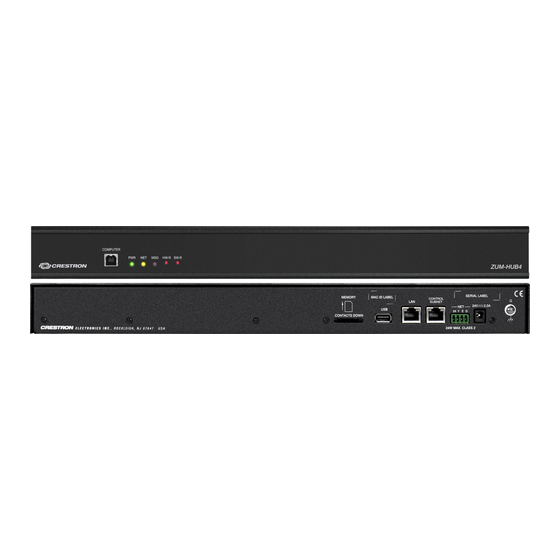

ZUM-HUB4
4-Series™ Control Processor for Zūm® Lighting Control System
The ZUM-HUB4 enables centralized management for Zūm® commercial
lighting systems of up to 1,000 rooms with an Ethernet switch (sold
separately) across Zūm wired, Zūm wireless, and external spaces. The
device provides a web-based user interface for control. A built-in time
clock enables room lighting and occupancy and vacancy sensing
automation. The ZUM-HUB4 can also be integrated with other Crestron
lighting systems and control systems.
The ZUM-HUB4 is featured in three kits.
ZUML-HUB4-GW: 4-Series™ Control Processor for Zūm® Lighting
l
Control System with Wireless Gateway and Power Supply
Contains:
ZUM-HUB4 and PW-2420RU
o
ZUMNET-GATEWAY: Zūm® Net Wireless Gateway for Zūm Light
o
Control System
PW-2407WU: Wall Mount Power Pack, 24VDC, 0.75A, 2.1 mm,
o
Universal
For use with the ZUMNET-GATEWAY
ZUML-HUB4-PAK: Zūm® Lighting Control Processor Panel, Basic
l
Contains:
ZUM-HUB4 and PW-2420RU
o
CEN-SW-POE-5: 5-Port PoE Switch
o
GLEX-FT-24-HC: Feed-Through Enclosure, 24 Circuits, Hinged
o
Cover
power pack
power pack
ZUML-HUB4-CN-PAK: Zūm® Lighting Control Processor Panel,
l
Expanded
Contains:
ZUM-HUB4 and PW-2420RU
o
DIN-AP4: 4-Series™ DIN Rail Control System
o
DIN-EN-6X18: Enclosure for DIN Rail Devices, 6 DIN Rails, 18 M
o
Wide
CEN-SW-POE-5 (x2): 5-Port PoE Switch
o
DIN-HUB (x2): DIN Rail Cresnet Distribution Hub
o
DIN-PWS60 (x2): DIN Rail 60 Watt Cresnet® Power Supply
o
For use with the DIN-HUB
In the Box
1 ZUM-HUB4, 4-Series™ Control Processor for Zūm®
Lighting Control System
Additional Items
1 Connector, 4-Pin (2003576)
1 Power Pack, 24VDC, 2.5A, 100-240VAC (2045873)
2 Bracket, Rack Ear, 1U (2032122)
4 Foot, 0.5 in. x 0.5 in. x 0.23 in., Rubber, Black (2002389)
1 Power Cord, 5 ft 10 in. (1.78 m) (2042043)
power pack
