- Page 1 User operation manual - Wired controller Heat Pump air/water "inverter" Baxi HP40-XX-MB Mono 2 AWHP 4-16MR...
-
Page 2: Table Of Contents
• This manual gives detailed description of the precautions that should be brought to your attention during operation. • In order to ensure correct service of the wired controller please read this manual carefully before using the unit. • For convenience of future reference, keep this manual after reading it. CONTENTS 1 GENERAL SAFETY PRECAUTIONS .......... -
Page 3: General Safety Precautions
1 GENERAL SAFETY • The appliance is not intended for use by persons, including children, with reduced physical, sensory PRECAUTIONS or mental capabilities, or lack of experience and knowledge, unless they have been given supervision 1.1 About the documentation or instruction concerning use of the appliance by a person responsible for their safety. -
Page 4: Glance Of The User Interface

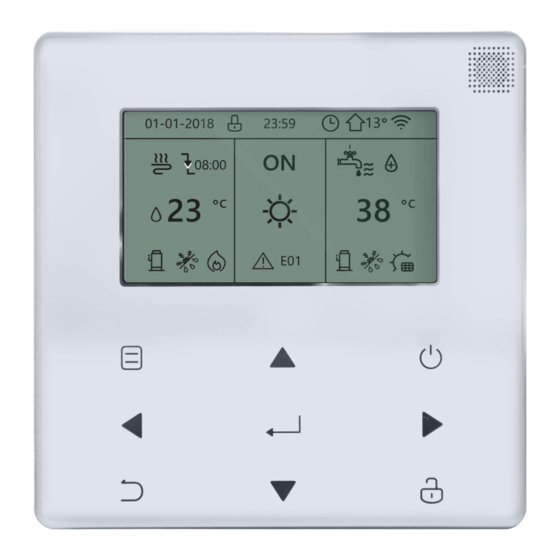

2 A GLANCE OF THE USER INTERFACE 2.1 The appearance of the wired controller Enter the menu Turn on or off operation structure from mode in the menu the home page structure Navigate the cursor on the display/navigate in the menu structure/adjust Long press for the settings... -
Page 5: Using Home
3 USING HOME PAGES When you turn on the wired controller, the system will enter the language selection page, You can choose your preferred language, then press to enter the home pages. If you don’t press in 60 seconds, the system will enter in the currently selected language. - Page 6 home page3： If the DHW MODE is set NON (See ‘’FOR SERVICEMAN’’ > ‘’DHW MODE SETTING ‘’ in ‘’Installation, User and Service Manual”), and if ‘’WATER FLOW TEMP.’’ is set YES, ‘’ROOM TEMP.’’ is set YES,(See ‘’FOR SERVICEMAN’’ > ‘’TEMP. TYPE SETTING ‘’...
-
Page 7: Menu Structure
4 MENU STRUCTURE The interface will be locked if there is no handing for a long time(about 120 seconds:it can be set using the interface, see 4.1 About the menu structure ‘’6.7 SERVICE INFORMATION’’.) If the interface is unlocked, long press «unlock», the interface You can use the menu structure to read out and configure will be locked. - Page 8 5.2.2 Use the room thermostat to turn on or off the unit for space heating or cooling. ① The room thermostat is set MODE SET (see ‘’ROOM THERMOSTAT SETTING’’ in ‘’Installation, User and Service Manual’’). The unit operation mode and ON / are controlled by room thermostat，press on the interface, the following page will display：...
-
Page 9: Adjusting The Temperature
5.3 Adjusting the temperature 5.2.3 Use the interface to turn on or off the unit for DHW.Press ‘’ ► ’’, ‘’▼’’on home page, the black cursor will appear: Press ‘’ ◄ ‘’, ‘’▲’’ on home page, the black cursor will appear: When the cursor is on the temperature of DHW mode. -
Page 10: Adjusting Space Operation Mode
• The operation mode can not be changed. If you Then the space operation mode is… select… Always heating mode HEAT Always cooling mode COOL Automatically changed by the software based on the outdoor temperature (and depending on installer settings of the indoor temperature), and takes monthly restrictions into account. - Page 11 PRESET TEMPERATURE For example: Now time is 8:00 and temperature is 30°C. We set the PRESET TEMP as shown on the following table. The following page will appear: PRESET WEATHER TEMP. TEMP.SET MODE TIME TEMP. 00:00 °C 00:00 25°C 00:00 25°C PRESET TEMPERATURE TIME...
- Page 12 • If the weather TEMP.SET is activated, the desired PRESET TEMPERATURE temperature can not be adjusted on the interface.Press the ‘’▼’’, ‘’▲’’ to adjust the temperature on home page. PRESET WEATHER TEMP. TEMP.SET MODE The following page will appear: ZONE1 C-MODE LOW TEMP. OOFF ZONE1 H-MODE LOW TEMP.
-
Page 13: Domestic Hot Water(Dhw)
Press . The following page will appear: 6.3 Domestic Hot Water(DHW) ECO MODE SET DHW mode typically consists of the following : 1) DISINFECT ECO MODE SET TYPE: 2) FAST DHW 3) TANK HEATER 4) DHW PUMP 6.3.1 Disinfect The DISINFECT function is used to kill legionella bacteria. In disinfect function the tank temperature will reach 65~70 Cº... - Page 14 6.3.2 Fast DHW DOMESTIC HOT WATER（DHW） The FAST DHW function is used to force the system to operate in DHW mode. DIS- FAST TANK The heat pump and the booster heater or addition INFECT HEATER PUMP heater will operate for DHW mode together, and the DHW desired temperature will be changed to 60℃.
-
Page 15: Schedule
DOMESTIC HOT WATER（DHW） 6.4 Schedule SCHEDULE menu consists in the following: DIS- FAST TANK 1) TIMER INFECT HEATER PUMP 2) WEEKLY SCHEDULE 3) SCHEDULE CHECK START START 4) CANCEL TIMER 00:00 00:00 6.4.1 Timer 00:00 00:00 00:00 00:00 If the weekly schedule function is on, the timer is off, the previous setting is effective. - Page 16 Example: First select the days of the week you wish to schedule. Use ‘’◄ ‘’, ‘’►’’to scroll, press to select or unselect Six timers are set as follows: the day. “ ” means that the day is selected,“MON” means that START MODE TEMP...
-
Page 17: Options
6.4.3 Schedule check If TIMER or WEEKLY SCHEDULE is canceled, icon ’’ ‘’ or ‘’ ‘’ will disappear on the home page. schedule check can only check the weekly schedule. Go to ‘’MENU’’ > ‘’SCHEDULE’’ >’’SCHEDULE CHECK’’. Press . The following page will appear: SCHEDULE WEEKLY SCHEDULE... - Page 18 6.5.1 Silent Mode You can use ‘’▼’’, ‘’▲’’ to select level 1 or level 2. Press The SILENT MODE is used to decrease the sound of If the silent TIMER is selected, Press to enter, the unit. However, it also decreases the heating/cooling the following page will appear.
- Page 19 Then you can do the following: OPTIONS 1) Configure the holiday away settings (see table below): 2) Activate the holiday mode. Go to ‘’MENU’’ > ‘’OPTIONS’’ > ‘’HOLIDAY AWAY’’. SILENT HOLIDAY HOLIDAY BACKUP MODE AWAY HOME HEATER Press to select ‘’OFF’’ or ‘’ON’’ and use ‘’◄ ‘’, ‘’► ‘’, ‘’▼’’, ‘’▲’’...
-
Page 20: Child Lock
to select ‘’OFF’’ or ‘’ON’’. The cool/heat mode cannot turn on or off when the COOL/ HEAT MODE ON/OFF is locked.If you want to turn on or off the cool/heat mode when COOL/HEAT MODE ON/OFF is INFORMATION locked,the following page will appear: •... -
Page 21: Operation Parameter
The service call can show the service phone or mobile SERVICE INFORMATION number.The installer can input the phone number.See ‘’FOR SERVICEMAN’’. SERVICE ERROR PARAMETER DISPLAY CALL CODE SERVICE INFORMATION ROOM SET TEMP. 26ºC SERVICE ERROR MOBILE NO. 55ºC PARAMETER DISPLAY CALL CODE MAIN SET TEMP. -
Page 22: For Serviceman
OPERATION PARAMETER OPERATION PARAMETER ONLINE UNITS NUMBER FAN SPEED 600R/MIN OPERATE MODE COOL IDU TARGET FREQUENCY 46Hz SV1 STATE FREQUENCY LIMITED TYPE SV2 STATE SUPPLY VOLTAGE 230V SV3 STATE DC GENERATRIX VOLTAGE 420V PUMP_I DC GENERATRIX CURRENT ADDRESS ADDRESS OPERATION PARAMETER OPERATION PARAMETER PUMP_O TW_O PLATE W-OUTLET TEMP. -
Page 23: Network Configuration Guidelines
The FOR SERVICEMAN is used for installer or service engineer.Home owners are not expected to access this menu. A password protection is therefore requiered (password: 234).» 6.9.3 How To Exit For SERVICEMAN If you have set all the parameters. Press , the following page will appear：... -
Page 24: Menu Structure : Overview
7 MENU STRUCTURE : OVERVIEW MENU OPERATION MODE HEAT OPERATION MODE COOL PRESET TEMPERATURE AUTO DOMESTIC HOT WATER(DHW) SCHEDULE PRESET TEMPERATURE OPTIONS PRESET TEMP. CHILD LOCK WEATHER TEMP. SET SERVICE INFORMATION ECO MODE OPERATION PARAMETER FOR SERVICEMAN WLAN SETTING DOMESTIC HOT WATER(DHW) SN VIEW DISINFECT FAST DHW... - Page 25 FOR SERVICEMAN 1 DHW MODE SETTING 1 DHW MODE SETTING 1.1 DHW MODE 2.1 COOL MODE 2 COOL MODE SETTING 1.2 DISINFECT 2.2 t_T4_FRESH_C 3 HEAT MODE SETTING 1.3 DHW PRIORITY 2.3 T4CMAX 4 AUTO MODE SETTING 1.4 PUMP_D 2.4 T4CMIN 5 TEMP.
- Page 26 Table1 The environment temperature curve of the low temperature setting for heating ≤ -20 1-T1S 2-T1S 3-T1S 4-T1S 5-T1S 6-T1S 7-T1S 8-T1S ≥20 1-T1S 2-T1S 3-T1S 4-T1S 5-T1S 6-T1S 7-T1S 8-T1S Table2 The environment temperature curve of the high temperature setting for heating ≤...
- Page 27 The automatic setting curve By choosing "WEATHER TEMP. SET TYPE: 9", you can use a personalized heating curve. The automatic setting curve is the ninth curve,this is the calculation: T1S (T1S2) T1SETC1 T1SETC2 T4C1 T4C2 State: In the setting the wired controller, if T4C2<T4C1, then exchange their value; if T1SETC1<T1SETC2, then exchange their value.
- Page 28 Table4 The environment temperature curve of the high temperature setting for cooling - 10≤ T4＜15 15≤ T4＜22 22≤ T4＜30 30≤ T4 1-T1S 2-T1S 3-T1S 4-T1S 5-T1S 6-T1S 7-T1S 8-T1S...
