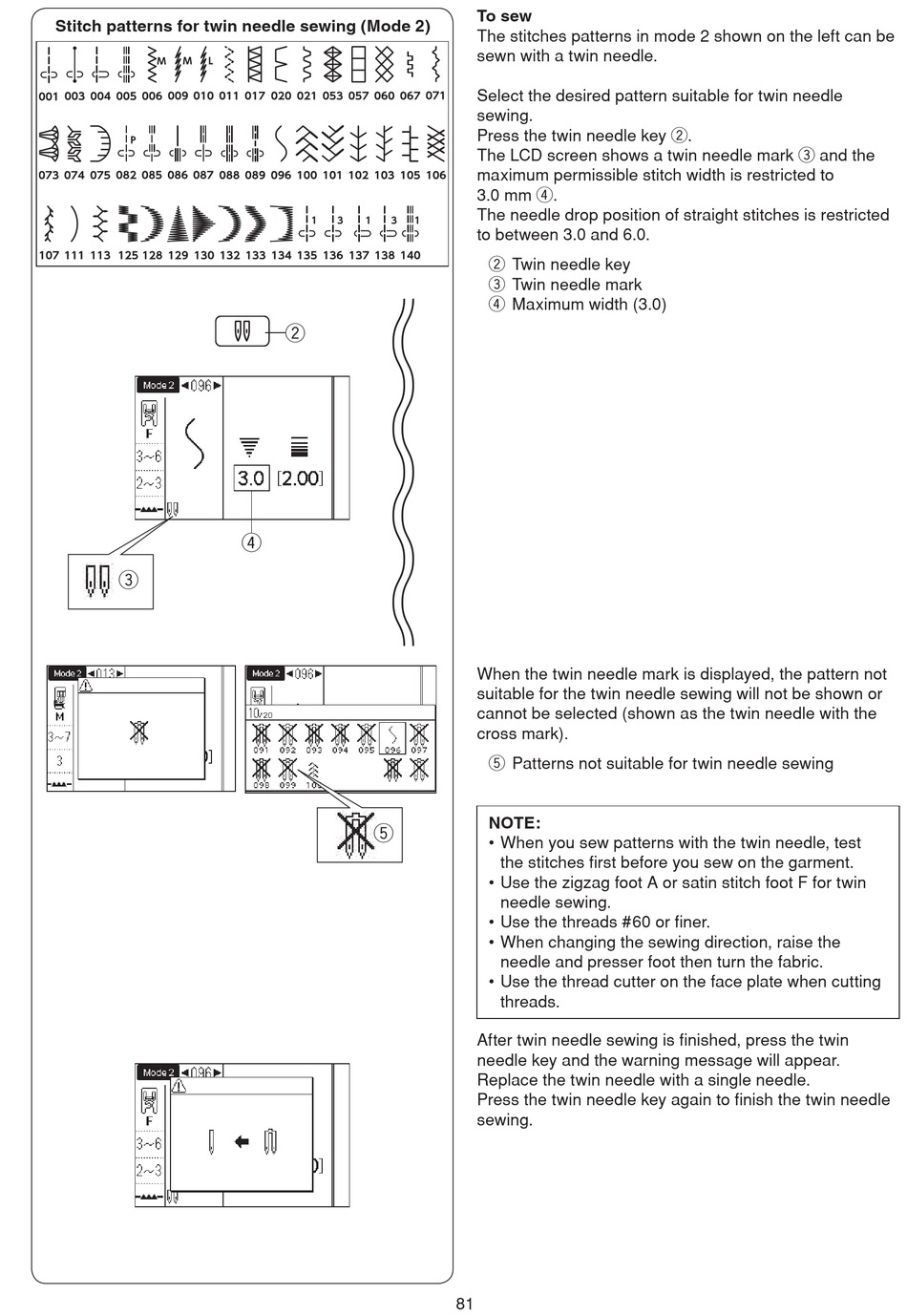

ELNA eXcellence 720PRO Instruction Manual page 83

Stitch patterns for twin needle sewing (Mode 2)
e
w
r
t
To sew
The stitches patterns in mode 2 shown on the left can be
sewn with a twin needle.
Select the desired pattern suitable for twin needle
sewing.
Press the twin needle key w.
The LCD screen shows a twin needle mark e and the
maximum permissible stitch width is restricted to
3.0 mm r.
The needle drop position of straight stitches is restricted
to between 3.0 and 6.0.
w Twin needle key
e Twin needle mark
r Maximum width (3.0)
When the twin needle mark is displayed, the pattern not
suitable for the twin needle sewing will not be shown or
cannot be selected (shown as the twin needle with the
cross mark).
t Patterns not suitable for twin needle sewing
NOTE:
• When you sew patterns with the twin needle, test
the stitches first before you sew on the garment.
• Use the zigzag foot A or satin stitch foot F for twin
needle sewing.
• Use the threads #60 or finer.
• When changing the sewing direction, raise the
needle and presser foot then turn the fabric.
• Use the thread cutter on the face plate when cutting
threads.
After twin needle sewing is finished, press the twin
needle key and the warning message will appear.
Replace the twin needle with a single needle.
Press the twin needle key again to finish the twin needle
sewing.
81
