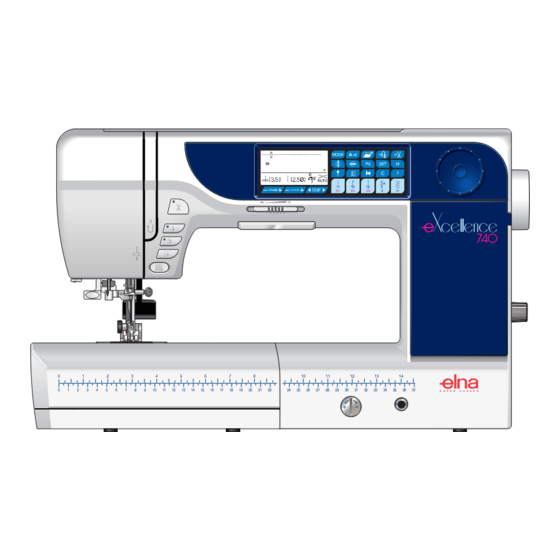

ELNA eXcellence 740 Manual

Hide thumbs Also See for eXcellence 740:
Table of Contents

Advertisement

Quick Links

Download this manual
eXcellence 740
| instruction book |

Advertisement

Table of Contents
loading

Related Manuals for ELNA eXcellence 740

Summary of Contents for ELNA eXcellence 740

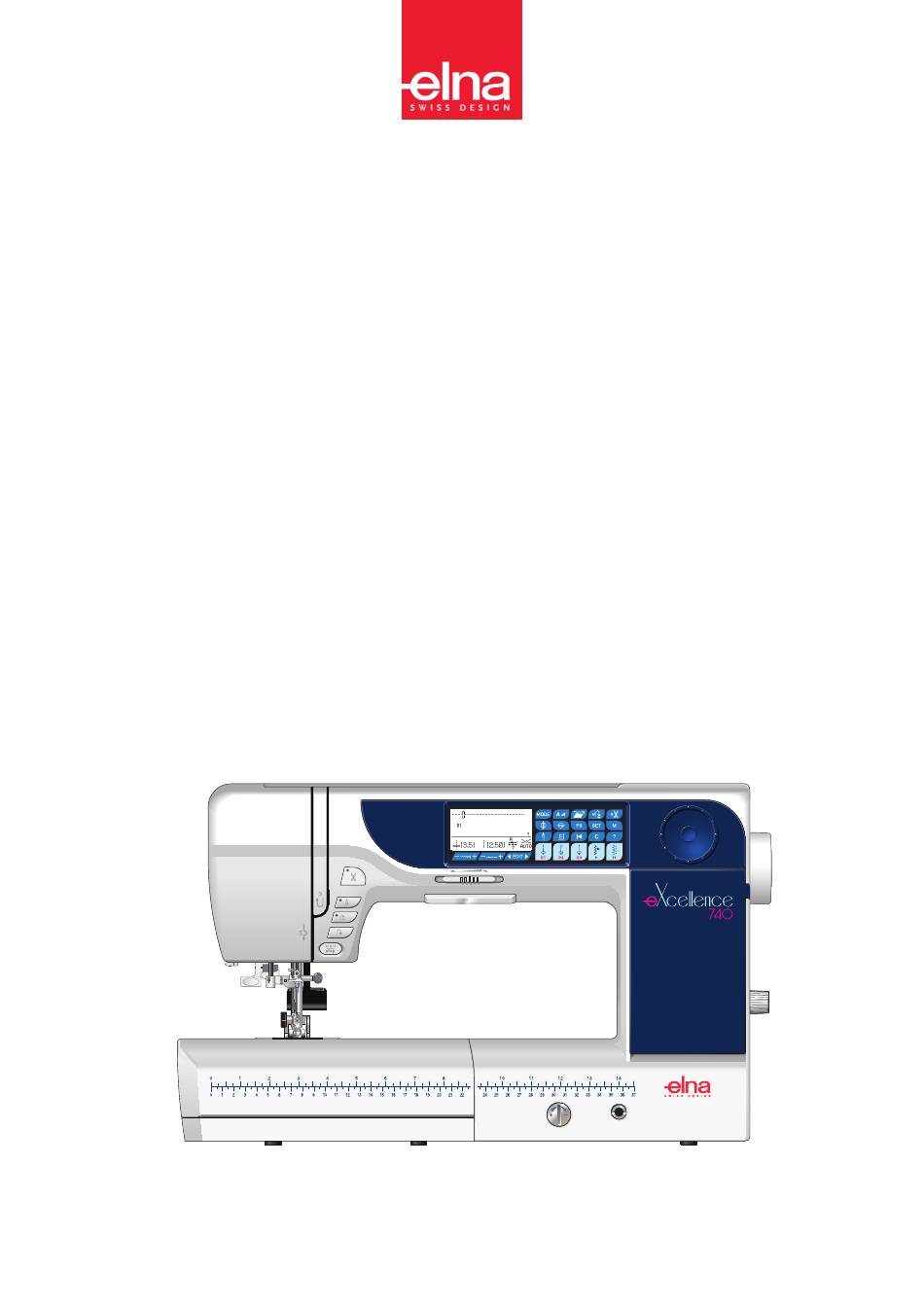

  • Page 1 740 | instruction book |...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with this sewing machine.
  • Page 4 Printed in Taiwan 858-800-322...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS GETTING READY TO SEW Zigzag Stitch ................47 Adjusting the stitch width ............47 Names of Parts ................. 2 Adjusting the stitch length ............ 47 Standard Accessories ............... 3 Overcasting with Zigzag Stitch ..........48 Presser Foot and Accessory Definitions ........ 4-5 Satin Stitch Applique ...............

  • Page 6: Getting Ready To Sew Names Of Parts

    GETTING READY TO SEW Names of Parts Take-up lever Foot pressure dial Reference chart Top cover Foot storage compartment Bobbin thread cutter Bobbin winder stopper Bobbin winder spindle Hole for extra spool pin Spool holder Spool pin Thread tension dial Thread cutter Face plate LCD screen...

  • Page 7: Standard Accessories

    Standard Accessories Zigzag foot A (set on the machine) Overlock foot C Hemmer foot D Zipper foot E Satin stitch foot F Blind hemming foot G Multi-cord foot H Overedge foot M Automatic buttonhole foot R Screwdriver Screwdriver key Set of needles Lint brush Seam ripper (Buttonhole opener) Spool holder (large, set on the machine)

  • Page 8: Presser Foot And Accessory Definitions

    Presser Foot and Accessory Definitions A: Standard Metal Foot This foot comes attached to your machine. It is mainly used for straight stitches and zigzag stitches longer than 1.0. The button locks the foot in a horizontal position helping to sew over multiple layered seams. C: Overlock Foot Prevent fabric edges from raveling by finishing the edge with a zigzag stitch.
  • Page 9 R: Automatic Buttonhole Foot Place button in foot to determine the buttonhole size. The machine will automatically sew the corresponding buttonhole. T: Button Sewing foot No matter the shape, in one quick and easy Special properties of foot are open front and grips on the underside.

  • Page 10: Extension Table

    Extension Table The extension table provides an extended sewing area and can be removed for free arm sewing. 1 Extension table To detach: Draw the table out to the left. To attach: Slide the table on the base and push the table to the right.

  • Page 11: In The Extension Table

    In the Extension Table Accessories are stored inside the extension table. Pull lid to open the storage box. Screwdriver Screwdriver key Dual feed foot AD Set of needles Extra spool pin Bobbins Border guide foot Seam ripper Cloth guide Spool supporter Spool holder (large) Spool holder (small) Lint brush...

  • Page 12: Assembling The Extra Wide Table

    Assembling the Extra Wide Table Peel off the backing paper from the rubber soles and attach to the bottom of the legs. 1 Rubber sole 2 Leg 3 Setscrew Attach the 6 legs to the table top with the setscrews. 4 Table top Place the assembled table to the machine as shown.

  • Page 13: Knee Lifter

    Knee Lifter The knee lifter is extremely helpful when sewing patchwork, quilting etc, since it allows you to handle the fabric while your knee controls the presser foot. Attaching the knee lifter Match the ribs on the knee lifter with the notches in the knee lifter socket and insert the knee lifter.

  • Page 14: Connecting The Power Supply

    Connecting the Power Supply First make sure the power switch is off. Insert the machine plug of the power supply cord into the machine socket. Insert the power supply plug into the wall outlet, and turn the power switch on. 1 Power switch 2 Machine plug 3 Machine socket...

  • Page 15: Machine Operating Buttons

    Machine Operating Buttons Start/stop button Press this button to start or stop the machine. The machine starts running slowly for the first few stitches, it then runs at the speed set by the speed control slider. The machine runs slowly as long as this button is pressed.

  • Page 16: Up/Down Needle Button

    Up/Down needle button Press this button to bring the needle bar up or down. The machine will stop with the needle up or down depending on the position set by this button. LED signal The LED signal is turned on when the down position is selected.

  • Page 17: Function Keys

    Function Keys 1 Select mode key (refer to page 15) 9 Twin needle key (refer to page 85) Press this key to open the group selection window. Press this key when sewing with a twin needle. 2 Monogram key (refer to page 93) 10 Elongation key (refer to page 83) Press this key to select one of 2 letter styles available.
  • Page 18 17 Face to face key (refer to page 96) When this key is pressed after selecting a stitch, the stitch will be flipped vertically (as it appears on the stitch chart) symbol will appear in the LCD screen. Stitches that are compatible with this key are identified on the stitch chart with a shaded background. 18 My personal setting key (refer to page 40) Override the factory settings by changing width/needle position or length.

  • Page 19: Selecting The Patterns

    Selecting the Patterns The stitch patterns are classified into 10 groups. To select the desired stitch pattern, refer to the reference chart inside the top cover to identify the stitch group and pattern number. When turning the power switch on, the LCD screen will show the straight stitch D1 selected.

  • Page 20: Help Key

    Help key Pressing this key will show alternative applications and useful information for the following stitch patterns: 1 Help key When one of the above patterns is selected, the “?” mark is displayed. 2 “?” mark Example: Stitch pattern D1 is selected. When you press the help key, the following will be dis- played on the LCD screen.

  • Page 21: Customizing Machine Settings

    Customizing Machine Settings You can customize the machine settings to your preference. Press the set key and the LCD screen will show the machine setting window. 1 Set key 2 Machine setting window To close the machine setting window, press the cross mark.

  • Page 22: Sub Window Display Time

    Sub window display time A sub window will appear when selecting certain patterns such as buttonholes. The duration of the sub window display can be altered. Turn the jog dial to select x0.5 (1 second), x1.0 (2 seconds) or x1.5 (3 seconds). The preset time is x1.0 (2 seconds).

  • Page 23: Touch Panel Calibration

    Touch panel calibration If the touch panel keys seem out of alignment, calibrate the key position as follows. z Press the “+” sign that appears on the screen with the touch panel stylus. x Press the “+” sign that appears on the screen with the touch panel stylus.

  • Page 24: Reset All Stitches To Factory Default Settings

    Reset all stitches to factory default settings It is possible to reset the machine so all personal settings for all stitches revert to the factory default settings. Press and hold the clear key or its icon on the LCD screen. If you do not wish to reset all stitches to factory default settings, press the cross mark to return to the previous display.

  • Page 25: Controlling Sewing Speed

    Controlling Sewing Speed Speed control slider You can limit the maximum sewing speed with the speed control slider according to your sewing needs. To increase the sewing speed, move the slider to the right. To decrease the sewing speed, move the slider to the left. Foot control Pressing on the foot control can vary sewing speed.

  • Page 26: Adjusting The Foot Pressure

    Adjusting the Foot Pressure The foot pressure can be adjusted with the foot pressure dial located under the top cover. The dial has 7 setting positions from 1 to 7. For ordinary sewing, set “7” at the setting mark. 1 Foot pressure dial 2 Setting mark Reduce the pressure when sewing fine synthetics and stretch fabrics.

  • Page 27: Raising And Lowering The Presser Foot

    Raising and Lowering the Presser Foot The presser foot lifter raises and lowers the presser foot. 1 Presser foot lifter You can raise the presser foot higher than the normal up position. This allows for setting the dual feed device, attaching presser foot, and also helps you to place thick layers of fabrics under the foot.

  • Page 28: Changing The Presser Foot

    Changing the Presser Foot WARNING: Turn the power switch off before changing the presser foot. Removing the presser foot Raise the needle to its highest position and raise the presser foot lifter. Press the red button on the back of the foot holder. The presser foot will drop off.

  • Page 29: Setting For Dual Feed Sewing

    Setting for Dual Feed Sewing WARNING: Turn the power switch off before changing the presser foot. Attach the dual feed foot when sewing with the dual feed device. * Refer to page 16 for step-by-step instructions on the screen. Attaching the dual feed foot z Remove the needle and loosen the thumbscrew with the screwdriver.

  • Page 30: Disengaging The Dual Feed Device

    Disengaging the dual feed device z Raise the presser foot lifter to the extra lifted position. 1 Extra lifted position x Pull down the dual feed device to disengage it from the dual feed foot. Swing the dual feed device to the rear. 2 Dual feed device c Swing up the dual feed device until it catches the pins.

  • Page 31: Using The Seam Guides

    Using the Seam Guides The seam guides are marked on the needle plate, free arm and hook cover plate. The seam guides for 1/4”, 3/8” and 5/8” are also marked on the front of the needle plate. 1 Seam guides on the front of the needle plate The numbers on the needle plate indicate the distance from the center needle position in millimeters and inches.

  • Page 32: Balancing Thread Tension

    Balancing Thread Tension Auto-thread tension For general sewing, set the thread tension dial at AUTO, which covers a wide range of sewing conditions. Recommended tension setting for the selected pattern is indicated on the LCD screen. 1 Thread tension dial 2 Recommended tension setting Balanced thread tension For straight stitch sewing, both needle and bobbin...

  • Page 33: Correcting Distorted Stitch Patterns

    Correcting Distorted Stitch Patterns The sewing results of the stitch patterns may vary depending upon sewing conditions, such as sewing speed, type of the fabric, number of layers etc. Always test sew on a scrap piece of the fabric that you wish to use.

  • Page 34: Changing Needles

    Changing Needles CAUTION: Always make sure to turn the power switch off and disconnect the machine from the power supply before changing the needle. Raise the needle by pressing the up/down needle button and lower the presser foot. Turn the power switch off. Loosen the needle clamp screw and remove the needle from the clamp.

  • Page 35: Needle Definitions

    Needle Definitions The illustration identifies the main parts of a sewing machine needle. 1 Body 2 Shaft 3 Long groove (round side of needle) 4 Short groove (flat side needle) 5 Eye 6 Point A: Universal – an all-purpose needle that handles most woven and knit fabrics.

  • Page 36: Setting The Spool Of Thread

    Setting the Spool of Thread Lift up the spool pin. Place the spool of thread on the spool pin with the thread coming off the spool as shown. Attach the large spool holder, and press it firmly against the spool of thread. 1 Large spool holder NOTE: Use the small spool holder to hold narrow or small spools...

  • Page 37: Winding The Bobbin

    Winding the Bobbin z Pull the thread from the spool. Hold the thread with both hands and pass the thread into the guide slot. 1 Guide slot x Draw the thread to the left and forward around the thread guide. Draw the thread to the rear and to the right around under the guide plate.

  • Page 38: Inserting The Bobbin

    Inserting the Bobbin z Place the bobbin in the bobbin holder with the thread running off counterclockwise. x Guide the thread into the front notch on the bobbin holder. 1 Front notch c Draw the thread to the left, sliding it between the tension spring blades.

  • Page 39: Threading The Machine

    Threading the Machine Raise the presser foot. Press the up/down needle button twice to raise the needle. Turn the power switch off. Pass the thread in order from z to m. z Hold the thread with both hands and pass the thread into the guide slot.

  • Page 40: Built-In Needle Threader

    Built-in needle threader NOTE: The needle threader can be used with a #11 to #16 needle, or a #11 Blue needle. Thread size 50 to 90 is recommended. z Lower the presser foot. Raise the needle to its highest position. Turn the power switch off. Pull down the needle threader knob as far as it will go.

  • Page 41: Drawing Up The Bobbin Thread

    Drawing Up the Bobbin Thread z Raise the presser foot lifter. Hold the needle thread with your finger. 1 Needle thread x Press the up/down needle button twice to draw up the bobbin thread. 2 Up/Down needle button c Pull the needle thread to bring up the loop of bobbin thread.

  • Page 42: Utility Stitches

    UTILITY STITCHES Straight Stitch Machine settings Pattern: D1 (Utility) Thread tension: AUTO Presser foot: Zigzag foot A or Dual feed foot AD Foot pressure: Starting to sew Raise the presser foot and position the fabric next to a seam guide on the needle plate. Lower the needle at the point where you wish to start.

  • Page 43: Adjusting The Needle Drop Position

    Adjusting the needle drop position The needle drop position of the straight stitches can be altered by pressing the stitch width adjusting key. NOTE: The value in brackets indicates the preset setting. Press the “+” sign on the key to move the needle bar to the right.

  • Page 44: Programming My Personal Settings

    Programming My Personal Settings The preset values of the stitch length and width are optimized for each pattern. However, you can change the preset values to suit your sewing preferences. Example: To change the preset value of the stitch length Select the stitch pattern you wish to change the preset value.

  • Page 45: Variety Of Straight Stitches

    Variety of Straight Stitches Straight stitch with left needle position Machine settings Pattern: D4 (Utility) Thread tension: AUTO Presser foot: Zigzag foot A, Dual feed foot AD Foot pressure: Use this stitch to seam the edge of fabrics. Lock-a-Matic stitch Machine settings Pattern: D2 (Utility)

  • Page 46: Sewing From The Edge Of Thick Fabric

    Sewing from the Edge of Thick Fabric The black button on the zigzag foot locks the foot in the horizontal position. This is helpful when you start sewing from extreme edge of thick fabrics or sewing across a hem. Lower the needle into the fabric at the point where you wish to start sewing.

  • Page 47: Zipper Sewing

    Zipper Sewing Machine settings Pattern: D1 (Utility) Thread tension: AUTO Presser foot: Zipper foot E Foot pressure: Attaching the zipper foot E Fit the pin on zipper foot E to the groove on the foot holder. 1 Groove 2 Pin (A): To sew the left side of the zipper, attach zipper foot with the pin on the right-hand side.
  • Page 48 Sewing z Fold back the left seam allowance. Turn the right seam allowance under to form a 0.2 to 0.3 cm (1/8“) margin. Place the zipper teeth next to the fold and pin in place. Set the stitch length and thread tension back to the original setting.
  • Page 49 v Close the zipper and spread the fabric open flat with the right side facing up. Baste the opened fabric and zipper tape together. 1 Basting 2 Zipper tape b Re-attach the zipper foot E with the left pin. Backstitch across the end of the opening 0.7-1 cm (3/8“) and turn the fabric 90 degrees.

  • Page 50: Rolled Hem

    Rolled Hem Machine settings Pattern: D1 (Utility) Thread tension: AUTO Presser foot: Hemmer foot D Foot pressure: Sewing Fold the edge of the fabric twice, 6 cm (2 3/8”) in length and 0.3 cm (1/8”) in width. 1 6 cm (2 3/8”) 2 0.3 cm (1/8”) Place the fabric aligning the edge of the hem with the guide on the foot.

  • Page 51: Zigzag Stitch

    Zigzag Stitch Machine Setting Pattern: 9 or 10 (Utility) Thread tension: AUTO Presser foot: Zigzag foot A Foot pressure: Zigzag stitch is used for various sewing needs including overcasting. It can be used on most woven fabrics. A dense zigzag stitch can also be used for applique. Adjusting the stitch width Press the “+”...

  • Page 52: Overcasting With Zigzag Stitch

    Overcasting with Zigzag Stitch Machine settings Pattern: 9 or 10 (Utility) Thread tension: AUTO Presser foot: Overcasting foot C Foot pressure: Place the fabric edge next to the guide of the foot and then sew. 1 Edge of fabric 2 Guide CAUTION: When you use the overcasting foot C, you must set the zigzag width at 4.5 or wider to prevent the needle from...

  • Page 53: 3-Step Zigzag

    3-Step Zigzag Machine settings Pattern: 11 (Utility) Thread tension: AUTO Presser foot: Zigzag foot A Foot pressure: This stitch is used to finish a raw edge of synthetics and other stretch fabrics that tend to pucker. Sew along the fabric edge leaving an adequate seam allowance.

  • Page 54: Blind Hemming

    Blind Hemming Machine settings Pattern: 16 or 17 (Utility) Thread tension: AUTO Presser foot: Blind hem foot G Foot pressure: Select pattern 16 for woven fabrics or pattern 17 for elastic fabrics. Folding the fabric Fold the fabric to make a hem as shown. 1 Heavy fabric 2 Fine to medium fabric 3 0.4 -0.7 cm (3/16”-1/4”)

  • Page 55: Buttonholes

    Buttonholes Variety of buttonholes 23 Square (Sensor) buttonhole This square buttonhole is widely used on medium to heavy weight fabrics. The buttonhole size is automatically determined by placing a button in the foot. 24 Square (Memory) buttonhole This is also a square buttonhole similar to the sensor buttonhole, but you can manually set and memorize the buttonhole size to sew buttonholes of the same size.

  • Page 56: Square (Sensor) Buttonholes

    Square (Sensor) buttonholes Machine settings Pattern: 23 (Buttonhole) Thread tension: AUTO Presser foot: Automatic buttonhole foot R Foot pressure: Sensor buttonhole Patterns number 23 and 25 to 33 are sensor buttonholes. The size of a buttonhole is automatically set by placing a button in the rear of automatic buttonhole foot R.
  • Page 57 c Pull the buttonhole lever down as far as it will go. 1 Buttonhole lever NOTE: If you start sewing without pulling down the buttonhole lever, the LCD screen will show a warning and the machine will stop after a few stitches. Pull the buttonhole lever down and start sewing.
  • Page 58 b Start the machine to sew the buttonhole. The machine will sew the left row first. n Then it goes to the end point with straight stitches. The machine will sew the back bartack and the right row. m Finally, the machine will sew the front bartack and stop automatically.

  • Page 59: Corded Buttonhole

    Corded buttonhole Machine settings Pattern 23 (Buttonhole) Thread tension: AUTO Presser foot: Automatic buttonhole foot R Foot pressure: With the automatic buttonhole foot R raised, hook the filler cord on the spur at the back of the buttonhole foot. 1 Spur Bring the ends of the cord toward you under the buttonhole foot clearing the front end.

  • Page 60: Adjusting The Buttonhole Width

    Adjusting the buttonhole width The buttonhole width can be adjusted by pressing the stitch width adjusting key. Press the “+“ sign on the stitch width adjusting key to increase the buttonhole width. Press the “–“ sign on the stitch width adjusting key to decrease the buttonhole width.

  • Page 61: Memory Buttonhole

    Memory buttonhole Machine settings Pattern: 24 (Buttonhole) Thread tension: AUTO Presser foot: Automatic buttonhole foot R Foot pressure: When selecting the memory buttonhole, the LCD screen will advise you to pull the button holder open. z Pull the button holder of the buttonhole foot all the way out.

  • Page 62: Round End And Fine Fabric Buttonholes

    Round end and fine fabric buttonholes Machine settings Pattern: 25 or 26 (Buttonhole) Thread tension: AUTO Presser foot: Automatic buttonhole foot R Foot pressure: The sewing procedure is the same as the square (sensor) buttonhole (refer to pages 52-54). The machine will sew a buttonhole in the order shown. NOTE: The buttonhole width can be adjusted from 2.5 to 5.5.

  • Page 63: Stretch Buttonholes

    Stretch buttonholes Machine settings Pattern: 30 or 32 (Buttonhole) Thread tension: AUTO Presser foot: Automatic buttonhole foot R Foot pressure: The sewing procedure is the same as the square (sen- sor) buttonhole (refer to pages 52-54). The machine will sew a buttonhole in the order shown. NOTE: The buttonhole width can be adjusted from 2.5 to 7.0.

  • Page 64: Bound (Sensor) Buttonhole

    Bound (Sensor) Buttonhole Machine settings Pattern: 33 (Buttonhole) Thread tension: AUTO Presser foot: Automatic buttonhole foot R Foot pressure: Great for oversized buttons requiring tailored buttonholes, welt pockets or larger decorative openings. All buttonholes should use interfacing suitable for the fabric weight.
  • Page 65 m From wrong side, press lips into center and fold bias fabric over lips forming a tuck at each end. , From right side, align lips. Baste and press. . Reinforce both ends by folding right sides together at buttonhole end and straight stitch in along the stitch line.

  • Page 66: Button Sewing

    Button Sewing Machine settings Pattern: 34 (Buttonhole) Thread tension: AUTO Presser foot: Button sewing foot T Foot pressure: Feed dog: Lowered (refer to page 22.) WARNING: Turn the power switch off before changing the presser foot. Attaching the button sewing foot T Insert the rear pin on the foot into the rear groove of the foot holder.

  • Page 67: Triple Stretch Stitch

    Triple Stretch Stitch Machine settings Pattern: 5 (Utility) Thread tension: AUTO Presser foot: Zigzag foot A Foot pressure: This strong, durable stitch is recommended for areas where both elasticity and strength are needed to ensure comfort and durability. Use it to reinforce areas such as crotch and armhole seams.

  • Page 68: Knit Stitch

    Knit Stitch Machine settings Pattern: 13 (Utility) Thread tension: AUTO Presser foot: Zigzag foot A Foot pressure: This stitch is recommended for sewing such fabrics as synthetic knits and stretch velour as it provides the greatest amount of elasticity and strength. Sew along the fabric edge leaving an adequate seam allowance.

  • Page 69: Shell Tuck

    Apply ribbing to knits and garment retains its shape. Elna invented this stitch in 1982. Place the fabric edges together under the presser foot next to the right side edge of the presser foot.

  • Page 70: Darning

    Darning Machine settings Pattern: 35 (Buttonhole) Thread tension: AUTO Presser foot: Automatic buttonhole foot R Foot pressure: When selecting the darning stitch, the LCD screen will advise you to pull the button holder open. Pull the button holder to the rear. Insert the corner of the fabric under the foot.
  • Page 71 Sewing a shorter darning To sew a darning shorter than 2 cm (3/4”), first stop the machine after sewing the required length, then press the reverse button. The required length has been determined. Start the machine again and continue sewing until the machine stops automatically.

  • Page 72: Bartacks

    Bartacks Machine settings Pattern: 36 (Buttonhole) Thread tension: AUTO Presser foot: Satin stitch foot F Foot pressure: Tacking is used to reinforce pockets, crotch seams and belt carriers where extra strength is needed. Sewing Lower the needle at the starting point. Lower the foot and sew until the machine stops automatically.

  • Page 73: Eyelet

    Eyelet Machine settings Pattern: 38-40 (Buttonhole) Thread tension: AUTO Presser foot: Satin stitch foot F Foot pressure: The eyelet is used for belt holes etc. Sewing Sew until the machine stops automatically. Open the eyelet with an eyelet puncher or pointed scissors.

  • Page 74: Patchwork And Quilting Patchwork Piecing

    PATCHWORK AND QUILTING Patchwork Piecing Machine settings Pattern: 94 (Quilt) Thread tension: Auto Presser foot: Scant 1/4” foot O2 Foot pressure: Place the patchwork pieces right sides together. Sew while guiding the edge of the fabric along the guide on the foot to keep a precise 1/4”...

  • Page 75: Sewing With The Dual Feed Device

    Sewing with the Dual Feed Device Machine settings Pattern: Thread tension: AUTO Presser foot: Dual feed foot AD Foot pressure: NOTE: Patterns number D1, D2, D3 and D4 can be sewn with the dual feed device. The dual feed device is extremely effective for sewing with hard to feed material such as vinyl or leather.

  • Page 76: Quilting

    Quilting Machine settings Pattern: D1 (Utility) Thread tension: AUTO Presser foot: Zigzag foot A or dual feed foot AD Foot pressure: Attaching the quilt guide Insert the quilt guide into the opening and slide the quilt guide to the position according to the desired space between seams.

  • Page 77: Buttonhole Applique

    Buttonhole Applique Machine settings Pattern: 41 (Applique) Thread tension: AUTO Presser foot: Satin stitch foot F Foot pressure: A favorite method of applying small pieces of fabric to quilts for decoration. Use fine embroidery thread (50 weight or finer) and needle appropriate to fabric.

  • Page 78: Applique

    Applique Machine settings Pattern: 41-50 (Applique) Thread tension: AUTO Presser foot: Satin stitch foot F or open toe satin stitch foot F2 Foot pressure: Place an applique on the fabric and baste it in place or use a fusible web to secure the applique in place. Guide the applique fabric, so that the needle falls off the edge of the applique when the needle swings to the right.

  • Page 79: Basting

    Basting Machine settings Pattern: 8 (Utility) Thread tension: Presser foot: Convertible free motion quilting foot QB-H Foot pressure: Feed dog: Lowered When selecting the basting stitch, the LCD screen will advise you to lower the feed dog. Refer to page 22 for how to lower the feed dog. Attaching the convertible free motion quilting foot Loosen the thumbscrew and remove the foot holder.

  • Page 80: Free Motion Quilting

    Free Motion Quilting Machine settings Pattern: Thread tension: AUTO Presser foot: Convertible free motion quilting foot QB-H Foot pressure: Feed dog: Lowered (See page 22) Attaching the convertible free motion quilting foot Attach the convertible free motion quilting foot and make sure that the needle enters the center of the hole in the foot (refer to page 75).

  • Page 81: Stippling Stitches

    Stippling Stitches Machine settings Pattern: 101,102,103 (Quilt) Thread tension: AUTO Presser foot: Satin stitch foot F Foot pressure: A pre-programmed stippling stitch is a fast and easy method to quilt small areas. Place batting (wadding) between quilt top and backing fabric.

  • Page 82: Decorative Sewing Pintucks

    DECORATIVE SEWING Pintucks Machine settings Pattern: D4 (Utility) Thread tension: AUTO Blind hem foot G Presser foot: Foot pressure: A beautiful accent to any project. Pintucks should be added to your fabric before cutting out the pattern piece. Use a washable marker to draw parallel lines for pintucks on fabric right side.

  • Page 83: Fringing

    Fringing Machine settings Pattern: 41 (Applique) Thread tension: AUTO Presser foot: Satin stitch foot F Foot pressure: Fringing adds a special touch on table linens and shawls. Choose a firm, woven fabric like linen where threads can be removed easily. z Carefully cut the fabric on grain.

  • Page 84: Smocking

    Smocking Machine settings Pattern: 55-58, 61-63, 69-71 (Heirloom) Thread tension: AUTO Presser foot: Zigzag foot A or satin stitch foot F Foot pressure: Choose a soft, lightweight fabric such as batiste, gingham or challis. Cut the fabric three times wider than the projected width.

  • Page 85: French Knots

    French Knots Machine settings Pattern: 112 (Quilt), 161 (Decorative) Thread tension: Presser foot: Satin stitch foot F Foot pressure: 7 or 5 Why spend time sewing French Knots by hand? Place fabric under foot and sew one French Knot. Lift up presser foot, move fabric, lower presser foot and sew next French Knot.

  • Page 86: Cording (3-Strand Cording)

    Cording (3-strand cording) Machine settings Pattern: 134 (Satin) Thread tension: AUTO Presser foot: Multi-Cord foot H Foot pressure: Insert 3 strands of cording under the spring of the foot and draw them under the foot to the rear. 1 Spring Hold the three strands parallel for even sewing and be sure to sew over the strands Stitch slowly and smoothly, guiding the fabric as you sew.

  • Page 87: Satin Stitches

    Satin Stitches Machine settings Pattern: 133-152 (Satin) Thread tension: AUTO Presser foot: Satin stitch foot F Foot pressure: The stitches in this group can be elongated up to 5 times their original length while the stitch density remains the same. Example: Pattern number 136 Select pattern number 136.

  • Page 88: Circle Sewing

    Circle Sewing The circular sewing pivot pin is inserted into the free arm and provides a pivot to sew perfect curves or circles for doilies or large scallops. Use either utility or decorative stitches. 1 Pivot points Select a decorative stitch. Fold fabric into quarters to determine center.

  • Page 89: Twin Needle Sewing

    Twin Needle Sewing CAUTION: Turn off the machine before changing the needle and threading the machine. When sewing with the twin needle, press the twin needle NOTES: Use the zigzag foot A or satin stitch foot F. Use #60 or finer threads. Test the stitches before you begin to sew.
  • Page 90 Machine Setting Pattern: See below Thread tension: AUTO Presser foot: Zigzag foot A or satin stitch foot F Foot pressure: Selecting the patterns Select the desired pattern suitable for twin needle sewing. Press the twin needle key The LCD screen shows a twin needle icon and the maximum permissible stitch width is restricted to 3.0 mm.

  • Page 91: Twin Needle Hem

    Twin Needle Hem Machine Setting Pattern: Thread tension: AUTO Presser foot: Satin stitch foot F Foot pressure: A twin needle hem is quick and easy. This is an excellent hemming method for knit fabrics because the bobbin thread zigzags, allowing the hem to stretch with the fabric.

  • Page 92: Programming A Pattern Combination

    PROGRAMMING A PATTERN COMBINATION Single Repeat with Memory Auto-Lock Example: Programming pattern 139 (Satin). z Select 139. x Press “Mirror Image” key. c Press “Elongation” key. v Press “Stitch Length” key and change stitch length to 0.30. b Press “Memory” key to memorize. A blinking cursor will appear to indicate where next selected and entered stitch will be memorized within the sequence.

  • Page 93: Pattern Combination

    Pattern Combination Example: Programming patterns 139 and 144. NOTE: Patterns in the different groups, letters and numbers can also be programmed. z Select pattern 139 (Satin). (Press “Mirror Image” key and change stitch width or length if desired.) x Press the memory key. c Select pattern 144 (Satin).

  • Page 94: Sewing The Pattern Combination From The Beginning

    Sewing the Pattern Combination from the Beginning If you have to stop sewing in the middle of a pattern combination and wish to sew it over again, press the start over key to sew the pattern combination from the beginning. 1 Programmed pattern combination 2 Sewing stopped.

  • Page 95: Programming Automatic Thread Cutting

    Programming Automatic Thread Cutting To cut the threads automatically after sewing the pattern combination, press the memory auto thread cut key after programming the pattern combination. The cutter sign will be indicated on the LCD screen and the LED signal on the thread cutter button will turn on. 1 Cutter sign 2 LED signal The machine will sew the pattern combination and cut the...

  • Page 96: Bridge Stitches

    Bridge Stitches Stitch patterns number 153 to 160 are bridge stitches, which are used to insert straight stitches after a stitch pattern. Example: Combination of pattern 177 (Decorative) and pattern 157 (Bridge) z Select pattern 177 (Decorative). x Press the memory key. c Select pattern 157 (Bridge).

  • Page 97: Monogramming

    MONOGRAMMING Selecting a Letter Style Press the monogram key to select the letter style. The monogram selection window will open. The following 2 styles are available. 1 Block 2 Script Selecting a Character Turn the jog dial clockwise or counterclockwise to select the desired character and press the confirm button.

  • Page 98: Programming A Monogram

    Programming a Monogram Example: To program “ Quilt” z Press the monogram key. x Select letter “Q” (Block style). Press the memory key. c Press the monogram key. v Select letter “u” (Block style). Press the memory key. b Select letter “i” (Block style). Press the memory key.

  • Page 99: Editing A Pttern Combination

    EDITING A PATTERN COMBINATION How to Preview the Combined Sequence (Utility, Satin, Decorative or Letters) Program the following stitches using the “Memory” key: The LCD screen will show a maximum of 9 stitches at one time. The arrow symbol located under the sequence indicates that there are more stitches off screen in that direction.

  • Page 100: Uniformly Adjusting Stitch Width Or Length

    Uniformly Adjusting Stitch Width or Length If the cursor is positioned to the right of the last stitch in the programmed sequence, the stitch width or length adjustment is applied to the entire sequence. Stitch Width: z Program 144, 170 and 144. (Cursor must be to the right of last stitch in sequence.) x Press “–”...

  • Page 101: Individually Adjusting Stitch Width Or Length

    Individually Adjusting Stitch Width or Length If the cursor is positioned under a stitch in the programmed sequence, the stitch width or length adjustment is applied only to that stitch. z Program 133 two times. x Press “Edit Left” key to move cursor. c Press “–”...

  • Page 102: Storing And Recalling A Pattern Combination Permanent Memory

    STORING AND RECALLING A PATTERN COMBINATION Permanent Memory It is possible to retain a sequence for future use even if the machine is turned off. Simply save the sequence in one of the 20 permanent memories. Each memory has a capacity of 50 stitches. Saving Memory z Program 121 (mirror image), 165 and 121.

  • Page 103: Recalling Memory

    Recalling Memory Press the memory save/recall key to select the memory address where the desired pattern combination is stored. Press the confirm button or confirm button icon on the LCD screen to recall the stored combination. 1 Confirm button icon Deleting an Individual Memory Press the memory save/recall key to select the memory address storing the pattern combination you wish to...

  • Page 104: Care And Maintenance

    CARE AND MAINTENANCE Cleaning the Hook Race, Feed Dog and Thread Cutter Mechanism WARNING: Turn the power switch off and unplug the machine before cleaning. NOTE: Do not dismantle the machine in any way other than what is explained on this page. z Remove the needle and presser foot.

  • Page 105: Problems And Warning Signals

    Problems and Warning Signals If a buzzer sounds and the LCD screen shows a warning sign, follow the guidance below. Warning Sign Cause Try this The foot control is disconnected while sewing. Connect the foot control and start the machine again.
  • Page 106 Warning Sign Try this Cause Elongation is applicable only to The elongation key is pressed when a pattern satin stitches. that cannot be elongated has been selected. The memory key is pressed when a pattern that Select a pattern that can be cannot be memorized has been selected.

  • Page 107: Troubleshooting

    Troubleshooting Cause Condition Reference 1. The needle thread is not threaded properly. The needle thread Page 35 2. The needle thread tension is too tight. breaks Page 28 3. The needle is bent or blunt. Page 30 4. The needle is incorrectly inserted. Page 30 5.
