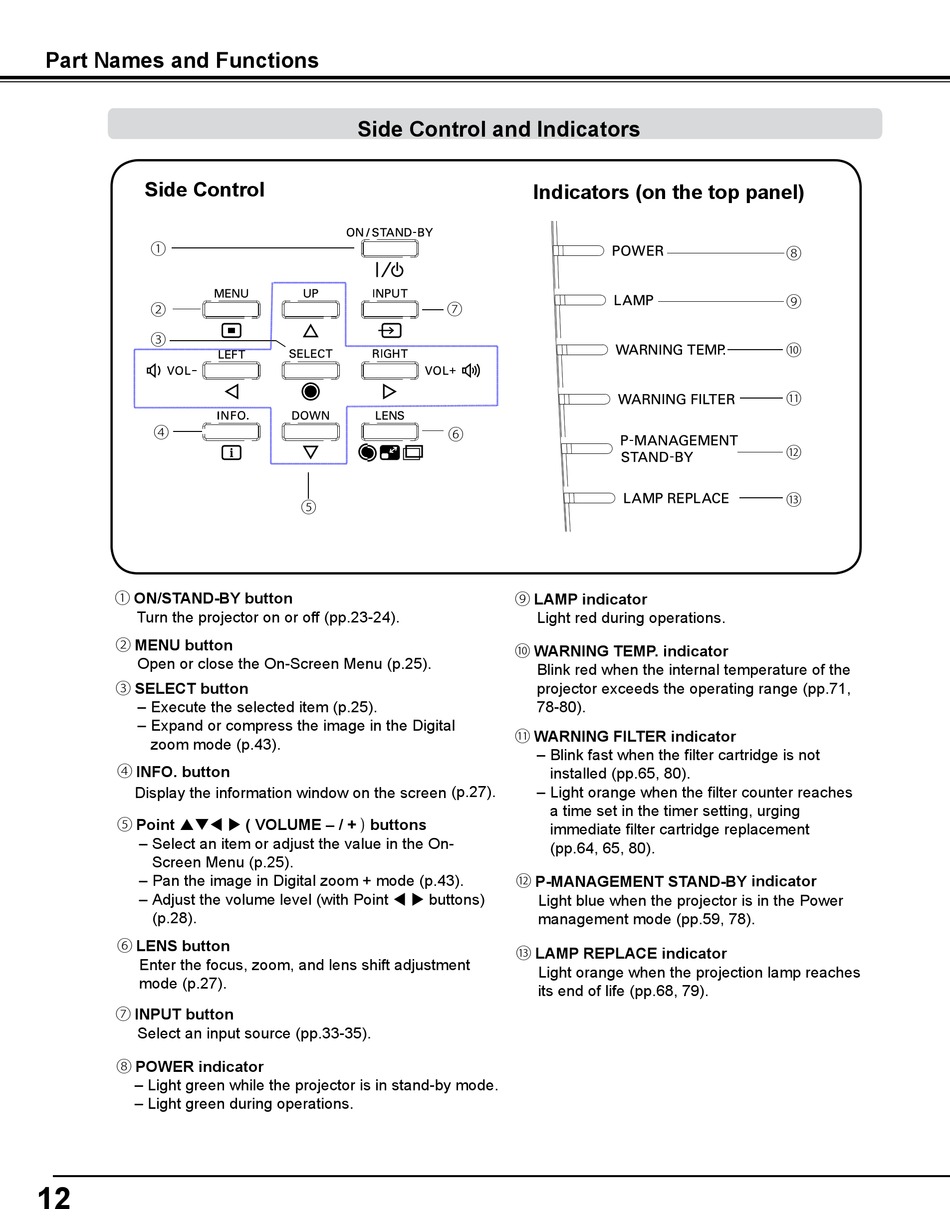

Part Names and Functions
Side Control
①
②
③
④
① ON/STAND-By button
Turn the projector on or off (pp.23-24).
② MENU button
Open or close the On-Screen Menu (p.25).
③ SELECT button
– Execute the selected item (p.25).
– Expand or compress the image in the Digital
zoom mode (p.43).
④ INFO . button
Display the information window on the screen (p.27).
⑤ Point pqt u ( VOLUME – / + ) buttons
– Select an item or adjust the value in the On-
Screen Menu (p.25).
– Pan the image in Digital zoom + mode (p.43).
– Adjust the volume level (with Point t u buttons)
(p.28).
⑥ LENS button
Enter the focus, zoom, and lens shift adjustment
mode (p.27).
⑦ INPUT button
Select an input source (pp.33-35).
⑧ POWER indicator
– Light green while the projector is in stand-by mode.
– Light green during operations.
1

Side Control and Indicators

⑦
⑥
⑤
Indicators (on the top panel)
⑨ LAMP indicator
Light red during operations.
⑩ WARNING TEMP . indicator
Blink red when the internal temperature of the
projector exceeds the operating range (pp.71,
78-80).
⑪ WARNING FILTER indicator
– Blink fast when the filter cartridge is not
installed (pp.65, 80).
– Light orange when the filter counter reaches
a time set in the timer setting, urging
immediate filter cartridge replacement
(pp.64, 65, 80).
⑫ P-MANAGEMENT STAND-By indicator
Light blue when the projector is in the Power
management mode (pp.59, 78).
⑬ LAMP REPLACE indicator
Light orange when the projection lamp reaches
its end of life (pp.68, 79).
⑧
⑨
⑩
⑪
⑫
⑬
