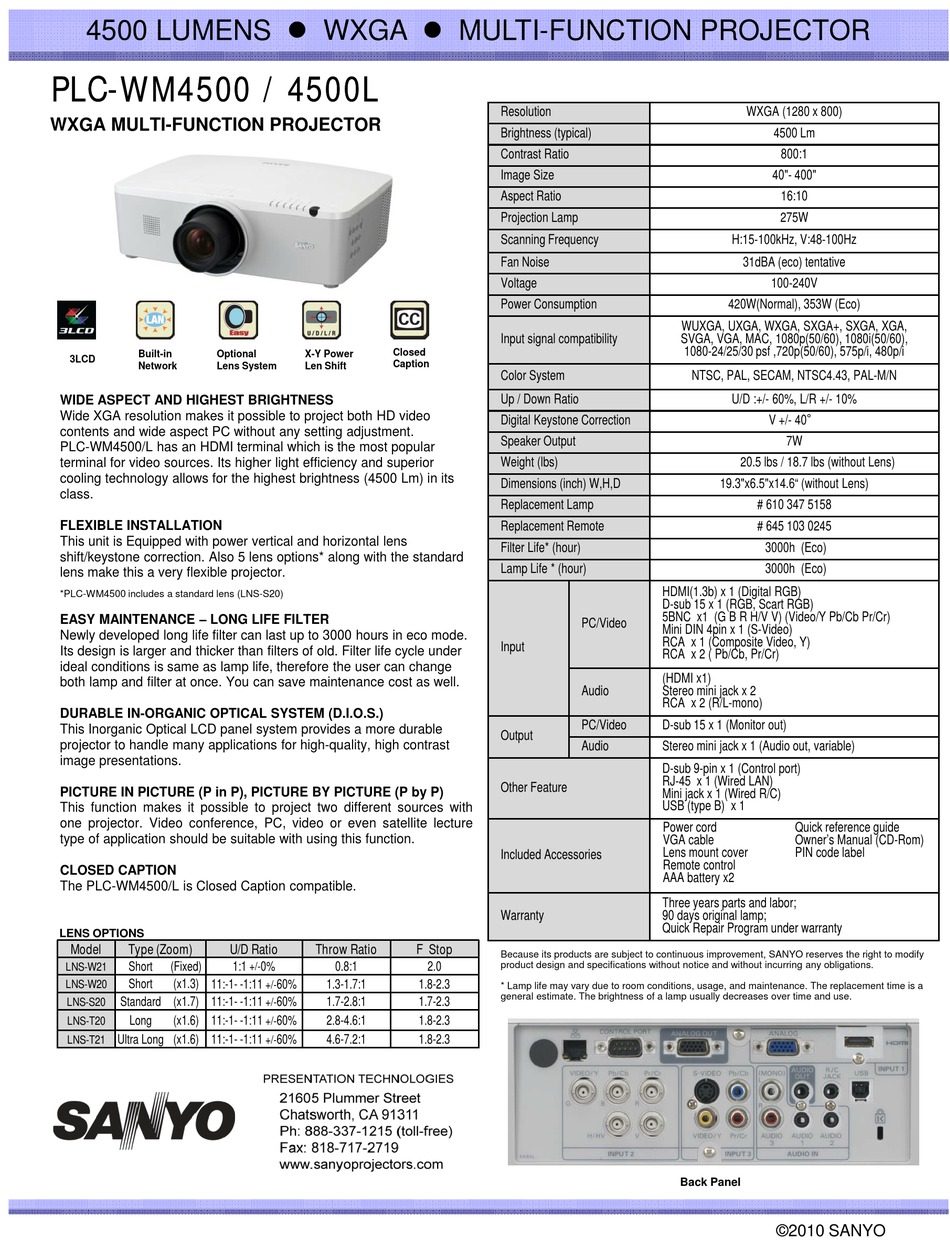

Sanyo PLC-WM4500 User Manual

4500 LUMENS
PLC- - WM4500 / 4500L PLC WM4500 / 4500L
WXGA MULTI-FUNCTION PROJECTOR
Built-in Optional
3LCD
Network Lens System
WIDE ASPECT AND HIGHEST BRIGHTNESS
Wide XGA resolution makes it possible to project both HD video
contents and wide aspect PC without any setting adjustment.
PLC-WM4500/L has an HDMI terminal which is the most popular
terminal for video sources. Its higher light efficiency and superior
cooling technology allows for the highest brightness (4500 Lm) in its
class.
FLEXIBLE INSTALLATION
This unit is Equipped with power vertical and horizontal lens
shift/keystone correction. Also 5 lens options* along with the standard
lens make this a very flexible projector.
*PLC-WM4500 includes a standard lens (LNS-S20)
EASY MAINTENANCE – LONG LIFE FILTER
Newly developed long life filter can last up to 3000 hours in eco mode.
Its design is larger and thicker than filters of old. Filter life cycle under
ideal conditions is same as lamp life, therefore the user can change
both lamp and filter at once. You can save maintenance cost as well.
DURABLE IN-ORGANIC OPTICAL SYSTEM (D.I.O.S.)
This Inorganic Optical LCD panel system provides a more durable
projector to handle many applications for high-quality, high contrast
image presentations.
PICTURE IN PICTURE (P in P), PICTURE BY PICTURE (P by P)
This function makes it possible to project two different sources with
one projector. Video conference, PC, video or even satellite lecture
type of application should be suitable with using this function.
CLOSED CAPTION
The PLC-WM4500/L is Closed Caption compatible.
LENS OPTIONS LENS OPTIONS
Model Type (Zoom) U/D Ratio
LNS-W21 Short (Fixed)
Short (x1.3) 11:-1- -1:11
LNS-W20
Standard (x1.7) 11:-1- -1:11
LNS-S20
Long (x1.6) 11:-1- -1:11
LNS-T20
Ultra Long (x1.6) 11:-1- -1:11
LNS-T21
WXGA
Closed
X-Y Power
Caption
Len Shift
Throw Ratio
1:1 +/- 0% 0.8:1
60% 1.3-1.7:1
+/-
+/- 60% 1.7-2.8:1
60% 2.8-4.6:1
+/-
60% 4.6-7.2:1
+/-
MULTI-FUNCTION PROJECTOR
Resolution
Brightness (typical)
Contrast Ratio
Image Size
Aspect Ratio
Projection Lamp
Scanning Frequency
Fan Noise
Voltage
Power Consumption
Input signal compatibility
Color System
Up / Down Ratio
Digital Keystone Correction
Speaker Output
Weight (lbs)
Dimensions (inch) W,H,D
Replacement Lamp
Replacement Remote
Filter Life* (hour)
Lamp Life * (hour)
PC/Video PC/Video
Input
Audio
PC/Video
Output
Audio
Other Feature
Included Accessories
Warranty
F Stop
Because its products are subject to continuous improvement, SANYO reserves the right to modify
2.0
product design and specifications without notice and without incurring any obligations.
1.8-2.3
* Lamp life may vary due to room conditions, usage, and maintenance. The replacement time is a
general estimate. The brightness of a lamp usually decreases over time and use.
1.7-2.3
1.8-2.3
1.8-2.3
WXGA (1280 x 800)
4500 Lm
800:1
40"- 400"
16:10
275W
H:15-100kHz, V:48-100Hz
31dBA (eco) tentative
100-240V
420W(Normal), 353W (Eco)
WUXGA, UXGA, WXGA, SXGA+, SXGA, XGA,
SVGA, VGA, MAC, 1080p(50/60), 1080i(50/60),
1080-24/25/30 psf ,720p(50/60), 575p/i, 480p/i
NTSC, PAL, SECAM, NTSC4.43, PAL-M/N
U/D :+/- 60%, L/R +/- 10%
V +/- 40°
7W
20.5 lbs / 18.7 lbs (without Lens)
19.3"x6.5"x14.6" (without Lens)
# 610 347 5158
# 645 103 0245
3000h (Eco)
3000h (Eco)
HDMI(1.3b) x 1 (Digital RGB)
D-sub 15 x 1 (RGB, Scart RGB)
5BNC x1 (G B R H/V V) (Video/Y Pb/Cb Pr/Cr)
Mini DIN 4pin x 1 (S-Video) Mi i DIN 4 i 1 (S Vid )
RCA x 1 (Composite Video, Y)
RCA x 2 ( Pb/Cb, Pr/Cr)
(HDMI x1)
Stereo mini jack x 2
RCA x 2 (R/L-mono)
D-sub 15 x 1 (Monitor out)
Stereo mini jack x 1 (Audio out, variable)
D-sub 9-pin x 1 (Control port)
RJ 45 x 1 (Wired LAN) RJ-45 x 1 (Wired LAN)
Mini jack x 1 (Wired R/C)
USB (type B) x 1
Power cord Quick reference guide
VGA cable Owner's Manual (CD-Rom)
Lens mount cover PIN code label
Remote control
AAA battery x2
Three years parts and labor;
90 days original lamp;
Quick Repair Program under warranty p g y
Back Panel
©2010 SANYO
