Summary of Contents for Vornado 693DC
-
Page 3: Table Of Contents

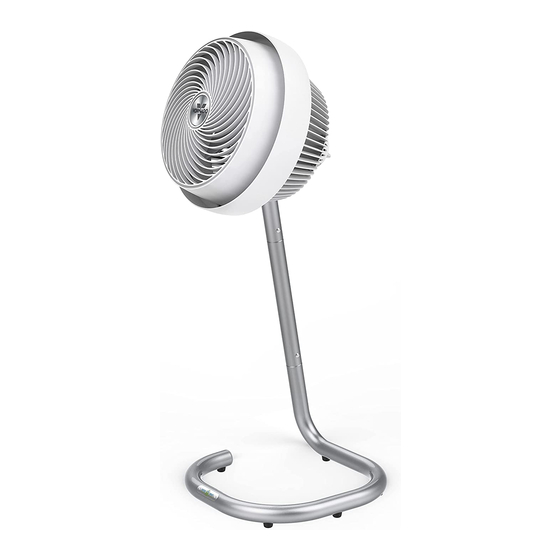

MODELS 693DC & 783DC OWNER’S GUIDE MODELOS 693DC & 783DC GUÍA DEL PROPIETARIO, MODÈLES 693DC & 783DC GUIDE D’UTILISATION CONTENTS Important Safety Instructions ............. 2 Getting Started ................... 5 Controls ....................6 Cleaning ....................7 Grille & Blade Removal ............... 8 Troubleshooting ................. -
Page 4: Important Safety Instructions
See www.vornado.com/circulators-manuals to view, - Do not run cord under carpeting. Do not cover cord with throw download and print the most current version of these instructions. - Page 5 - Connect the equipment into an outlet on a circuit different from that period of time or during electrical storms. to which the receiver is connected. - Contact Vornado Customer Service or dealer or an experienced SERVICING WARNING—To reduce risk of fire, electrical shock radio/TV technician for help.
- Page 6 Supplier's FCC Declaration of Conformity Unique Identifier: Vornado Models 693DC, 783DC Responsible Party: Vornado Air LLC Mailing Address : 415 E. 13th St., Andover, KS 67002 Contact: www.vornado.com DISPOSAL WARNING To reduce waste and environmental harm, observe the following: PACKAGE RECYCLING: The packaging protects the appliance from transport damage.
-
Page 7: Getting Started
Add extension (B) for full height product. Remove extension (B) for smaller height. POWER SUPPLY Model 693DC 24V DC/1.5 AMP Model 783DC 24V DC/2.5 AMP WARNING - Choking hazard. Keep small parts, like screws, away from children and pets. Note: The external... -
Page 8: Controls
CONTROLS VARIABLE SPEED CONTROL 1. Rotate knob to the right to turn on and increase speed. 2. Rotate knob to left to lower speed and turn off. English... -
Page 9: Cleaning
CLEANING Because your product moves a substantial amount of air, it will need regular cleaning to remove lint, dust and grime. Never clean the product in any manner other than instructed in this owner's guide. WARNING Observe the following safety information to avoid risks and property damage. -
Page 10: Grille & Blade Removal
GRILLE & BLADE REMOVAL Screwdriver required WARNING: To reduce the risk of electrical shock and injury to persons, unplug the circulator before removing grille or blade. GRILLE REMOVAL 1. Release the front grille clips located at the 10, 6 and 2 o’clock posi- tions. -
Page 11: Troubleshooting
Under certain conditions, it is possible for a reset GFCI (Ground Fault Circuit Interrupter) outlet to trip when the user is changing speeds on a Vornado circulator. In this event, change to an outlet that is not connected to a GFCI device. It could also indicate a weak or defective GFCI outlet. Contact a qualified electrician to check the GFCI outlet.
