Vox Valvetronix VT Series Easy Start

V A L V E T R O N I X
+ +
TUBE MODELING AMPS
1. Turning the Vox Valvetronix VT Amp on and getting sound.
Make sure the Amp is plugged into a wall outlet, and your guitar cable is plugged into the amp's input. Turn
on the amps on switch; remember to give the power tube a short time to warm up. Check to make sure the
guitar's volume is up. Next, turn the amp's Master Volume up, to the desired listening level. (Make sure the
Power Level knob on the amps back panel is turned up).
2. Selecting preset amp models.

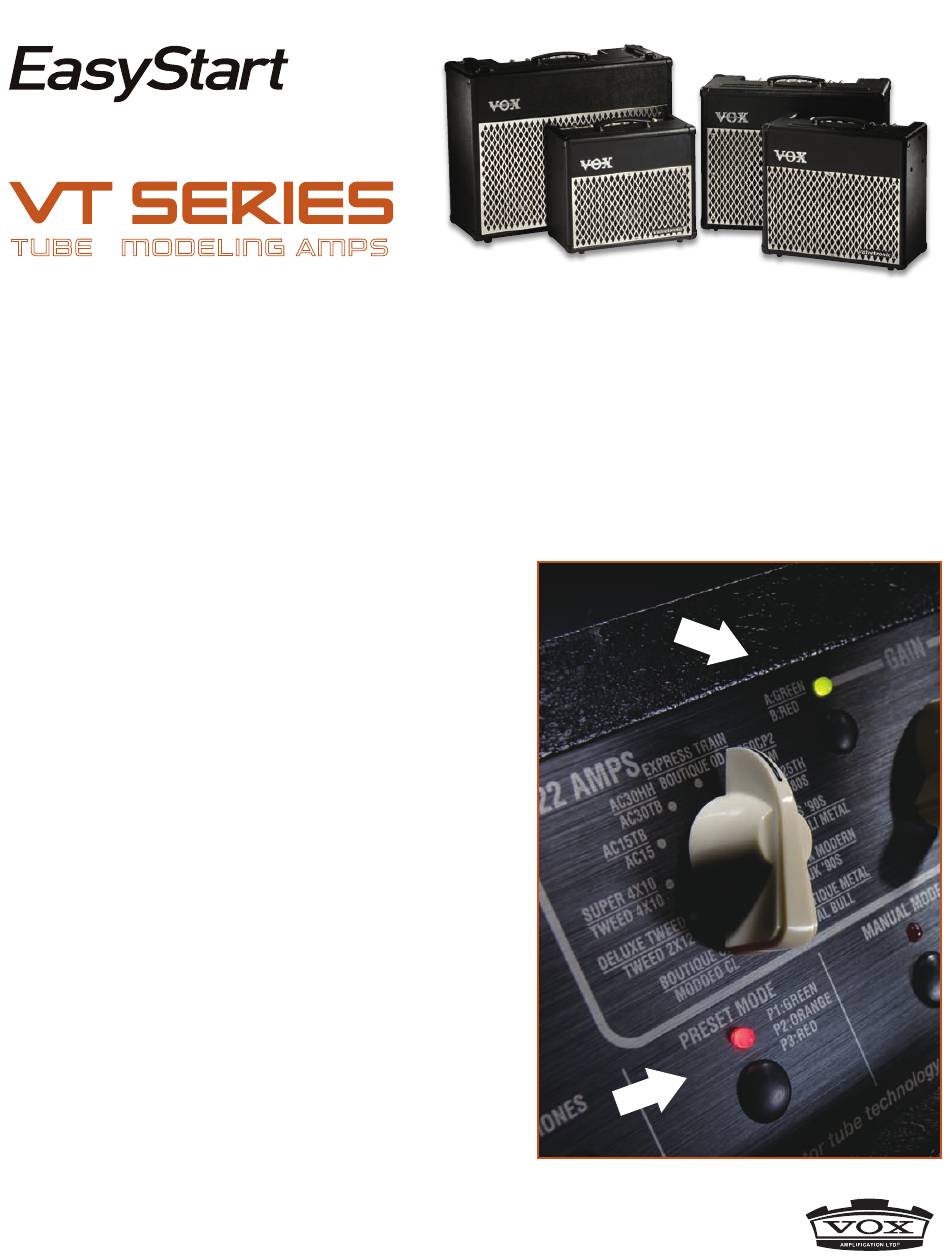

Press the Preset Mode button, found under the Amp
Models, next to the input, to access Preset Mode. Use the
chicken head knob, just above the Preset Mode button,
to select and scroll through the different Amp Models.
Each of the 11 amp model positions have two models,
to give a total of 22 amp models, which may be selected
by pressing the A: Green B: Red button, located between
the amp Models and the Gain knob. When the LED is lit
Green, the Amp Model on the top row is selected. When
the mode button LED is lit Red, the Amp Model on the
bottom row is then selected.
The VT has 66 actual presets, in Preset Mode. Press the
Preset Mode button to select the three different modes.
When (P1) Green is selected, you have accesses to 22
"dry or slightly effected" presets. When (P2) Orange is
selected, you have accesses to 22 "wet or effected"
presets, having many of the VT's effects already assigned
to them.
The (P1) Red mode gives you access to 22 "Artist" presets.
These presets give the tones of the songs that are listed,
on the glossy POP, positioned on top of the amp.
