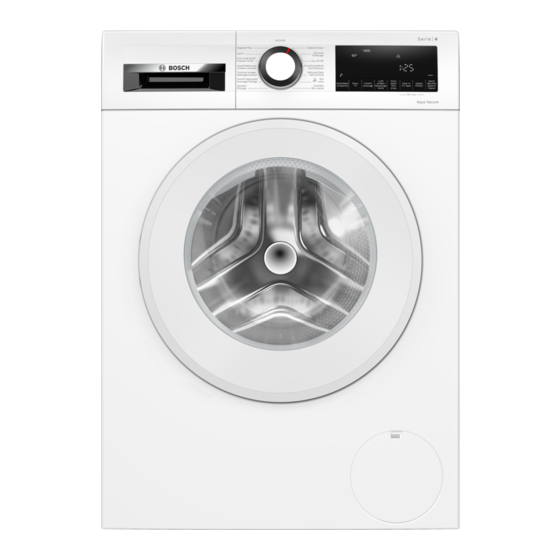

- Page 1 Translated from Dutch to English - www.onlinedoctranslator.com Washing machine WGG0440MFG [NL] User manual and installation instructions...
-
Page 2: Table Of Contents
Refer to the Digital User's Guide for more information. Index 1 Safety..........4 7 Display ........21 1.1 General instructions ....4 8 Buttons ........24 1.2 Destination of the device rate ........4 9 Programs ........ 25 1.3 Restriction of users ..4 10 Accessories........ - Page 3 16 Cleaning and maintenance ..34 16.1 Cleaning the drum ....34 16.2 Cleaning the detergent drawer........ 34 16.3 Cleaning the drain pump....35 17 Troubleshooting ....39 17.1 Emergency release....48 18 Transporting, Storing and drain........48 18.1 Disassembling the device ....48 18.2 Installing transport locks ........
-
Page 4: Safety
NLSafety 1 Safety Observe the following safety instructions. 1.1 General instructions sRead this manual carefully. sKeep the operating instructions and product information for future reference. for use or for subsequent owners. sDo not connect the device in case of transport damage. 1.2 Destination of the device Only use the device: sto wash machine-safe textiles and wool by hand... -
Page 5: Secure Installation
SafetyNL 1.4 Secure installation Observe the safety regulations when installing the device. WARNING ‒ Risk of electric shock! Improper installations are dangerous. ▶ Only connect and use the device in accordance with the information on the type plate. ▶ Only connect the device to a mains supply with alternating current via a properly installed earthing socket. - Page 6 NLSafety ▶ Use only manufacturer-approved adapters and power cords. ▶ If the power cord is too short and a longer power cord is not available, contact an electrical retailer to adjust the home installation. WARNING ‒ Risk of injury! The heavy weight of the device can cause injuries when lifted. ▶...
-
Page 7: Safer Use
SafetyNL There is a tripping hazard with incorrectly laid hoses and mains connection cables. ▶ Lay the hoses and connection cables in such a way that they cannot be tripped over. If the appliance is moved by protruding parts, such as the loading door, the parts can break off. - Page 8 NLSafety WARNING ‒ Risk of health hazard! Children can lock themselves in the appliance and endanger their lives. ▶ Do not install the appliance behind a door that blocks or prevents the opening of the appliance door. ▶ In the case of discarded appliances, remove the plug of the mains cable from the socket, then cut the mains cable and damage the lock of the appliance door so that the appliance door no longer closes.
-
Page 9: Safe Cleaning And Maintenance
SafetyNL Reaching into the rotating drum can cause injury to hands. ▶ Wait for the drum to come to a complete stop before reaching inside the drum with your hand. CAUTION ‒ Risk of burns! The soap gets hot when washing at high temperatures. ▶... - Page 10 NLSafety WARNING ‒ Risk of injury! The use of non-original spare parts and non-original accessories is dangerous. ▶ Only use original spare parts and original accessories from the manufacturer. WARNING ‒ Risk of poisoning! Toxic fumes can be generated when cleaning agents containing solvents are used.
-
Page 11: Avoiding Material Damage
Avoid material damageNL Make sure that the internal ▶ 2 Material damage diameter of the water tap is at least avoid 17 mm. Make sure that the thread length ▶ on the connection to the water Follow this instruction to avoid tap is at least 10 mm. -
Page 12: Environmental Protection And Saving
NLEnvironmental protection and saving Clean the device only with water ▶ Reduce washing temperature for and a soft, damp cloth. lightly and normally soiled laundry. aAt low temperatures, it consumes ▶ Remove all detergent residues, spray device less energy. For light to mist residues or residues immediately normal soiling, lower upon contact with the appliance. -
Page 13: Set-Up And Connection
Set up and connectNL Remark:The device has been checked 4 Set up and connect at the factory for correct operation. Water stains may remain in the device. The stains disappear after the 4.1 Unpacking device first wash. PAY ATTENTION! Objects that remain in the drum and The delivery consists of: s that are not intended for use with the Washing machine... -
Page 14: Removing Transport Locks
NLSet up and connect Pull the hoses out of the holders. installation site To demand The device with Plinth retaining lips settle. Place the device Floor with wooden guess at a wa- beams resistant wooden plate (thick- too minimal Loosen and remove all bolts of the 4 30mm) which transport locks with a SW13 open- screwed to the... -
Page 15: Connecting The Device
Set up and connectNL Remove the 4 sleeves. 4.5 Connecting device Connect water supply hose Connect the water supply hose to the appliance. Install the 4 cover caps. Connect the water inlet hose to the tap (26.4 mm = 3/4"). Push the 4 cover caps down. -
Page 16: Adjusting The Device
NLSet up and connect Remark:Observe the pumping 4.6 Adjusting the device heights. To reduce noises and vibrations and to The maximum pumping height bed prevent the device from walking, place the device horizontally. The connection position tie with a Loosen the lock nuts with a SW17 hose clamp open-end wrench. -
Page 17: Connecting The Appliance Electrically
Set up and connectNL Tighten the lock nuts against the housing with an open-end wrench SW17 hand-tight. Hold the appliance foot while doing so and do not adjust the height. 4.7 Connecting the appliance electrically Remark:Your home electrical installation for this appliance must comply with local legal and safety regulations and must include an earth leakage circuit breaker. -
Page 18: Getting To Know Your Device
NLGetting to know your device 5 Getting to know your device 5.1 Device Here you will find an overview of the components of your device. Depending on the device type, details in the picture may differ, e.g. the color the vor Service valve n pump Transport protections →... -
Page 19: Control Panel
Getting to know your deviceNL Detergent compartment II: detergent for the main wash Detergent dispenser: fabric softener Detergent compartment I: detergent for prewash 1 2 3 5.3 Control panel You can set all functions of your device and obtain information about the operating status via the control panel. -
Page 20: Before Using For The First Time
usage Fill powder detergent into 6 Before first use compartment II. B prepare the device for use use. 6.1 Starting a wash cycle without laundry Your device has been thoroughly checked before leaving the factory. To remove any residual water, wash without any laundry the first time. -
Page 21: Display
DisplayNL 7 Display The display shows the current setting values, options or information texts. Example display indication name More information Indication 0:40 Approximate expected program duration Program duration / remaining time of or time remaining in the program. the program →... - Page 22 NLDisplay name More information Indication Wash Program status To rinse Program status Centrifuge Program status Program end Program status Child lock slights up: the child lock is activated. s flashes: the child lock is activated and the device was operated. →...
- Page 23 DisplayNL name More information Indication Door slights up: the door is locked and can not be opened. sflashes: the door is not closed. soff: the door is unlocked and can be den open. Crane sNo water pressure. sThe water pressure is too low. E:35 / -10 Error code, error indication, signal.
- Page 24 NLTests 8 Keys The selection of the program settings depends on the program set. Knob Choice More information Start/Refill sstart Start, cancel or pause program. sCancel spause sactivate Activate or deactivate reduced Speed Perfect program duration. sdeactivate Remark:The energy consumption is higher.
-
Page 25: Programs
ProgramsNL 9 Programs Remark:The care labels on the laundry give you additional information on program selection. Max. Program Description bela- thing (kg) Cotton Wash hard-wearing cotton, linen and blended fabrics. Also suitable as a shortened program for normally soiled laundry if you activate Speed Perfect. Program setting: smax. - Page 26 NLPrograms Max. Program Description bela- thing (kg) Program setting: smax. 90 °C smax. 1400 rpm Wash textiles made of synthetic and blended fabrics. wrinkle recovery loin Program setting: smax. 60 °C smax. 1200 rpm Fast mix Wash textiles made of cotton, linen, synthetic materials and blended fabrics.
- Page 27 ProgramsNL Max. Program Description bela- thing (kg) Hygiene Plus Wash hard-wearing cotton, linen and blended fabrics. Suitable for allergy sufferers and with high hygiene requirements. Remark:When the set temperature is reached, it remains constant throughout the washing process. Program setting: smax.
- Page 28 NLPrograms Max. Program Description bela- thing (kg) Remark:If you have not used a program with a temperature of 60 °C or higher for a long time, the drum cleaning indicator flashes as a reminder. Extra fast Wash cotton, synthetic and blended fabrics. 15'/30' Short program for lightly soiled small items of laundry.
-
Page 29: Accessories
– Remove curtain rollers and lead in the table of contents or on laces or use a laundry net www.bosch-home.com. 11.1 Preparing the laundry – use a laundry net for small items of laundry, e.g. children's socks PAY ATTENTION! Objects left in the laundry can –... -
Page 30: Detergent And Care Ginger
→ "Programs", Page 25 instructions by scanning the QR code in the table of contents or on Required:The laundry is prepared. → "Laundry", Page 29 www.bosch-home.com. Open the door. Make sure the drum is empty. Place the laundry in the drum. -
Page 31: Dosing Detergent And Care Agent
ServiceNL Close the door. 13.7 Adding laundry Make sure that no small items of After the program has started, you laundry are caught in the door. can remove or add laundry depending on the program status. 13.5 Dosing detergent and care Required:A program has started. -
Page 32: Resume Program At Rinse Hold
NLChild lock 13.9 Resume program at 14 Child Lock rinse hold Secure your device against unwanted Requirements operation via the controls. sThe rinse hold is activated. sThe last rinse of the The set program has ended and the 14.1 Activating child lock laundry is in the rinse water. -
Page 33: Basic Settings
Basic settingsNL 15 Basic Settings You can configure the basic settings of your device according to your needs. 15.1 Overview of the basic settings Program- Description Basic setting Where the ling position Signal 0 (off) Adjust the volume of the signal 1 (soft) after the program has ended. -
Page 34: Changing Basic Settings
Carefully clean and maintain your appliance to ensure that it continues to work properly for a long time. Remark:You can find more information in the digital operating instructions by scanning the QR code in the table of contents or on www.bosch-home.com. -
Page 35: Cleaning The Drain Pump
Cleaning and maintenanceNL Pull out the insert from bottom to Clean the opening for the detergent top. drawer. Clean and dry the detergent drawer Slide the detergent drawer into the and insert with water and a brush. appliance. 16.3 Cleaning the drain pump Clean the drain pump in the event of malfunctions, e.g. - Page 36 NLCleaning and maintenance Place a sufficiently large Press the stopper back on. container under the opening. Clamp the drain hose in the holder. Remove the drain hose from the holder. CAUTION - Risk of burns!The Cleaning the drain pump soap gets hot when washing at high Required:The drain pump is empty.
- Page 37 Cleaning and maintenanceNL As there may still be residual Install the pump cover. water in the pump, carefully Check that the pump cover unscrew the lid. components are correctly Large impurities can cause the assembled. filter element to get stuck in the pump housing.
- Page 38 NLCleaning and maintenance Before the next wash To prevent unused detergent from flowing into the drain during the next wash, run the programmeDrainoff after you have emptied the pump. Open the tap. Plug in the mains plug. Switch on the device. Pour one liter of water into compartment II.
-
Page 39: Troubleshooting
TroubleshootingNL 17 Troubleshooting You can remedy minor faults on the device yourself. Before contacting customer service, please refer to the troubleshooting information. This way you avoid unnecessary costs. WARNING Risk of electric shock! Improper repairs are dangerous. Only trained specialist personnel may carry out repairs on the device. ▶... - Page 40 NLTroubleshooting Cause and Troubleshooting Malfunction "E:30 / -80" Remove any unauthorized extensions from the ▶ water drain hose. → "Connecting the device", page 15 Pump cover is not fully screwed in. Make sure that the pump cover is screwed into the ▶...
- Page 41 TroubleshootingNL Cause and Troubleshooting Malfunction Undervoltage can cause a program extension. flashes. No solution possible. burns. Temperature is too high. Wait for the temperature to drop. ▶ → "program cancel", page 31 ▶ Water level is too high. Select a suitable program for draining. ▶...
- Page 42 NLTroubleshooting Cause and Troubleshooting Malfunction Start/Refillwas not pressed. Program does not start. PressStart/Refill. ▶ Door is not closed. Close the door. To start the program, pressStart/Refill. Child lock is activated. → "Deactivate child lock", page 32 ▶ Ready inis activated. Check ifReady inis activated.
- Page 43 TroubleshootingNL Cause and Troubleshooting Malfunction Detergent dosage is too high. Washing water is not pumped out. ▶ Immediate measure: mix a tablespoon of fabric softener with 0.5 l of water and pour this mixture into the left compartment (not for outdoor, sportswear and down textiles).
- Page 44 NLTroubleshooting Cause and Troubleshooting Malfunction Remark:When loading, place large and small items of The program duration laundry together in the drum. Different sized laundry changes during the wash is more evenly distributed during the spin cycle. cycle. Foam control system provides an extra rinse when foaming is too high.
- Page 45 TroubleshootingNL Cause and Troubleshooting Malfunction High spin speed Unbalance control system compensates for rental is not imbalance through reduced spin speed. reached. Redistribute the laundry in the drum. ▶ Remark:If possible, place large and small items of laundry together in the drum. Different sized laundry is more evenly distributed during the spin cycle.
- Page 46 NLTroubleshooting Cause and Troubleshooting Malfunction wrinkling. Spin speed is too high. Set a lower spin speed for the next wash. ▶ The load quantity is too high. Reduce the load during the next wash. ▶ Inappropriate program set for the type of fabric. Select a suitable program for the type of fabric.
- Page 47 TroubleshootingNL Cause and Troubleshooting Malfunction Spin result is Remark:If possible, place large and small items of not to satisfaction- laundry together in the drum. Different sized laundry is more evenly distributed during the spin cycle. ness. The laundry is too wet / too damp. Start the programCentrifuge..
-
Page 48: Emergency Release
→ "Start the wash cycle without information in the digital operating laundry", page 20 . instructions by scanning the QR code in the table of contents or on www.bosch-home.com. Close the tap. Water supply hose empty. Switch off the device ate out. -
Page 49: Disposal Of Your Old Appliance
customer serviceNL 18.4 Disposal of your old chemical equipment (waste electrical and electronic appliance equipment - WEEE). Environmentally friendly disposal The directive sets the allows valuable raw materials to be framework for the take- reused. back valid in the EU and disposal of old appliances. - Page 50 NLcustomer service son the inside of the bottom holding valve. son the back of the device honeycomb. In order to quickly find your device data and the service telephone numbers, you can write down the data.
-
Page 51: Consumption Values
Consumption valuesNL 20 Consumption values The following information is provided in accordance with the EU Ecodesign Regulation. The specified values for other programs asEco 40-60are only guide values and have been determined in accordance with the applicable standard EN60456. Pro- Program bela- Water-... - Page 52 NLTechnical data Rated power 2300W gene Recorded Ver- sOff state: 0.15W be allowed to snon-disabled caved in position: 0.50 W sAt least: water pressure 100 kPa (1 bar) sMaximum: 1000 kPa (10 bar) Length of the 150 cm water supply feeding hose Length of the 150 cm...
- Page 56 Contact data of all countries are listed in the attached service directory. BSH Hausgeräte GmbH Carl-Wery-Straße 34 81739 Munich, GERMANY www.bosch-home.com A Bosch Company * 9001734895* 9001734895(020608)
