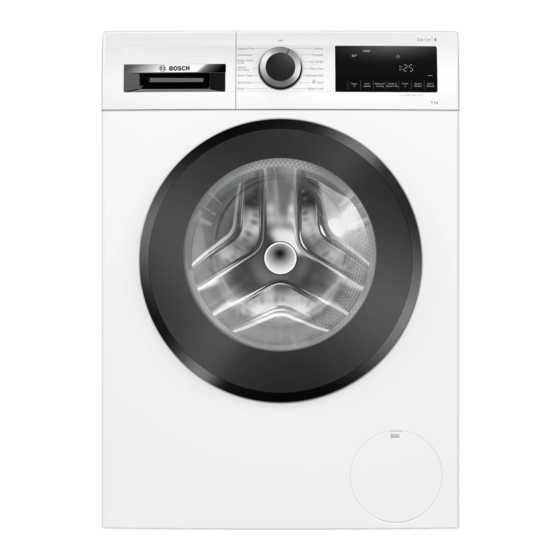

- Page 1 Washing machine WGG04409GB [en] User manual and installation instructions...
-
Page 2: Table Of Contents
Table of contents 1 Safety .......... 4 10 Accessories...... 28 1.1 General information.... 4 11 Laundry........ 28 1.2 Intended use....... 4 11.1 Preparing the laundry ..... 28 1.3 Restriction on user group... 4 1.4 Safe installation ...... 5 12 Detergents and care 1.5 Safe use ........ 7 products ........ - Page 3 17 Troubleshooting....... 37 17.1 Emergency release .... 46 18 Transportation, storage and disposal ........ 46 18.1 Removing the appliance .. 46 18.2 Inserting the transit bolts.. 46 18.3 Using the appliance again .. 46 18.4 Disposing of old appliance .. 47 19 Customer Service..... 47 19.1 Product number (E-Nr.) and production number (FD).. 47 20 Consumption values....
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only use this appliance: ¡... -
Page 5: Safe Installation
Safety en 1.4 Safe installation Take note of the safety instructions when installing the appliance. WARNING ‒ Risk of electric shock! Improper installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing. - Page 6 en Safety WARNING ‒ Risk of injury! The high weight of the appliance may result in injury when lifted. ▶ Do not lift the appliance on your own. If this appliance is not correctly installed in a washer-dryer stack, the installed appliance may fall. ▶...
-
Page 7: Safe Use
Safety en ▶ Wear protective gloves when installing and transporting the ap- pliance. 1.5 Safe use WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous. ▶ Never operate a damaged appliance. ▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains. - Page 8 en Safety WARNING ‒ Risk of poisoning! Detergents and care products may result in poisoning if con- sumed. ▶ If accidentally swallowed, seek medical advice. ▶ Keep detergents and care products out of the reach of children. WARNING ‒ Risk of explosion! Laundry that has been pretreated with cleaning agents that con- tain solvents may cause an explosion in the appliance.
-
Page 9: Safe Cleaning And Maintenance
Safety en 1.6 Safe cleaning and maintenance Take note of the safety instructions when cleaning and performing maintenance work on the appliance. WARNING ‒ Risk of electric shock! Incorrect repairs are dangerous. ▶ Repairs to the appliance should only be carried out by trained specialist staff. -
Page 10: Preventing Material Damage
en Preventing material damage Make sure that the length of the ▶ 2 Preventing material thread on the connection to the water tap is at least 10 mm. damage If the water pressure is too high or too low, the appliance may not be Follow these instructions to avoid ma- able to operate properly. -
Page 11: Environmental Protection And Saving Energy
Environmental protection and saving energy en Remove all detergent residue, Set the maximum spin speed if you ▶ spray residue or other residues im- want to dry the laundry in the tumble mediately if they come into contact dryer afterwards. with the appliance. a The drier the laundry, the shorter the programme duration when dry- ing which, in turn, reduces energy... -
Page 12: Installation And Connection
en Installation and connection Replace the accessories in ques- ▶ 4 Installation and con- tion before operating the appli- ance. nection → "Accessories", Page 28 Note: The appliance has been tested 4.1 Unpacking the appliance at the factory to check it is in working order. As a result, water stains may ATTENTION! remain in the appliance. - Page 13 Installation and connection en ATTENTION! Installation loca- Requirements If residual water in the appliance tion freezes, this may cause damage to Against a wall Do not trap the the appliance. hoses between Do not install or operate this appli- ▶ the wall and the ance anywhere that is liable to ex- appliance.
-
Page 14: Connecting The Appliance
en Installation and connection Remove the power cable from the Press down on the 4 cover caps. holder. 4.5 Connecting the appliance Remove the 4 sleeves. Connecting the water inlet hose Connect the water inlet hose. Put on the 4 cover caps. Connect the water inlet hose to a tap (26.4 mm = 3/4"). -
Page 15: Aligning The Appliance
Installation and connection en Water outlet connection types 4.6 Aligning the appliance This information is intended to help In order to reduce noise and vibra- you to connect this appliance to the tion and to prevent the appliance water outlet. from moving, align the appliance cor- rectly. -
Page 16: Connecting The Appliance To The Electricity Supply
en Installation and connection Screw the lock nuts tightly against the housing using a WAF 17 wrench. In doing so, hold the foot tight and do not adjust its height. 4.7 Connecting the appliance to the electricity supply Note: Your electrical domestic install- ation for this appliance must comply with the local legal provisions and safety regulations, and should in-... -
Page 17: Familiarising Yourself With Your Appliance
Familiarising yourself with your appliance en 5 Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. On certain models, specific details such as the colour and shape may differ from those pictured. Maintenance flap for the drain pump → Page 33 Door Detergent drawer → Page 18... -
Page 18: Detergent Drawer
en Familiarising yourself with your appliance 5.2 Detergent drawer Measuring aid for liquid deter- gent → "Inserting the measuring aid for liquid detergent", Page 30 Compartment II: ¡ Detergent for main wash ¡ Water softener ¡ Bleach ¡ Stain remover Compartment ¡ Fabric softener ¡... -
Page 19: Before Using For The First Time
first time en Pour standard washing powder first time 6 Before using for the into compartment II. first time Prepare the appliance for use. first time 6.1 Starting an empty wash- ing cycle Your appliance was inspected thor- oughly before leaving the factory. To remove any residual water, run the first wash cycle without any laundry. -
Page 20: Display
en Display 7 Display The display shows the current settings, options or relevant information. Example: Display display Designation More information 0:40 Programme dura- Approximate expected programme dura- tion/programme tion or programme time remaining. time remaining "Ready in" time → "Buttons", Page 23 9,0 kg Recommended The maximum load capacity for the selec- load... - Page 21 Display en display Designation More information Rinse Programme status Spin Programme status End of pro- Programme status gramme Childproof lock ¡ lights up: The childproof lock is activ- ated. ¡ flashes: The childproof lock is activated and the appliance has been operated. → "Deactivating the childproof lock", Page 32 ...
- Page 22 en Display display Designation More information E:35 / -10 Error Error code, error display, signal. Example...
-
Page 23: Buttons
Buttons en 8 Buttons The selection of programme settings depends on the programme that is set. You can see the selection options for each programme in the overview for → "Programmes", Page 24. Button Selection More information Start / Reload ¡ Start Start, cancel or pause the pro- gramme. -
Page 24: Programmes
en Programmes 9 Programmes Note: The laundry's care labels provide you with additional information on pro- gramme selection. Programme Description Max. load (kg) Cottons Wash hard-wearing items made from cotton, linen or blended fabrics. Also suitable as a short programme for normally soiled laundry when you activate Speed Perfect . Programme setting: ¡... - Page 25 Programmes en Programme Description Max. load (kg) Easy Care Wash items made from synthetic or blended fab- rics. Programme setting: ¡ Max. 60 °C ¡ Max. 1200 rpm Mixed Load Wash items made from cotton, linen, or synthetic or blended fabrics. Suitable for lightly soiled laundry.
-
Page 26: Laundry
en Programmes Programme Description Max. load (kg) Note: Once the set temperature has been reached, it remains constant throughout the entire washing process. Programme setting: ¡ Max. 60 °C ¡ Max. 1400 rpm Sportswear Wash sports and leisure items made from synthetic fibres, microfibre or fleece. Use a detergent that is suitable for sports items. - Page 27 Programmes en Programme Description Max. load (kg) The programme duration is approx. 30 minutes. If you wish to reduce the programme duration to 15 minutes, activate Speed Perfect . The maximum load is reduced to 2,0 kg. Programme setting: ¡ Max. 40 °C ¡...
-
Page 28: Preparing The Laundry
– Brush sand out of all collars and scanning the QR code in the table of pockets contents or on www.bosch- – Close bed covers and cushion home.com. covers – Close all zips, Velcro fasteners, 11.1 Preparing the laundry... -
Page 29: Detergents And Care
▶ programme. Notes ¡ More detailed instructions for use 13.2 Setting a programme can be found on www.bosch- home.com or by scanning the QR Turn the programme selector and code on the title page of this user set the required programme. -
Page 30: Inserting The Measuring Aid For Liquid Detergent
en operation Requirement: The laundry is pre- 13.6 Use the measuring aid pared. for liquid detergent → "Laundry", Page 28 To add liquid detergent, you can use Open the door. a measuring aid in the detergent Make sure that the drum is empty. drawer. Place the laundry in the drum. Pull out the detergent drawer. -
Page 31: Starting The Programme
operation en Pull out the detergent drawer. – If the temperature is high, start the Rinse programme. Pour in detergent. – If the water level is high, start → "Detergent drawer", Page 18 the Spin programme or select If required, add the care product. a suitable programme for drain- Push in the detergent drawer. -
Page 32: Childproof Lock
Note: You can find further information operated unintentionally using the in the digital instruction manual by controls. scanning the QR code in the table of contents or on www.bosch- 14.1 Activating the childproof home.com. lock 16.1 Cleaning the drum Press and hold the two ... -
Page 33: Cleaning The Drain Pump
Cleaning and servicing en Press down on the insert and re- Fit the insert and click it into place. move the detergent drawer. Clean the opening for the deter- Pull out the insert upwards. gent drawer. Clean the detergent drawer and in- Push in the detergent drawer. - Page 34 en Cleaning and servicing Open and remove the service flap. CAUTION - Risk of scalding! When you wash at high temperat- ures, the detergent solution gets hot. Do not touch the hot detergent ▶ solution. To allow the detergent solution to flow out into the container, remove the sealing cap.
- Page 35 Cleaning and servicing en Insert the pump cap. Cleaning the drain pump Ensure that the parts of the Requirement: The drain pump is ‒ pump cap are correctly as- empty. → Page 33 sembled. Since water may remain in the drain pump, unscrew the pump cap carefully.
- Page 36 en Cleaning and servicing Before the next wash To prevent unused detergent from flowing straight into the outlet in the next wash, run the Drain programme after you have emptied the drain pump. Turn on the water tap. Insert the mains plug. Switch on the appliance.
-
Page 37: Troubleshooting
Troubleshooting en 17 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Incorrect repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶... - Page 38 en Troubleshooting Fault Cause and troubleshooting "E:30 / -80" Remove any unapproved extensions from the water ▶ hose. → "Connecting the appliance", Page 14 The pump cap is not fully screwed in. Ensure that the pump cap is screwed in all the way ▶...
- Page 39 Troubleshooting en Fault Cause and troubleshooting flashes. Voltage under-usage may cause extension of a pro- gramme. No remedial action possible. lights up. The temperature is too high. Wait until the temperature has dropped. ▶ → "Cancelling the programme", Page 31 ▶ Water level is too high. Select a suitable programme for draining.
- Page 40 en Troubleshooting Fault Cause and troubleshooting The programme does Close the door. not start. Press Start / Reload to start the programme. Childproof lock is activated. → "Deactivating the childproof lock", Page 32 ▶ Finish in is activated. Check whether Finish in is activated. ▶...
- Page 41 Troubleshooting en Fault Cause and troubleshooting The water is not drain- Reduce the amount of detergent for the next wash- ▶ ing. ing cycle with the same load. Unapproved extension installed on the water drain hose. Remove any unapproved extensions from the water ▶...
- Page 42 en Troubleshooting Fault Cause and troubleshooting No water is visible in Water is below the visible area. the drum. Not a fault – no action required. ▶ Do not add any extra water to the appliance while it ▶ is operating. Drum jerks after the This is caused by an internal motor test.
- Page 43 Troubleshooting en Fault Cause and troubleshooting The spin programme Drain pipe or water outlet hose is blocked. does not start. Clean the drain pipe and the water outlet hose. ▶ Drain pipe or water drain hose is caught or jammed. Ensure that the drain pipe and water drain hose are ▶...
- Page 44 en Troubleshooting Fault Cause and troubleshooting Detergent or fabric Too much detergent/fabric softener in the detergent softener drips off the drawer. seal and collects on When dosing liquid detergent and fabric softener, ▶ the door or in the seal observe the marking in the detergent drawer and fold.
- Page 45 Troubleshooting en Fault Cause and troubleshooting Water is leaking out at Water inlet hose is not correctly/securely connected. the water inlet hose. Connect the water supply hose correctly. → "Connecting the water inlet hose", Page 14 Tighten the screw connection. Water is leaking out at The water outlet hose is damaged.
-
Page 46: Emergency Release
Note: You can find further information → "Before using for the first time", in the digital instruction manual by Page 19. scanning the QR code in the table of contents or on www.bosch- home.com. Turn off the tap. Empty the water inlet hose. -
Page 47: Disposing Of Old Appliance
Customer Service en 18.4 Disposing of old appli- 19 Customer Service ance If you have any queries on use, are Valuable raw materials can be re- unable to rectify faults on the appli- used by recycling. ance yourself or if your appliance needs to be repaired, contact Cus- WARNING tomer Service. - Page 48 en Customer Service Make a note of your appliance's de- tails and the Customer Service tele- phone number to find them again quickly.
-
Page 49: Consumption Values
Consumption values en 20 Consumption values The following information is provided in accordance with the EU Ecodesign Regulation. The values given for programs other than the Eco 40-60 are indicat- ive only and were determined in accordance with the applicable standard EN60456. Programme Load Pro-... - Page 50 en Technical data Maximum load 9,0 kg Mains voltage 220-240 V, 50-60 Hz Minimum in- stallation protec- tion Nominal power 2300 W Power consump- ¡ Off mode: tion 0,15 W ¡ Left-on mode: 0,50 W Water pressure ¡ Minimum: 100 kPa (1 bar) ¡ Maximum: 1000 kPa (10 bar) Length of the wa- 150 cm ter inlet hose...
